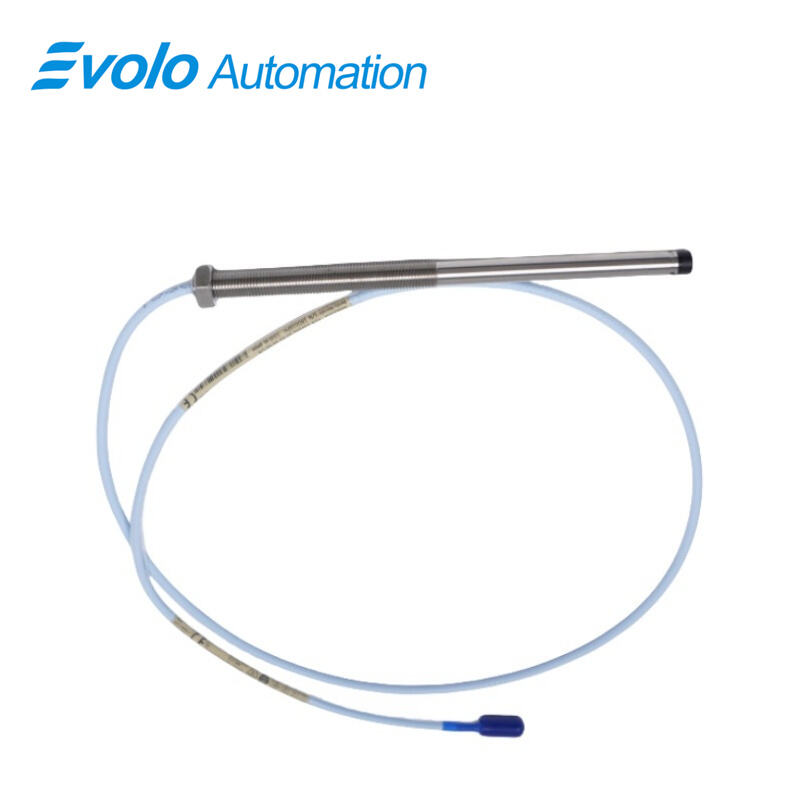

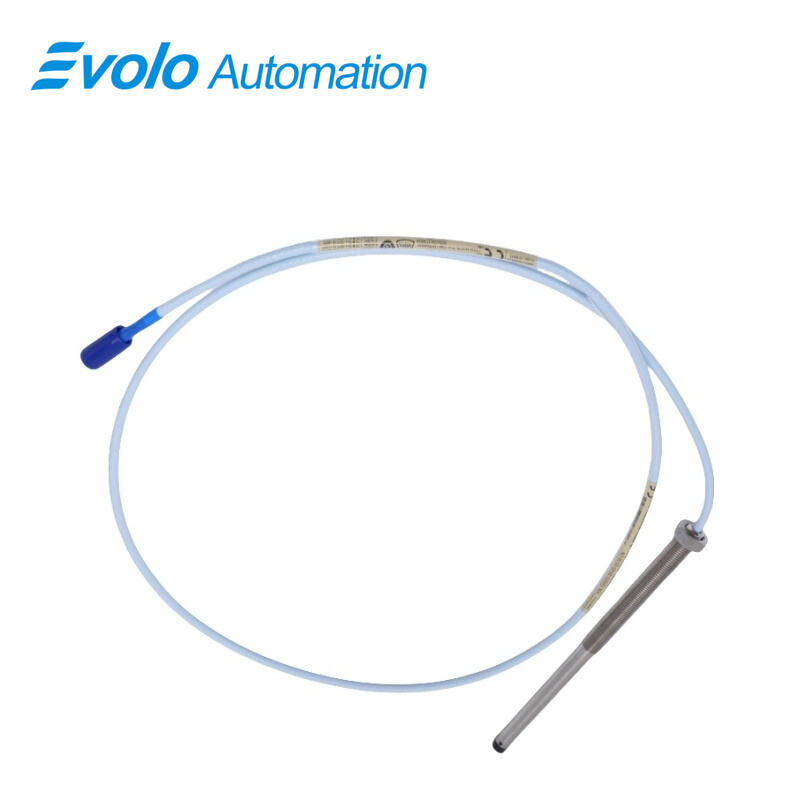

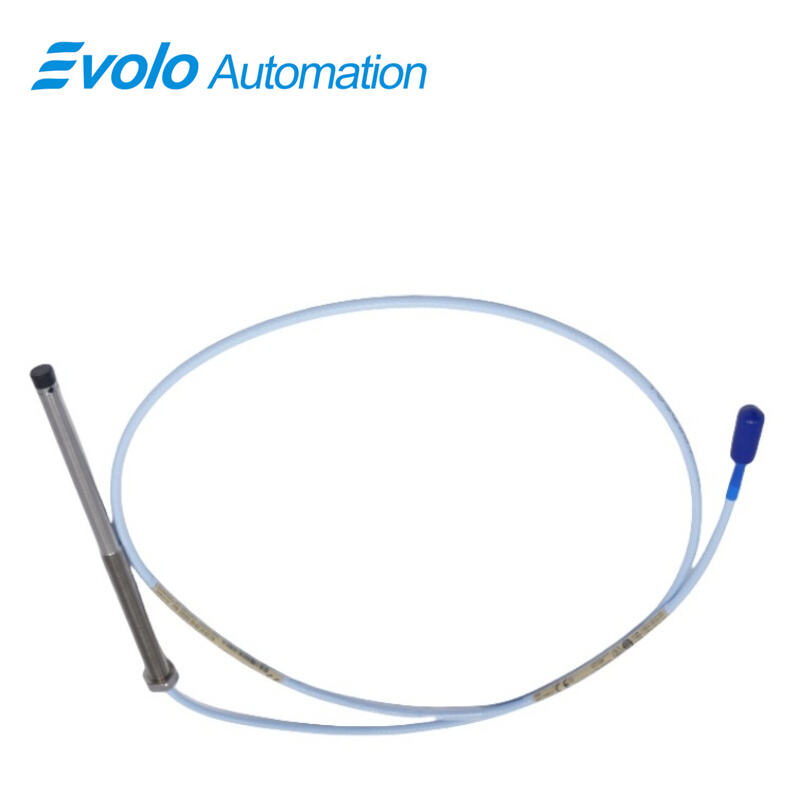

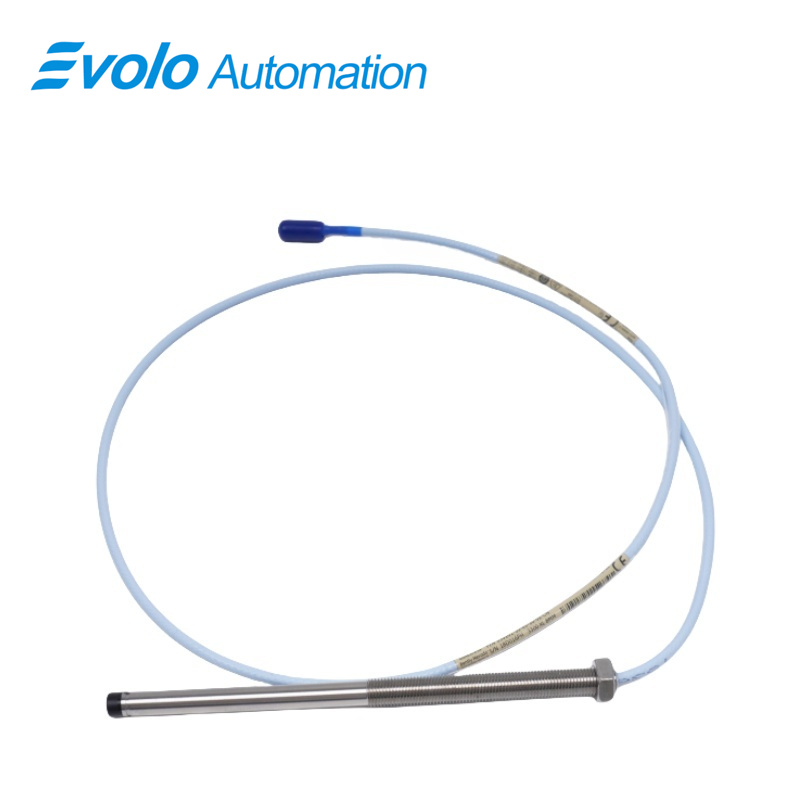

330101-30-49-10-02-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-30-49-10-02-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-30-49-10-02-05 3300 XL 8 mm Proximity Probe is a high-performance eddy current transducer designed for precise, non-contact measurement of both static position and dynamic vibration in industrial automation systems. With a linear range of 2 mm (80 mils) and output resistance of 50 Ω, it delivers accurate displacement and vibration readings on fluid-film bearing machines. The probe features a 3/8-24 UNF threaded case, Miniature coaxial ClickLoc connector, and 1.0-meter (3.3 ft) standard cable, providing secure connections and robust signal integrity. It operates reliably across extreme conditions from -52°C to +177°C (-62°F to +350°F) and is approved for hazardous environments under CSA, ATEX, and IECEx standards. The probe incorporates Bently Nevada’s patented TipLoc and CableLoc designs, offering a 330 N (75 lbf) pull strength and ensuring a robust mechanical bond between the probe tip and body. Optional FluidLoc cables prevent oil and other liquid ingress, improving reliability in lubrication-heavy applications. Fully compatible with 3300 XL 5 mm and 8 mm transducer systems, this probe allows seamless retrofits, API 670-compliant monitoring, and simplified system integration, delivering high precision in speed, Keyphasor, and shaft position measurements.

Applications

1. Shaft Vibration Monitoring
The probe’s 2 mm linear range and high sensitivity allow real-time vibration analysis for rotating machinery, supporting predictive maintenance and early fault detection.

2. Axial Position Measurement
Ideal for measuring thrust or axial displacement in turbines and compressors, maintaining precise readings across extreme temperatures (-52°C to +177°C).

3. Keyphasor Reference Signals
Provides accurate rotational speed and zero-speed signals for machinery synchronization, enhancing the reliability of control systems and automated monitoring.

4. Hazardous Environment Operation
With CSA, ATEX, and IECEx approvals and IP67-equivalent protection, the probe can safely monitor equipment in flammable, dusty, or high-moisture conditions.

5. Retrofit and Upgrade Flexibility
Backward compatible with non-XL 3300 5 mm and 8 mm components, allowing easy system upgrades and replacements without extensive reconfiguration, saving downtime and costs.

Specifications

Competitive Advantage

1. Superior Measurement Accuracy
Supply sensitivity under 2 mV per volt change and output resistance of 50 Ω ensures highly accurate, repeatable readings for critical machine monitoring.

2. Robust Mechanical Construction
Patented TipLoc and CableLoc designs provide 330 N pull strength and a durable bond between probe tip and body, ensuring long-term mechanical integrity under high-vibration conditions.

3. Extreme Environmental Resistance
Operates reliably from -52°C to +177°C (-62°F to +350°F), with optional FluidLoc cable sealing preventing liquid ingress in lubricated systems.

4. Seamless System Integration
Fully backward compatible with 3300 XL and non-XL 5 mm/8 mm components, simplifying upgrades, reducing calibration requirements, and maintaining API 670 compliance.

5. Hazardous Location Compliance
Certified to CSA, ATEX, and IECEx, enabling safe deployment in flammable and explosive atmospheres while maintaining operational reliability.
