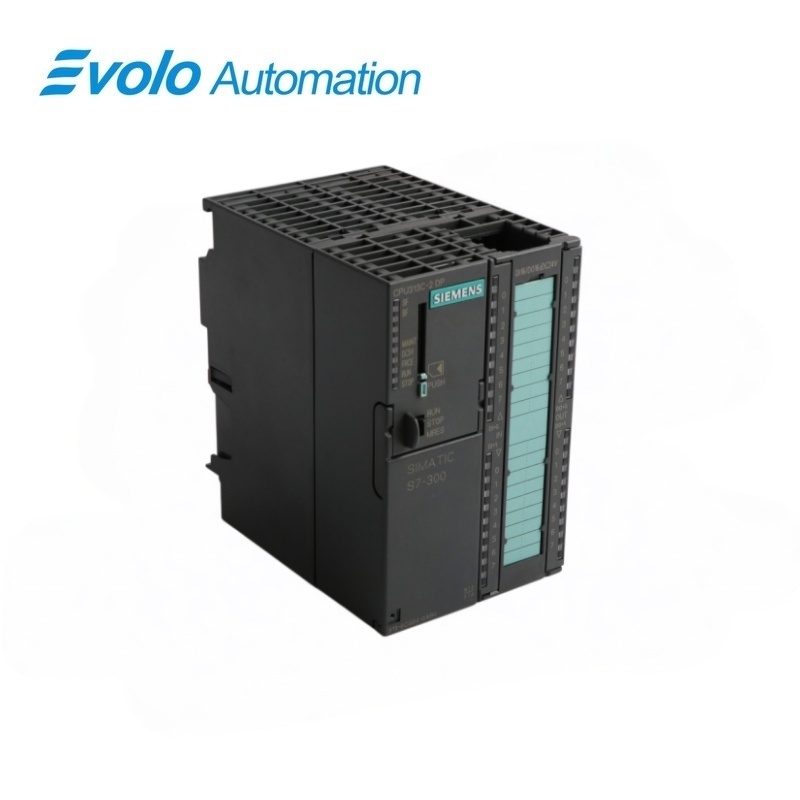

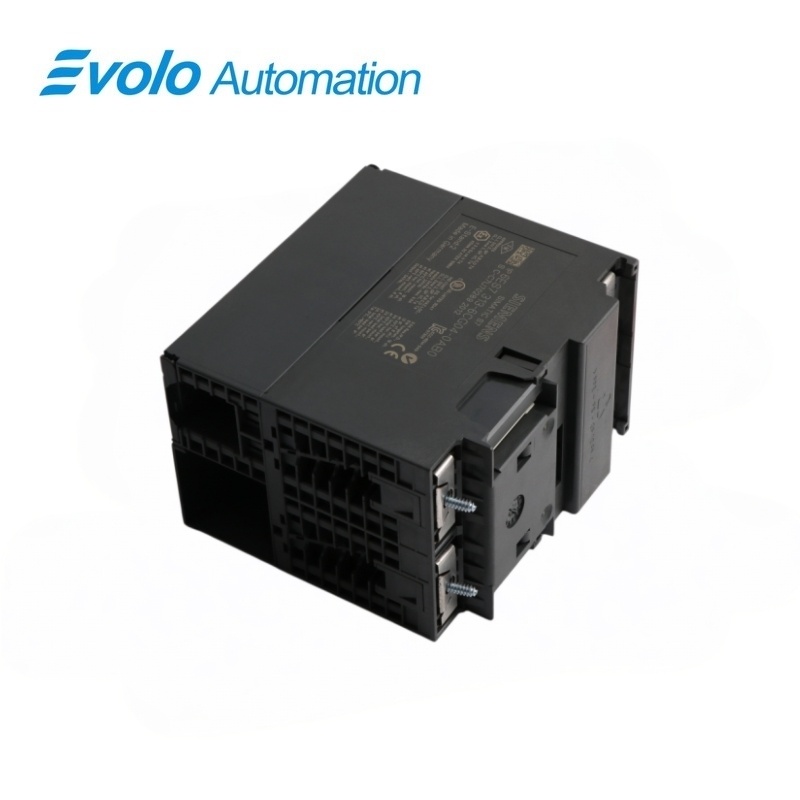

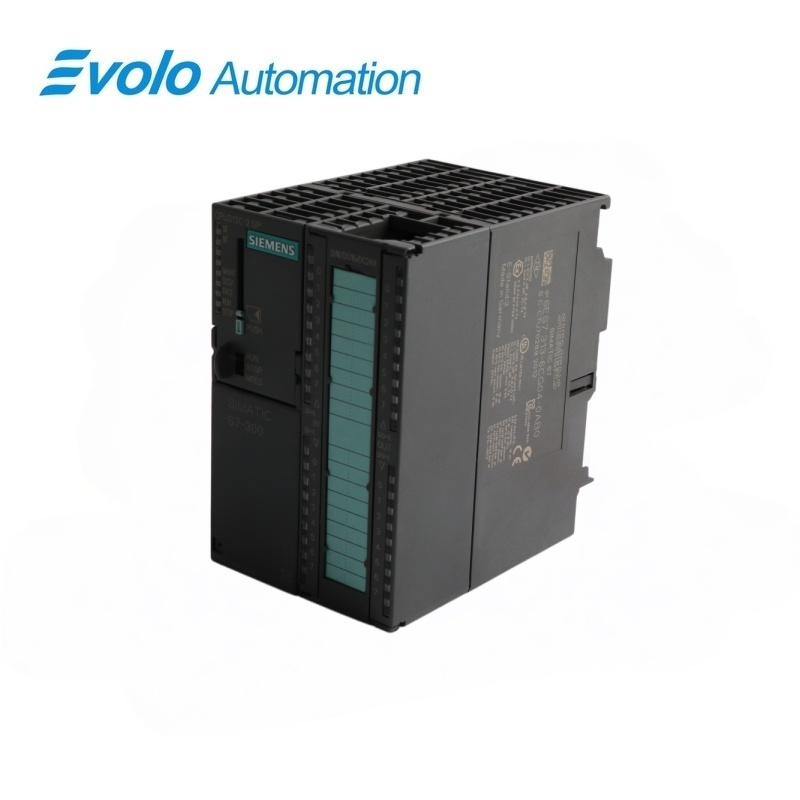

Siemens SIMATIC S7-300 6ES7313-6CG04-0AB0 CPU 313C-2
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
6ES7313-6CG04-0AB0 CPU 313C-2
Official Siemens identification and specifications for 6ES7313-6CG04-0AB0, prepared for accurate replacement matching and quotation.
At a Glance
| Article Number | 6ES7313-6CG04-0AB0 |
|---|---|
| Manufacturer | Siemens |
| Platform | SIMATIC S7-300 |
| Product Type | CPU 313C-2 |
| Country of Origin | Germany |
Exact Identification
Match the complete Siemens article number 6ES7313-6CG04-0AB0 and the photographed hardware revision.
Work memory
Work memory: 128 KB
Configuration Check
Integrated I/O: 16 DI / 16 DO; confirm rack, connectors and revision before replacement.
Product Overview
6ES7313-6CG04-0AB0 is the Siemens SIMATIC S7-300 CPU 313C-2 DP in the V3.3 firmware generation, combining controller processing, onboard digital I/O and PROFIBUS DP communication in one compact module.
Its official configuration includes 128 KB work memory, 16 digital inputs, 16 digital outputs, three high-speed counters rated to 30 kHz, an integrated 24 V DC supply, a 40-pole front-connector interface and a required SIMATIC Micro Memory Card.
Key Functions
Compact CPU with onboard I/O
6ES7313-6CG04-0AB0 integrates 16 DI and 16 DO, reducing the need for separate basic digital I/O modules.
MPI and PROFIBUS DP communication
The CPU provides MPI for programming and S7 communication plus an isolated integrated PROFIBUS DP interface for the configured fieldbus station.
Technology functions and memory
Three 30 kHz counters, frequency measurement, pulse functions and 128 KB of work memory support compact machine-control applications.
Official Specifications
| Manufacturer | Siemens |
|---|---|
| Series | SIMATIC S7-300 |
| Article Number | 6ES7313-6CG04-0AB0 |
| Product Type | CPU 313C-2 |
| Work memory | 128 KB |
| Integrated I/O | 16 DI / 16 DO |
| Official Configuration | 3 high-speed counters (30 kHz) |
| Interfaces | MPI, PROFIBUS DP |
| Official Configuration | SIMATIC Micro Memory Card required |
| Width | 80 mm |
| Net Weight | 0,560 Kg |
| Packaging Dimension | 13,10 x 15,50 x 9,10 CM |
| Country of Origin | Germany |
Official source: Siemens Industry Mall product data for 6ES7313-6CG04-0AB0. Commercial stock, warranty and shipping statements are seller terms.
Frequently Asked Questions
What type of controller is 6ES7313-6CG04-0AB0?
Siemens identifies 6ES7313-6CG04-0AB0 as a SIMATIC S7-300 CPU 313C-2 DP compact CPU.
Which onboard I/O does 6ES7313-6CG04-0AB0 provide?
The official configuration lists 16 digital inputs and 16 digital outputs.
Which interfaces are integrated in 6ES7313-6CG04-0AB0?
It includes an MPI interface and an integrated PROFIBUS DP interface.
How much work memory is available in 6ES7313-6CG04-0AB0?
Siemens specifies 128 KB of integrated work memory.
What counter functions are available on 6ES7313-6CG04-0AB0?
The CPU includes three high-speed counters with a maximum counting frequency of 30 kHz.
What supply is required for 6ES7313-6CG04-0AB0?
The module uses an integrated 24 V DC supply; the Siemens technical data gives a permissible DC range of 19.2 to 28.8 V.
What should be verified before replacing 6ES7313-6CG04-0AB0?
Confirm the full order number, V3.3 hardware/firmware generation, DP configuration, 40-pole front connector and Micro Memory Card.
Compatibility & Ordering Notes
Compatibility checklist for 6ES7313-6CG04-0AB0
- Confirm the STEP 7 project and PROFIBUS DP station parameters.
- Match the 16 DI/16 DO wiring and the 40-pole front connector.
- Transfer or replace the SIMATIC Micro Memory Card only under the documented service procedure.
- Check Siemens engineering requirements: STEP 7 V5.5 SP1 or the supported STEP 7 V5.3 SP2 configuration with HSP 203.
