Overview

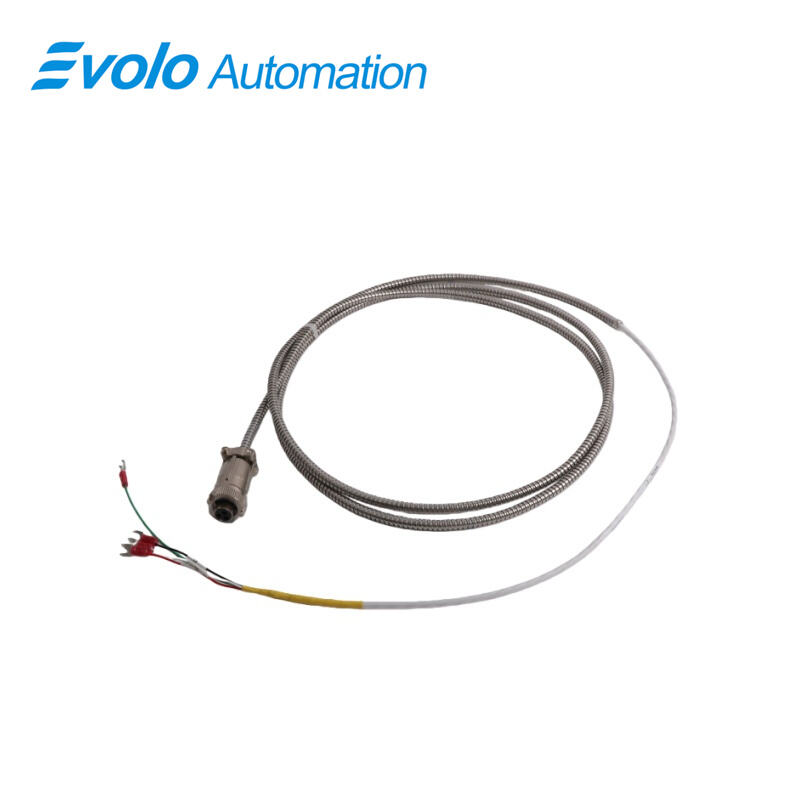

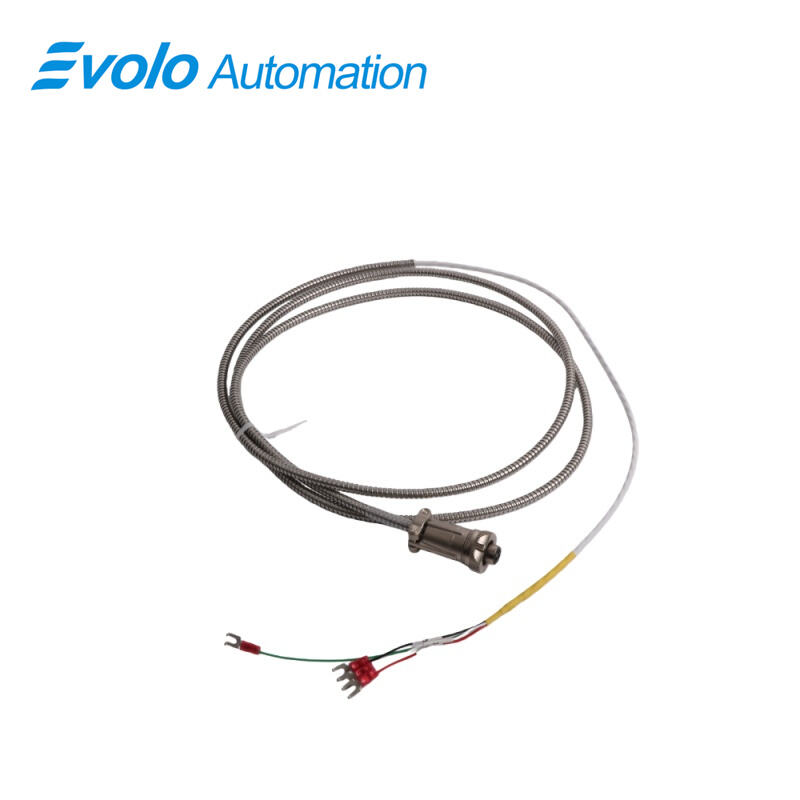

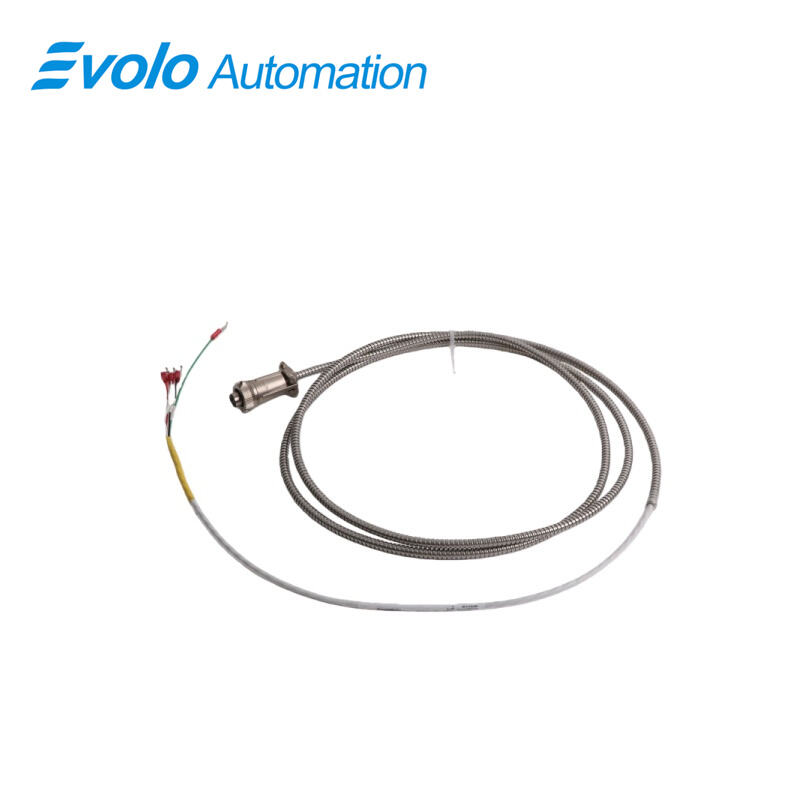

16710-08 Interconnect Cable
At a Glance
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
16710-08 |
Minimum Order Quantity: |
1 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Product Overview
Description
The 16710-08 Interconnect Cable is a high-performance, industrial-grade connection component independently developed and produced by Bently Nevada, specially designed for precision machinery condition monitoring systems and Proximitor sensor networks. As a core transmission link in industrial automation monitoring, the 16710-08 Interconnect Cable has excellent electrical signal stability and environmental adaptability, and is widely used in key equipment such as turbines, compressors, pumps and generators.
The 16710-08 Interconnect Cable adopts 24 AWG tinned copper conductor as the core material. The tinned copper conductor not only ensures excellent electrical conductivity, but also effectively resists oxidation and corrosion, extending the service life of the cable in harsh industrial environments. The cable is equipped with high-quality insulation and protective outer layer, which has strong resistance to chemical corrosion, abrasion and thermal degradation, and can maintain stable performance even in the environment of high vibration, large temperature difference and industrial pollutant erosion.
The standard length of the 16710-08 Interconnect Cable is 3.0 meters (9.8 feet), with compact dimensions of 30×26×3cm and a net weight of only 0.2kg, which realizes the characteristics of light weight and small volume. Its bending radius is not less than 10 times the cable diameter, which ensures flexible routing in narrow machinery enclosures and complex installation spaces without damaging the cable structure or affecting signal transmission. The 16710-08 Interconnect Cable supports multiple agency approvals, and is compatible with ClickLoc connectors, miniature coaxial connectors and standard Bently Nevada connectors, realizing fast and stable connection with the monitoring system.
Key Functions
Applications
1.Turbine & Compressor Condition Monitoring Systems
The 16710-08 Interconnect Cable is perfectly matched with Bently Nevada Proximitor sensors, and is widely used in the condition monitoring system of steam turbines, gas turbines and centrifugal compressors. Its stable signal transmission performance and vibration resistance can ensure the accurate collection of rotor vibration and shaft displacement data, and provide reliable data support for equipment fault early warning.
2.Pump & Generator Industrial Control Scenarios
Aiming at the working characteristics of pumps and generators in industrial sites, such as high load operation and large vibration amplitude, the 16710-08 Interconnect Cable can resist the interference of harsh environments, realize long-term stable connection between sensors and monitoring hosts, and ensure the continuous monitoring of equipment operating status.
3.Narrow Space & Complex Layout Installation Environments
With compact size (30×26×3cm), light weight (0.2kg) and excellent bending performance (bending radius ≥10× cable diameter), the 16710-08 Interconnect Cable is suitable for installation and routing in narrow equipment enclosures and complex industrial site layouts, reducing the difficulty of on-site construction.
4.Hazardous & Extreme Temperature Industrial Zones
Supported by multiple agency approvals, the 16710-08 Interconnect Cable can be deployed in regulated hazardous industrial areas. It can operate stably in the temperature range of -55°C to +200°C, and is suitable for high-temperature workshops, low-temperature storage and other extreme temperature working conditions.
Official Specifications
Quick Detail
|
Cable Core Material: |
Tinned copper conductor (24 AWG) |
|
Bending Radius: |
≥10 × cable diameter |
|
Agency Approval Option: |
Multiple approvals |
|
Total Length Option: |
3.0 meters (9.8 feet) |
|
Dimension: |
30x26x3cm |
|
Weight: |
0.2kg |
Specifications
|
Operating Temperature: |
-55°C to +200°C (-65°F to +390°F) |
|
Storage Temperature: |
-50°C to +150°C (-60°F to +305°F) |
|
Cable Flexibility： |
Bend radius: 10× cable diameter (static); 15× cable diameter (dynamic) |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
54 pF/m (16.8 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Shielding Effectiveness: |
≥80 dB at 1 GHz |
Frequently Asked Questions
What is the model number?
The listed model number is 16710-08.
What is the brand name?
The listed brand name is Bently Nevada.
What is the place of origin?
The listed place of origin is USA.
What are the packaging details?
The listed packaging details are Original new Factory Sealed.
What is the delivery time?
The listed delivery time is 5-7 days.
Is this model available?
The listed supply status is In stock.
What are the payment terms?
The listed payment terms are T/T.
Compatibility & Ordering Notes
Competitive Advantage
1.High-Quality Core Material & Durable Structure
The cable adopts 24 AWG tinned copper conductor, which has excellent conductivity and corrosion resistance, and is matched with wear-resistant and corrosion-resistant insulation layer, which effectively improves the service life of the cable in harsh industrial environments and reduces the maintenance frequency and cost of the system.
2.Excellent Environmental Adaptability
It has a wide operating temperature range of -55°C to +200°C and a bending radius of not less than 10 times the cable diameter. It can adapt to the working conditions of high vibration, large temperature difference and narrow space, and is suitable for various complex industrial scenarios.
3.Strong Compatibility & Easy Integration
It is compatible with Bently Nevada's ClickLoc connectors, miniature coaxial connectors and standard connectors, and can be seamlessly integrated with the existing Proximitor sensor network and machinery protection system, reducing the difficulty of system transformation and upgrading.
4.Lightweight Design & Convenient Installation
With a net weight of only 0.2kg and compact dimensions, the cable is easy to carry and install. The flexible bending performance can realize free routing in complex equipment structures, shorten the on-site installation time and improve the construction efficiency.
5.Multiple Agency Approvals & Global Compliance
Supporting multiple agency approvals, the cable meets the safety and regulatory requirements of different regions and industries, and can be safely deployed in global industrial sites, helping users avoid regulatory risks.
