330880-16-15-020-01-02 PROXPAC XL Proximity Transducer

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330880-16-15-020-01-02
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

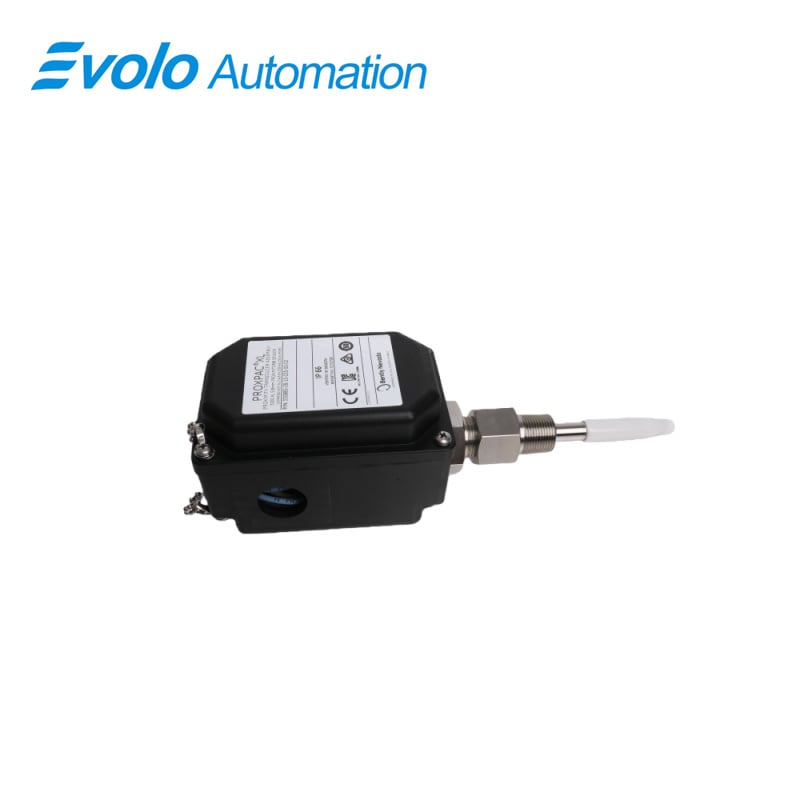

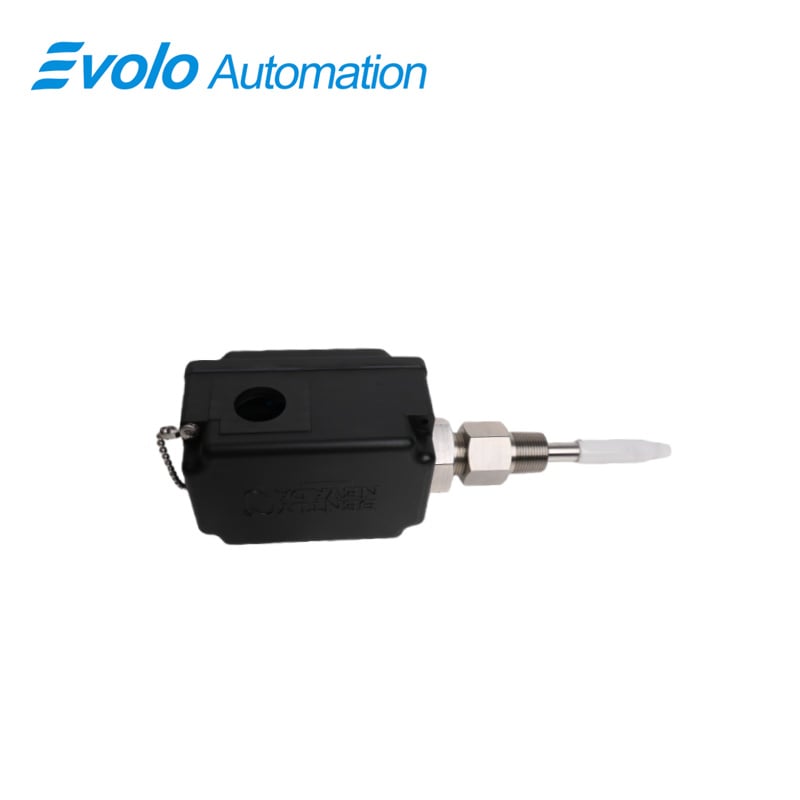

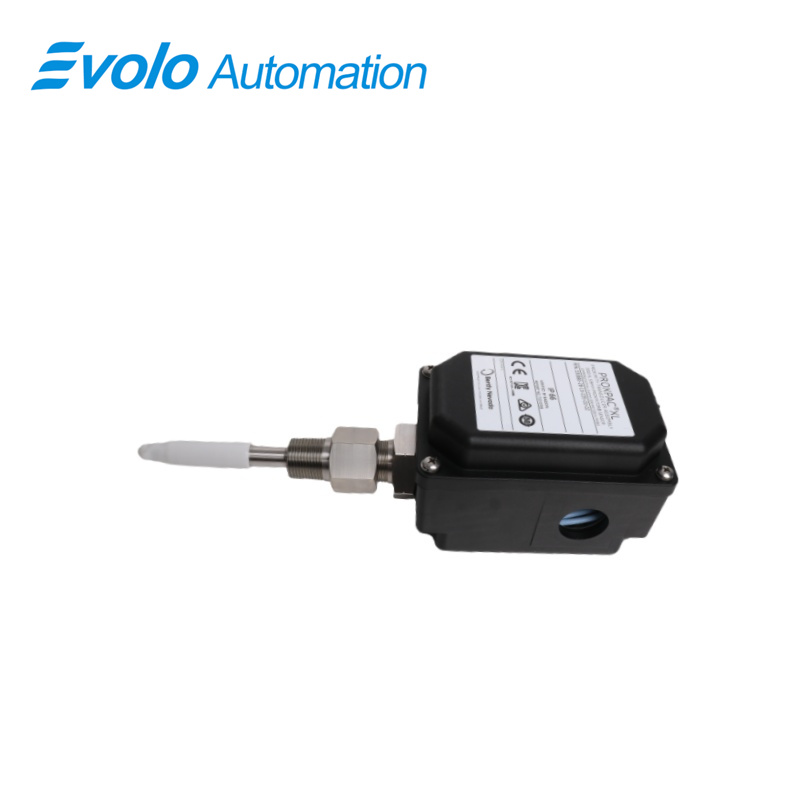

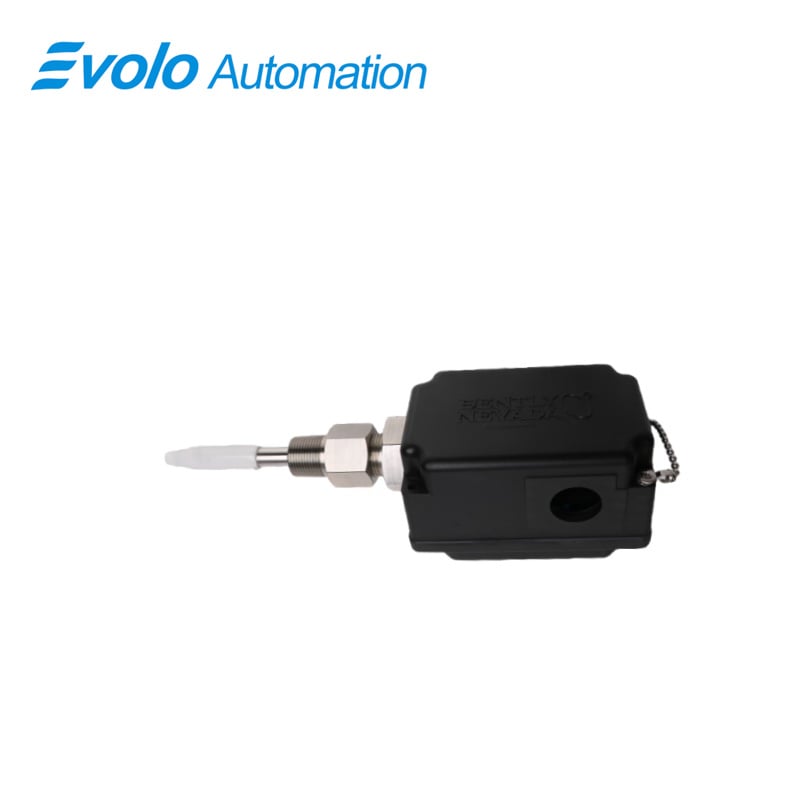

The 330880-16-15-020-01-02 PROXPAC XL Proximity Transducer is a fully integrated, self-contained proximity sensing system optimized for industrial automation and machinery monitoring. This assembly combines a 3300 XL 8 mm probe with a built-in Proximitor sensor, eliminating the need for extension cables or separate Proximitor housings. It provides linear measurement over a 2 mm (80 mils) range with a recommended gap of 1.27 mm (50 mils), making it ideal for precise monitoring of rotor displacement, shaft vibration, and machinery alignment. The transducer accommodates shafts from 50.8 mm to 76.2 mm (2–3 inches) and supports standard 3/4-14 NPT mounting with a standoff adapter of 38 mm (1.5 in) and probe penetration of 50.8 mm (2 in). Its PPS housing, reinforced with glass and conductive fibers, ensures high durability, superior electrostatic discharge protection, and IP66 environmental sealing verified by BASEEFA. The assembly operates reliably across a wide temperature range from –52°C to +100°C (–62°F to +212°F) and supports simplified field wiring with direct connection to monitoring systems, ensuring rapid installation and maintenance efficiency in critical industrial environments.

Applications

Rotor Vibration Monitoring
Provides continuous vibration monitoring of rotating machinery to detect early signs of imbalance or wear, helping reduce unplanned downtime.

Shaft Displacement Measurement
Measures dynamic and static shaft positions accurately, supporting predictive maintenance and machinery alignment optimization.

Harsh Environment Operation
IP66 and Type 4X PPS housing allows installation in dust, moisture, and corrosive environments typical of power plants, refineries, and industrial facilities.

Self-Contained Proximity System
Eliminates the need for separate extension cables or external Proximitor housings, simplifying setup and reducing installation errors.

Direct Integration with Monitoring Systems
Enables immediate connection to vibration and condition monitoring systems for real-time data acquisition and automated contro

Specifications

Competitive Advantage

Fully Integrated Design
Combines probe and Proximitor sensor into one assembly, reducing cabling complexity and potential failure points.

Robust PPS Housing
Advanced Polyphenylene Sulfide material with glass and conductive fiber reinforcement offers mechanical strength and electrostatic protection.

High Accuracy Measurement
Linear range of 2 mm and recommended 1.27 mm gap ensures precise monitoring of critical machinery components.

Wide Operating Temperature
Functionality from –52°C to +100°C (–62°F to +212°F) ensures reliable performance under extreme conditions.

Simplified Field Installation
Direct field wiring to monitoring systems reduces installation time and lowers maintenance complexity, supporting API 670 compliance.
