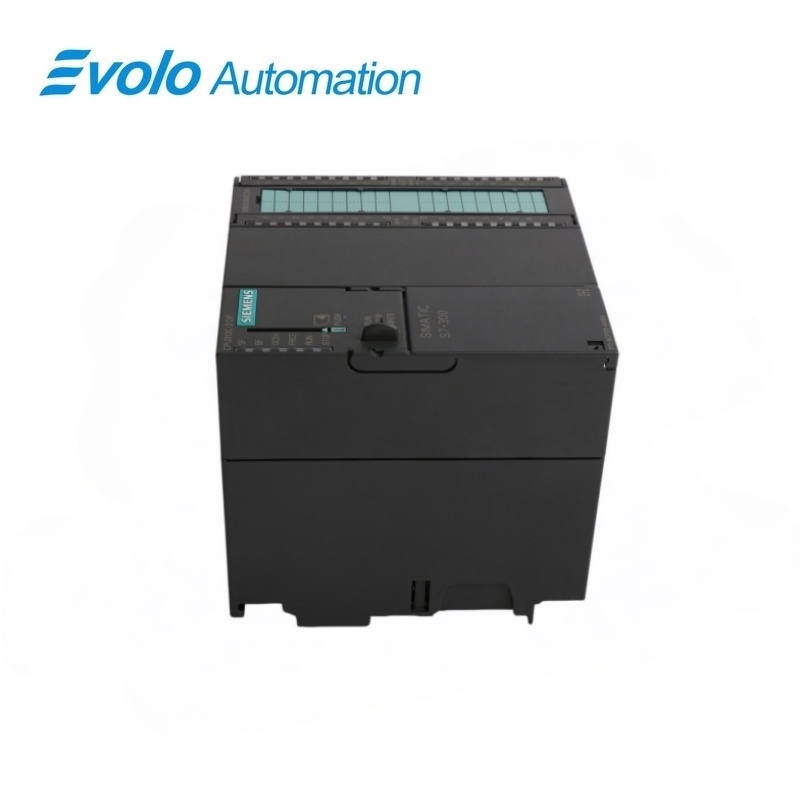

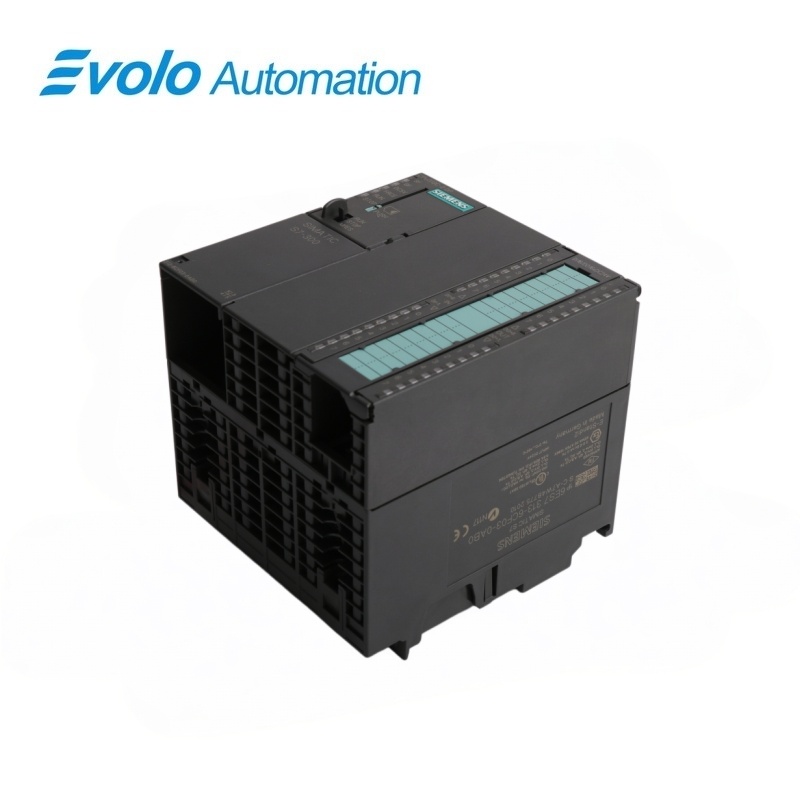

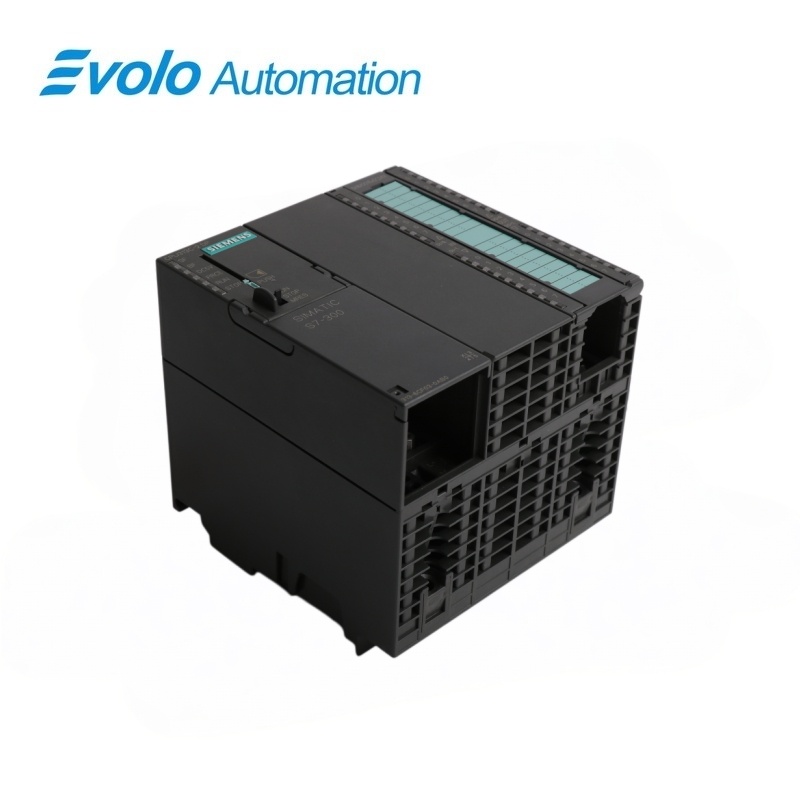

Siemens SIMATIC S7-300 6ES7313-6CF03-0AB0 CPU 313C-2 DP
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
6ES7313-6CF03-0AB0 CPU 313C-2 DP
Official Siemens identification and specifications for 6ES7313-6CF03-0AB0, prepared for accurate replacement matching and quotation.
At a Glance
| Article Number | 6ES7313-6CF03-0AB0 |
|---|---|
| Manufacturer | Siemens |
| Platform | SIMATIC S7-300 |
| Product Type | CPU 313C-2 DP |
| Country of Origin | Germany |
Exact Identification
Match the complete Siemens article number 6ES7313-6CF03-0AB0 and the photographed hardware revision.
Work memory
Work memory: 64 KB
Configuration Check
Integrated I/O: 16 DI / 16 DO; confirm rack, connectors and revision before replacement.
Product Overview
6ES7313-6CF03-0AB0 is the V2.6 generation of the Siemens SIMATIC S7-300 CPU 313C-2 DP. It combines CPU, digital I/O, technology functions and an integrated DP connection in a compact S7-300 housing.
For this order number Siemens specifies 64 KB work memory, 16 DI, 16 DO, three 30 kHz counters, MPI and PROFIBUS DP interfaces, 24 V DC supply and operation with a SIMATIC Micro Memory Card.
Key Functions
V2.6 controller generation
6ES7313-6CF03-0AB0 belongs to the CPU 313C-2 DP family covered by the Siemens V2.6 CPU 31xC specifications.
Integrated digital channels
Sixteen digital inputs and sixteen digital outputs are built into the compact CPU for direct machine signal connection.
Fieldbus and technology support
MPI, PROFIBUS DP and three high-speed counters up to 30 kHz provide communication and basic technology functions without separate CPU expansion.
Official Specifications
| Manufacturer | Siemens |
|---|---|
| Series | SIMATIC S7-300 |
| Article Number | 6ES7313-6CF03-0AB0 |
| Product Type | CPU 313C-2 DP |
| Work memory | 64 KB |
| Integrated I/O | 16 DI / 16 DO |
| Official Configuration | 3 high-speed counters (30 kHz) |
| Interfaces | MPI, PROFIBUS DP |
| Official Configuration | SIMATIC Micro Memory Card required |
| Net Weight | 0,633 Kg |
| Packaging Dimension | 13,20 x 15,30 x 12,90 CM |
| Country of Origin | Germany |
| Product Lifecycle | PM500:Discontinued Product or end of PLM & Support; End of product lifecycle since: 01.10.2024 |
Official source: Siemens Industry Mall product data for 6ES7313-6CF03-0AB0. Commercial stock, warranty and shipping statements are seller terms.
Frequently Asked Questions
How does Siemens classify 6ES7313-6CF03-0AB0?
It is a SIMATIC S7-300 CPU 313C-2 DP compact CPU in the V2.6 generation.
What memory capacity does 6ES7313-6CF03-0AB0 use?
The official configuration for this version lists 64 KB of work memory.
Does 6ES7313-6CF03-0AB0 include onboard signals?
Yes. Siemens lists 16 digital inputs and 16 digital outputs.
Which bus connections belong to 6ES7313-6CF03-0AB0?
The CPU provides MPI and an integrated PROFIBUS DP interface.
How many high-speed counters are built into 6ES7313-6CF03-0AB0?
Three counters are integrated, each specified for operation up to 30 kHz.
Which engineering generation applies to 6ES7313-6CF03-0AB0?
Siemens lists firmware V2.6.11 and supports configuration with STEP 7 V5.3 SP2 plus HSP 123 or STEP 7 V5.4 SP3.
Can 6ES7313-6CF03-0AB0 be exchanged without checking the project?
No. Match the order number, firmware family, work memory, PROFIBUS addressing, connector wiring and Micro Memory Card first.
Compatibility & Ordering Notes
Replacement checks for 6ES7313-6CF03-0AB0
- Confirm 64 KB work memory and the V2.6 firmware generation.
- Back up the STEP 7 hardware configuration and PROFIBUS DP parameters.
- Compare all 16 DI/16 DO terminal assignments before moving the front connector.
- Verify the installed SIMATIC Micro Memory Card and supported engineering software.
