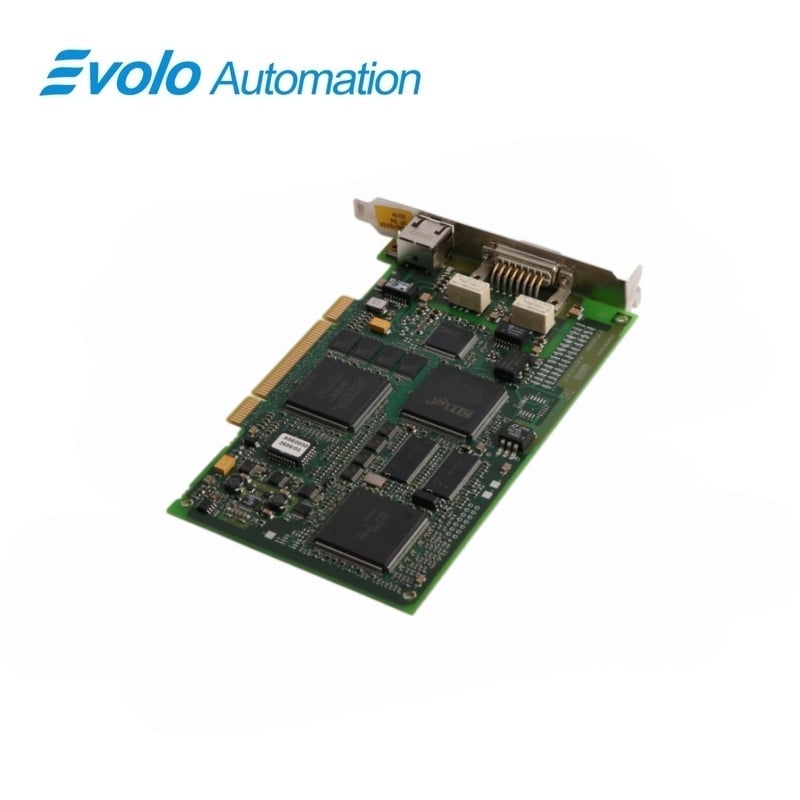

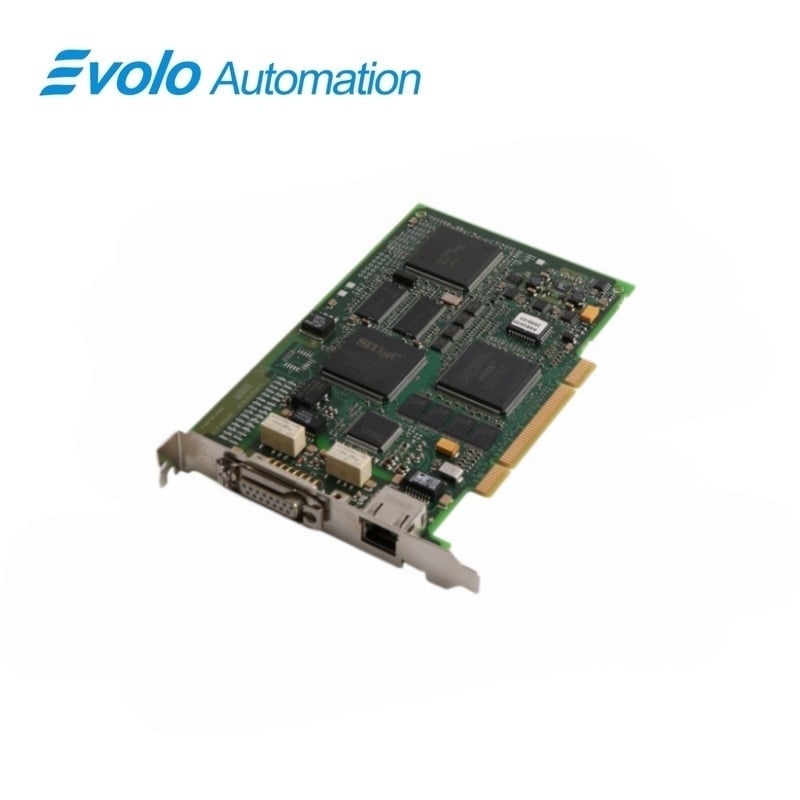

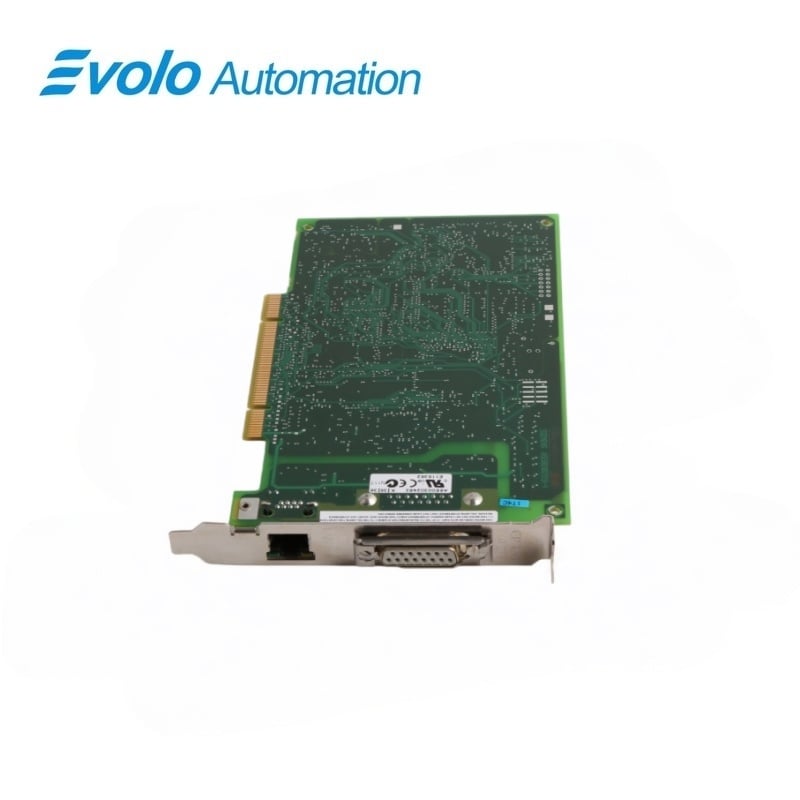

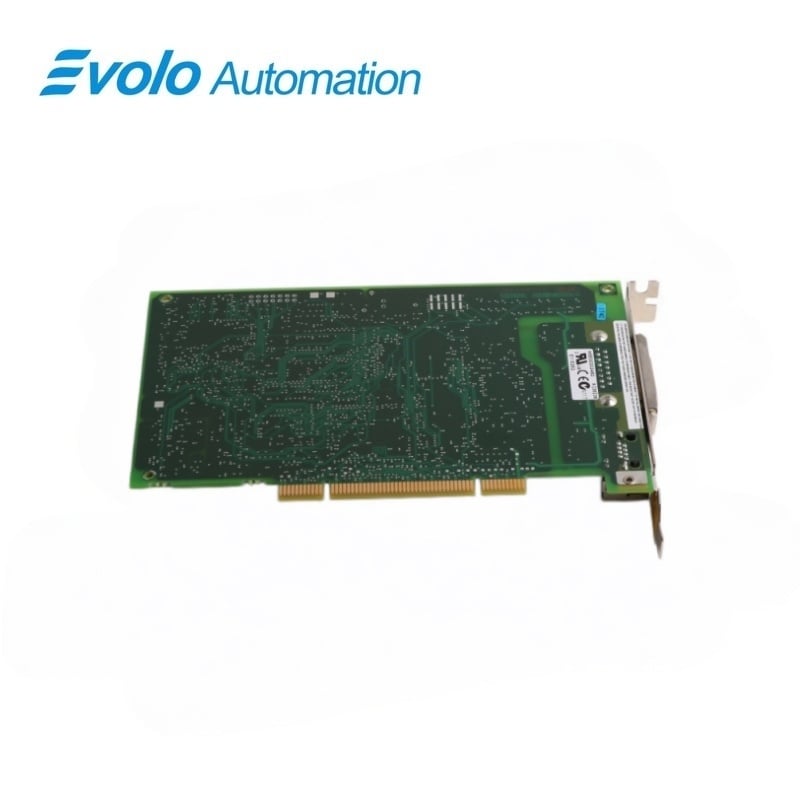

Siemens SIMATIC NET 6GK1161-6AA02 CP 1616 PROFINET PCI Card
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
6GK1161-6AA02 CP 1616
Official Siemens identification and specifications for 6GK1161-6AA02, prepared for accurate replacement matching and quotation.
At a Glance
| Article Number | 6GK1161-6AA02 |
|---|---|
| Manufacturer | Siemens |
| Platform | SIMATIC NET PROFINET |
| Product Type | CP 1616 Communication Processor |
| Industrial Network | PROFINET IO / Industrial Ethernet |
| Ethernet Ports | 4 x RJ45 |
| Transmission Rate | 100 Mbit/s |
| Country of Origin | Germany |
Exact Identification
Match the complete Siemens article number 6GK1161-6AA02.
Integrated Switch
Four-port real-time PROFINET switch based on ERTEC 400.
Compatibility Check
Verify the PCI slot, power supply, supported driver package and PROFINET configuration.
Product Overview
6GK1161-6AA02 is officially identified by Siemens as the CP 1616 PCI communication processor for PROFINET IO.
The card integrates an ERTEC 400-based four-port real-time switch with four RJ45 interfaces and supports 100 Mbit/s Industrial Ethernet communication.
Key Functions
PROFINET IO Communication
Provides a PC-based PROFINET IO connection.
Integrated Real-Time Switch
Four RJ45 ports support line and star topologies with real-time Ethernet switching.
Network Services
Siemens specifies MRP, SNMPv1, DCP, LLDP and web/port diagnostics.
Official Specifications
| Manufacturer | Siemens |
|---|---|
| Series | SIMATIC NET PROFINET |
| Article Number | 6GK1161-6AA02 |
| Product Type | CP 1616 Communication Processor |
| Product Designation | CP 1616 |
| Host Interface | PCI, 32-bit, 33/66 MHz, 3.3/5 V |
| Controller ASIC | ERTEC 400 |
| Ethernet Ports | 4 x RJ45 |
| Transmission Rate | 100 Mbit/s |
| Supported PROFINET IO Devices | Up to 128 |
| Supported IRT Devices | Up to 64 |
| Supply | 5 V PCI backplane or 6 to 9 V external |
| Power Loss | Approx. 4 W |
| Operating Temperature | 5 to 70 °C |
| Degree of Protection | IP00 |
| Dimensions | 18 x 107 x 167 mm |
| Net Weight | 0.198 kg |
| Packaging Dimension | 18 x 167 x 107 mm |
| Country of Origin | Germany |
Official source: Siemens Industry Mall product data for 6GK1161-6AA02. Commercial stock, warranty and shipping statements are seller terms.
Frequently Asked Questions
What is 6GK1161-6AA02?
It is the Siemens SIMATIC NET CP 1616 PROFINET PCI communication processor.
How many Ethernet ports are provided?
Siemens specifies four RJ45 ports.
Which transmission rate is supported?
The official data specifies 100 Mbit/s Industrial Ethernet.
Which switching ASIC is used?
The CP 1616 is based on the Siemens ERTEC 400.
Which network services are supported?
Siemens lists MRP, SNMPv1, DCP, LLDP and web/port diagnostics.
How is the card powered?
It uses the 5 V PCI backplane supply or a Siemens-specified external 6 to 9 V supply.
What should be checked before replacement?
Verify the full article number, PCI slot, driver package, station configuration and all four network links.
Compatibility & Ordering Notes
Compatibility Checklist for 6GK1161-6AA02
- Match the complete article number 6GK1161-6AA02.
- Confirm a compatible PCI slot and supported CP 1616 software package.
- Record the PROFINET station name, IP parameters and device configuration.
- Verify power supply and all RJ45 connections before commissioning.
