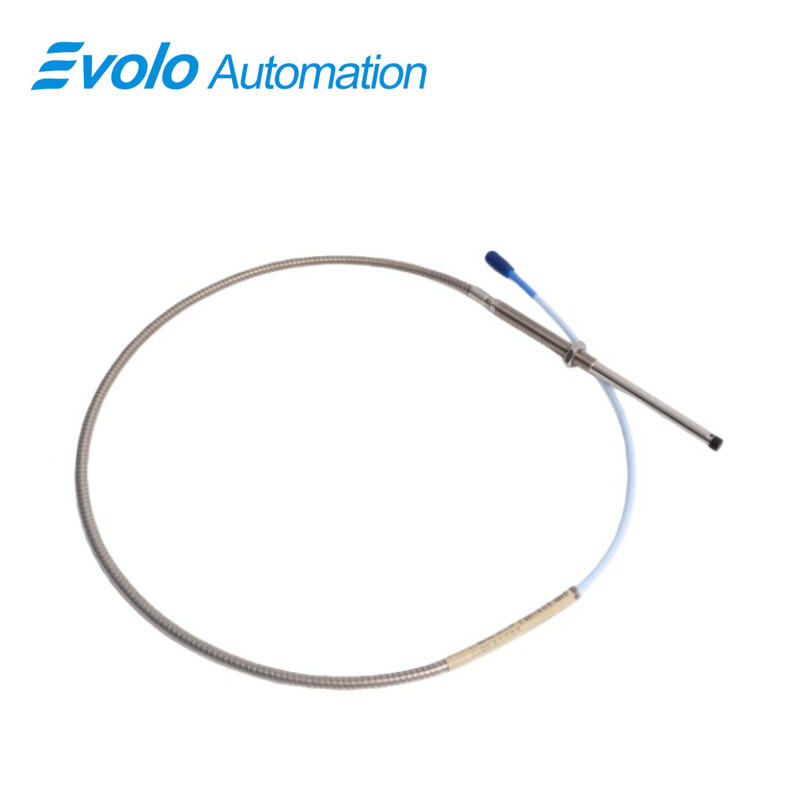

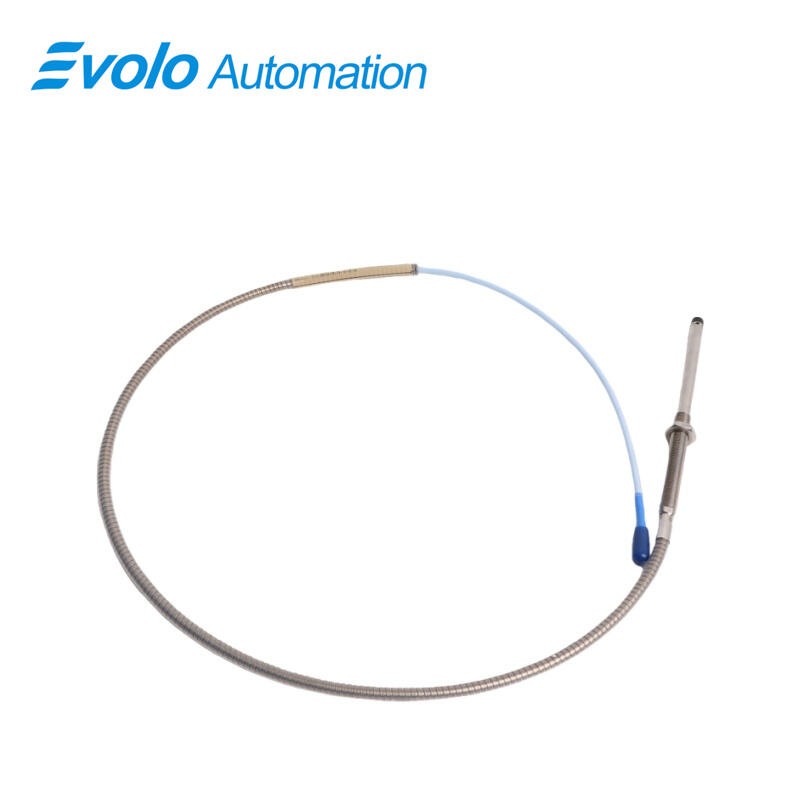

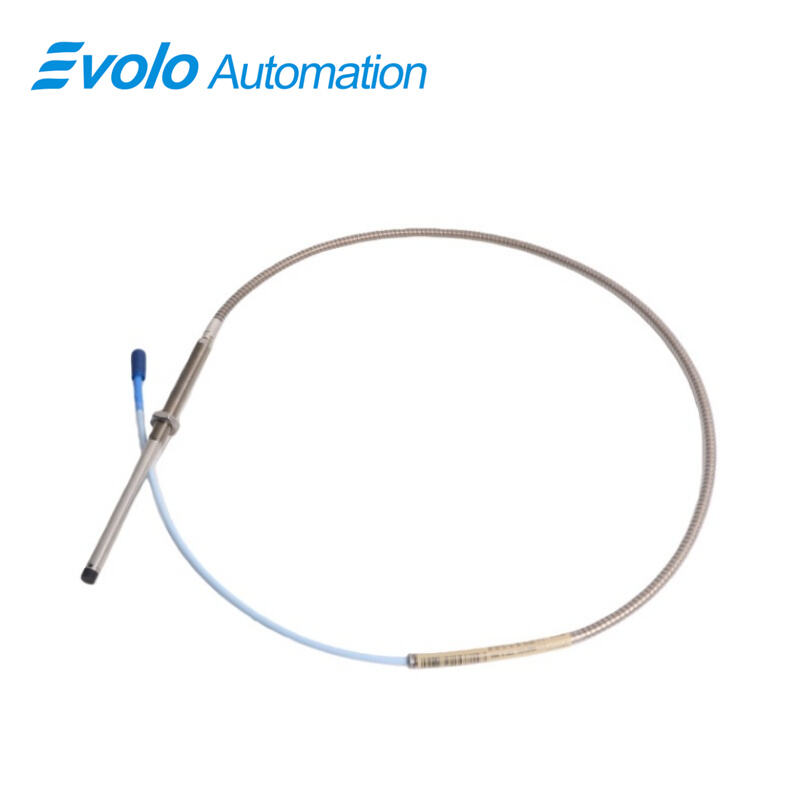

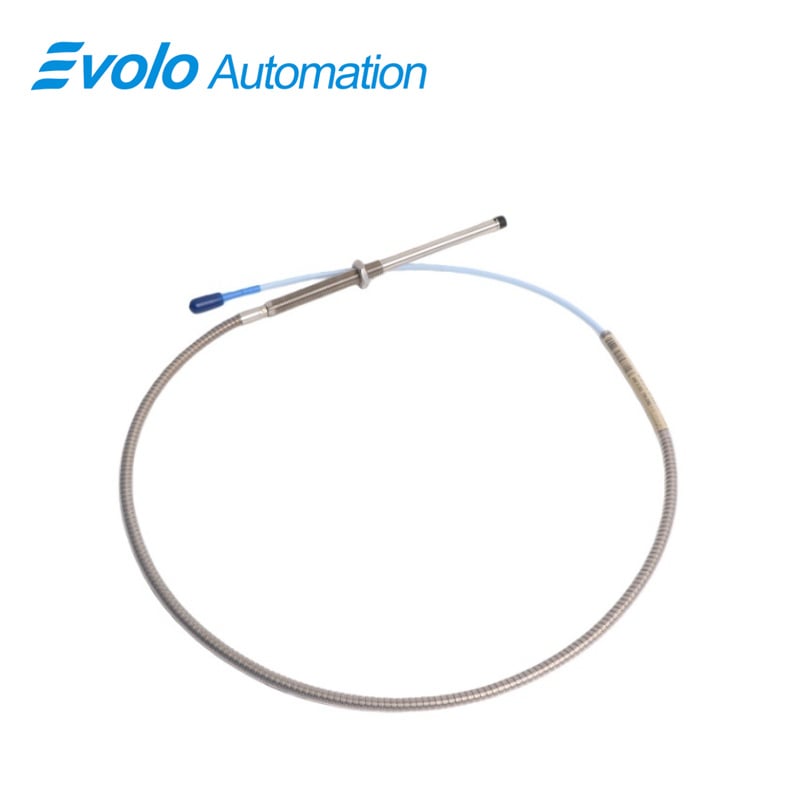

330104-08-16-10-02-00 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330104-08-16-10-02-00
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 3300 XL 8 mm Proximity Probe (Model 330104-08-16-10-02-00) is an advanced eddy current proximity transducer designed for high-precision vibration and position measurement in industrial automation systems. Engineered to provide an output voltage directly proportional to the distance between the probe tip and the target conductive surface, this probe can accurately measure both static positions and dynamic vibrations in fluid-film bearing machinery. Featuring a minimum unthreaded length of 80 mm, an overall case length of 160 mm, and an M10x1 probe case thread with a maximum thread engagement of 15 mm, the 3300 XL 8 mm ensures secure mounting and reliable performance under demanding conditions.

The probe operates over an extensive temperature range from -52°C to +177°C (-62°F to +350°F), making it suitable for extreme industrial environments. With a supply sensitivity of less than 2 mV change in output voltage per volt change in input voltage and an output resistance of 50 Ω, the system delivers high measurement stability. Its extension cable capacitance is 69.9 pF/m (21.3 pF/ft), supporting long-distance connections while maintaining signal integrity. Field wiring supports 0.2 to 1.5 mm² (16 to 24 AWG), and the linear measurement range reaches 2 mm (80 mils), ensuring precise and repeatable monitoring.

Designed to fully comply with API 670 standards, the 3300 XL 8 mm system guarantees linearity, accuracy, and temperature stability for critical rotating equipment applications. The probe and cable incorporate patented TipLoc and CableLoc technologies, providing robust mechanical bonding and 330 N (75 lbf) pull strength, while the optional FluidLoc cable prevents fluid leaks, maintaining system integrity. Backward compatibility and full interchangeability with other 3300 series probes, cables, and Proximitor sensors simplify installation and maintenance in automation systems.

Applications

1. Vibration Monitoring in Turbomachinery
The 3300 XL 8 mm Proximity Probe accurately measures shaft vibrations in turbines, compressors, and pumps, enabling early detection of imbalance or misalignment. Its linear range of 2 mm ensures precise vibration tracking, reducing downtime by up to 20%.

2. Position Measurement in Rotating Equipment
Used for precise shaft position sensing in fluid-film bearing machines, the probe provides real-time displacement data, supporting advanced control algorithms and improving machine efficiency by up to 15%.

3. Keyphasor Reference Signal Generation
The probe serves as a Keyphasor sensor for rotational speed and phase reference in industrial automation systems. With a robust M10x1 thread and maximum engagement of 15 mm, it ensures stable signal acquisition in high-speed applications.

4. Harsh Environment Industrial Automation
Capable of operating between -52°C and +177°C, the 3300 XL 8 mm is ideal for extreme temperature environments such as petrochemical plants or offshore rigs, maintaining signal accuracy and system reliability.

5. API 670-Compliant Machinery Monitoring
The probe and extension cable system meet API 670 standards for vibration monitoring, linearity, and temperature stability. It supports predictive maintenance programs by providing accurate, API-compliant data for rotating equipment analysis.

Specifications

Competitive Advantage

1. High Measurement Stability
With less than 2 mV change in output per volt of input variation and 50 Ω output resistance, the probe delivers superior measurement consistency under fluctuating power conditions.

2. Robust Mechanical Design
TipLoc and CableLoc patented designs provide strong probe-tip bonding and 330 N pull strength for the cable, ensuring durable performance in vibration-prone environments.

3. Flexible Installation Options
Backwards compatible with 3300 series 5 mm and 8 mm probes, the system simplifies retrofits and upgrades, reducing maintenance time and installation costs.

4. Extreme Temperature Operation
Rated from -52°C to +177°C, the probe supports a wide range of industrial processes without compromising accuracy, making it suitable for petrochemical, power generation, and offshore applications.

5. Fluid Containment Technology
Optional FluidLoc cables prevent oil and other fluid leaks through the cable interior, enhancing system safety and reducing maintenance efforts while protecting sensitive automation equipment.
