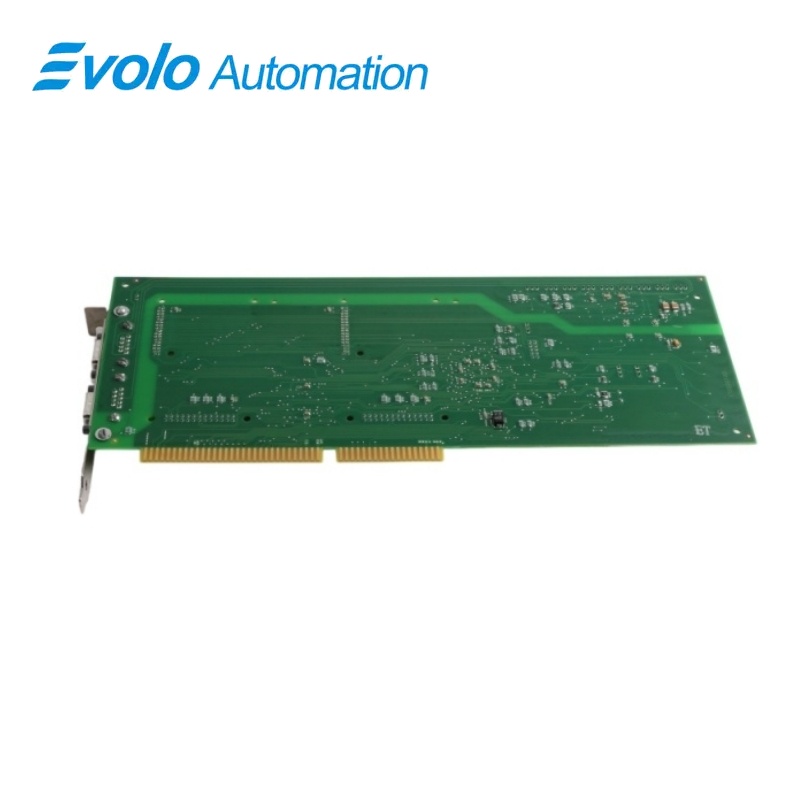

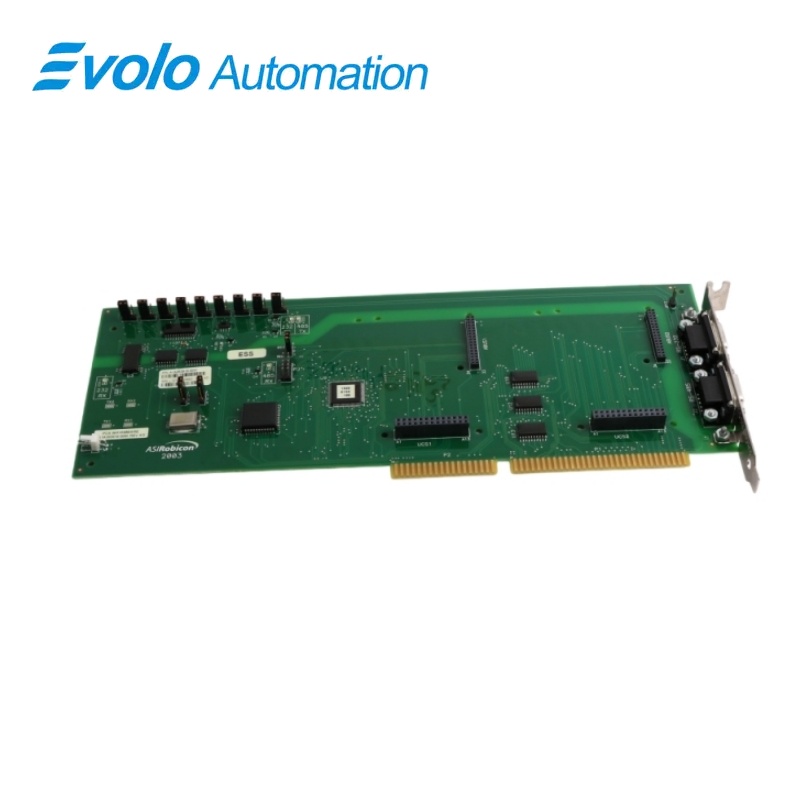

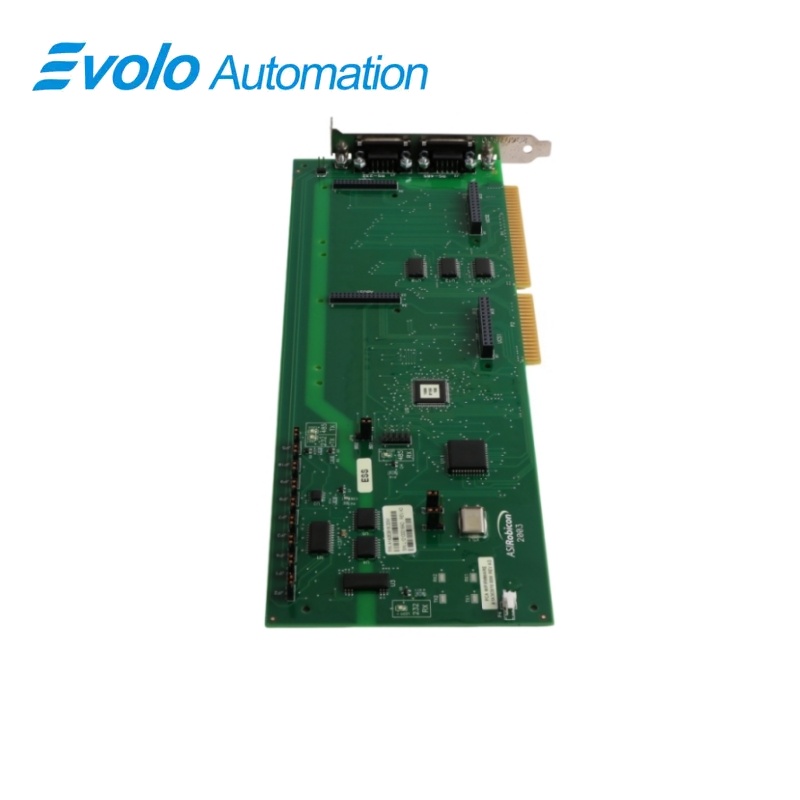

Siemens Robicon A1A363818.00M Communications Board
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Hot Selling Models
- Recommended Products
Overview
- Use the board only with the matching Perfect Harmony GenIV NXG control arrangement.
- Compare the installed connector layout and board revision before replacement.
- Apply the drive isolation and discharge procedure before opening the control cabinet.
SIEMENS ROBICON · PERFECT HARMONY GENIV
Siemens Robicon A1A363818.00M Communications Board
Communications board spare assembly for the NXG control hardware used in Siemens Robicon Perfect Harmony GenIV medium-voltage drives.
At a Glance
| Brand | Siemens Robicon |
|---|---|
| Model | A1A363818.00M |
| Product Type | Communications board |
| Core Function | Drive-control communications interface |
| Compatible Series | Perfect Harmony GenIV with NXG control hardware |
Exact Identification
Match the complete A1A363818.00M number, including the .00M suffix.
Control Platform
Listed with the NXG control hardware in the GenIV spare-parts structure.
Replacement Check
Compare the installed board revision, connector arrangement and control chassis before replacement.
Product Overview
Siemens Robicon A1A363818.00M is the communications board identified in the Perfect Harmony GenIV spare-parts list for NXG control hardware.
The board supports communication within the drive control architecture and should be matched to the installed GenIV control chassis and board revision.
Key Functions
Control-System Communication
The board provides the communications function within the Perfect Harmony drive control hardware.
NXG Control Integration
It is grouped with the NXG control components in the GenIV spare-parts structure.
Service Replacement
The assembly is intended for model-specific replacement within the matching control chassis.
Official Specifications
| Control Architecture | GenIV |
|---|---|
| Spare-Parts Group | NXG control hardware |
| Reference Drive Output Current | Greater than 140 A |
| Reference Drive Output Voltage | 4160 V |
| Board Function | Communications board |
| Product Family | Perfect Harmony GenIV |
| System Role | Communications path within the drive control architecture |
| Related System I/O Board | A1A10000423.00M |
| Related BGA Modulator | A1A10000350.00M |
| Related Signal Control Board | A1A10000403.01M |
| Related 120 V I/O | A5E01649325 |
| Related 24 V I/O | A5E01649374 |
| Related Fiber Optic Link | A5E01437712 |
Frequently Asked Questions
Is A1A363818.00M intended for Perfect Harmony GenIV control hardware?
The board is listed with the NXG control components used in the GenIV drive architecture.
Which drive rating context applies to A1A363818.00M in the spare-parts list?
The referenced spare-parts table covers 4160 V drives with output current greater than 140 A.
Can A1A363818.00M be replaced without matching the suffix?
The complete .00M suffix should be matched because it forms part of the board identification.
What should an engineer isolate before removing A1A363818.00M?
Isolate the drive power and control power and complete the required discharge procedure before accessing the control chassis.
How should A1A363818.00M be handled during installation?
Use electrostatic-discharge controls and avoid touching connector contacts or board components.
What compatibility details should be compared for A1A363818.00M?
Compare the installed NXG control platform, chassis position, connector arrangement and board revision.
What should be tested after fitting A1A363818.00M?
Confirm normal control communication and a fault-free startup before returning the drive to operation.
