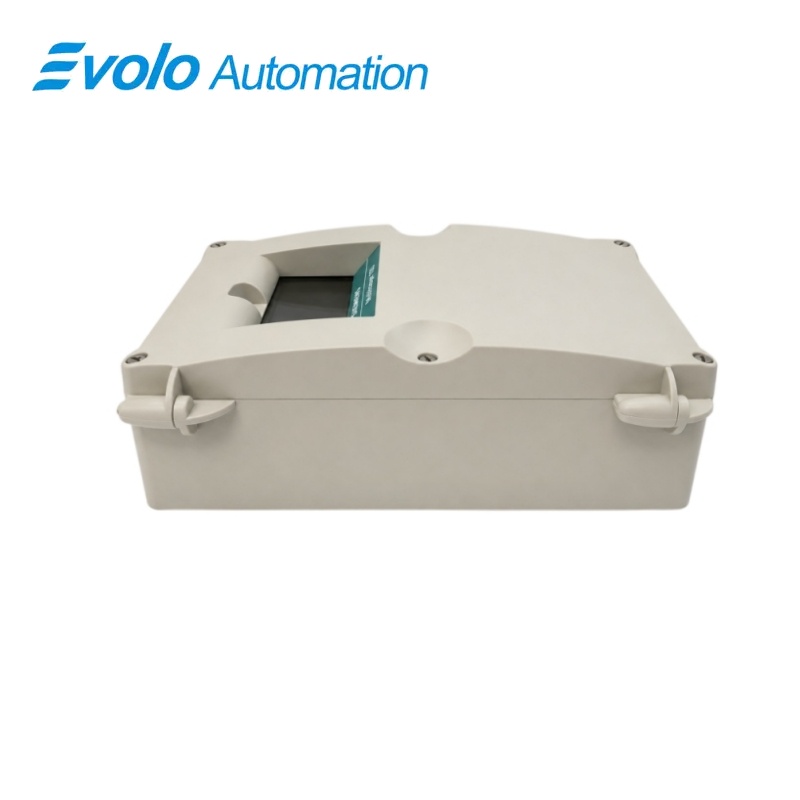

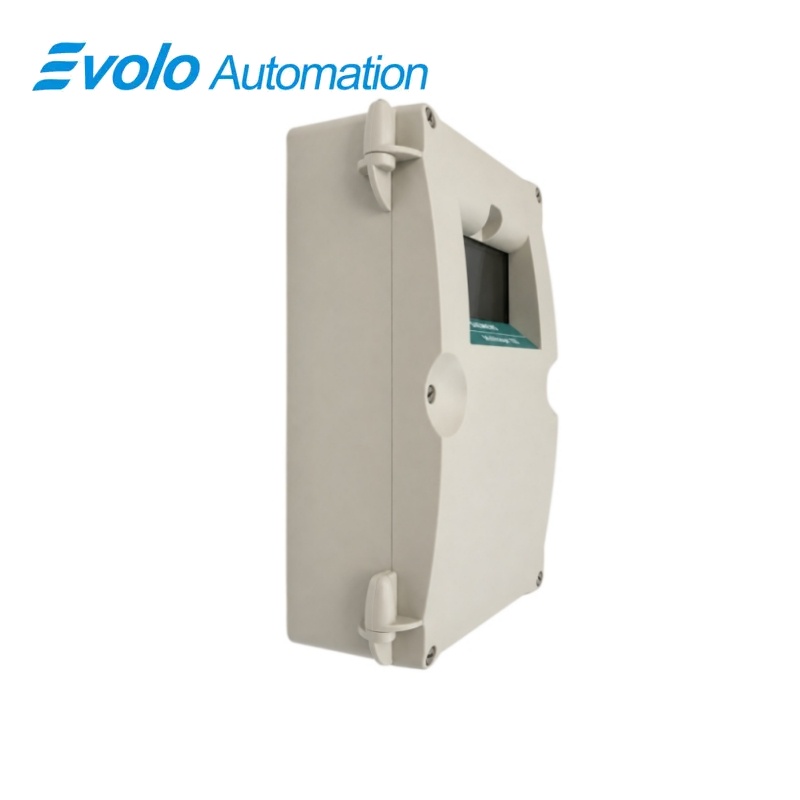

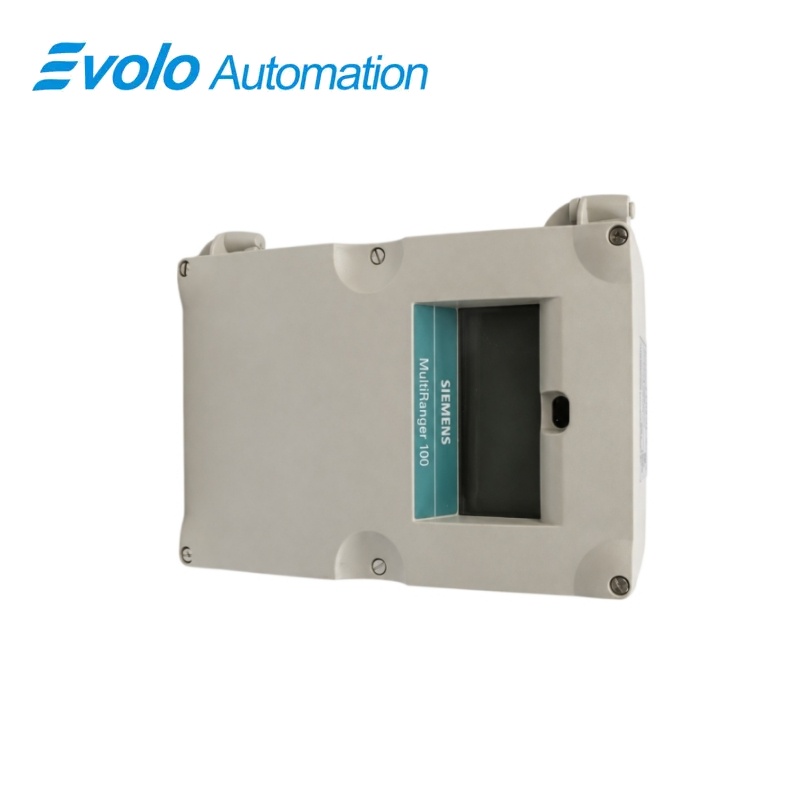

Siemens SITRANS MultiRanger 100 Ultrasonic Controller 7ML50331BA101A
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
Siemens · SITRANS MultiRanger 100
7ML50331BA101A SITRANS MultiRanger 100 Ultrasonic Controller
The SITRANS MultiRanger 100 is a versatile ultrasonic level controller for monitoring and controlling liquids or solids with compatible transducers, relay outputs and analog signal transmission.
At a Glance
| Brand | Siemens |
|---|---|
| Model | 7ML50331BA101A |
| Product Type | Ultrasonic level controller |
| Core Function | Processes ultrasonic transducer signals for single- or dual-point level measurement and control |
| Application or Compatible Series | Water, wastewater and bulk-material level applications using compatible Siemens ultrasonic transducers |
Exact Identification
Match 7ML50331BA101A character by character and confirm the complete SITRANS MultiRanger 100 Ultrasonic Controller designation.
Interface Arrangement
Confirm the installed supply, ports, field connections and required accessories before wiring the replacement.
Configuration Check
Preserve the approved engineering project, network parameters and application data used by the installed system.
Product Overview
The SITRANS MultiRanger 100 is a versatile ultrasonic level controller for monitoring and controlling liquids or solids with compatible transducers, relay outputs and analog signal transmission.
Converts echo signals from compatible transducers into continuous level values. Relay and 4–20 mA outputs support pumps, alarms and process integration. An RS 485 interface supports remote configuration and data exchange.
Key Functions
Ultrasonic Level Processing
Converts echo signals from compatible transducers into continuous level values.
Control Outputs
Relay and 4–20 mA outputs support pumps, alarms and process integration.
Digital Communication
An RS 485 interface supports remote configuration and data exchange.
Official Specifications
| Controller Series | MultiRanger 100 |
|---|---|
| Measurement Principle | Ultrasonic echo processing |
| Measurement Points | Single or dual point, by configuration |
| Maximum Measuring Range | 15 m |
| Minimum Measuring Range | 0.3 m |
| Analog Output | 4 to 20 mA |
| Analog Outputs | 1 or 2, by version |
| Relay Outputs | Up to 6, by version |
| Digital Communication | RS 485 |
| AC Supply Range | 100 to 230 V AC |
| Supported Media | Liquids and bulk solids |
| Compatible Sensors | Approved Siemens ultrasonic transducers |
| Level Functions | Level, volume and pump-control applications |
| Programming Interface | Local keypad/display and remote communication |
Frequently Asked Questions
Which measurement principle does 7ML50331BA101A use?
It calculates level from the travel time of ultrasonic echoes returned to a compatible transducer.
Can 7ML50331BA101A control pumps as well as display level?
Yes; configure the available relays for the approved pump-control or alarm strategy.
Which output should carry the measured value from 7ML50331BA101A?
Use the configured 4–20 mA output or supported digital communication path.
What determines the usable range of 7ML50331BA101A?
The selected transducer, mounting geometry, material surface and environmental conditions determine the valid range.
How should a transducer be positioned for 7ML50331BA101A?
Mount it with a clear acoustic path and keep the blanking zone free of obstructions.
What should be copied before replacing 7ML50331BA101A?
Record all application parameters, transducer selection, relay assignments, calibration points and communication settings.
What must be tested after commissioning 7ML50331BA101A?
Validate the empty and full references, analog scaling, relay actions and any pump interlocks.
Compatibility & Ordering Notes
Compatibility Checklist
- Match the exact order-code options and approved ultrasonic transducer.
- Preserve all level, volume, relay and communication parameters.
- Revalidate the acoustic path and control outputs after replacement.
