Overview
Siemens • SINAMICS S

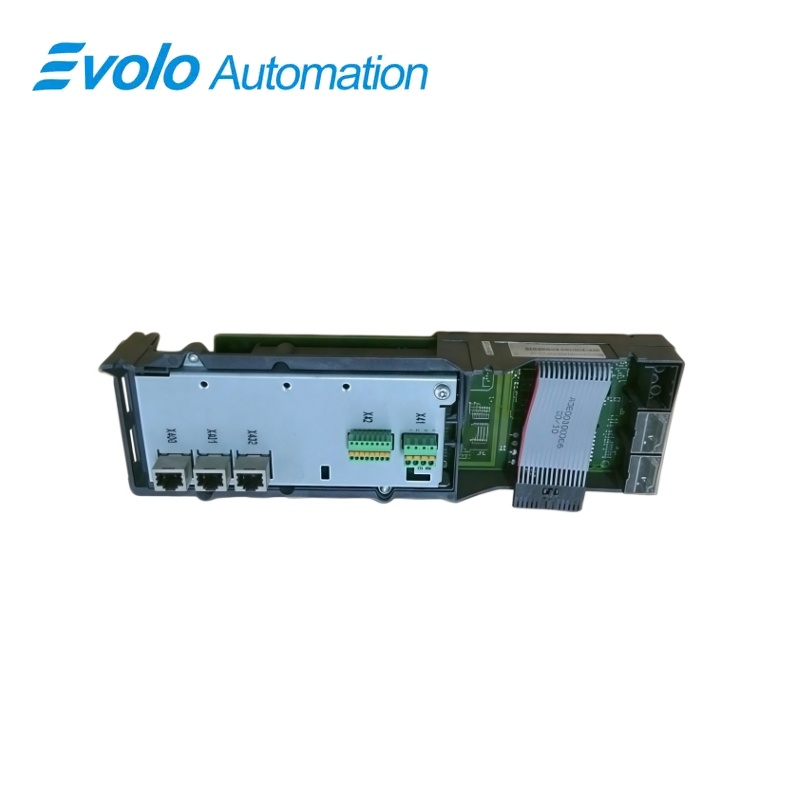

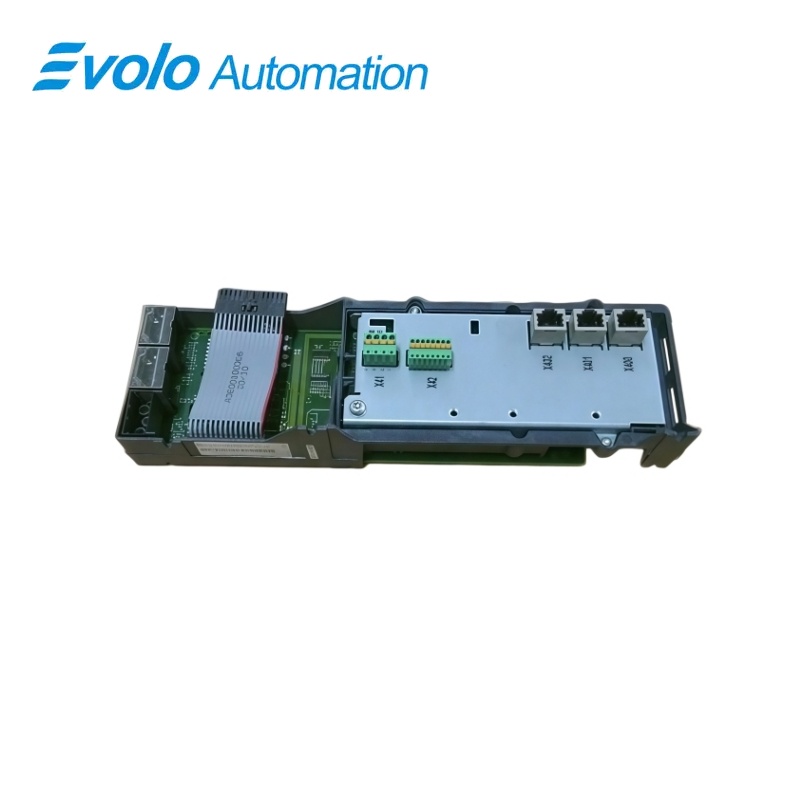

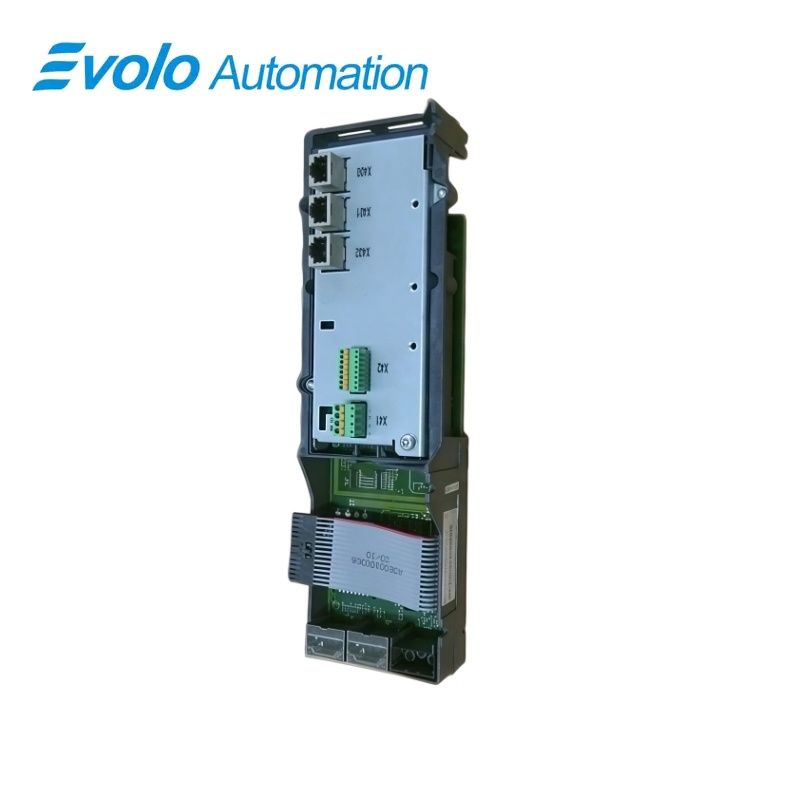

6SL3352-6TG33-3AA3 SINAMICS S Replacement Control Interface Board
This Siemens replacement control interface board is specified for a 330 A SINAMICS motor module operating in the 500 to 690 V three-phase, 50/60 Hz voltage class.
At a Glance
| Brand | Siemens |
|---|---|
| Model | 6SL3352-6TG33-3AA3 |
| Product Type | Replacement control interface board for a motor module |
| Core Function | Provides the control-interface function for the matched 330 A SINAMICS motor module |
| Application or Compatible Series | SINAMICS motor modules rated for 500 to 690 V three-phase systems and 330 A |
Exact Identification
Match 6SL3352-6TG33-3AA3 character by character and confirm the complete SINAMICS S Replacement Control Interface Board designation.
Interface Arrangement
Confirm the installed supply, ports, field connections and required accessories before wiring the replacement.
Configuration Check
Preserve the approved engineering project, network parameters and application data used by the installed system.
Product Overview
This Siemens replacement control interface board is specified for a 330 A SINAMICS motor module operating in the 500 to 690 V three-phase, 50/60 Hz voltage class.
The board is assigned to the documented 330 A motor module for 500 to 690 V three-phase systems. The component connects the control section to the matched motor-module power electronics. The complete article number, hardware context and stored converter parameters govern a correct exchange.
Key Functions
High-Voltage Module Pairing
The board is assigned to the documented 330 A motor module for 500 to 690 V three-phase systems.
Drive Control Interface
The component connects the control section to the matched motor-module power electronics.
Service-Specific Replacement
The complete article number, hardware context and stored converter parameters govern a correct exchange.
Official Specifications
| Board Net Weight | 0.4 kg |
|---|---|
| Declared Basic Safety Functions | STO, SS1 and SBC |
| Functional Safety Rating | SIL 2, PL d and Category 3 |
| Stop-Category Mapping | STO: category 0; SS1: category 1; SS2: category 2 |
| Motor-Module Safety Architecture | The integrated safety functionality is concentrated in the Control Interface Module (CIM) |
| CIM Conversion Article | 6SL3350-6TK00-0EA0 |
| CIM Technical Designation | CIM DAC |
| Compatible CIM Hardware Versions | A, AE, AF and AH |
| Internal-Cooling Chassis Integration | 6SL3320-1TG33-3AA3 |
| Internal-Cooling GG Integration | 6SL3320-1TG33-3AC3 |
| Liquid-Cooling Chassis Integration | 6SL3325-1TG33-3AA3 |
| IPD Conversion Article | 6SL3352-3AG33-3AC0 |
| IPD Card System | SINAMICS S150 air-cooled Motor Module basic unit |
| IPD Card Rated Power | 315 kW |
| IPD Card Net Weight | 0.16 kg |
| CIM Net Weight | 4.5 kg |
Frequently Asked Questions
Which converter voltage class is associated with 6SL3352-6TG33-3AA3?
The board is assigned to a motor module for 500 to 690 V three-phase systems.
Which current rating must be checked before fitting 6SL3352-6TG33-3AA3?
Confirm that the installed motor module has the documented 330 A rating.
Does 6SL3352-6TG33-3AA3 cover both common industrial line frequencies?
Yes; the matched motor-module application is specified for 50 and 60 Hz.
What project information should be retained before changing 6SL3352-6TG33-3AA3?
Keep the converter project, complete parameter set, firmware details, fault log and commissioning data.
How do I protect 6SL3352-6TG33-3AA3 from electrostatic damage?
Wear grounded electrostatic-discharge protection and handle the board only by its approved edges and fixtures.
When is it safe to remove 6SL3352-6TG33-3AA3?
Remove the board only after isolating every supply, allowing the DC link to discharge and proving zero voltage.
What commissioning checks follow replacement of 6SL3352-6TG33-3AA3?
Verify connectors, auxiliary power, diagnostic indications, parameter consistency and the approved converter test sequence.
Compatibility & Ordering Notes
Compatibility Checklist
- Use only in the exact Siemens motor-module configuration identified for this spare board.
- Do not interchange it with the 380 to 480 V or different-current version.
- Restore and validate the original drive parameters before operation.
