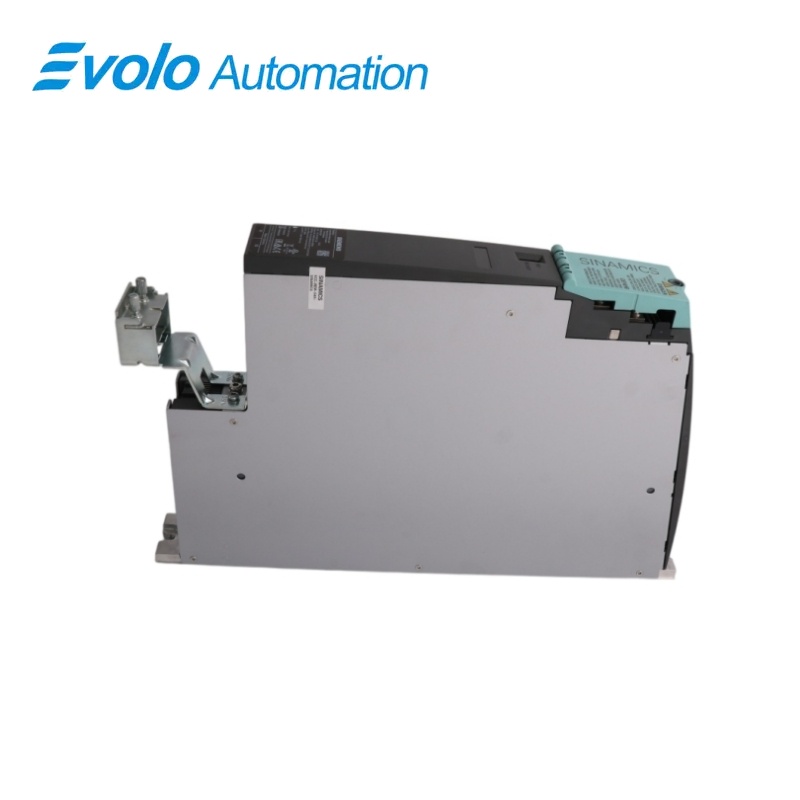

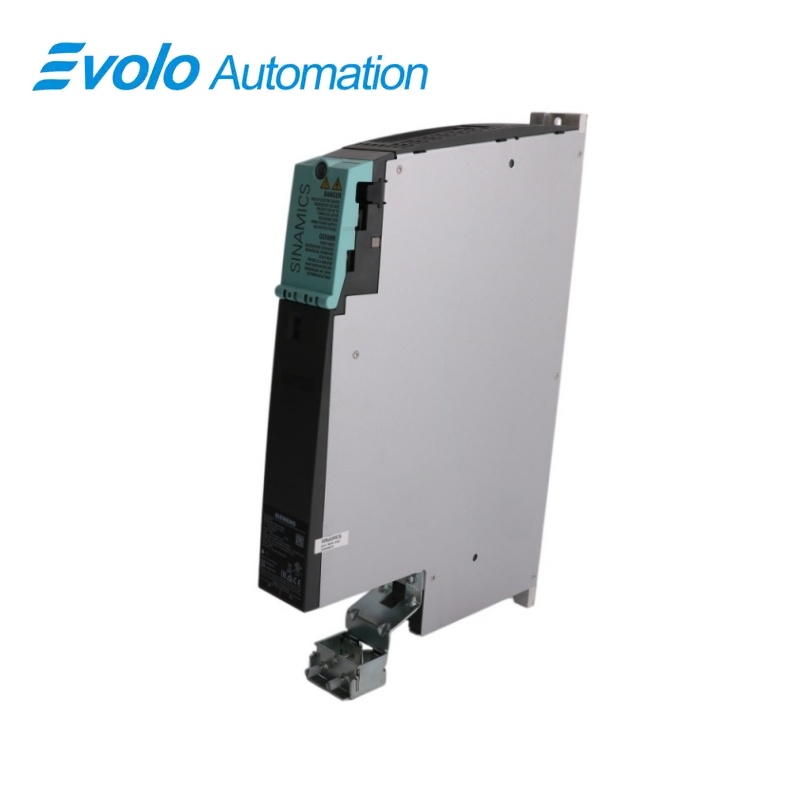

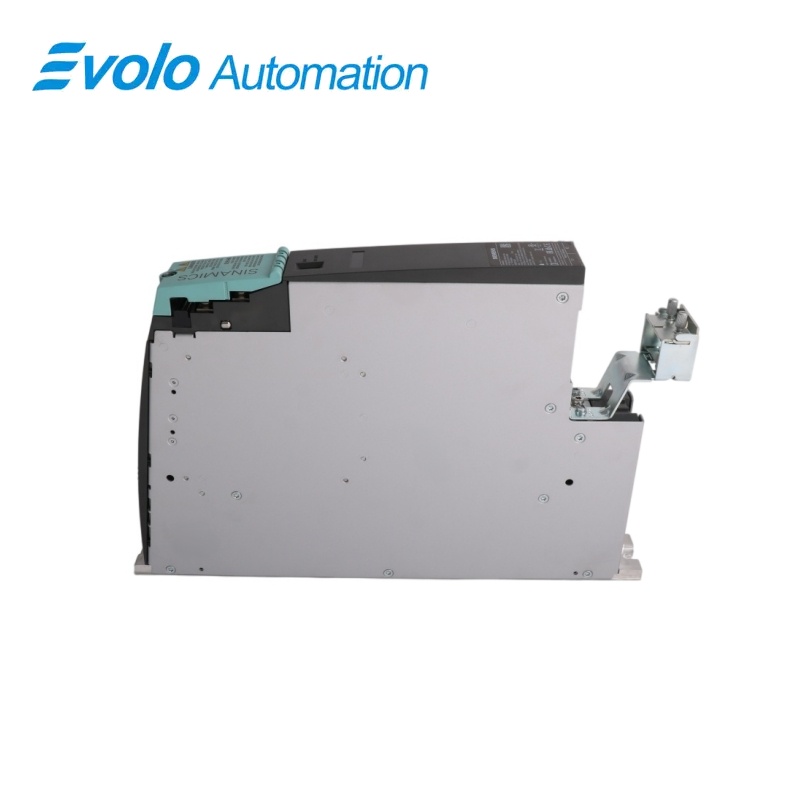

Siemens SINAMICS S120 Double Motor Module 2 x 3 A 6SL3120-2TE13-0AD0
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
Siemens • SINAMICS S120 Booksize Drive System
6SL3120-2TE13-0AD0 SINAMICS S120 Double Motor Module 2 x 3 A
The SINAMICS S120 Double Motor Module is a booksize D-type power module with internal air cooling, two 3 A motor outputs and DRIVE-CLiQ integration for compact two-axis drive configurations.
At a Glance
| Brand | Siemens |
|---|---|
| Model | 6SL3120-2TE13-0AD0 |
| Product Type | Two-axis booksize D-type motor module |
| Core Function | Supplies and controls two motor axes from a common DC link |
| Application or Compatible Series | SINAMICS S120 booksize systems using DRIVE-CLiQ and extended Safety Integrated functions |
Exact Identification
Match 6SL3120-2TE13-0AD0 character by character and confirm the complete SINAMICS S120 Double Motor Module 2 x 3 A designation.
Interface Arrangement
Confirm the installed supply, ports, field connections and required accessories before wiring the replacement.
Configuration Check
Preserve the approved engineering project, network parameters and application data used by the installed system.
Product Overview
The SINAMICS S120 Double Motor Module is a booksize D-type power module with internal air cooling, two 3 A motor outputs and DRIVE-CLiQ integration for compact two-axis drive configurations.
A single module supplies two independently controlled motor axes from the shared SINAMICS DC link. The narrow D-type housing connects into compatible SINAMICS S120 booksize line, DC-link and 24 V arrangements. The module supports extended Safety Integrated functions when used with the required control hardware and commissioned safety project.
Key Functions
Two Motor Outputs
A single module supplies two independently controlled motor axes from the shared SINAMICS DC link.
Booksize System Integration
The narrow D-type housing connects into compatible SINAMICS S120 booksize line, DC-link and 24 V arrangements.
Integrated Safety Support
The module supports extended Safety Integrated functions when used with the required control hardware and commissioned safety project.
Official Specifications
| DC Link Voltage | 510 to 720 V DC |
|---|---|
| Rated Output Current | 2 x 3 A |
| Base-Load Current | 2 x 2.6 A |
| S6 Intermittent Current at 40% | 2 x 4 A |
| Maximum Output Current | 2 x 9 A |
| Output Voltage | 0 to 0.717 x DC-link voltage; up to 480 V at 670 V DC |
| Output Frequency | 0 to 550 Hz |
| DC Link Current | 7.2 A |
| DC Link Capacitance | 220 µF |
| Overvoltage Trip Level | 820 V DC ±2% |
| Undervoltage Trip Level | 380 V DC ±2% |
| Electronics Supply | 24 V DC; 20.4 to 28.8 V |
| Electronics Current at 24 V | 0.9 A |
| Maximum Shielded Motor Cable | 50 m |
| Maximum Unshielded Motor Cable | 75 m |
| Dimensions | 50 x 380 x 270 mm |
| Net Weight | 4.7 kg |
| Degree of Protection | IP20; UL open type |
Frequently Asked Questions
Which motors can be connected to 6SL3120-2TE13-0AD0?
Use two motors whose voltage, continuous current, peak current, feedback and braking requirements fit the engineered SINAMICS configuration.
Can both axes on 6SL3120-2TE13-0AD0 be commissioned independently?
Yes; each motor output has its own drive object and must be parameterized, tuned and tested separately.
What DC-link conditions are required for 6SL3120-2TE13-0AD0?
Connect it only within the approved booksize DC-link arrangement and keep the operating voltage inside the specified range.
How should cooling clearance be planned for 6SL3120-2TE13-0AD0?
Maintain the required airflow path and at least 80 mm of unobstructed clearance above and below the module.
Which safety checks apply when replacing 6SL3120-2TE13-0AD0?
Validate the configured safety functions, shutdown paths, motor assignments and acceptance-test results before production use.
What must be recorded before removing 6SL3120-2TE13-0AD0?
Capture both axis parameters, motor data, encoder assignments, DRIVE-CLiQ topology, cable routing and fault history.
What should be verified after installing 6SL3120-2TE13-0AD0?
Check DC-link polarity, 24 V bus contact, both motor phases, feedback channels, axis direction, current limits and fault-free operation.
Compatibility & Ordering Notes
Compatibility Checklist
- Use only within a compatible SINAMICS S120 booksize DC-link system.
- Match both motors, feedback devices and current requirements independently.
- Restore the approved axis and Safety Integrated configuration before operation.
