Overview
Siemens · SCALANCE X-200

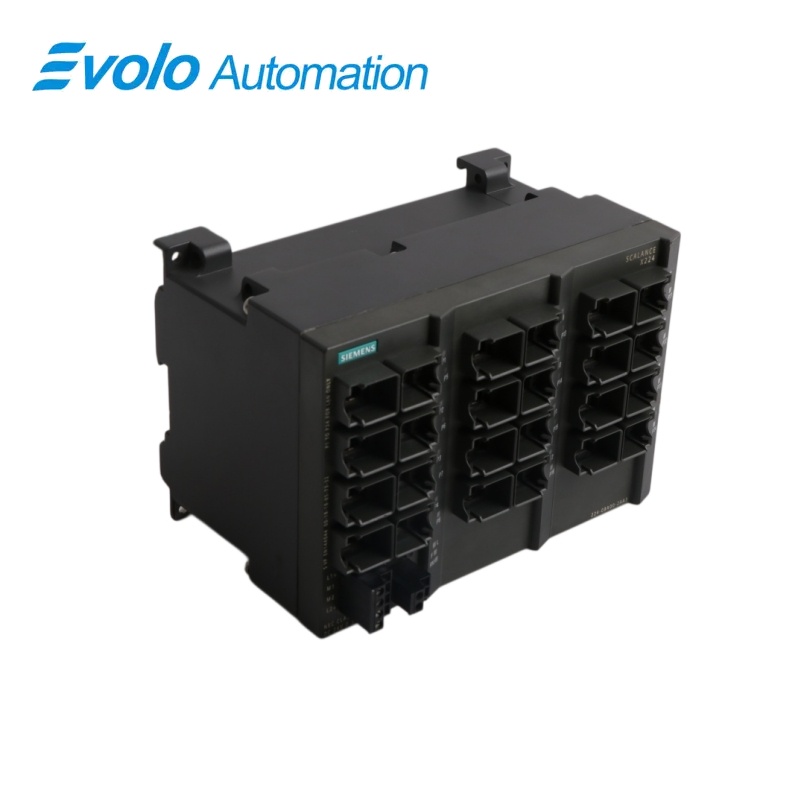

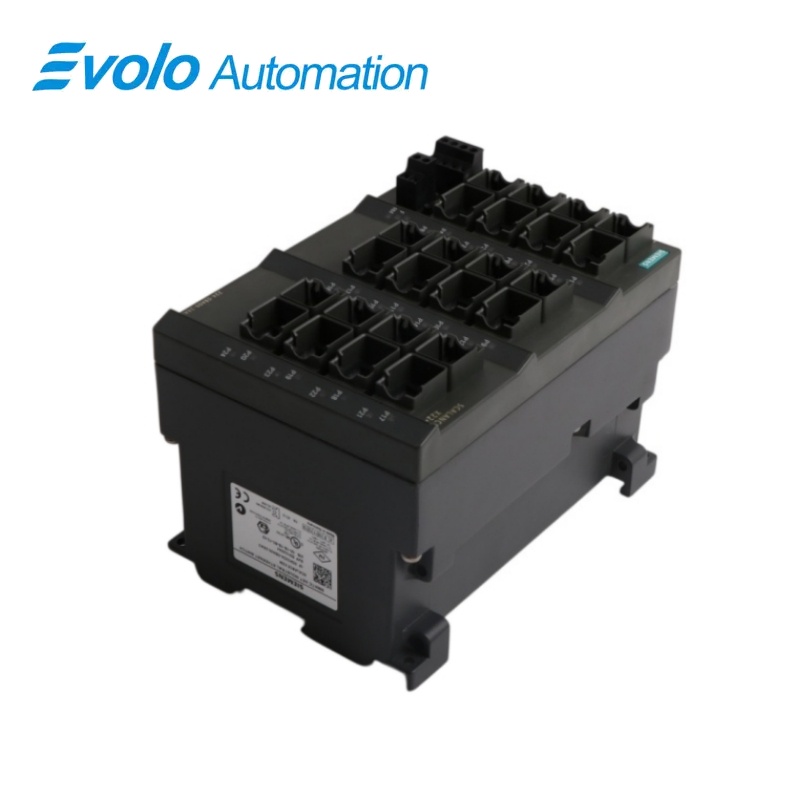

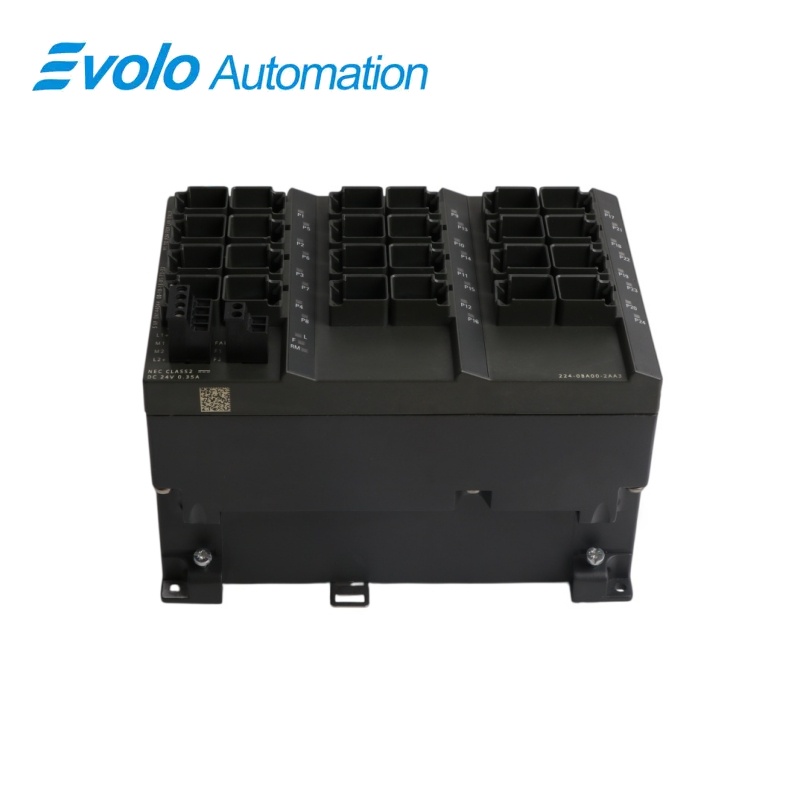

6GK5224-0BA00-2AA3 SCALANCE X224 Managed Industrial Ethernet Switch
The SCALANCE X224 is a managed Industrial Ethernet switch for reliable Fast Ethernet networking, with twenty-four RJ45 ports, PROFINET IO diagnostics, redundant power input, ring redundancy and optional C-PLUG configuration storage.
At a Glance
| Brand | Siemens |
|---|---|
| Model | 6GK5224-0BA00-2AA3 |
| Product Type | Managed Industrial Ethernet switch |
| Core Function | Provides managed switching, diagnostics and redundant-ring operation for industrial networks |
| Application or Compatible Series | PROFINET IO and managed line, star or ring Industrial Ethernet networks |
Exact Identification
Match 6GK5224-0BA00-2AA3 character by character and confirm the complete SCALANCE X224 Managed Industrial Ethernet Switch designation.
Interface Arrangement
Confirm the installed supply, ports, field connections and required accessories before wiring the replacement.
Configuration Check
Preserve the approved engineering project, network parameters and application data used by the installed system.
Product Overview
The SCALANCE X224 is a managed Industrial Ethernet switch for reliable Fast Ethernet networking, with twenty-four RJ45 ports, PROFINET IO diagnostics, redundant power input, ring redundancy and optional C-PLUG configuration storage.
Twenty-four RJ45 ports connect controllers, distributed I/O, HMIs and other industrial Ethernet devices. Web, CLI, SNMP and PROFINET diagnostic functions support commissioning and fault analysis. Redundant 24 V DC supply and ring-redundancy functions improve network availability.
Key Functions
High-Density Fast Ethernet
Twenty-four RJ45 ports connect controllers, distributed I/O, HMIs and other industrial Ethernet devices.
Managed Network Diagnostics
Web, CLI, SNMP and PROFINET diagnostic functions support commissioning and fault analysis.
Industrial Redundancy
Redundant 24 V DC supply and ring-redundancy functions improve network availability.
Official Specifications
| Transfer Rate | 10/100 Mbit/s |
|---|---|
| RJ45 Network Ports | 24 |
| RJ45 Port Design | With securing collar |
| Signaling Contact | 1 |
| Signaling Contact Connection | 2-pole terminal block |
| Power-Supply Connection | 4-pole terminal block |
| Rated Supply Voltage | 24 V DC |
| Maximum Current Consumption | 0.35 A |
| Rated Power Loss | 8.4 W |
| Redundant Voltage Supply | Supported |
| Removable Storage | Optional C-PLUG |
| Operating Temperature | -40 to +60 °C |
| Storage Temperature | -40 to +70 °C |
| Maximum Relative Humidity | 95% at 25 °C, non-condensing |
| Degree of Protection | IP30 |
| Dimensions (W x H x D) | 180 x 125 x 124 mm |
| Net Weight | 1.6 kg |
| Mounting Options | 35 mm DIN rail, S7-300 rail or wall mounting |
Frequently Asked Questions
How many copper Ethernet devices can connect directly to 6GK5224-0BA00-2AA3?
The switch provides twenty-four 10/100 Mbit/s RJ45 ports for network components or terminal equipment.
Can 6GK5224-0BA00-2AA3 be used in a redundant ring?
Yes; configure the documented ring-redundancy function and verify the selected redundancy manager before commissioning.
Which supply should be prepared for 6GK5224-0BA00-2AA3?
Provide a correctly fused 24 V DC supply and use the redundant input arrangement when required by the plant design.
How can 6GK5224-0BA00-2AA3 report a network or device fault?
Use its diagnostic LEDs, signaling contact, PROFINET diagnostics, web interface or supported SNMP functions.
Can the configuration of 6GK5224-0BA00-2AA3 be transferred during replacement?
Yes; an optional C-PLUG can retain the approved device configuration for a compatible replacement.
Which mounting methods are supported by 6GK5224-0BA00-2AA3?
Install it on a 35 mm DIN rail, an S7-300 rail or a suitable wall surface with the required clearances.
What should be backed up before replacing 6GK5224-0BA00-2AA3?
Save the switch configuration, IP settings, PROFINET device assignment, ring role, port settings and alarm-contact wiring.
Compatibility & Ordering Notes
Compatibility Checklist
- Use the switch only with the established 10/100 Mbit/s copper network design and approved industrial cabling.
- Preserve the IP address, PROFINET device name, redundancy role and port settings when exchanging the unit.
- Confirm the mounting clearances, grounding and redundant power wiring before startup.
