Overview
Siemens · SCALANCE XC-200

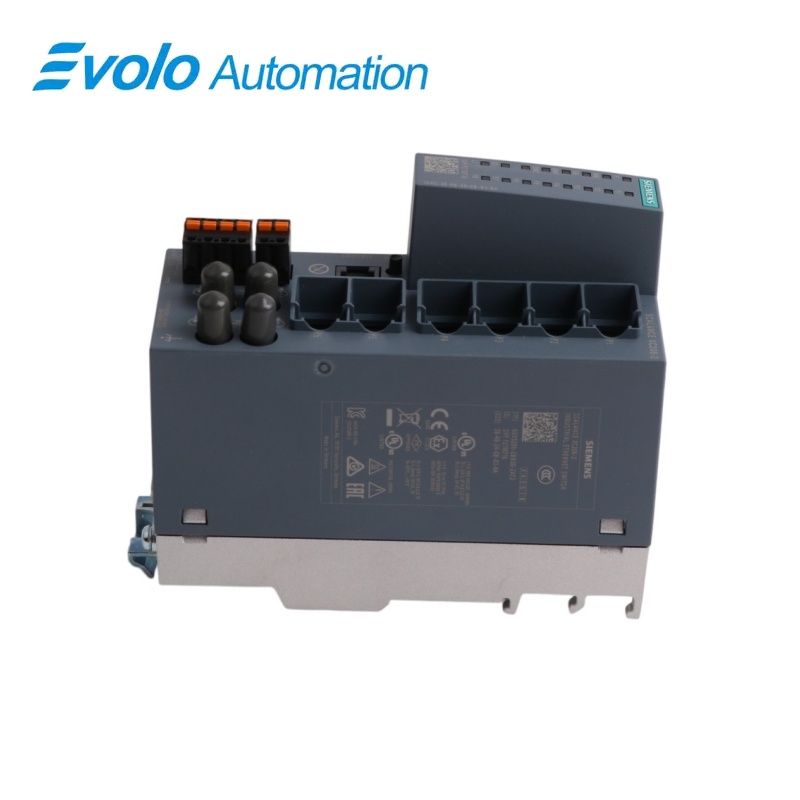

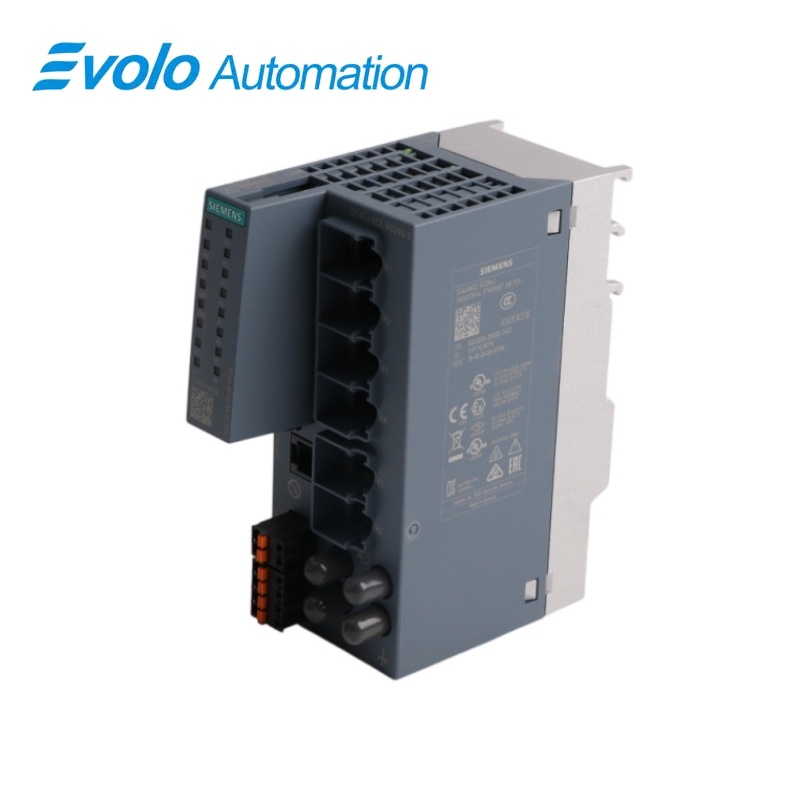

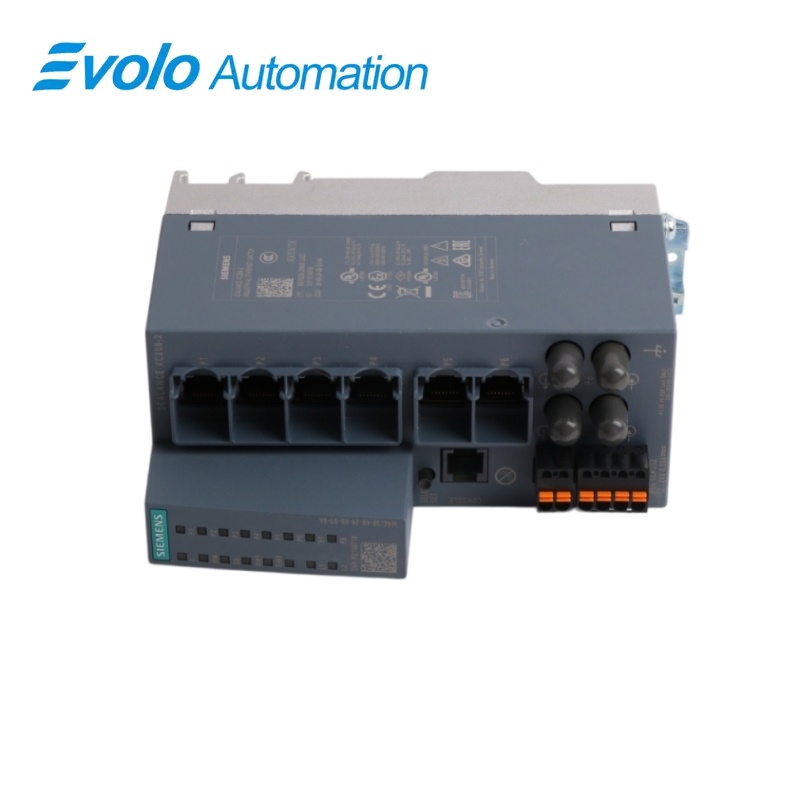

6GK5206-2BB00-2AC2 SCALANCE XC206-2 Managed Layer 2 Switch
The SCALANCE XC206-2 is a managed Layer 2 switch with six 100 Mbit/s RJ45 ports and two 100 Mbit/s ST/BFOC optical ports.
At a Glance
| Brand | Siemens |
|---|---|
| Model | 6GK5206-2BB00-2AC2 |
| Product Type | Managed Layer 2 Industrial Ethernet switch with copper and fiber ports |
| Core Function | Connects six copper and two optical Ethernet segments with diagnostics and redundant power |
| Application or Compatible Series | Industrial Ethernet and PROFINET networks requiring 100 Mbit/s RJ45 and ST/BFOC links |
Exact Identification
Match 6GK5206-2BB00-2AC2 character by character and confirm the complete SCALANCE XC206-2 Managed Layer 2 Switch designation.
Interface Arrangement
Confirm the installed supply, ports, field connections and required accessories before wiring the replacement.
Configuration Check
Preserve the approved engineering project, network parameters and application data used by the installed system.
Product Overview
The SCALANCE XC206-2 is a managed Layer 2 switch with six 100 Mbit/s RJ45 ports and two 100 Mbit/s ST/BFOC optical ports.
Six copper and two optical ports connect machine and plant segments. RSTP, VLAN and diagnostic functions support network operation. Redundant power inputs and a wide temperature range suit industrial cabinets.
Key Functions
Eight Network Ports
Six copper and two optical ports connect machine and plant segments.
Managed Layer 2 Functions
RSTP, VLAN and diagnostic functions support network operation.
Industrial Availability
Redundant power inputs and a wide temperature range suit industrial cabinets.
Official Specifications
| Switch Model | SCALANCE XC206-2 |
|---|---|
| Layer | Managed Layer 2 |
| Copper Ports | 6 x RJ45 |
| Copper Rate | 100 Mbit/s |
| Optical Ports | 2 x ST/BFOC |
| Optical Rate | 100 Mbit/s |
| Console Port | 1 |
| Redundant Power Supply | Supported |
| Operating Temperature | -40 to +70 C |
| Diagnostics LEDs | Provided |
| RSTP | Supported |
| VLAN | Supported |
| Mounting | DIN rail, S7 rail or wall |
Frequently Asked Questions
How many Ethernet interfaces are available on XC206-2 switch 6GK5206-2BB00-2AC2?
Six RJ45 and two ST/BFOC optical ports are available.
Which configuration should be preserved on XC206-2 switch 6GK5206-2BB00-2AC2?
Save the IP address, VLANs, redundancy settings, port configuration and diagnostics.
Which installed configuration should be recorded before replacing XC206-2 switch 6GK5206-2BB00-2AC2?
Record the configured addresses, wiring assignments, parameters, firmware and neighboring hardware before removal.
What identification must match when selecting XC206-2 switch 6GK5206-2BB00-2AC2?
Match the complete article number, hardware revision and every option used by the installed system.
How should technicians handle XC206-2 switch 6GK5206-2BB00-2AC2?
Isolate the affected equipment and use grounded electrostatic-discharge precautions throughout the exchange.
Which checks are required after installing XC206-2 switch 6GK5206-2BB00-2AC2?
Verify power, diagnostics, communication, field signals and the complete approved machine or plant function.
When should a visually similar unit replace XC206-2 switch 6GK5206-2BB00-2AC2?
Use a visually similar unit only after engineering confirms identical electrical, mechanical and software compatibility.
Compatibility & Ordering Notes
Compatibility Checklist
- Match the optical fiber type and connector.
- Preserve all managed Layer 2 settings.
- Verify both redundant power inputs.
