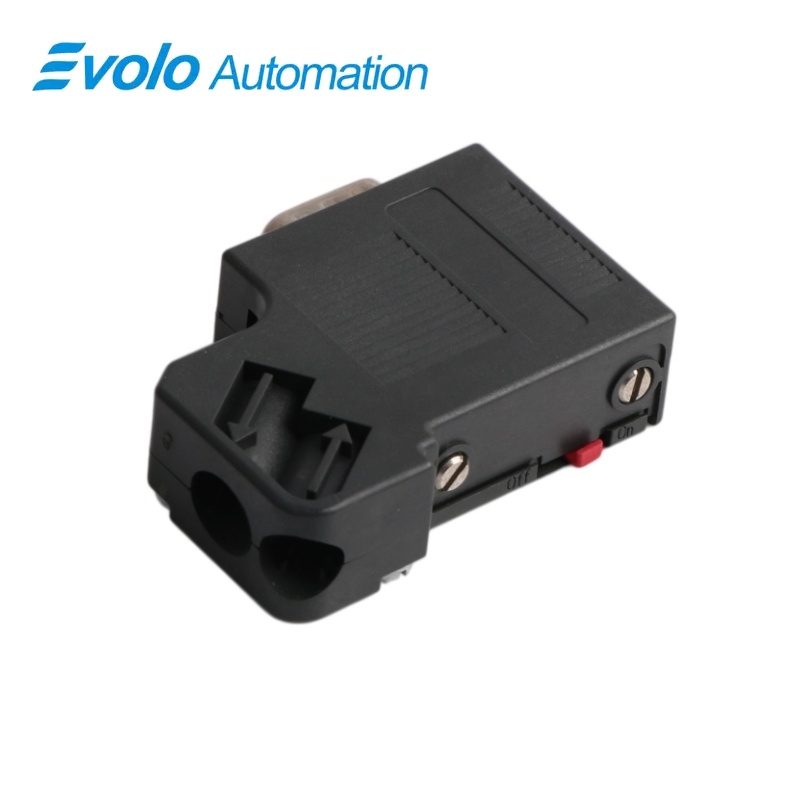

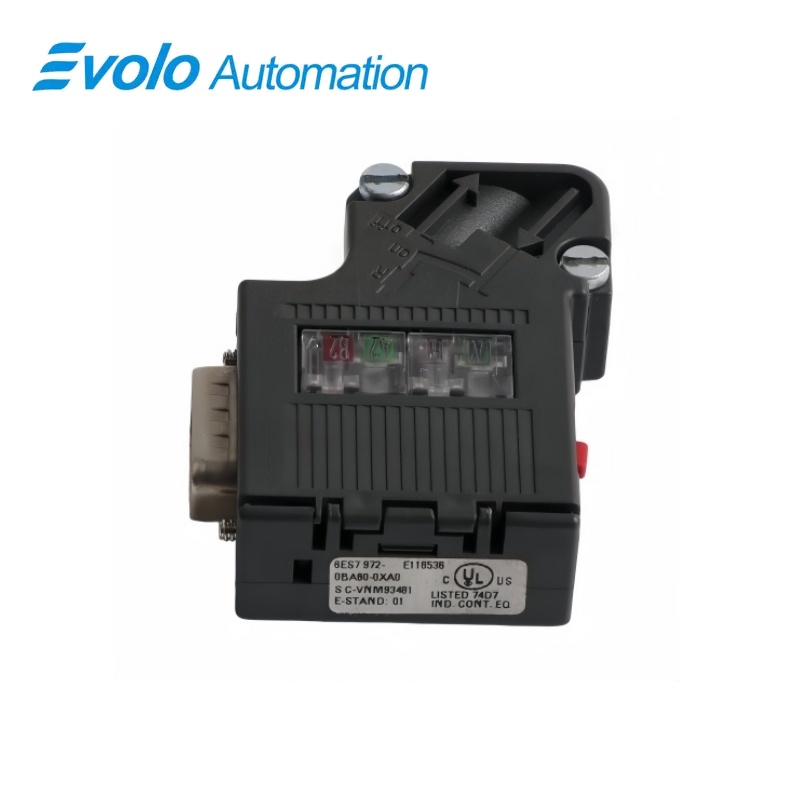

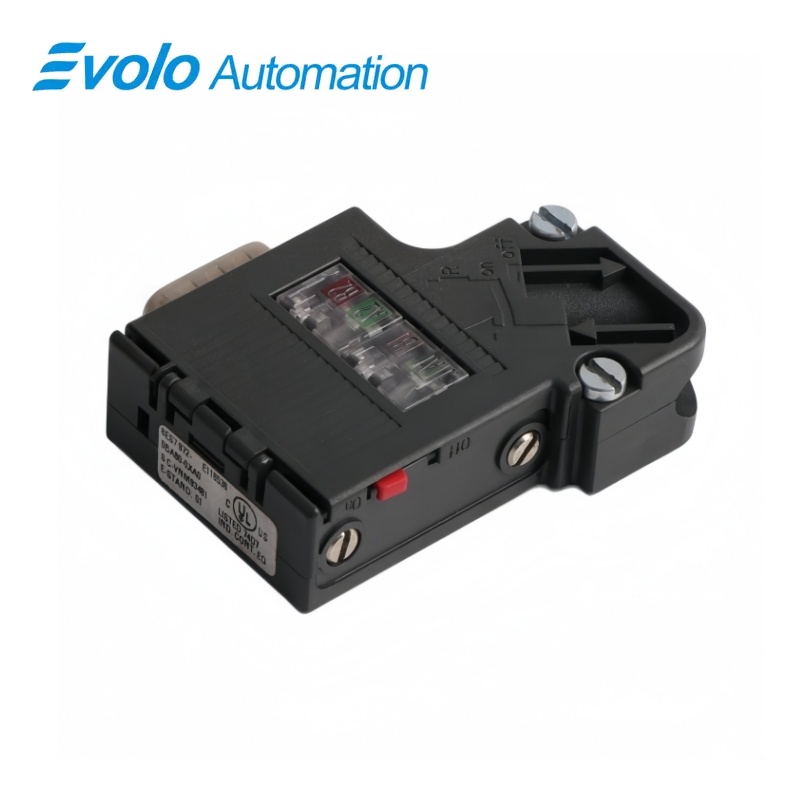

Siemens 6ES7972-0BA60-0XA0 SIMATIC PROFIBUS FastConnect 35° Bus Connector without PG Socket
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Hot Selling Models
- Recommended Products
Overview
- Reserve the 35-degree cable path.
- Use the specified 8 ± 0.5 mm FC cable diameter.
- Do not place an active termination ahead of required downstream stations.
- Provide PG access at a suitable other point in the segment.
6ES7972-0BA60-0XA0 SIMATIC PROFIBUS FastConnect 35° Bus Connector without PG Socket
A 35-degree FastConnect connector without a PG socket, using insulation-piercing bus contacts and switchable endpoint termination.
At a Glance
| Brand | Siemens |
|---|---|
| Model | 6ES7972-0BA60-0XA0 |
| Product Type | FastConnect RS 485 connector |
| Core Function | Inclined insulation-displacement bus attachment |
| Application | PROFIBUS electrical segments |
Angled FastConnect arrangement
The 35-degree cable exit combines inclined routing with insulation-piercing bus contacts.
Selectable electrical endpoint
The termination switch also disconnects the outgoing bus cable.
Device-supplied termination power
The connected station supplies the connector’s 5 V termination circuit.
Product Overview
6ES7972-0BA60-0XA0 provides an inclined FastConnect connection for a PROFIBUS station where a local PG socket is unnecessary.
Its insulation-piercing contacts accept the specified PROFIBUS FC cables, while the integrated resistor and disconnect function define the electrical end of the segment.
Key Functions
Terminate the FC cable with piercing contacts
Four insulation-piercing contacts connect the incoming and outgoing cable conductors.
Select the segment-end condition
The integrated termination disconnects the outgoing cable when enabled.
Maintain the correct station power arrangement
The termination circuit receives 4.75–5.25 V DC from the connected device.
Official Specifications
| PROFIBUS transfer-rate range | 9.6 kbit/s–12 Mbit/s |
|---|---|
| Cable outlet angle | 35° |
| Device interface | Nine-pin D-sub male connector |
| Bus-cable termination | Four insulation-displacement contacts for FastConnect cable |
| Terminating-resistor control | Integrated network activated by slide switch |
| Bus disconnect behavior | Outgoing bus disconnected when termination is activated |
| Supply from connected device | 4.75–5.25 V DC |
| Maximum current consumption | 5 mA |
| Connectable cable diameter | 8 ± 0.5 mm |
| Operating ambient temperature | 0 to +60 °C |
| Storage and transport temperature | −25 to +80 °C |
| Maximum relative humidity | 75% at +25 °C |
| Protection rating | IP20 |
| Programming-device socket | Not fitted |
| Excluded cable construction | FC process cable |
Frequently Asked Questions
What distinguishes the cable connection of 6ES7972-0BA60-0XA0 from a screw-terminal PROFIBUS plug?
Its four bus-conductor contacts use the FastConnect insulation-piercing method instead of individual screw terminals.
Does 6ES7972-0BA60-0XA0 combine FastConnect wiring with an inclined cable outlet?
Yes, the connector uses a 35-degree cable outlet with FastConnect contacts.
Can 6ES7972-0BA60-0XA0 accept FC process cable?
No, FC process cable is excluded from its permitted cable constructions.
Must the connected station stay powered if 6ES7972-0BA60-0XA0 supplies required endpoint termination?
Yes, the connector’s termination circuit depends on the 4.75–5.25 V DC supply provided by the station.
Can I use the local PG socket on 6ES7972-0BA60-0XA0 for commissioning?
No, this exact connector version has no PG socket.
What should I expect if termination is switched on at an interior 6ES7972-0BA60-0XA0?
The outgoing line is disconnected, which prevents communication with the nodes beyond that connector.
What environmental humidity limit applies to 6ES7972-0BA60-0XA0?
The specified maximum relative humidity is 75% at +25 °C.
