Siemens SIMATIC C7 6ES7636-2EC00-0AE3 C7-636 Key Complete Unit
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
SIMATIC C7 6ES7636-2EC00-0AE3 C7-636 Key Complete Unit
C7-636 Key compact control system with integrated S7-300 CPU and operator-panel functions for machine control and local operation.
At a Glance
| Article Number | 6ES7636-2EC00-0AE3 |
|---|---|
| Manufacturer | Siemens |
| Series | SIMATIC C7 |
| Product Type | C7-636 Key Complete Unit |
| Controller | CPU 315-2 DP |
Match the complete article number and installed hardware.
Confirm MPI/PROFIBUS DP and integrated digital and analog I/O.
Verify project data and official system documentation.
Product Overview

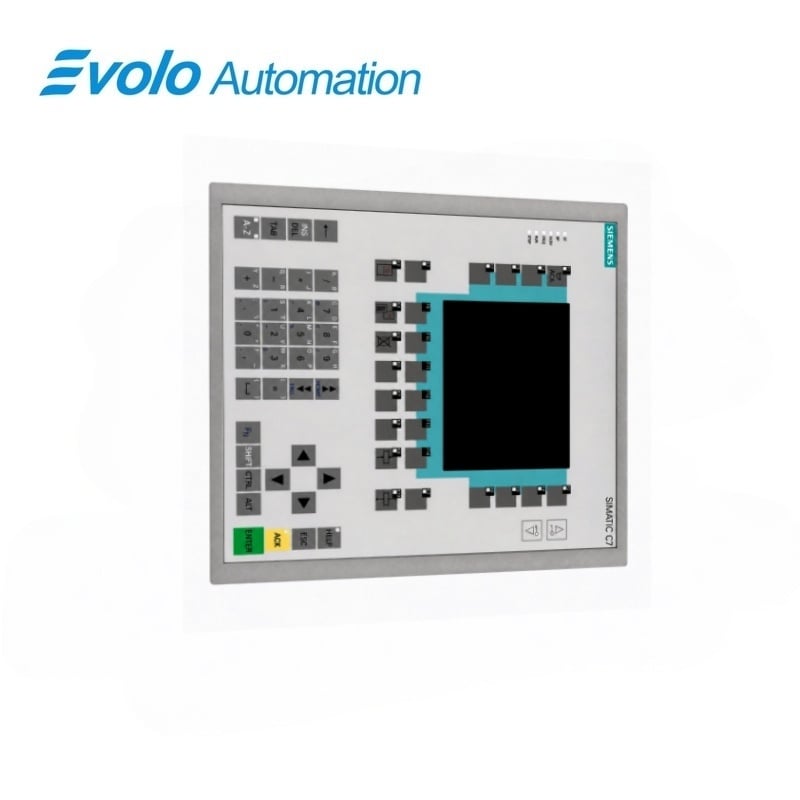

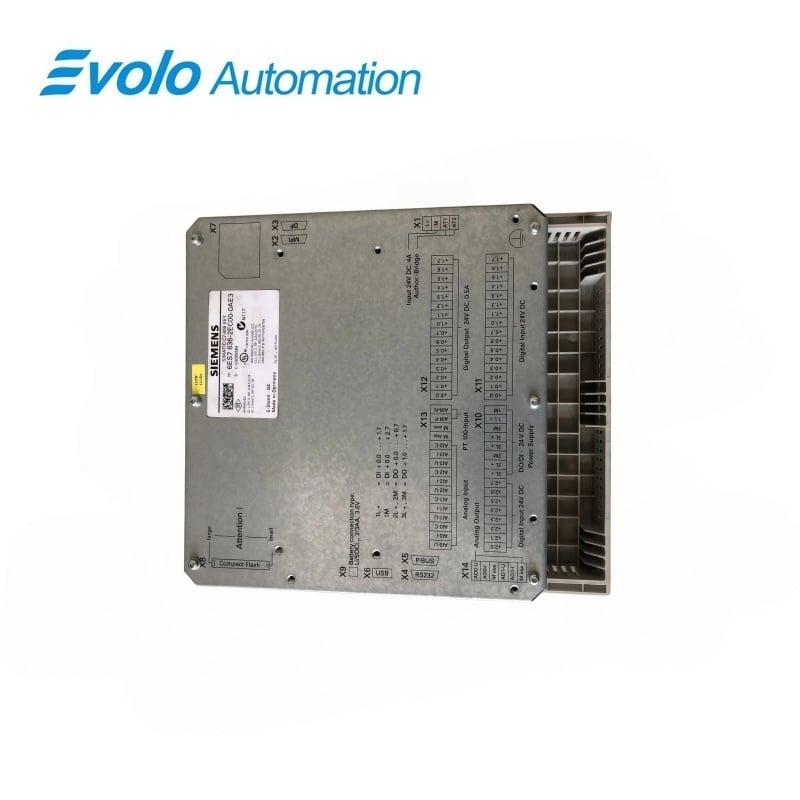

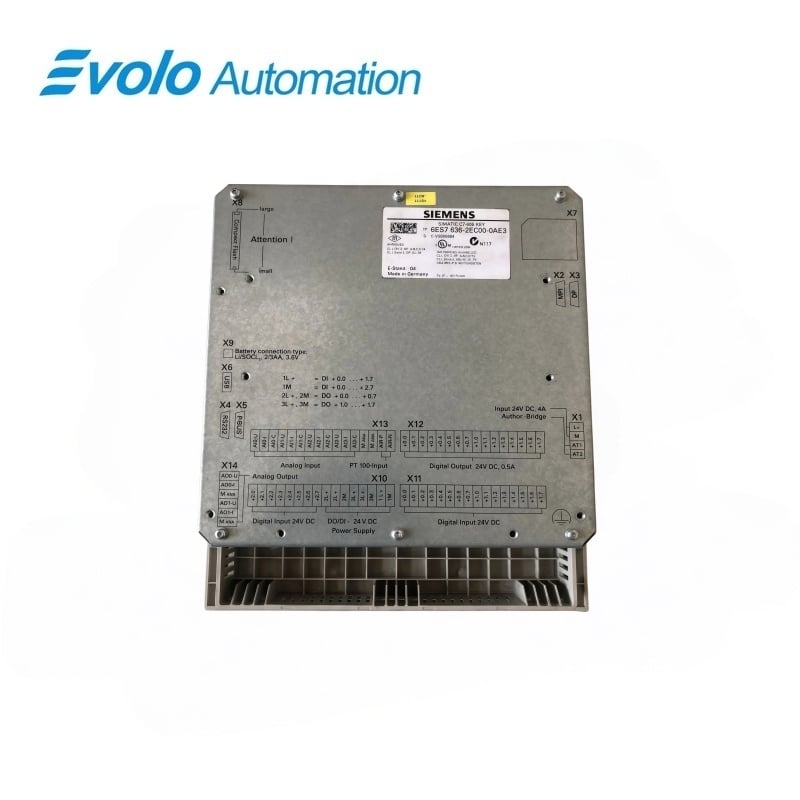

6ES7636-2EC00-0AE3 is officially identified by Siemens as the C7-636 Key in the SIMATIC C7 family. SIMATIC C7-636 Key complete unit combining a CPU 315-2 DP, OP270B operator panel and integrated signal I/O.
For replacement and quotation, compare the complete article number, hardware version, interface requirements and installed configuration.
Key Functions
Model-Specific Configuration
6ES7636-2EC00-0AE3: Combined CPU 315-2 DP and OP270B operator panel.
System Interface
6ES7636-2EC00-0AE3: Integrated 24 digital inputs and 16 digital outputs.
Performance & Memory
6ES7636-2EC00-0AE3: Integrated 5 analog inputs and 2 analog outputs.
Replacement Control
6ES7636-2EC00-0AE3: SIMATIC Micro Memory Card and connector required.
Official Specifications
| Article Number | 6ES7636-2EC00-0AE3 |
|---|---|
| Manufacturer | Siemens |
| Series | SIMATIC C7 |
| Product Type | C7-636 Key Complete Unit |
| Controller | CPU 315-2 DP |
| Operator Panel | OP270B |
| Digital I/O | 24 DI / 16 DO |
| Analog I/O | 5 AI / 2 AO |
| Memory | SIMATIC Micro Memory Card required |
| Country of Origin | Germany |
Frequently Asked Questions
Which engineering software is required to configure 6ES7636-2EC00-0AE3?
Use STEP 7 V5.2 with Service Pack 1 and the C7-636 Key V2.0 hardware update for the controller; configure the operator section with ProTool V6.0 SP2 plus the applicable update.
How should the MPI addresses be assigned when commissioning 6ES7636-2EC00-0AE3?
The controller and operator section use separate MPI addresses; assign both without conflicts and document them in the project.
What mounting hardware should be checked before installing 6ES7636-2EC00-0AE3?
Confirm the sealing gasket, grounding bar with two fixing screws and six shield terminals, and all ten mounting clips are available and undamaged.
What compatibility information is needed before replacing 6ES7636-2EC00-0AE3?
Record the CPU, HMI and bootloader versions, STEP 7 project, ProTool project, MPI addresses, expansion modules and connector assignment.
How should expansion modules be integrated with 6ES7636-2EC00-0AE3?
Configure every module in STEP 7 with the correct address allocation and I/O assignment before the machine or process is enabled.
What should engineers verify after downloading the controller and HMI projects to 6ES7636-2EC00-0AE3?
Check both MPI addresses, controller operating mode, operator-panel communication, message handling, screen functions and all configured I/O.
Which backup items should be prepared before servicing 6ES7636-2EC00-0AE3?
Preserve the STEP 7 project, ProTool configuration, hardware configuration, variable and message definitions, recipe data where used, and current version records.
Compatibility & Ordering Notes
Compatibility Checklist for 6ES7636-2EC00-0AE3
Match the full suffix without shortening the order number.
Confirm the installed SIMATIC C7 hardware and project version.
Verify MPI/PROFIBUS DP and integrated digital and analog I/O.
Confirm required memory media, connectors and accessories in the written quotation.
