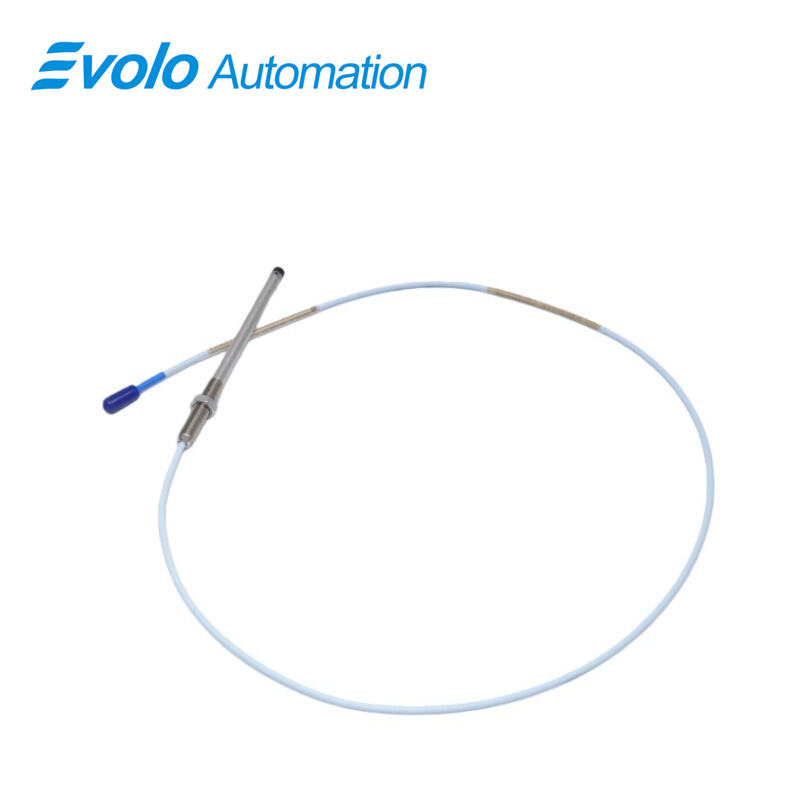

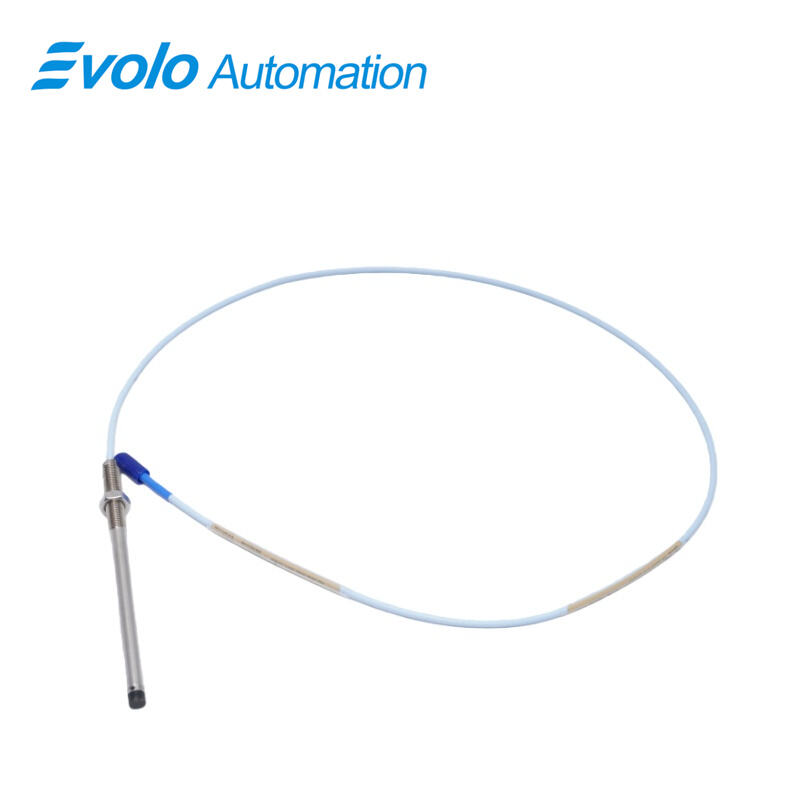

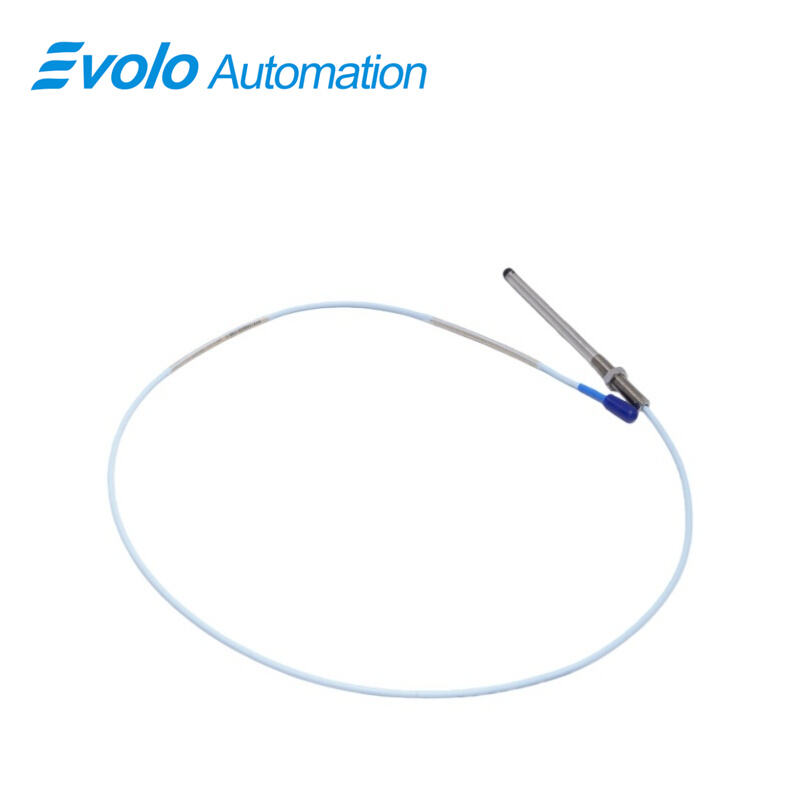

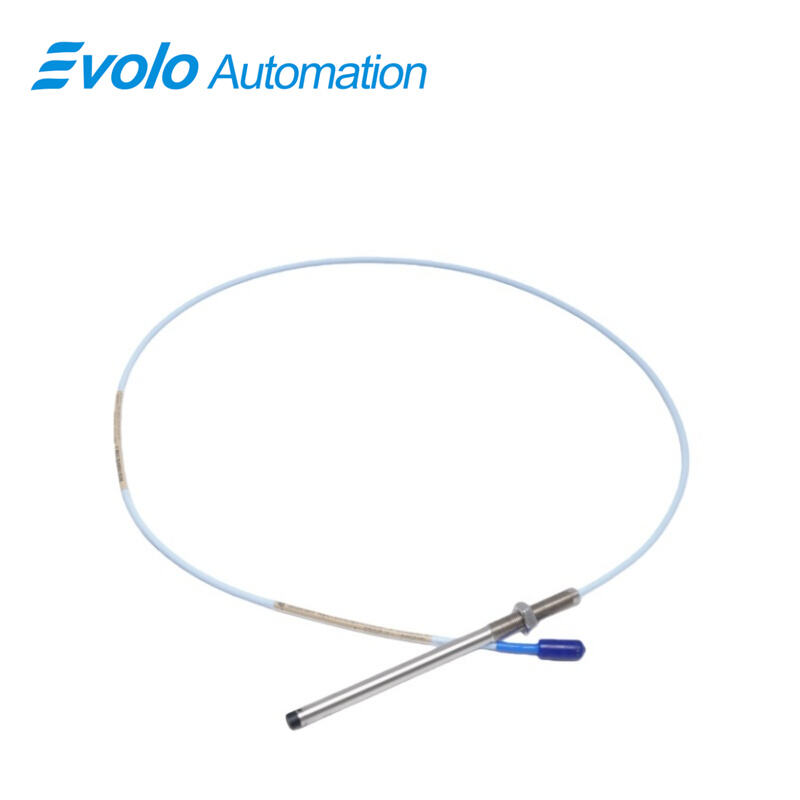

330101-33-53-10-02-05 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-33-53-10-02-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-33-53-10-02-05 3300 XL 8 mm Proximity Probe is a high-precision sensing device designed for demanding industrial automation and machinery protection systems. As a core component of the 3300 XL 8 mm Proximity Probe family, this model delivers a stable output voltage that remains directly proportional to the gap between the probe tip and the monitored conductive target. This characteristic enables accurate detection of both static displacement and dynamic vibration, which are critical parameters in modern automated monitoring environments.

In automated process control systems, the 3300 XL 8 mm Proximity Probe is widely used for vibration monitoring, axial and radial position measurement, and rotational speed detection when integrated with a Keyphasor reference. The 330101-33-53-10-02-05 configuration is particularly suitable for fluid-film bearing machinery such as turbines, compressors, pumps, and large motors commonly found in power generation, petrochemical processing, and continuous manufacturing automation lines.

Engineered to meet stringent industry standards, the 3300 XL 8 mm Proximity Probe fully complies with API 670 requirements for linear measurement range, thermal stability, accuracy, and mechanical design. This compliance makes the 330101-33-53-10-02-05 3300 XL 8 mm Proximity Probe an ideal choice for safety-critical automation systems where reliable data acquisition is essential for predictive maintenance and equipment protection.

A major advantage of the 3300 XL 8 mm Proximity Probe system lies in its complete interchangeability. Probes, extension cables, and Proximitor sensors can be freely combined without individual calibration, simplifying installation and reducing commissioning time in automated plants. Additionally, the 330101-33-53-10-02-05 probe maintains backward compatibility with legacy 3300 series 5 mm and 8 mm components, supporting flexible upgrades within existing automation infrastructures.

From a mechanical perspective, the 3300 XL 8 mm Proximity Probe incorporates advanced design enhancements such as the patented TipLoc molding process, which strengthens the bond between the sensing tip and probe body. The integrated CableLoc technology further improves reliability by providing high pull-strength resistance, ensuring stable signal transmission even in harsh industrial automation environments. Optional FluidLoc cable construction is also available, preventing oil or fluid migration through the cable and protecting automation cabinets and control hardware.

Overall, the 330101-33-53-10-02-05 3300 XL 8 mm Proximity Probe represents a robust, automation-ready sensing solution that enhances machine reliability, supports continuous condition monitoring, and contributes to intelligent, data-driven industrial automation systems.

Applications

1. Radial and Axial Vibration Monitoring in Rotating Machinery

The 330101-33-53-10-02-05 3300 XL 8 mm Proximity Probe is widely applied in radial and axial vibration monitoring of critical rotating equipment. With a 2 mm linear measurement range and a recommended gap setting of -9 Vdc, the probe provides highly stable and repeatable vibration signals. This makes it ideal for turbines, centrifugal compressors, pumps, motors, and generators equipped with fluid-film bearings. In automated condition monitoring systems, the probe enables early detection of imbalance, misalignment, shaft bow, and bearing wear, supporting predictive maintenance strategies.

2. Shaft Position and Displacement Measurement

Thanks to its output voltage that is directly proportional to probe-to-target distance, the 3300 XL 8 mm Proximity Probe is commonly used for shaft axial position and radial displacement measurement. The 3/8-24 UNF threaded stainless steel probe case and 5.3 in overall case length allow secure installation in machinery housings. In industrial automation environments, this application is essential for thrust bearing monitoring, ensuring safe machine operation and preventing axial rub or thrust overload conditions.

3. Keyphasor Reference and Speed Detection

In combination with a Keyphasor signal, the 330101-33-53-10-02-05 probe supports accurate rotational speed measurement and phase reference generation. This function is critical in automated vibration analysis systems, where precise speed data is required for order tracking, phase analysis, and machinery diagnostics. The probe’s 50 Ω output resistance and low supply sensitivity ensure signal integrity even in electrically noisy industrial environments.

4. High-Temperature and Harsh Industrial Environments

With an operating temperature range of -52°C to +177°C, a PPS probe tip, and AISI 303/304 stainless steel housing, the 3300 XL 8 mm Proximity Probe is suitable for harsh process industries such as oil & gas, petrochemical plants, power generation, and heavy manufacturing. Optional FluidLoc cable construction further enhances reliability by preventing oil or liquid migration, protecting automation cabinets and control systems.

5. Integration in API 670-Compliant Machinery Protection Systems

The 330101-33-53-10-02-05 3300 XL 8 mm Proximity Probe is extensively used in API 670-compliant machinery protection and automation systems. Its CSA, ATEX, and IECEx approvals make it suitable for hazardous-area installations, while full interchangeability with other 3300 XL components simplifies system design, expansion, and maintenance in automated industrial plants.

Specifications

Competitive Advantage

1. API 670 Compliance for Critical Machinery Protection

The 3300 XL 8 mm Proximity Probe is fully compliant with API 670, making it a trusted solution for vibration and position monitoring in critical rotating machinery. Its certified mechanical configuration, linear measurement range, accuracy, and temperature stability ensure reliable operation in demanding industries such as oil & gas, petrochemical processing, power generation, and heavy industrial automation. This compliance significantly reduces engineering risk and simplifies system approval in safety-critical applications.

2. High Measurement Accuracy and Stable Linear Performance

With a 2 mm (80 mils) linear range and a recommended radial vibration gap setting of -9 Vdc, the probe delivers precise and repeatable displacement measurements. Its low supply sensitivity (<2 mV/V) minimizes signal drift caused by power fluctuations, ensuring consistent vibration and position feedback. This high signal integrity enhances predictive maintenance strategies and improves condition-based monitoring accuracy.

3. Robust Mechanical Design for Harsh Industrial Environments

The probe case is manufactured from AISI 303 or 304 stainless steel, providing excellent resistance to corrosion, mechanical stress, and chemical exposure. The PPS probe tip material offers superior thermal stability and wear resistance, enabling reliable performance across a wide operating temperature range of -52°C to +177°C. These features make the probe ideal for continuous operation in harsh industrial and hazardous environments.

4. Flexible Installation with Optimized Dimensions

Featuring a 3/8-24 UNF thread, 3.3 in unthreaded length, and 5.3 in overall case length, this proximity probe supports flexible mounting configurations while maintaining structural stability. The maximum thread engagement of 0.563 in prevents installation errors and protects the probe body. These optimized mechanical dimensions allow easy integration into existing machinery without extensive modifications.

5. Secure Signal Transmission with ClickLoc Technology

The miniature coaxial ClickLoc connector and standard cable provide a secure, vibration-resistant electrical connection. Patented TipLoc and CableLoc designs significantly improve pull strength (up to 330 N / 75 lbf), reducing the risk of signal loss due to cable movement or mechanical fatigue. This design enhances long-term reliability in high-vibration automation systems.

6. Interchangeability and Backward Compatibility

A major competitive advantage of the 3300 XL 8 mm Proximity Probe is its full interchangeability with other 3300 XL probes, extension cables, and Proximitor sensors. The system eliminates the need for individual component matching or bench calibration, reducing commissioning time and maintenance costs. Additionally, backward compatibility with non-XL 3300 series 5 mm and 8 mm components protects existing investments and simplifies system upgrades.

7. Global Certifications for Hazardous Area Applications

With CSA, ATEX, and IECEx approvals, this probe is suitable for use in hazardous locations worldwide. These certifications ensure compliance with international safety standards and enable deployment across global industrial automation projects without redesign or recertification.
