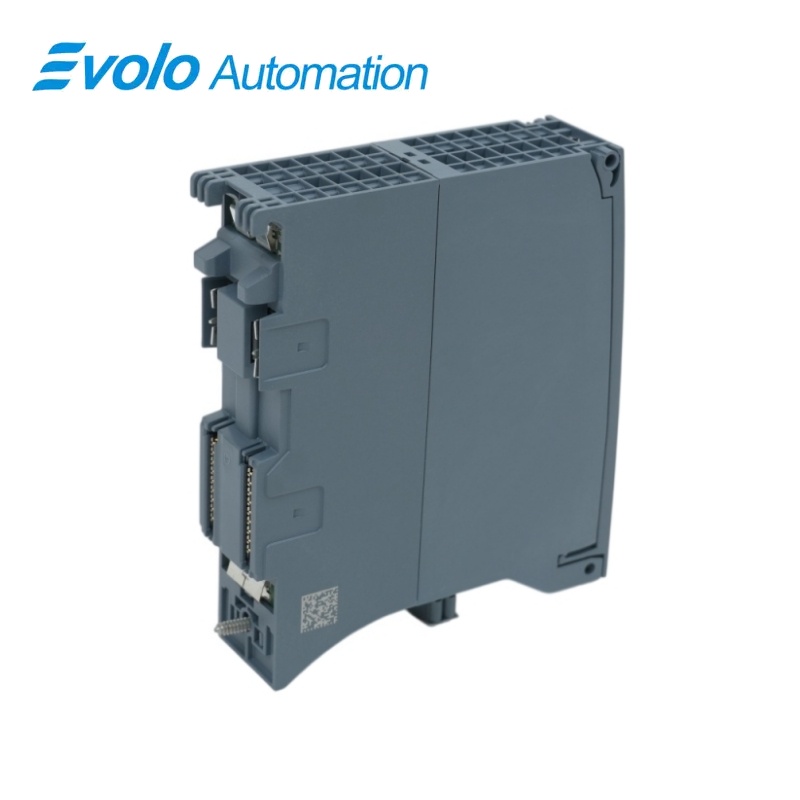

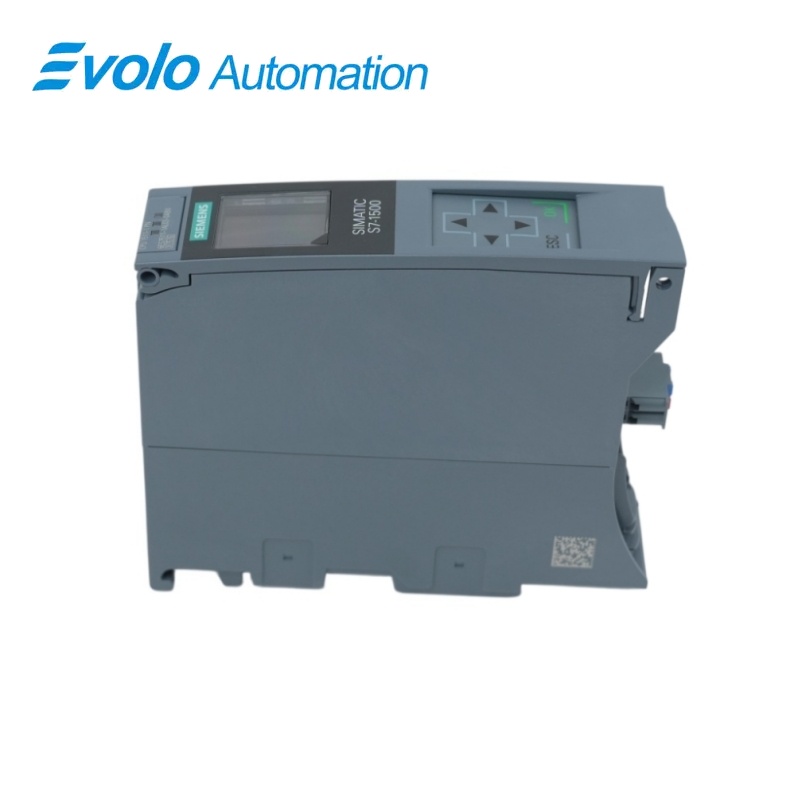

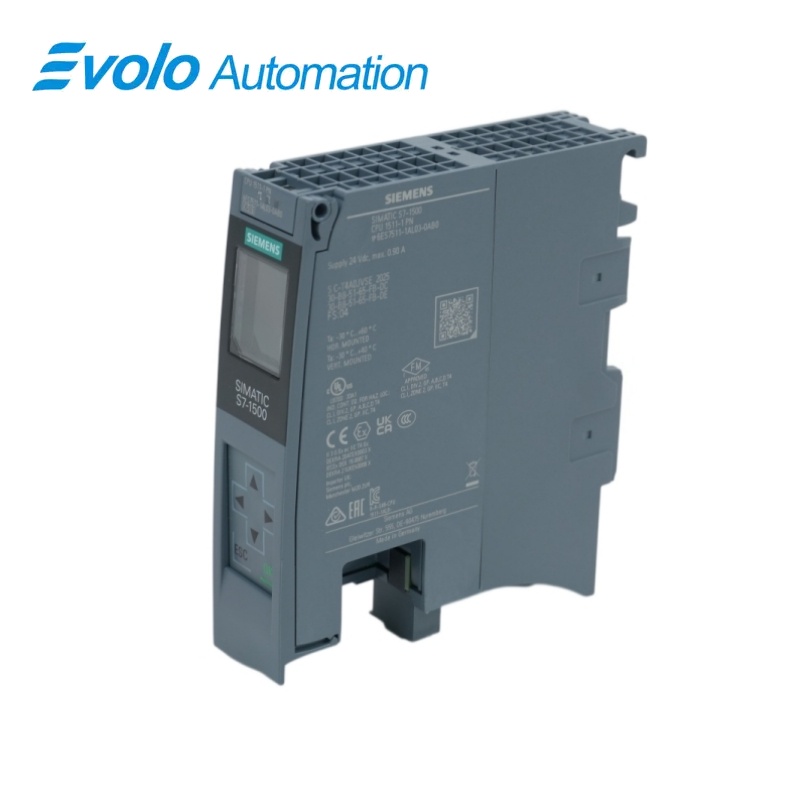

Siemens SIMATIC S7-1500 CPU 1513-1 PN 6ES7513-1AL01-0AB0
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
Siemens • SIMATIC S7-1500 Automation System
6ES7513-1AL01-0AB0 SIMATIC S7-1500 CPU 1513-1 PN
The SIMATIC S7-1500 CPU 1513-1 PN is a standard automation CPU with an integrated two-port PROFINET interface for distributed I/O, controller communication and web-server access.
At a Glance
| Brand | Siemens |
|---|---|
| Model | 6ES7513-1AL01-0AB0 |
| Product Type | Standard CPU with integrated PROFINET interface |
| Core Function | Executes automation logic and coordinates PROFINET distributed I/O |
| Application or Compatible Series | SIMATIC S7-1500 stations with PROFINET IO Controller or IO Device communication |
Exact Identification
Match 6ES7513-1AL01-0AB0 character by character and confirm the complete SIMATIC S7-1500 CPU 1513-1 PN designation.
Interface Arrangement
Confirm the installed supply, ports, field connections and required accessories before wiring the replacement.
Configuration Check
Preserve the approved engineering project, network parameters and application data used by the installed system.
Product Overview
The SIMATIC S7-1500 CPU 1513-1 PN is a standard automation CPU with an integrated two-port PROFINET interface for distributed I/O, controller communication and web-server access.
The X1 interface includes two RJ45 ports and an integrated switch for PROFINET communication. The CPU can integrate distributed I/O systems and communication modules within the specified S7-1500 hardware configuration. Built-in web-server, time synchronization and media-redundancy functions support connected automation systems.
Key Functions
Integrated PROFINET
The X1 interface includes two RJ45 ports and an integrated switch for PROFINET communication.
Distributed I/O Capacity
The CPU can integrate distributed I/O systems and communication modules within the specified S7-1500 hardware configuration.
System Diagnostics and Services
Built-in web-server, time synchronization and media-redundancy functions support connected automation systems.
Official Specifications
| Distributed I/O Systems | 32 |
|---|---|
| Integrated IO Controllers | 1 |
| Additional IO Controllers via CM | Up to 6; a maximum of six PROFINET and PROFIBUS communication modules in total |
| DP Masters via CM | Up to 6 |
| Modules per Rack | 32; CPU plus 31 modules |
| Maximum Rack Rows | 1 |
| Hardware Clock | Integrated |
| Clock Backup Duration | 6 weeks typical at 40 °C |
| Maximum Clock Deviation | 10 s per day; 2 s typical |
| Time Synchronization | Supported in AS master, AS slave and via NTP on Ethernet |
| PROFINET Interfaces | 1 |
| PROFINET Ports | 2 |
| Network Switch | Integrated |
| Ethernet Connection | RJ45 at X1 |
| IEC Counters | Unlimited; limited only by work memory |
| S7 Timers | 2048; retentivity adjustable |
| IEC Timers | Unlimited; limited only by work memory |
| Total Retentive Data Area | 128 KB total; 88 KB usable retentive memory |
| Bit Memory | 16 KB maximum |
| Local Data per Priority Class | 64 KB maximum; 16 KB maximum per block |
Frequently Asked Questions
Which PROFINET role can 6ES7513-1AL01-0AB0 perform?
The CPU can operate as a PROFINET IO Controller or as a PROFINET IO Device when configured for the required role.
How many Ethernet ports are available on 6ES7513-1AL01-0AB0?
The integrated X1 interface provides two RJ45 ports through an internal switch.
Can 6ES7513-1AL01-0AB0 connect distributed I/O?
Yes; the CPU supports the specified distributed I/O systems through PROFINET and communication modules.
What should be saved before replacing 6ES7513-1AL01-0AB0?
Archive the complete project, memory-card contents, PROFINET device names, IP settings and commissioned application data.
How should the network topology be restored for 6ES7513-1AL01-0AB0?
Reconnect the two X1 ports according to the validated topology and restore the approved device identity and engineering configuration.
Can 6ES7513-1AL01-0AB0 synchronize time over Ethernet?
Yes; the controller supports time-of-day synchronization over Ethernet using NTP.
What should be tested after commissioning 6ES7513-1AL01-0AB0?
Verify controller startup, I/O exchange, network diagnostics, time synchronization, application logic and the complete machine sequence.
Compatibility & Ordering Notes
Compatibility Checklist
- Match the exact CPU variant and installed S7-1500 rack configuration.
- Restore the memory card, PROFINET identity and complete engineered project.
- Validate every distributed I/O connection and controller communication path.
