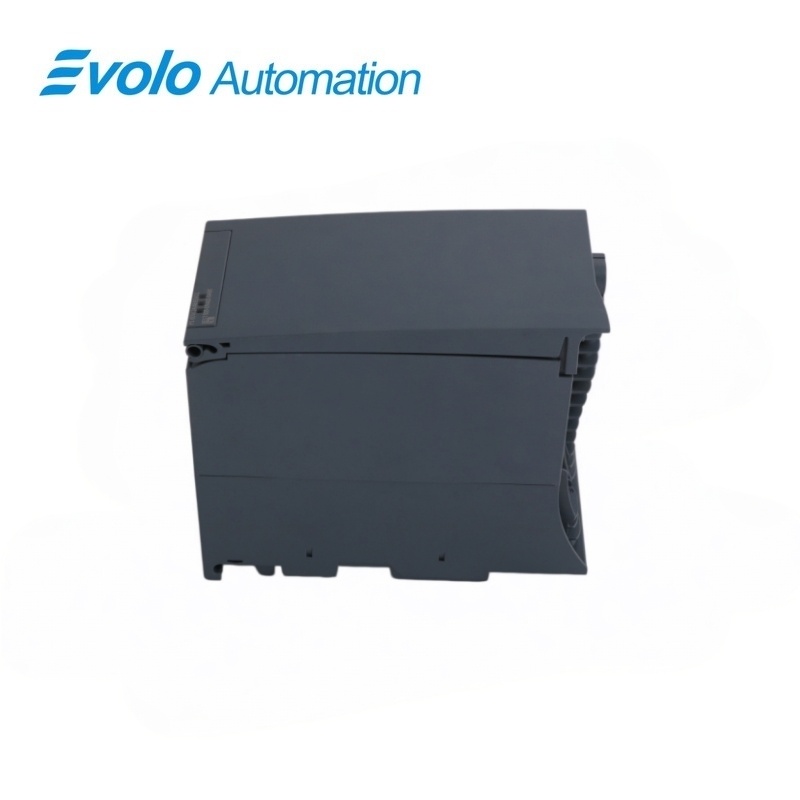

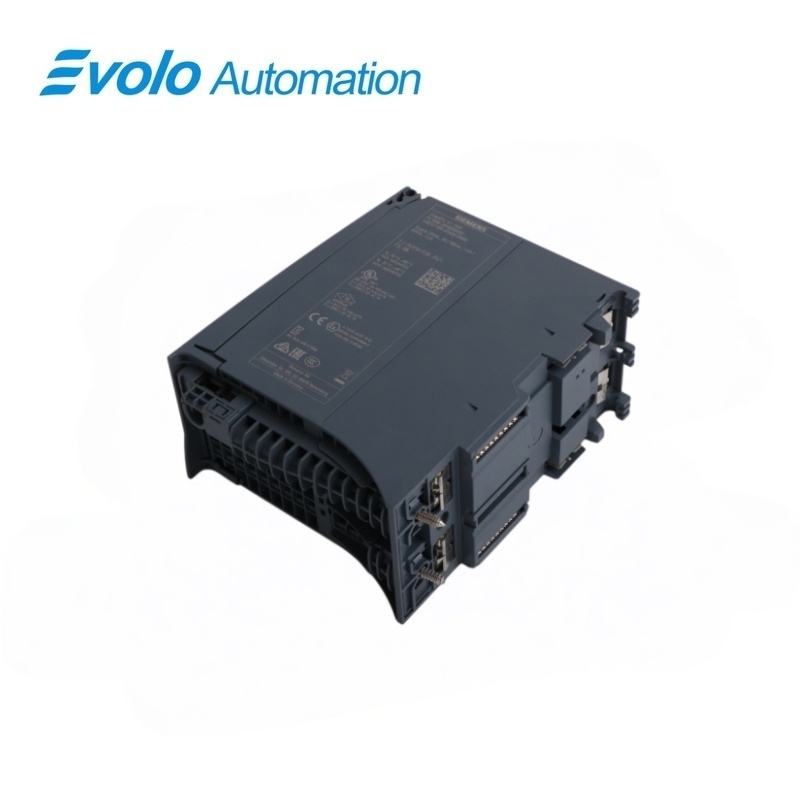

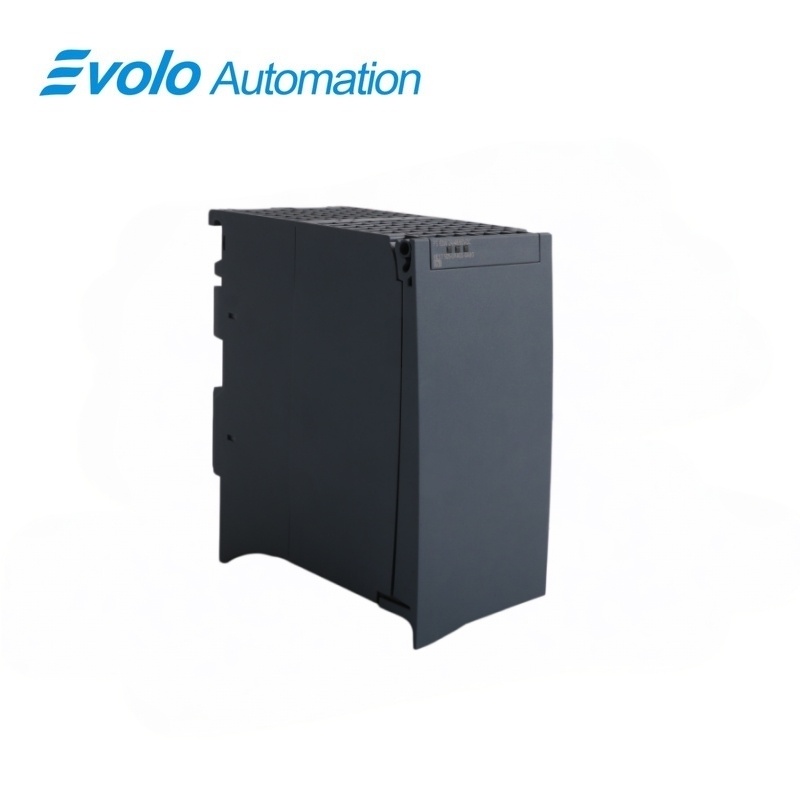

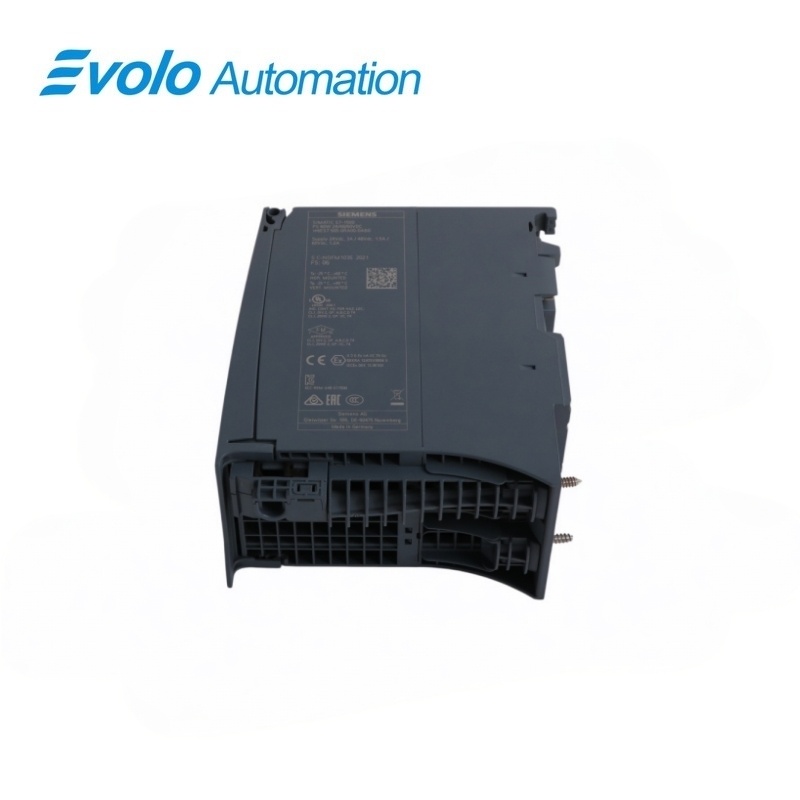

Siemens SIMATIC S7-1500 6ES7505-0RA00-0AB0 PS 60W System Power Supply
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
6ES7505-0RA00-0AB0 PS 60W System Power Supply
Official Siemens identification and specifications for 6ES7505-0RA00-0AB0, prepared for accurate replacement matching and quotation.
At a Glance
| Article Number | 6ES7505-0RA00-0AB0 |
|---|---|
| Manufacturer | Siemens |
| Platform | SIMATIC S7-1500 |
| Product Type | PS 60W System Power Supply |
| Country of Origin | Germany |
Product Overview
6ES7505-0RA00-0AB0 is officially identified by Siemens as PS 60W System Power Supply for SIMATIC S7-1500.
Official Siemens SIMATIC S7-1500 system power supply with 60 W backplane output for 24/48/60 V DC input systems.
Key Functions
System Power
Provides 60 W to the SIMATIC S7-1500 backplane bus.
Wide DC Input
Official input range is 19.2 to 72 V DC for 24/48/60 V DC systems.
Protection
Siemens specifies reverse-polarity and short-circuit protection.
Official Specifications
| Manufacturer | Siemens |
|---|---|
| Series | SIMATIC S7-1500 |
| Article Number | 6ES7505-0RA00-0AB0 |
| Product Type | PS 60W system power supply |
| Rated Input | 24/48/60 V DC |
| Input Range | 19.2 to 72 V DC |
| Backplane Output | 60 W |
| Output Current | 3 A at 24 V; 1.5 A at 48 V; 1.2 A at 60 V |
| Power-Failure Buffering | 20 ms |
| Power Loss | 12 W |
| Protection | Reverse polarity and short circuit |
Frequently Asked Questions
What is 6ES7505-0RA00-0AB0?
It is the Siemens PS 60W System Power Supply for SIMATIC S7-1500.
Which Siemens system is it designed for?
Siemens identifies 6ES7505-0RA00-0AB0 for the SIMATIC S7-1500 platform.
What is the official product type?
The official identification is PS 60W System Power Supply.
What should be checked before replacement?
Verify the complete article number 6ES7505-0RA00-0AB0, installed-system configuration, connectors and required accessories.
How should the unit be ordered?
Use the complete Siemens article number 6ES7505-0RA00-0AB0 without shortening the suffix, and confirm quantity and nameplate details.
Which official source supports these specifications?
The specifications are based on Siemens Industry Mall or Siemens Industry Online Support for 6ES7505-0RA00-0AB0.
Compatibility & Ordering Notes
Compatibility Checklist for 6ES7505-0RA00-0AB0
- Match the full article number without shortening the suffix.
- Confirm compatibility with SIMATIC S7-1500 and the installed hardware revision.
- Verify power, interface, terminal and accessory requirements in Siemens documentation.
- Confirm included connectors and accessories in the written quotation.
