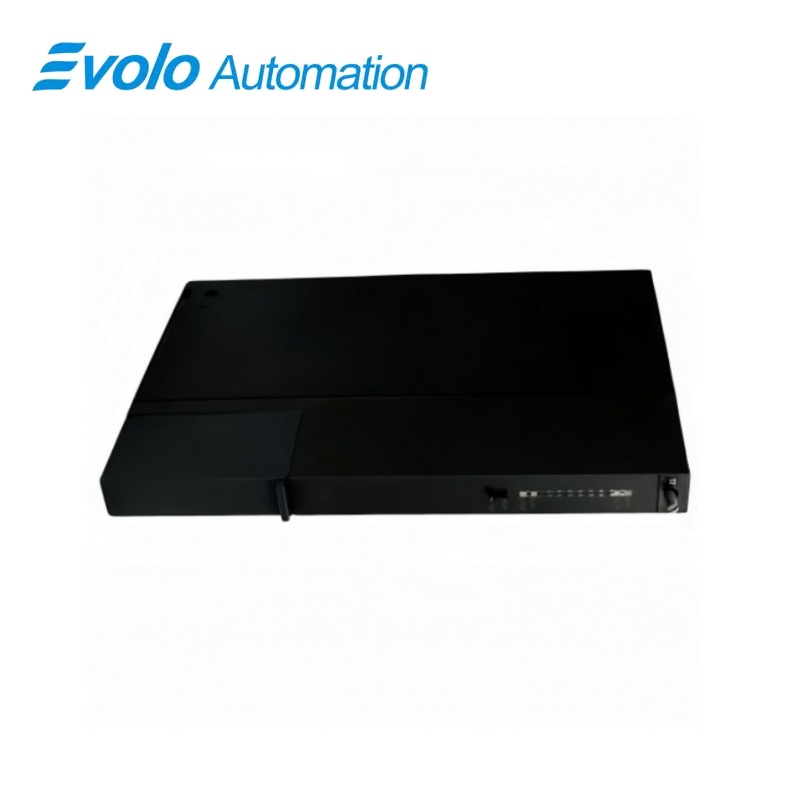

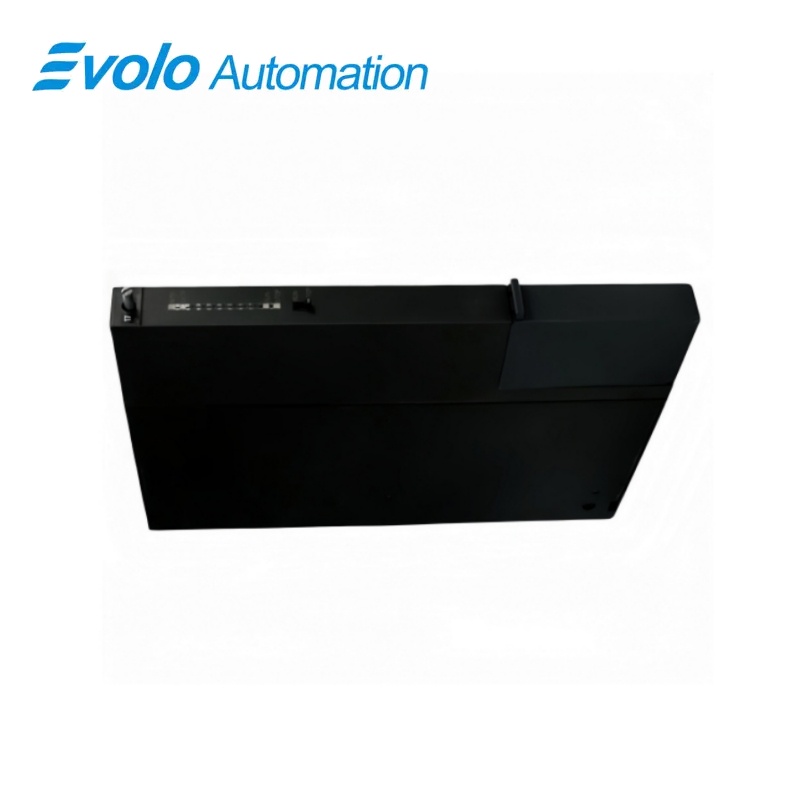

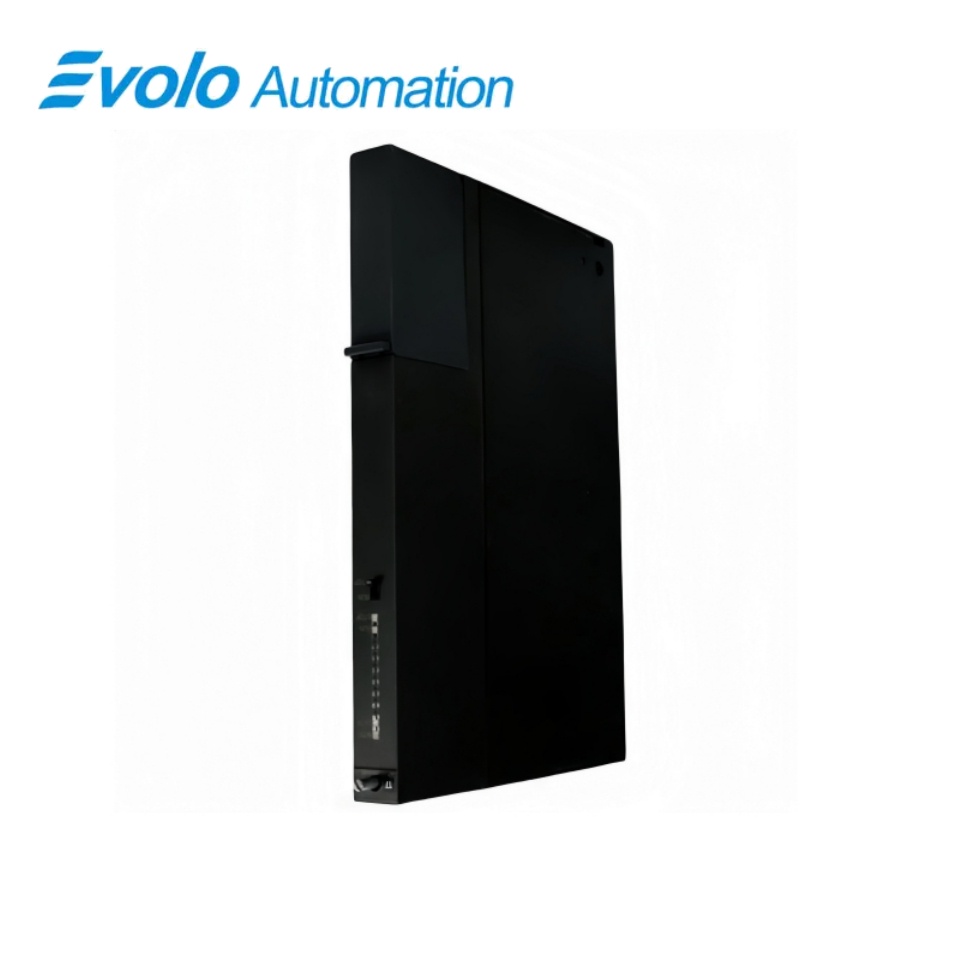

Siemens SIMATIC S7-400 IM 467 FO PROFIBUS DP Master Interface 6ES7467-5FJ00-0AB0
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
Siemens · SIMATIC S7-400
6ES7467-5FJ00-0AB0 SIMATIC S7-400 IM 467 FO PROFIBUS DP Master Interface
The IM 467 FO is an S7-400 interface module that provides a dedicated fiber-optic PROFIBUS DP master connection for distributed I/O.
At a Glance
| Brand | Siemens |
|---|---|
| Model | 6ES7467-5FJ00-0AB0 |
| Product Type | Fiber-optic PROFIBUS DP master interface module |
| Core Function | Adds a fiber-optic PROFIBUS DP master system to a SIMATIC S7-400 station |
| Application or Compatible Series | S7-400 central racks requiring an additional optical PROFIBUS DP master interface |
Exact Identification
Match 6ES7467-5FJ00-0AB0 character by character and confirm the complete SIMATIC S7-400 IM 467 FO PROFIBUS DP Master Interface designation.
Interface Arrangement
Confirm the installed supply, ports, field connections and required accessories before wiring the replacement.
Configuration Check
Preserve the approved engineering project, network parameters and application data used by the installed system.
Product Overview
The IM 467 FO is an S7-400 interface module that provides a dedicated fiber-optic PROFIBUS DP master connection for distributed I/O.
The module adds a fiber-optic PROFIBUS DP master system to the controller rack. A separate DP network can be configured for distributed devices and diagnostics. The module is parameterized as part of the S7-400 hardware configuration.
Key Functions
Optical DP Master
The module adds a fiber-optic PROFIBUS DP master system to the controller rack.
Independent Bus Segment
A separate DP network can be configured for distributed devices and diagnostics.
S7-400 Integration
The module is parameterized as part of the S7-400 hardware configuration.
Official Specifications
| Maximum Transfer Rate | 12 Mbit/s |
|---|---|
| Maximum DP Slaves | 96 |
| Maximum Input Address Area | 4096 bytes |
| Maximum Output Address Area | 4096 bytes |
| Diagnostic Functions | Module and DP slave diagnostics |
| Operating Modes | RUN and STOP selection |
| Status Indicators | Module and bus diagnostic LEDs |
| Module Width | Standard S7-400 slot width |
| Hot Configuration in RUN | Subject to configured S7-400 system support |
Frequently Asked Questions
What network role does 6ES7467-5FJ00-0AB0 provide?
The module operates as a PROFIBUS DP master for an optical fieldbus segment.
Which transmission medium is used by 6ES7467-5FJ00-0AB0?
Use the specified fiber-optic PROFIBUS components and connectors.
How many DP slaves can be configured behind 6ES7467-5FJ00-0AB0?
The master system supports up to ninety-six slaves within all address and timing limits.
Where is 6ES7467-5FJ00-0AB0 installed?
Fit the module in a supported slot of the configured SIMATIC S7-400 central rack.
What should be saved before replacing 6ES7467-5FJ00-0AB0?
Preserve the STEP 7 project, rack slot, DP address, baud rate, slave list and diagnostic configuration.
Can a copper IM 467 directly replace 6ES7467-5FJ00-0AB0?
No; the optical interface, cabling and exact module type must match the installed bus design.
What should be tested after installing 6ES7467-5FJ00-0AB0?
Verify optical link levels, DP slave status, process-data exchange and controller diagnostics.
Compatibility & Ordering Notes
Compatibility Checklist
- Use only with the documented S7-400 rack and hardware configuration.
- Match the installed optical PROFIBUS topology and connectors.
- Validate every DP slave and diagnostic function after replacement.
