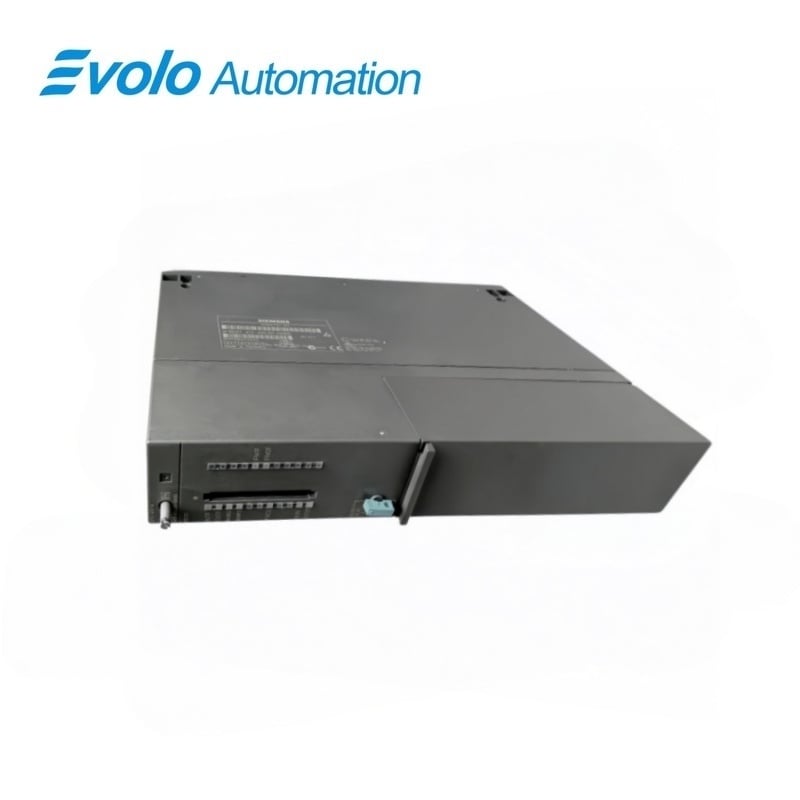

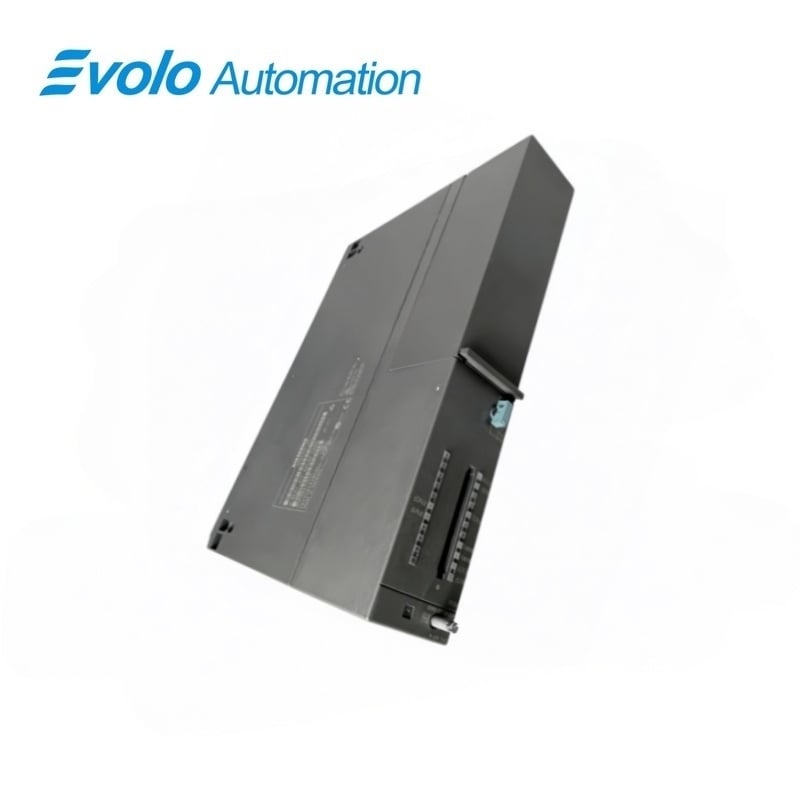

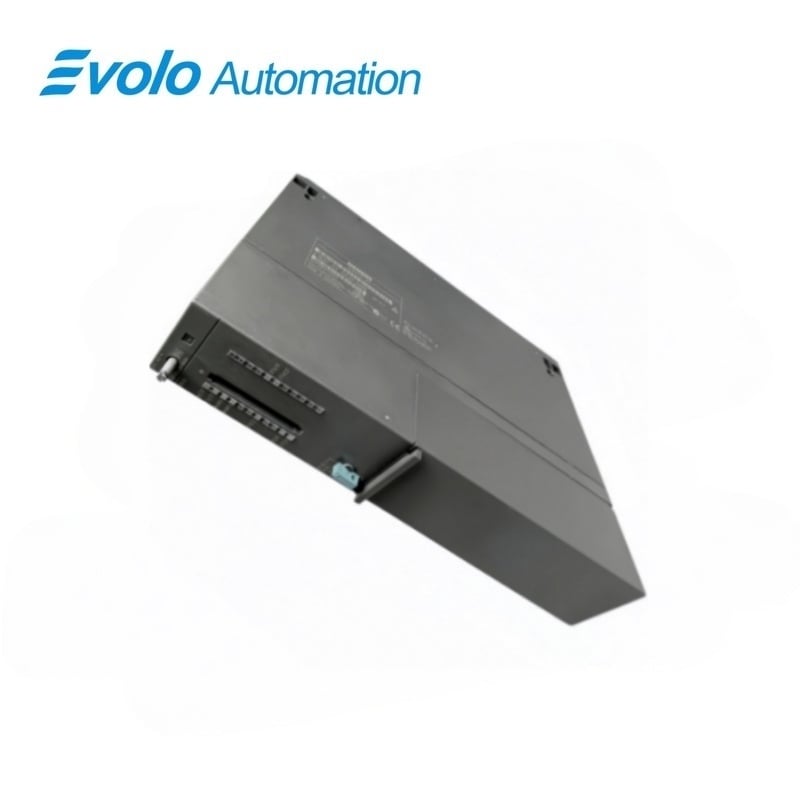

Siemens SIMATIC S7-400 6ES7417-4XL00-0AB0 CPU 417-4
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
SIMATIC S7-400 6ES7417-4XL00-0AB0 CPU 417-4
CPU 417-4 for SIMATIC S7-400 with 4 MB working memory, one MPI interface, one PROFIBUS DP interface and two slots for plug-in IFM interfaces.
At a Glance
| Article Number | 6ES7417-4XL00-0AB0 |
|---|---|
| Manufacturer | Siemens |
| Series | SIMATIC S7-400 |
| Product Type | CPU 417-4 |
| Working Memory | 4 MB: 2 MB code / 2 MB data |
Match the complete article number and installed hardware.
Confirm MPI/PROFIBUS DP, an additional PROFIBUS DP interface and two interface-module slots.
Verify project data and official system documentation.
Product Overview
6ES7417-4XL00-0AB0 is officially identified by Siemens as the CPU 417-4 in the SIMATIC S7-400 family. CPU 417-4 for SIMATIC S7-400 with 4 MB working memory, divided into 2 MB code and 2 MB data.
For replacement and quotation, compare the complete article number, hardware version, interface requirements and installed configuration.
Key Functions
Model-Specific Configuration
6ES7417-4XL00-0AB0: High-performance S7-400 central processing unit.
System Interface
6ES7417-4XL00-0AB0: 4 MB working memory split equally between code and data.
Performance & Memory
6ES7417-4XL00-0AB0: MPI/DP and additional PROFIBUS DP communications.
Replacement Control
6ES7417-4XL00-0AB0: Two interface-module slots for system expansion.
Official Specifications
| Article Number | 6ES7417-4XL00-0AB0 |
|---|---|
| Manufacturer | Siemens |
| Series | SIMATIC S7-400 |
| Product Type | CPU 417-4 |
| Working Memory | 4 MB: 2 MB code / 2 MB data |
| Interfaces | MPI/DP, PROFIBUS DP, 2 interface-module slots |
| Power Supply | Integrated 24 V DC input |
| Country of Origin | Germany |
Frequently Asked Questions
Which STEP 7 version is required to configure 6ES7417-4XL00-0AB0?
STEP 7 V5.2 or later is specified for the documented CPU version.
How should the working memory of 6ES7417-4XL00-0AB0 be planned?
The integrated working memory is divided into 2 MB for code and 2 MB for data; expansion can reach 10 MB for code and 10 MB for data.
Which network interfaces must be considered when integrating 6ES7417-4XL00-0AB0?
The controller provides one MPI interface and one PROFIBUS DP interface; two additional interface positions accept plug-in IFM modules.
What should engineers verify before replacing 6ES7417-4XL00-0AB0?
Match the complete order code, firmware level, memory-card type, rack configuration, interface modules and STEP 7 hardware configuration.
How should distributed I/O be checked when commissioning 6ES7417-4XL00-0AB0?
Confirm the configured MPI/DP and DP address areas, bus parameters, station addresses and process-image assignments before enabling the plant.
Which memory cards can be used to expand the load memory of 6ES7417-4XL00-0AB0?
FLASH or RAM memory cards are supported up to 64 MB; select the type and capacity required by the project and backup strategy.
What functional tests should follow installation of 6ES7417-4XL00-0AB0?
Check CPU diagnostics, RUN/STOP behavior, MPI and PROFIBUS communication, configured I/O, retained data and the loaded STEP 7 program before service.
Compatibility & Ordering Notes
Compatibility Checklist for 6ES7417-4XL00-0AB0
Match the full suffix without shortening the order number.
Confirm the installed SIMATIC S7-400 hardware and project version.
Verify MPI/PROFIBUS DP, an additional PROFIBUS DP interface and two interface-module slots.
Confirm required memory media, connectors and accessories in the written quotation.
