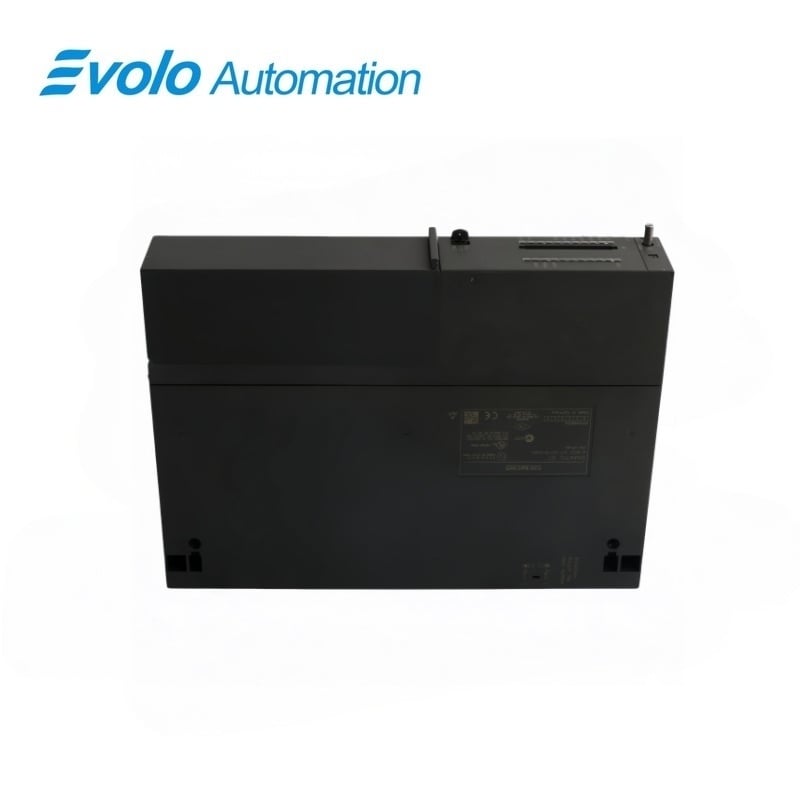

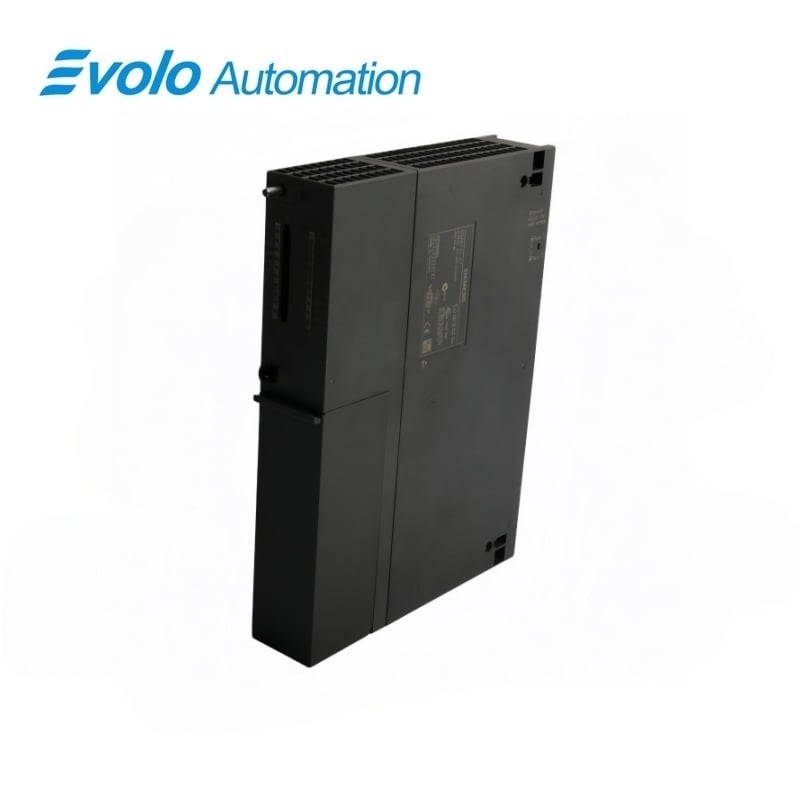

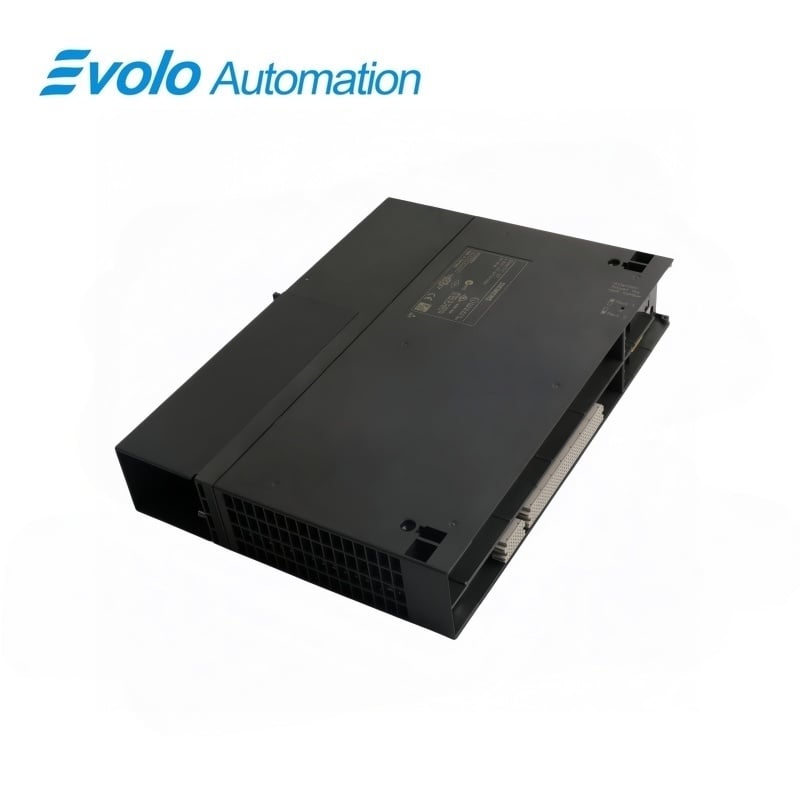

Siemens SIMATIC S7-400H 6ES7417-4HT14-0AB0 CPU 417H
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
6ES7417-4HT14-0AB0 CPU 417H
Official Siemens identification and technical data for 6ES7417-4HT14-0AB0, prepared for accurate replacement matching and quotation.
At a Glance
| Article Number | 6ES7417-4HT14-0AB0 |
|---|---|
| Manufacturer | Siemens |
| Platform | SIMATIC S7-400H |
| Product Type | CPU 417H |
| Official Configuration | 30 MB work memory: 15 MB code and 15 MB data; firmware V4.5 |
Exact Identification
Match the complete Siemens article number 6ES7417-4HT14-0AB0 and the photographed hardware revision.
Interfaces
MPI/DP, PROFIBUS DP and 2 synchronization interfaces
Configuration Check
Confirm 30 MB work memory: 15 MB code and 15 MB data; firmware V4.5 before replacement.
Product Overview
6ES7417-4HT14-0AB0 is officially identified by Siemens as SIMATIC S7-400H CPU 417H. 30 MB work memory: 15 MB code and 15 MB data; firmware V4.5.
The complete article number 6ES7417-4HT14-0AB0 should be matched against the installed hardware, nameplate and official system documentation. Similar revisions can differ in memory, interfaces, operating system or configuration.
Key Functions
Model-Specific Configuration
6ES7417-4HT14-0AB0: 30 MB work memory: 15 MB code and 15 MB data; firmware V4.5.
System Interface
6ES7417-4HT14-0AB0: MPI/DP, PROFIBUS DP and 2 synchronization interfaces.
Replacement Control
6ES7417-4HT14-0AB0: verify the complete article number, hardware revision and official project documentation before replacement.
Official Specifications
| HW Functional Status | 1 |
|---|---|
| Firmware Version | V4.5 |
| Program Work Memory | 15 MB |
| Data Work Memory | 15 MB |
| Integrated Load RAM | 256 KB |
| Maximum Flash Memory Card | 64 MB |
| Maximum RAM Memory Card | 64 MB |
| Bit Operation Time | 18 ns minimum |
| Floating-Point Operation Time | 54 ns minimum |
| Communication Capability | MPI/DP, PROFIBUS DP and two synchronization-module connections |
| Typical Power Loss | 6.5 W |
| External Backup Voltage | 5 to 15 V DC |
| 5 V DC Interface Current | 90 mA maximum per DP interface |
| Required Slots | 2 |
| Module Dimensions | 50 × 290 × 219 mm |
| Approximate Weight | 995 g |
Official source: Siemens Industry Mall product data for 6ES7417-4HT14-0AB0. Commercial stock, warranty and shipping statements are seller terms.
Frequently Asked Questions
Must both redundant partners match when replacing 6ES7417-4HT14-0AB0?
Yes. Verify hardware revision, firmware, memory card, project version and synchronization configuration on both CPUs.
How should the synchronization modules for 6ES7417-4HT14-0AB0 be checked?
Inspect both modules and fiber links, confirm correct pairing and monitor redundancy diagnostics before returning the system to service.
Which memory split is available on 6ES7417-4HT14-0AB0?
The integrated work memory is divided into 15 MB for the program and 15 MB for data.
What backup arrangement is required for 6ES7417-4HT14-0AB0?
Maintain the documented battery or external backup supply and verify retentive data behavior during maintenance.
How much rack space does 6ES7417-4HT14-0AB0 occupy?
Allow two S7-400 slots plus the prescribed clearances for the 50 mm-wide module and synchronization cabling.
What should engineers test after a 6ES7417-4HT14-0AB0 replacement?
Perform a controlled startup, partner synchronization and switchover test while monitoring diagnostic buffers and field communication.
How is the PROFIBUS connection of 6ES7417-4HT14-0AB0 validated?
Check the MPI/DP and separate DP parameters, cable shielding, addresses, termination and accessibility of every configured station.
Compatibility & Ordering Notes
Compatibility Checklist for 6ES7417-4HT14-0AB0
- Match the complete article number 6ES7417-4HT14-0AB0 without shortening the suffix.
- Confirm the installed SIMATIC S7-400H family and hardware revision.
- Verify MPI/DP, PROFIBUS DP and 2 synchronization interfaces.
- Confirm included connectors, memory media and accessories in the written quotation.
