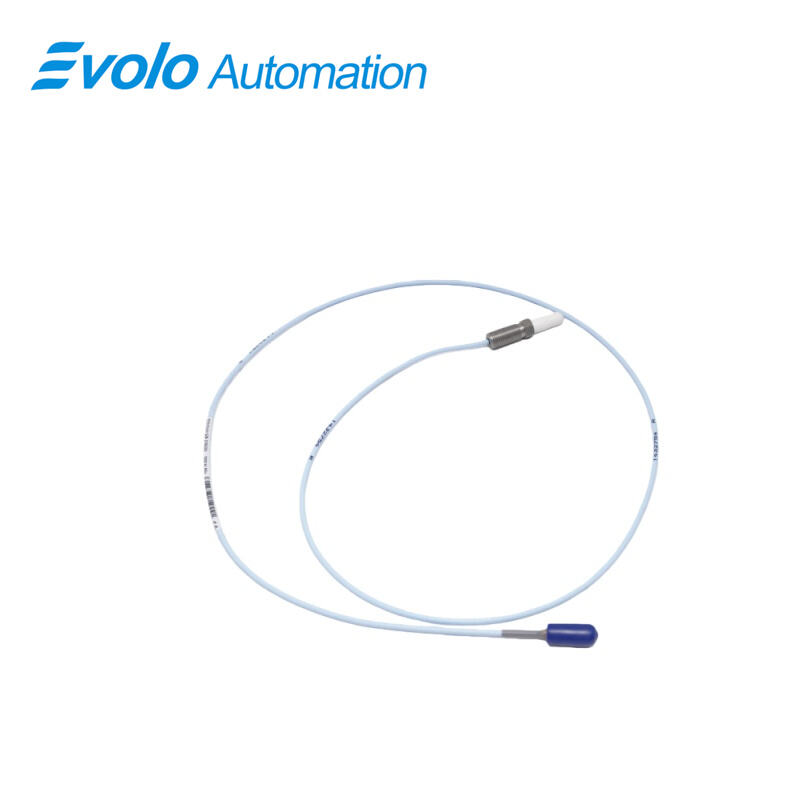

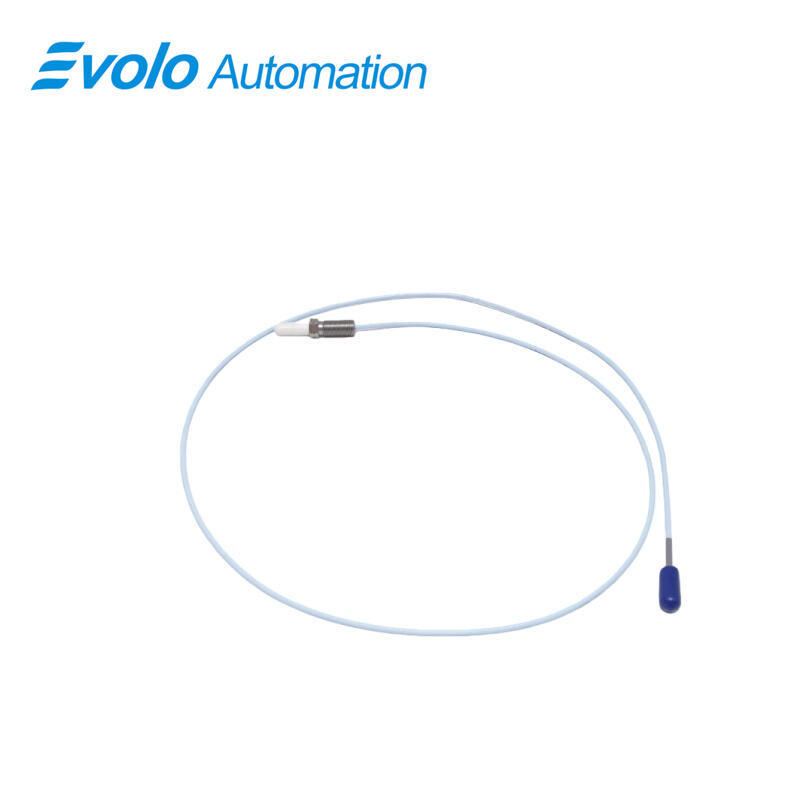

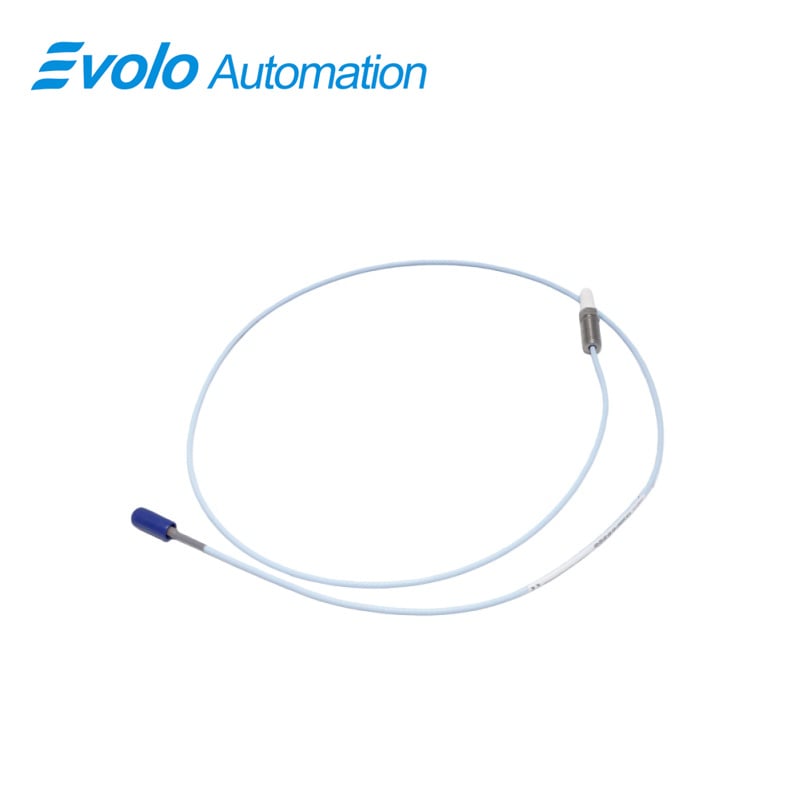

330907-05-30-10-02-05 NSv Reverse Mount Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330907-05-30-10-02-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330907-05-30-10-02-05 is a high-performance NSv Reverse Mount Probe engineered by Bently Nevada for specialized machinery protection and condition monitoring. As a critical evolution in the 3300 NSv Proximity Probes family, this NSv reverse mount probe is specifically designed for applications where standard probe mounting is physically restricted or where the sensing must occur from the rear of a bulkhead. Utilizing non-contact eddy current technology, the 330907-05-30-10-02-05 translates the distance between the proximity probe tip and a conductive target into a highly linear voltage signal, enabling precise tracking of shaft vibration, rotor displacement, and axial position.

The mechanical configuration of the 330907-05-30-10-02-05 NSv Reverse Mount Probe is optimized for tight, internal environments. It features a 30 mm overall case length with a 0 mm unthreaded length option, paired with a 3/8-24 UNF thread for secure reverse-mount installation. This NSv proximity probe is equipped with a 1.0-meter (39 in) standard cable and a Miniature coaxial ClickLoc connector, ensuring a vibration-resistant link that maintains signal integrity even in high-stress industrial settings. The 330907-05-30-10-02-05 is constructed with an AISI 304 stainless steel case and a Polyphenylene sulfide (PPS) tip, materials chosen for their exceptional resistance to chemical erosion, oil immersion, and temperature extremes from -50°C to +175°C.

Fully compliant with multiple international agency approvals, this 3300 NSv proximity probe is a trusted solution for the oil and gas, power generation, and chemical processing industries. It is particularly effective for small-bore monitoring or applications where the probe must be replaced from the outside of the machine casing without full disassembly.

Applications

Internal Monitoring of Compact Compressors and Pumps The 330907-05-30-10-02-05 is the primary choice for monitoring radial vibration in compact centrifugal compressors and high-speed pumps where front-side access is prohibited. Its reverse mount design allows the probe to be installed through the bulkhead of a bearing housing, enabling precise sensing of shaft orbits in extremely confined radial spaces.

Sealed Housing and High-Pressure Applications This NSv Reverse Mount Probe is ideal for applications requiring measurement from within a sealed or pressurized housing. It is frequently applied in specialized turbines and gearboxes where the sensitive electronics and ClickLoc connectors must remain in a protected external environment while the PPS probe tip extends into the oil-filled interior to track axial thrust position.

Retrofit Solutions for Small-Bore Industrial Assets Because the 3300 NSv proximity probes are designed to replace older, legacy sensors, the 330907-05-30-10-02-05 is perfect for retrofitting aging machinery that originally used reverse-mount geometries. It provides an upgrade to modern chemical resistance and temperature stability standards without requiring expensive modifications to the existing machine casing or mounting hardware.

Specifications

Competitive Advantage

Optimized Reverse-Mount Configuration for Tight Spaces The core advantage of the 330907-05-30-10-02-05 is its ability to be deployed in "blind" locations. The reverse mount design uniquely solves the installation challenges found in modern, ultra-compact machinery layouts, allowing for critical vibration monitoring where standard forward-mounted probes physically cannot fit.

Enhanced Chemical and Oil Resistance Built to survive where other sensors fail, this NSv proximity probe features a PPS tip and 304 SST body that are specifically treated to resist degradation from lubricating oils and industrial process fluids. This ensures a longer service life and significantly reduces the total cost of ownership in harsh chemical or refinery environments.

Exceptional Thermal Stability and Signal Linearity Operating reliably across a wide temperature spectrum (-50°C to +175°C), the 330907-05-30-10-02-05 maintains its calibration and signal precision without drift. The linear range of approximately 1.5 mm provides high-resolution data, which is essential for identifying subtle imbalances or bearing wear at an early stage.

Vibration-Resistant ClickLoc Connectivity The inclusion of the Miniature coaxial ClickLoc connector provides a secure, tool-free connection that is resistant to the high-frequency vibrations common in rotating equipment. This ensures that signal interruptions are minimized, preventing false alarms and ensuring continuous data flow to the machinery protection system.

Global Compliance and Multi-Agency Approvals Equipped with multiple global approvals, the 330907-05-30-10-02-05 is certified for use in hazardous and explosive atmospheres. This "universal" approval status simplifies procurement for international projects and guarantees that the probe meets the highest safety and performance standards required by global industrial leaders.
