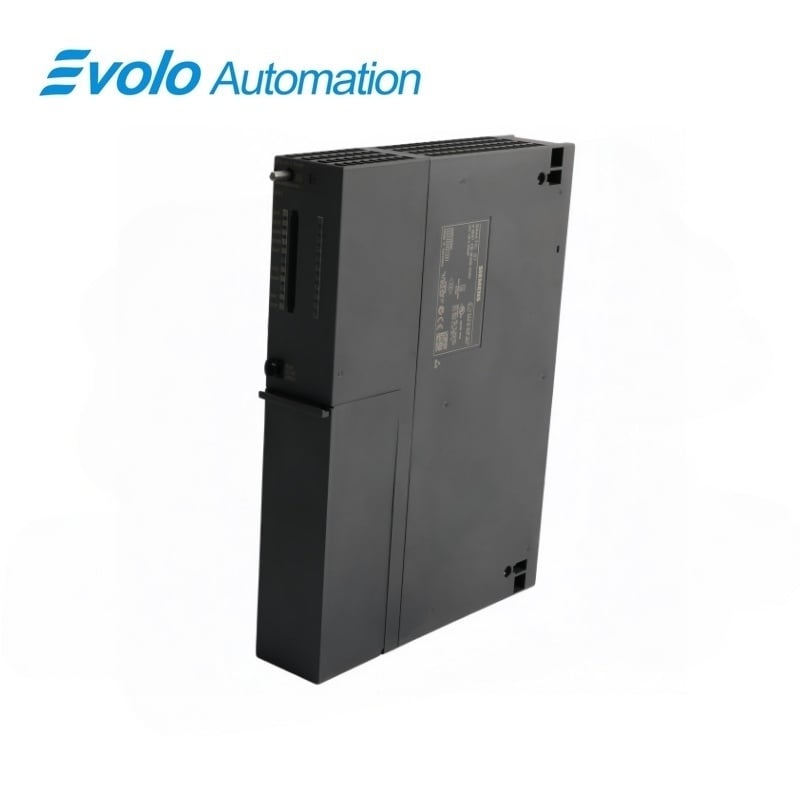

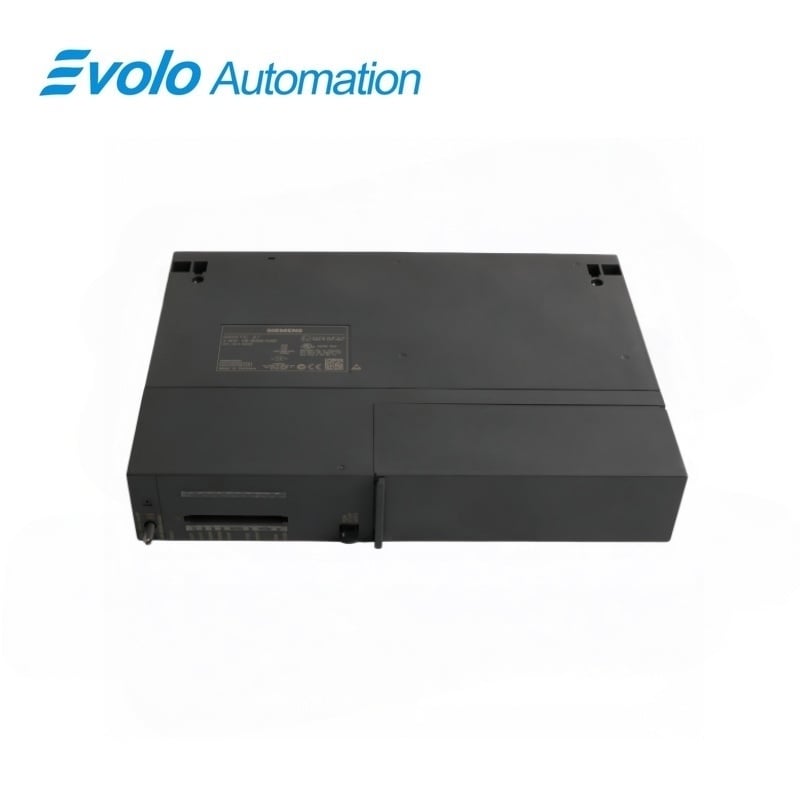

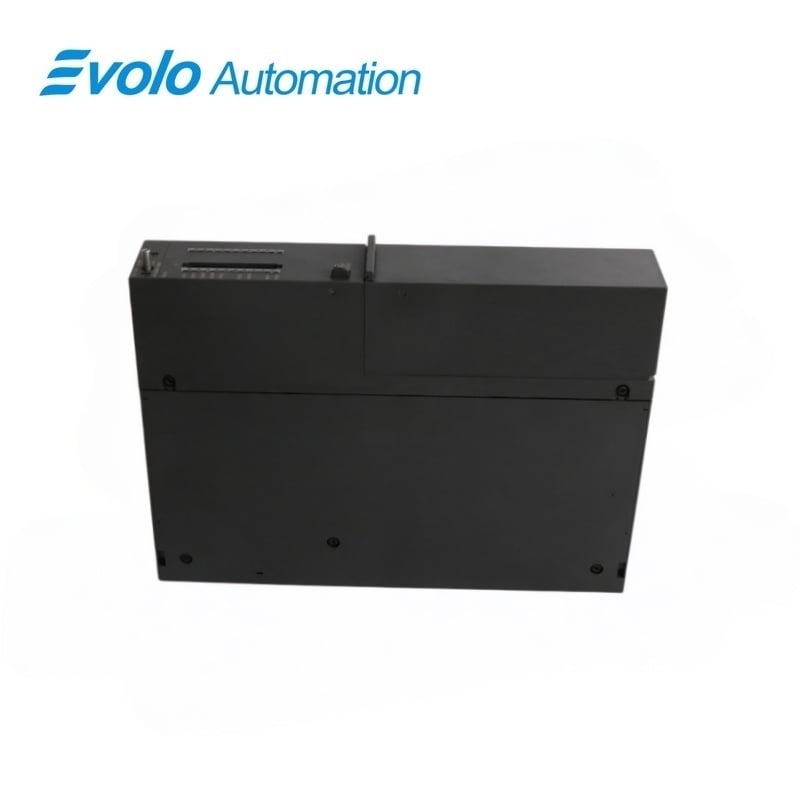

Siemens SIMATIC S7-400 6ES7416-3ES06-0AB0 CPU 416-3 PN/DP
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
SIMATIC S7-400 6ES7416-3ES06-0AB0 CPU 416-3 PN/DP
CPU 416-3 PN/DP with 16 MB working memory and integrated MPI/DP and Industrial Ethernet/PROFINET communications.
At a Glance
| Article Number | 6ES7416-3ES06-0AB0 |
|---|---|
| Manufacturer | Siemens |
| Series | SIMATIC S7-400 |
| Product Type | CPU 416-3 PN/DP |
| Firmware Version | V6.0 |
Match the complete article number and installed hardware.
Confirm MPI/PROFIBUS DP, two-port Industrial Ethernet/PROFINET and an optional IF 964-DP interface module.
Verify project data and official Siemens documentation.
Product Overview
6ES7416-3ES06-0AB0 is officially identified by Siemens as the CPU 416-3 PN/DP in the SIMATIC S7-400 family. CPU 416-3 PN/DP with 16 MB working memory and integrated MPI/DP and Industrial Ethernet/PROFINET communications.
For replacement and quotation, compare the complete article number, hardware version, interface requirements and installed configuration.
Key Functions
Model-Specific Configuration
6ES7416-3ES06-0AB0: 16 MB working memory split equally between program and data.
System Interface
6ES7416-3ES06-0AB0: MPI/PROFIBUS DP interface up to 12 Mbit/s.
Performance & Memory
6ES7416-3ES06-0AB0: Two-port Industrial Ethernet/PROFINET interface.
Replacement Control
6ES7416-3ES06-0AB0: Optional IF 964-DP plug-in interface module.
Official Specifications
| Firmware Version | V6.0 |
|---|---|
| Program Work Memory | 8 MB |
| Data Work Memory | 8 MB |
| Bit Operation Time | 30 ns typical |
| Integrated MPI/DP Interface | Up to 12 Mbit/s |
| Integrated PROFINET Interface | 2 ports |
| Optional Interface Module | IF 964-DP |
| Required Slots | 2 |
| Module Width | 50 mm |
| Module Height | 290 mm |
| Module Depth | 219 mm |
| Approximate Weight | 900 g |
Official source: Siemens Industry Mall product data for 6ES7416-3ES06-0AB0. Commercial stock, warranty and shipping statements are seller terms.
Frequently Asked Questions
Which STEP 7 hardware entry should be used for 6ES7416-3ES06-0AB0?
Select the exact CPU 416-3 PN/DP hardware version and match the project firmware to V6.0 before downloading.
How can 6ES7416-3ES06-0AB0 be integrated with both Ethernet and PROFIBUS networks?
Use the integrated two-port PROFINET interface for Industrial Ethernet and the MPI/DP interface for the configured PROFIBUS segment.
When is the IF 964-DP option needed with 6ES7416-3ES06-0AB0?
Use the optional interface only when the project requires an additional DP connection supported by the documented CPU configuration.
What rack space is required for 6ES7416-3ES06-0AB0?
Reserve two S7-400 slots and maintain the installation clearances specified for the 50 mm-wide module.
What should be compared before upgrading to 6ES7416-3ES06-0AB0?
Compare work-memory use, interface topology, firmware, memory card, communication blocks, rack layout and startup behavior.
How should a 6ES7416-3ES06-0AB0 replacement be commissioned?
Restore the validated hardware configuration and program, verify network parameters, then monitor the diagnostic buffer during a controlled startup.
What performance point is relevant for 6ES7416-3ES06-0AB0 applications?
The typical bit-operation time is 30 ns, but actual cycle time also depends on the program mix, communications and process workload.
Compatibility & Ordering Notes
Compatibility Checklist for 6ES7416-3ES06-0AB0
Match the full suffix without shortening the order number.
Confirm the installed SIMATIC S7-400 hardware and project version.
Verify MPI/PROFIBUS DP, two-port Industrial Ethernet/PROFINET and an optional IF 964-DP interface module.
Confirm required memory media, connectors and accessories in the written quotation.
