330101-00-28-20-02-00 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-28-20-02-00
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

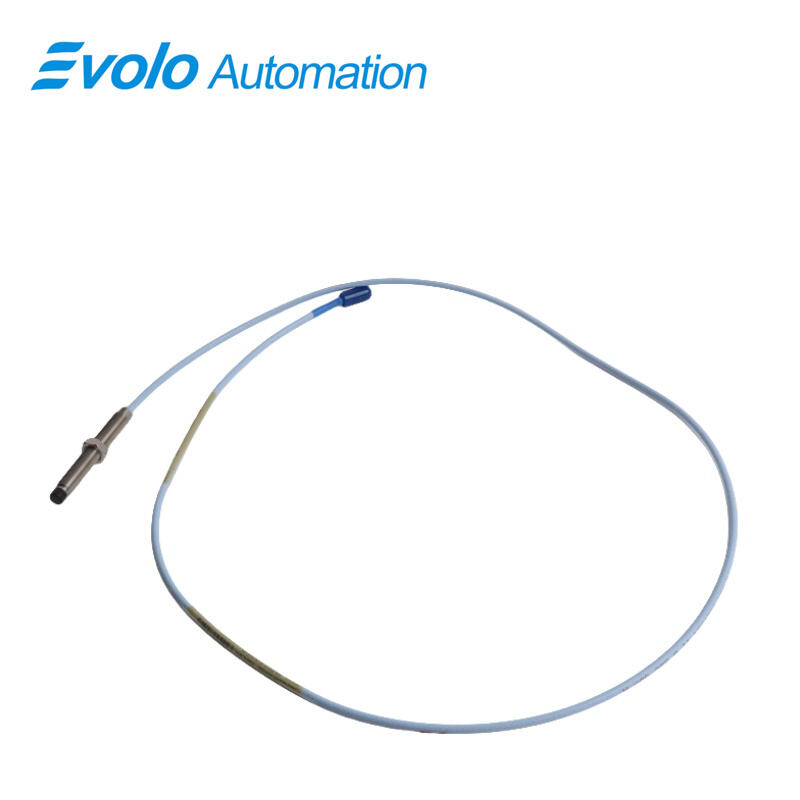

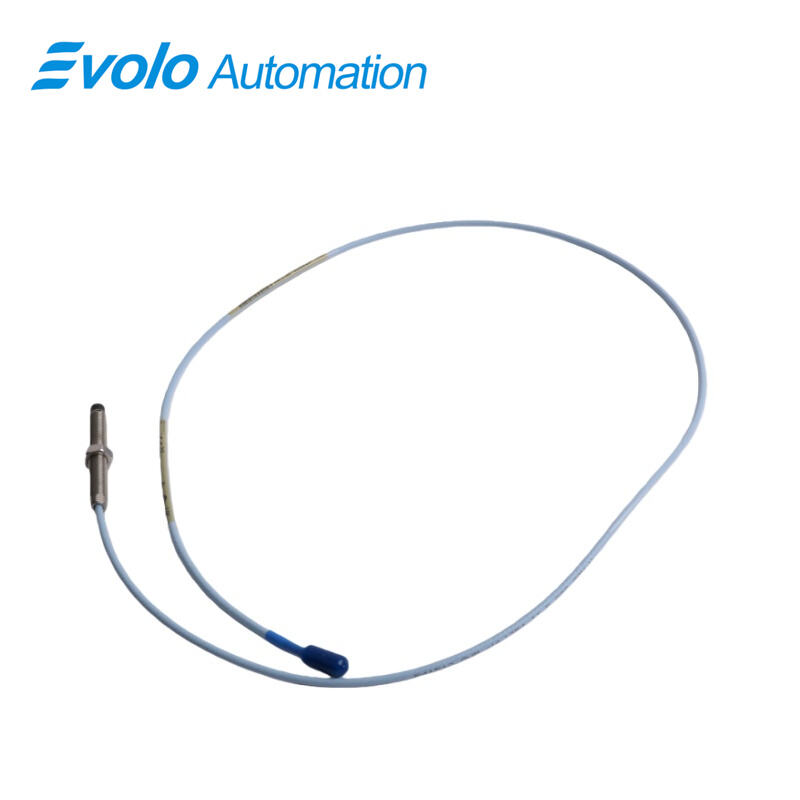

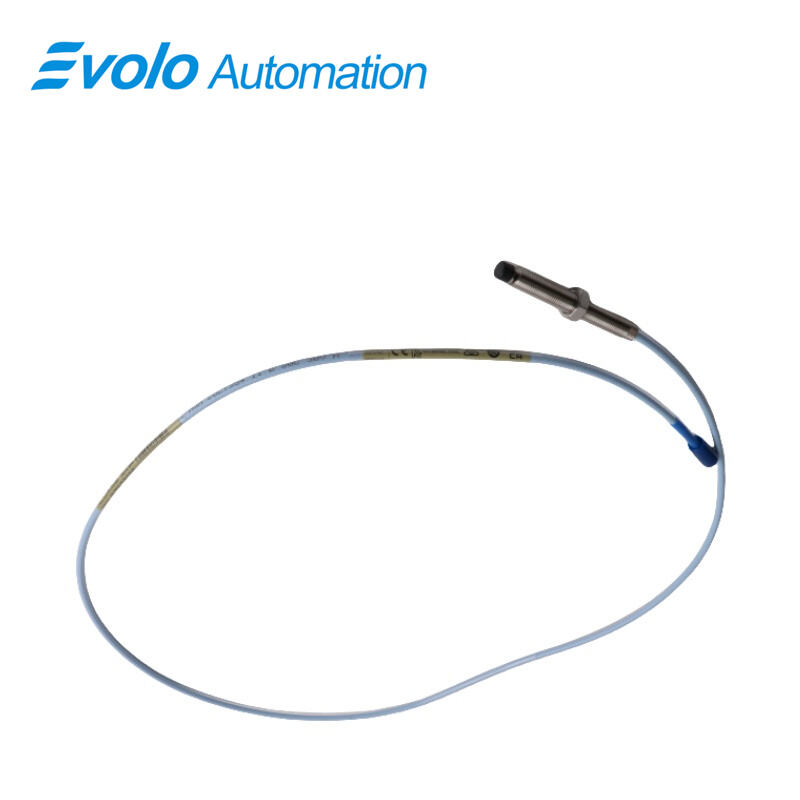

The 330101-00-28-20-02-00 3300 XL 8 mm Proximity Probe is a high-precision eddy-current proximity transducer engineered for advanced industrial automation and condition monitoring applications. It provides an output voltage directly proportional to the distance between the probe tip and the conductive surface, enabling accurate static position and dynamic vibration measurements. With an overall case length of 2.8 inches and a 2.0-meter ClickLoc miniature coaxial cable, this probe ensures secure connectivity and reliable operation in automated machinery and process control systems.

Designed for harsh operating conditions, the 3300 XL probe functions across a wide temperature range of -52°C to +177°C (-62°F to +350°F). It features a supply sensitivity of less than 2 mV/V, output resistance of 50 Ω, and a linear measurement range of 2 mm (80 mils), delivering precise results under fluctuating industrial power conditions. The probe employs TipLoc molding for a robust bond between tip and body and CableLoc technology providing 330 N (75 lbf) pull strength to secure the cable. Optional FluidLoc cable protection prevents fluid leakage through the probe, enhancing safety and reliability. The 3300 XL 8 mm probe is fully compatible with other 3300 series probes, extension cables, and Proximitor sensors, supporting rapid replacement and maintenance in automated environments without requiring recalibration.

Applications

1. High-Speed Turbine Vibration Analysis
Accurately measures radial and axial vibrations in turbines, supporting automated predictive maintenance and reducing unplanned downtime.

2. Compressor Shaft Position Monitoring
Provides high-resolution shaft displacement data, enabling automated control and alignment verification in compressors and rotating machinery.

3. Keyphasor Reference and Speed Detection
Delivers precise phase reference signals critical for automated rotational speed monitoring and vibration analysis systems.

4. Extreme Temperature Process Monitoring
Operates reliably between -52°C and +177°C, suitable for automated monitoring in chemical processing, petrochemical, and power generation facilities.

5. Automated Gap Adjustment and Maintenance
Supports probe replacement and adjustment without machinery disassembly, enhancing automation efficiency and minimizing system downtime.

Specifications

Competitive Advantage

1. High-Accuracy Measurement
Maintains linearity over a 2 mm range with minimal supply sensitivity (<2 mV/V), ensuring reliable automated monitoring of static and dynamic measurements.

2. Mechanical Robustness
TipLoc and CableLoc technologies enhance structural integrity, preventing probe or cable detachment in high-vibration industrial environments.

3. Fluid Containment Protection
Optional FluidLoc system prevents oil or other liquid ingress, ensuring automated processes remain contamination-free and safe.

4. Interchangeability and Backward Compatibility
Fully compatible with all 3300 XL and standard 3300 series probes, extension cables, and Proximitor sensors, simplifying automated maintenance workflows.

5. API 670 Compliance
Meets stringent industrial standards for linearity, accuracy, and mechanical durability, making it ideal for automated high-reliability industrial applications.
