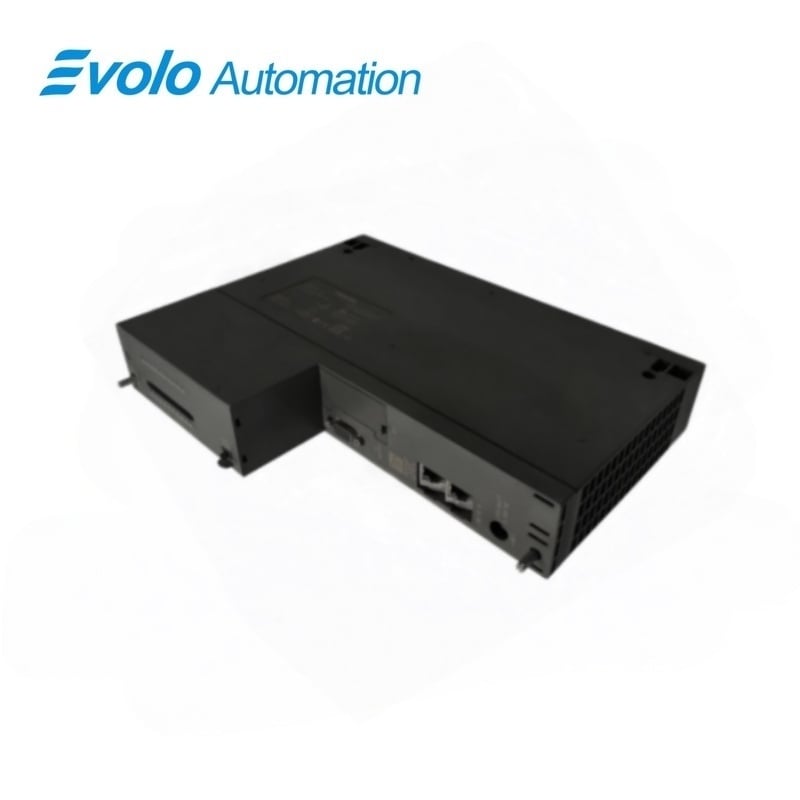

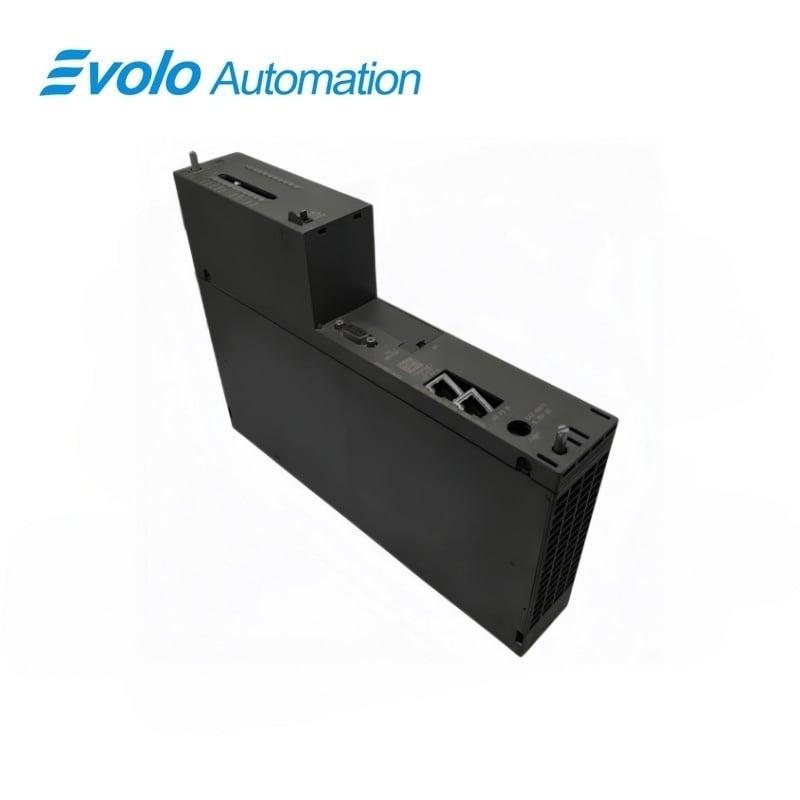

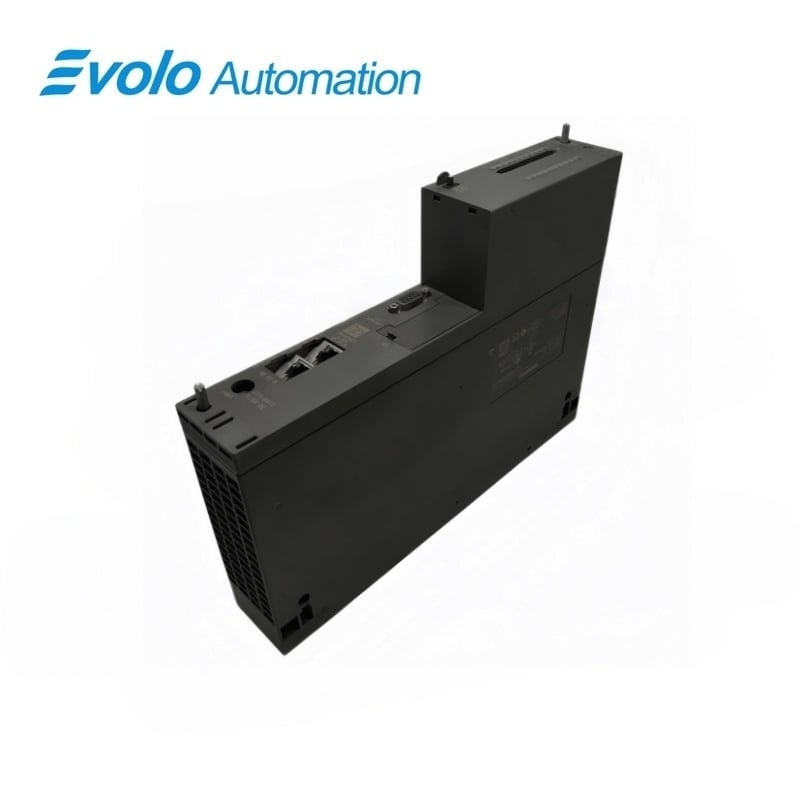

SIMATIC S7-400 6ES7414-3EM06-0AB0 CPU 414-3 PN/DP
CPU 414-3 PN/DP with 4 MB working memory, MPI/DP, Ethernet/PROFINET, and a plug-in IF 964-DP interface.
At a Glance
| Article Number | 6ES7414-3EM06-0AB0 |
|---|---|
| Manufacturer | Siemens |
| Series | SIMATIC S7-400 |
| Product Type | CPU 414-3 PN/DP |
| Working Memory | 4 MB: 2 MB code / 2 MB data |
Match the complete article number and installed hardware.
Confirm MPI/PROFIBUS DP, Industrial Ethernet/PROFINET and an IF 964 interface-module slot.
Verify project data and official system documentation.
Product Overview
6ES7414-3EM06-0AB0 is officially identified by Siemens as the CPU 414-3 PN/DP in the SIMATIC S7-400 family. CPU 414-3 PN/DP for SIMATIC S7-400 with 4 MB working memory and integrated MPI/DP and Industrial Ethernet/PROFINET communications.
For replacement and quotation, compare the complete article number, hardware version, interface requirements and installed configuration.
Key Functions
Model-Specific Configuration
6ES7414-3EM06-0AB0: S7-400 CPU with integrated PROFINET.
System Interface
6ES7414-3EM06-0AB0: 4 MB working memory split equally between code and data.
Performance & Memory
6ES7414-3EM06-0AB0: MPI/DP and Industrial Ethernet/PROFINET interfaces.
Replacement Control
6ES7414-3EM06-0AB0: IF 964 interface-module slot for expansion.
Official Specifications
| Hardware Functional Status | 01 |
|---|---|
| Firmware Version | V6.0 |
| Power Supply Method | Via S7-400 system power supply |
| Backplane Current at 5 V DC | 1.3 A typical; 1.5 A maximum |
| Backplane Current at 24 V DC | 300 mA maximum |
| Typical Power Loss | 6.5 W |
| FEPROM Load Memory, Maximum | 64 MB via FLASH memory card |
| Integrated Load RAM, Maximum | 512 KB |
| Expandable Load RAM, Maximum | 64 MB via RAM memory card |
| Data Backup | Battery-backed |
| External Backup Voltage | 5 V DC to 15 V DC |
| CPU Processing Times | Bit: 45 ns; word: 45 ns; fixed-point: 45 ns; floating-point: 135 ns |
| Data Blocks | 6,000 maximum; 64 KB maximum per block |
| S7 Counters and Timers | 2,048 counters; 2,048 timers |
| I/O Address Area | 8 KB inputs; 8 KB outputs |
| Digital Channels | 65,536 inputs; 65,536 outputs |
| Analog Channels | 4,096 inputs; 4,096 outputs |
| Expansion Units, Maximum | 21 |
| Required Slots | 2 |
| Isochronous Operation | Supported via PROFIBUS DP or PROFINET |
Frequently Asked Questions
Which engineering software is required to configure 6ES7414-3EM06-0AB0?
Use STEP 7 V5.5 or later for the documented hardware; projects using iMap require the officially specified iMap version and add-on.
How is the working memory divided in 6ES7414-3EM06-0AB0?
The integrated 4 MB working memory is divided into 2 MB for code and 2 MB for data.
How should the communication interfaces of 6ES7414-3EM06-0AB0 be planned?
The CPU provides MPI/DP at up to 12 Mbit/s, Ethernet/PROFINET, and a position for a plug-in IF 964-DP interface.
Which load-memory expansion can be used with 6ES7414-3EM06-0AB0?
FLASH memory cards are supported up to 64 MB, while the integrated RAM load memory is specified up to 512 KB.
Does 6ES7414-3EM06-0AB0 support isochronous operation?
Yes. The documented CPU supports isochronous operation through either the PROFIBUS DP or PROFINET interface.
How is 6ES7414-3EM06-0AB0 powered after rack installation?
Power is supplied through the S7-400 system backplane, so the rack and system power supply must be correctly sized and connected.
What should be verified when commissioning a replacement 6ES7414-3EM06-0AB0?
Confirm hardware functional status 01, firmware V6.0, the STEP 7 hardware configuration, memory card, interface module, bus parameters and process I/O before returning the plant to service.
Compatibility & Ordering Notes
Compatibility Checklist for 6ES7414-3EM06-0AB0
Match the full suffix without shortening the order number.
Confirm the installed SIMATIC S7-400 hardware and project version.
Verify MPI/PROFIBUS DP, Industrial Ethernet/PROFINET and an IF 964 interface-module slot.
Confirm required memory media, connectors and accessories in the written quotation.
