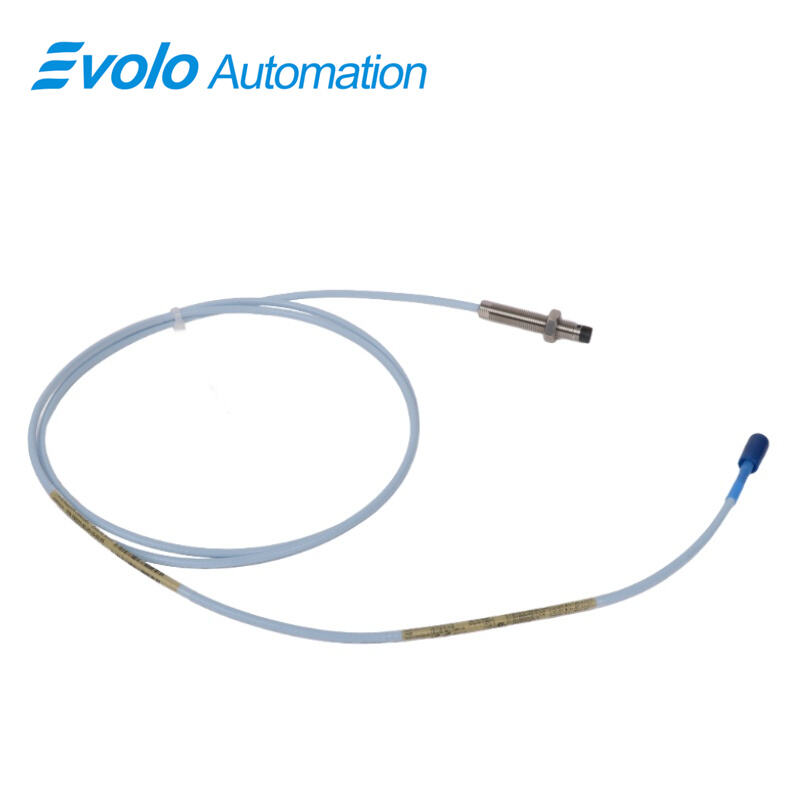

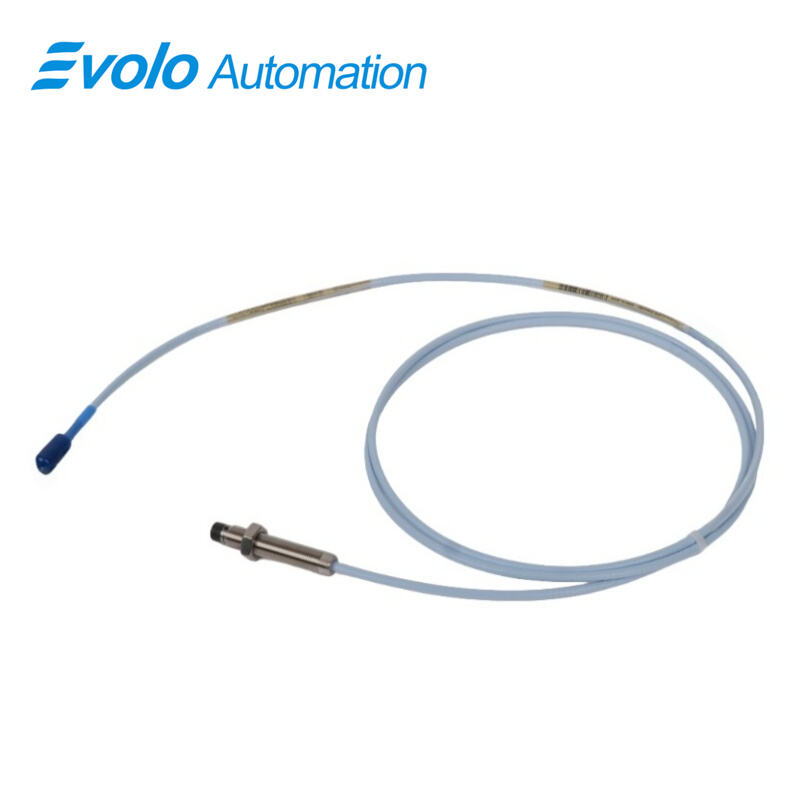

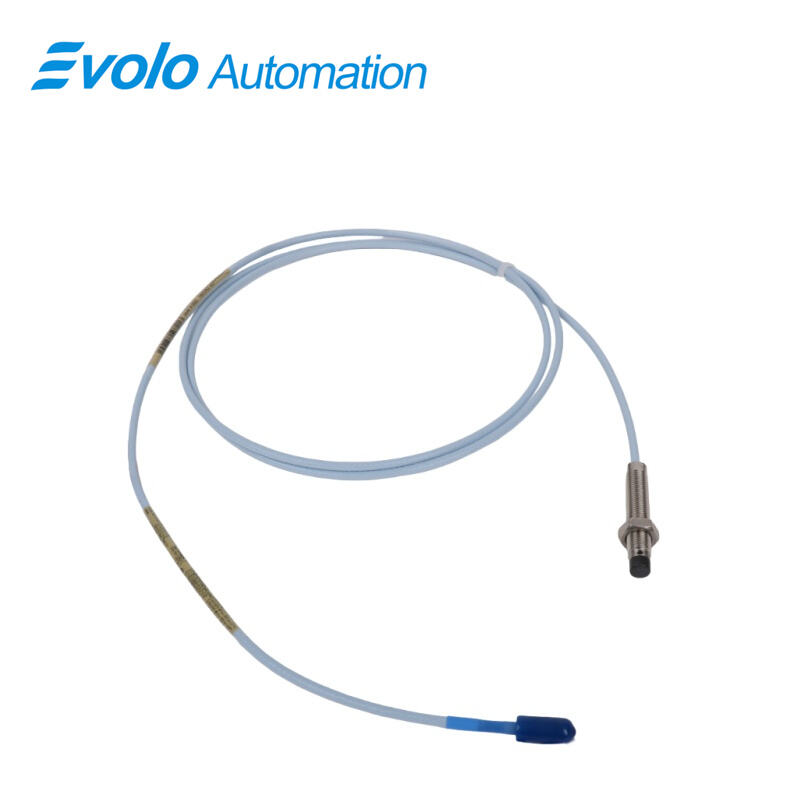

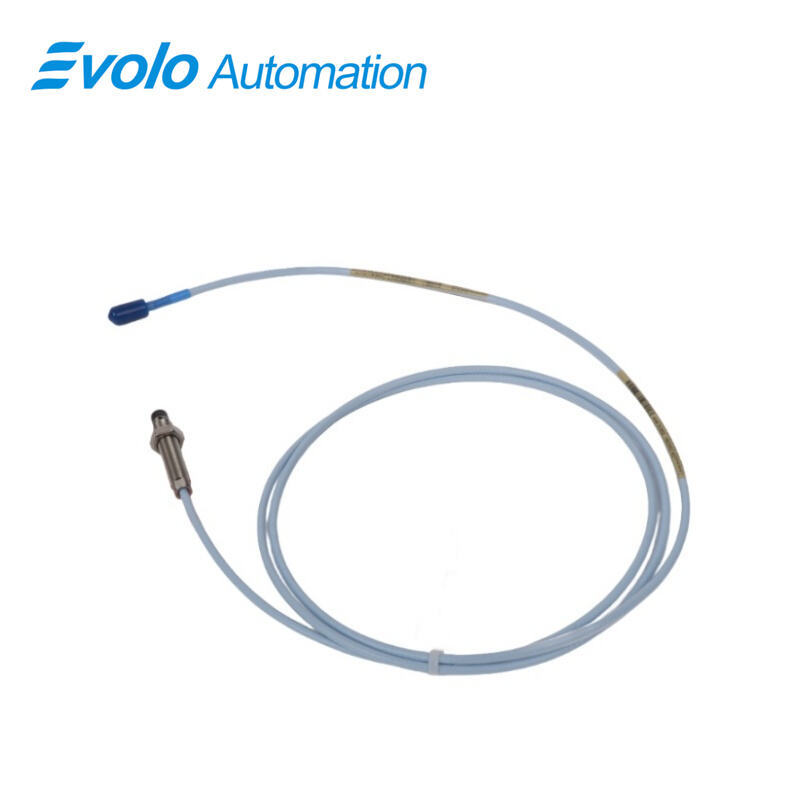

330101-00-20-20-02-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-20-20-02-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-00-20-20-02-05 3300 XL 8 mm Proximity Probe is a high-performance eddy current sensor engineered for precision automation and rotating machinery monitoring. This 3300 XL 8 mm Proximity Probe converts the gap between its probe tip and a conductive target into a stable voltage output, providing accurate measurements of both static shaft position and dynamic vibration. With a 2 mm (80 mils) linear range, it is optimized for fluid-film bearing machines, compressors, turbines, and pumps where automation systems demand high reliability and precise feedback.

The 330101-00-20-20-02-05 probe features a 3/8-24 UNF threaded stainless steel case, a 2.0 meter standard cable, and a Miniature coaxial ClickLoc connector that ensures secure, vibration-resistant electrical connections. Its robust design operates over a wide temperature range of -52°C to +177°C, with 50 Ω output resistance, less than 2 mV/V supply sensitivity, and 69.9 pF/m typical extension cable capacitance for long-distance signal stability. Certified with CSA, ATEX, and IECEx approvals, the 3300 XL 8 mm Proximity Probe is ideal for hazardous-area automation and industrial monitoring applications, delivering consistent and reliable performance under extreme operating conditions.

Applications

Application 1: Radial Vibration Monitoring in Steam and Gas Turbines

The 330101-00-20-20-02-05 3300 XL 8 mm Proximity Probe measures radial shaft vibration with high resolution. Its 2 mm linear range enables early detection of rotor imbalance and bearing wear, supporting automated alerts and preventive maintenance in turbine automation systems.

Application 2: Shaft Position Measurement in Centrifugal Compressors

The probe provides precise displacement data for shaft position monitoring in centrifugal compressors. Its low supply sensitivity ensures stable readings even during power fluctuations, improving the reliability of automated protection and control systems.

Application 3: Keyphasor Signal Generation

The 3300 XL 8 mm Proximity Probe produces accurate Keyphasor phase reference signals for rotational speed and vibration analysis, supporting automated condition monitoring and fault diagnostics in complex industrial machinery.

Application 4: Overspeed and Speed Protection Systems

Integrated into automation systems, the probe supports tachometer and overspeed detection. Its stable proportional output improves protection logic performance and ensures safe operation of critical rotating equipment.

Application 5: Predictive Maintenance in Industrial Automation

By providing continuous vibration and displacement data, the 330101-00-20-20-02-05 probe enables predictive maintenance strategies. Data-driven analysis helps optimize maintenance schedules and extend machinery service life in automated industrial environments.

Specifications

Competitive Advantage

Competitive Advantage 1: Hazardous Area Compliance

With CSA, ATEX, and IECEx certifications, the probe is suitable for hazardous industrial environments, ensuring safety and regulatory compliance in automation systems.

Competitive Advantage 2: Robust Cable and Connector Design

The ClickLoc connector and patented CableLoc design provide up to 330 N pull strength, ensuring secure electrical connections in high-vibration applications.

Competitive Advantage 3: Wide Operating Temperature Range

Operating from -52°C to +177°C, the 330101-00-20-20-02-05 probe maintains accurate measurements under extreme thermal conditions, reducing the need for frequent recalibration.

Competitive Advantage 4: Signal Integrity over Long Distances

The probe's 50 Ω output resistance and 69.9 pF/m cable capacitance ensure stable and precise signal transmission over long cable runs in automation systems.

Competitive Advantage 5: API 670 Compliance and Component Interchangeability

Meeting API 670 standards, the 3300 XL 8 mm Proximity Probe is fully interchangeable with legacy 3300 series probes and sensors, reducing system upgrade costs and simplifying automation system maintenance.
