330101-00-30-15-02-00 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-30-15-02-00
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

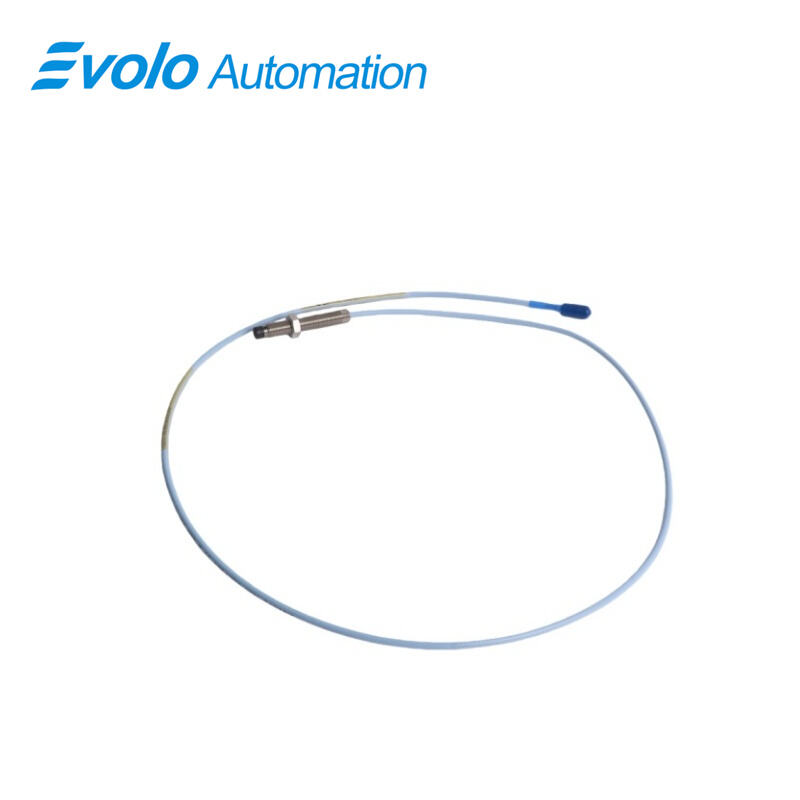

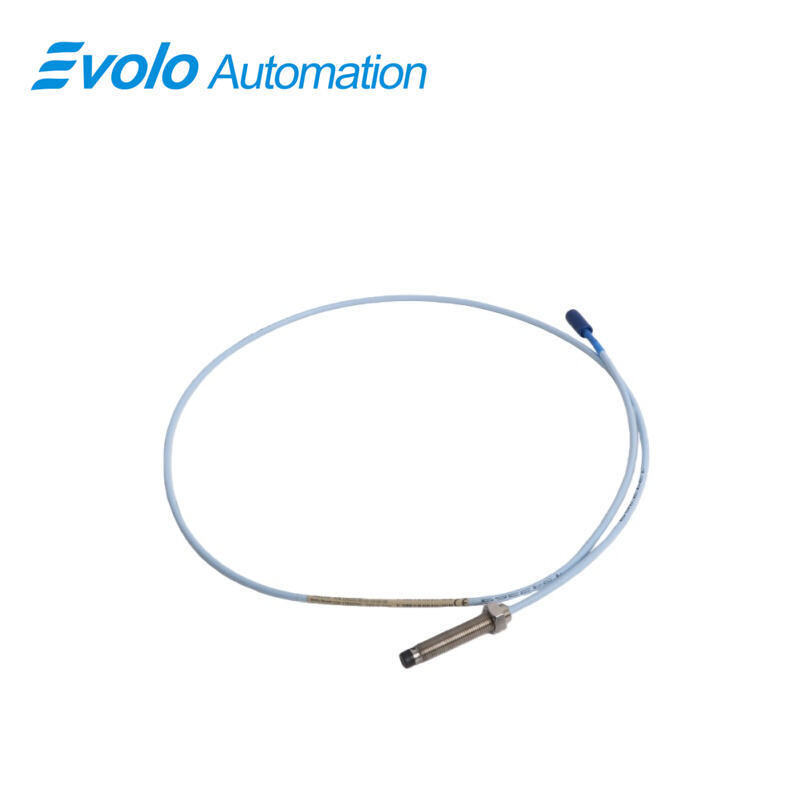

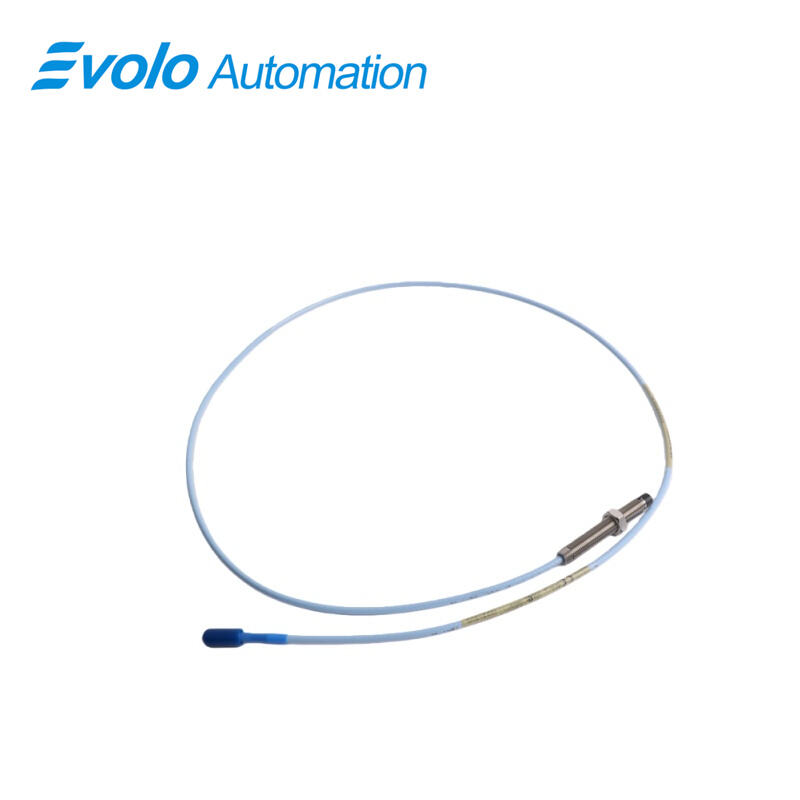

The 330101-00-30-15-02-00 is a versatile and robust member of the acclaimed 3300 XL 8 mm Proximity Probes series, engineered by Bently Nevada for reliable machinery condition monitoring where standard cable lengths are insufficient. This model is distinguished by its extended integrated cable, offering a total length of 1.5 meters (4.9 feet), which provides greater installation flexibility and reach in complex machinery layouts. As a premier eddy current displacement transducer, this Proximity Probe delivers a precise, linear voltage output that is directly proportional to the gap between its probe tip and a conductive target, enabling accurate measurement of both dynamic vibration and static axial position for critical assets such as turbines, compressors, and large pumps.

Designed for durability in demanding industrial environments, this 3300 XL 8 mm Proximity Probe features a robust mechanical construction with an overall case length of 3.0 inches. The probe tip is manufactured from resilient Polyphenylene Sulfide (PPS), providing excellent resistance to chemical degradation and high temperatures, while the body is precision-machined from corrosion-resistant AISI 303 or 304 stainless steel (SST). This material combination ensures long-term reliability and stable performance across a wide operating temperature range from -55°C to +177°C, making it suitable for applications exposed to extreme thermal cycles, lubricants, and harsh atmospheres.

Applications

1.Monitoring Rotating Machinery with Remote Junction Boxes

The extended 1.5-meter cable length is ideal for installations where the sensor is located a significant distance from the cable entry point or junction box, such as on large steam turbines, multi-stage compressors, or within expansive gearbox housings. This reduces the need for additional splice connections, enhancing overall system reliability.

2.Flexible Installation in Complex or Congested Machinery Layouts

The combination of a 3.0-inch case length and a longer integrated cable provides greater routing flexibility around piping, structural members, and other components in crowded machinery trains. This makes installation easier and cleaner in retrofit situations or on complex original equipment.

3.General-Purpose Vibration and Position Monitoring in Harsh Conditions

Built with a PPS tip and stainless steel case, this probe is suited for continuous duty on pumps, fans, and motors in environments with exposure to moisture, moderate chemicals, and wide temperature swings. Its robust construction supports reliable data collection for predictive maintenance programs across industries like power generation, water treatment, and general manufacturing.

Specifications

Competitive Advantage

1.Extended Integrated Cable for Installation Flexibility

The factory-integrated 1.5-meter cable provides greater reach than standard probe versions, allowing for direct connection to more distant termination points. This reduces installation complexity, minimizes the number of required connections, and lowers the total installed cost by potentially eliminating the need for a short extension cable.

2.Optimal Length and Durability for Versatile Mounting

The 3.0-inch overall case length offers a versatile form factor that fits a wide range of standard mounting holes and spacings. Coupled with the durable PPS and SST construction, this probe delivers a reliable solution that balances a practical physical size with the longevity required for industrial environments.

3.Guaranteed Compatibility and Simplified Logistics

As a genuine 3300 XL series component, it ensures 100% interoperability with the entire system. This simplifies spare parts inventory, as one probe model can serve multiple applications, and guarantees performance when used with any 3300 XL monitor, streamlining both initial setup and ongoing maintenance.

4.Stable Performance Across Operational Extremes

Engineered to operate reliably from -55°C to +177°C with a stable 50 Ω output and low supply sensitivity, this probe delivers consistent signal integrity. This ensures accurate monitoring data is maintained despite fluctuations in ambient temperature or supply voltage, which is critical for effective machinery protection.
