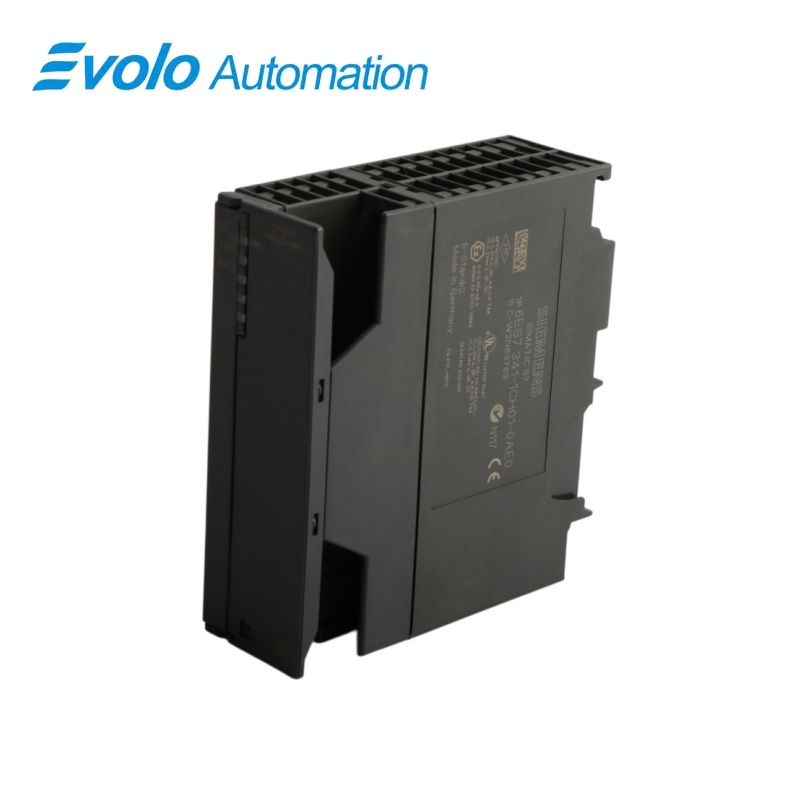

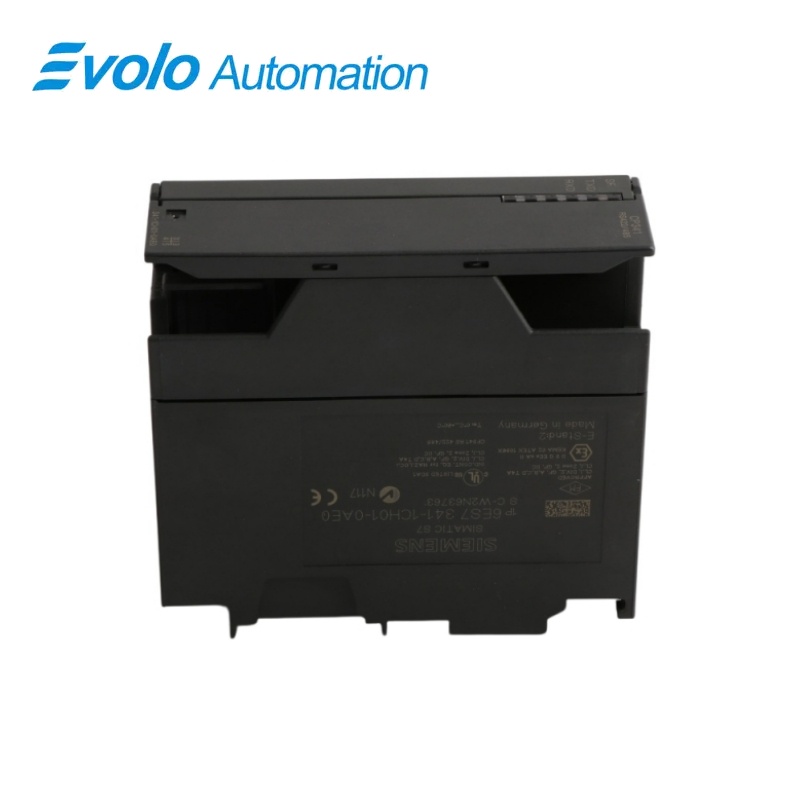

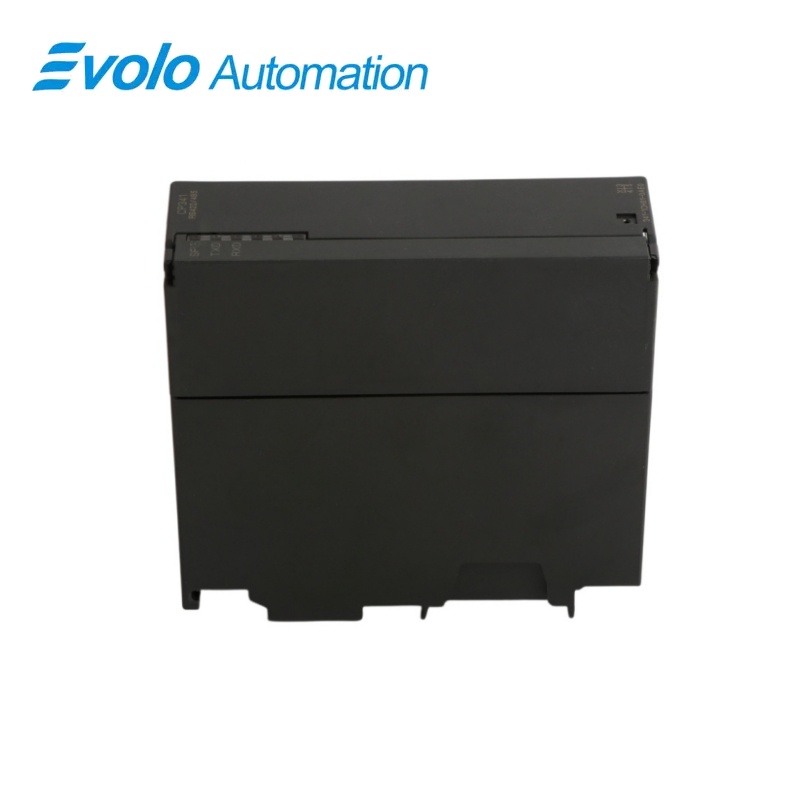

Siemens SIMATIC S7-300 CP 341 RS422/485 Communication Processor 6ES7341-1CH01-0AE0
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
Siemens · SIMATIC S7-300
6ES7341-1CH01-0AE0 SIMATIC S7-300 CP 341 RS422/485 Communication Processor
The CP 341 is an S7-300 communication processor with one isolated RS422/485 interface for point-to-point serial links and configurable protocols.
At a Glance
| Brand | Siemens |
|---|---|
| Model | 6ES7341-1CH01-0AE0 |
| Product Type | Point-to-point serial communication processor |
| Core Function | Adds an isolated RS422/485 point-to-point serial interface to an S7-300 station |
| Application or Compatible Series | S7-300 systems communicating with serial devices through RS422 or RS485 |
Exact Identification
Match 6ES7341-1CH01-0AE0 character by character and confirm the complete SIMATIC S7-300 CP 341 RS422/485 Communication Processor designation.
Interface Arrangement
Confirm the installed supply, ports, field connections and required accessories before wiring the replacement.
Configuration Check
Preserve the approved engineering project, network parameters and application data used by the installed system.
Product Overview
The CP 341 is an S7-300 communication processor with one isolated RS422/485 interface for point-to-point serial links and configurable protocols.
One galvanically isolated RS422/485 port connects compatible serial devices. The communication processor executes the selected point-to-point protocol independently of the CPU. The documented interface supports serial links up to 1200 m when the electrical standard and baud rate permit.
Key Functions
Isolated Serial Interface
One galvanically isolated RS422/485 port connects compatible serial devices.
Configurable Protocol Handling
The communication processor executes the selected point-to-point protocol independently of the CPU.
Long Cable Support
The documented interface supports serial links up to 1200 m when the electrical standard and baud rate permit.
Official Specifications
| Rated Supply Voltage | 24 V DC |
|---|---|
| Maximum Current from L+ | 240 mA |
| Maximum Backplane-Bus Current at 5 V DC | 70 mA |
| Maximum Power Loss | 5.8 W |
| Serial Interfaces | 1 isolated port |
| Physical Layer | RS422/485 |
| Minimum Transfer Rate | 0.3 kbit/s |
| Maximum Transfer Rate | 76.8 kbit/s |
| Maximum Point-to-Point Cable Length | 1200 m |
| Connector | 15-pin Sub-D |
| Protocol Configuration | Via the CP 341 configuration package |
| Operating Mode | Full-duplex or half-duplex according to interface configuration |
Frequently Asked Questions
Which serial standards are supported by 6ES7341-1CH01-0AE0?
Configure the isolated interface for the required RS422 or RS485 electrical standard.
What connector is used by 6ES7341-1CH01-0AE0?
The serial port uses a fifteen-pin Sub-D connector.
How fast can 6ES7341-1CH01-0AE0 communicate?
Select a supported rate from 0.3 to 76.8 kbit/s for the connected device and cable.
How long can the serial cable be for 6ES7341-1CH01-0AE0?
The point-to-point link can reach 1200 m when the configured standard, rate and cable meet the requirements.
What should be backed up before replacing 6ES7341-1CH01-0AE0?
Save the STEP 7 project, CP parameters, protocol, baud rate, parity, station role and application blocks.
Can an RS232 CP 341 directly replace 6ES7341-1CH01-0AE0?
No; the electrical interface and cable pinout must remain RS422/485.
What should be tested after installing 6ES7341-1CH01-0AE0?
Verify supply, port wiring, termination, send and receive data, protocol status and diagnostics.
Compatibility & Ordering Notes
Compatibility Checklist
- Use only with a supported S7-300 rack and STEP 7 configuration.
- Match the RS422/485 wiring and termination to the field device.
- Restore the protocol parameters and application communication blocks.
