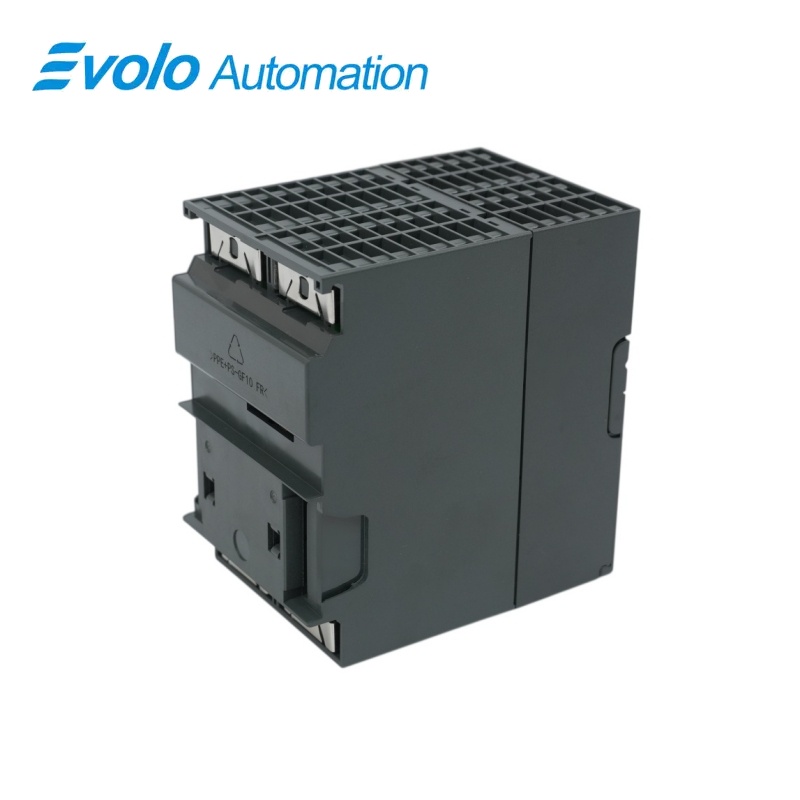

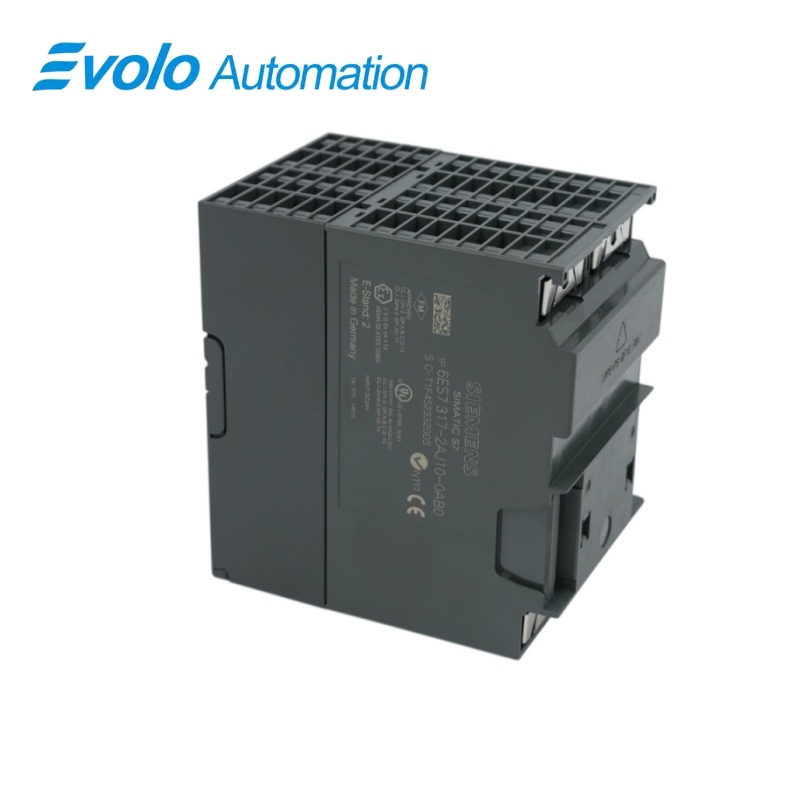

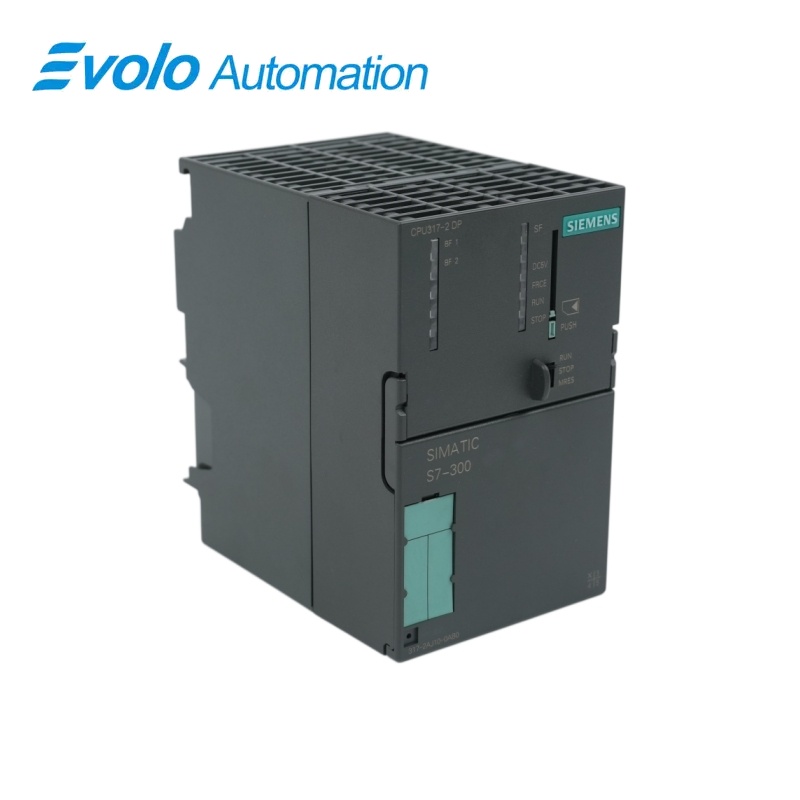

Siemens SIMATIC S7-300 CPU 317-2 DP 6ES7317-2AJ10-0AB0
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
Siemens · SIMATIC S7-300
6ES7317-2AJ10-0AB0 SIMATIC S7-300 CPU 317-2 DP
The CPU 317-2 DP provides 512 KB of work memory, an MPI/DP interface and a second PROFIBUS DP master/slave interface for distributed S7-300 automation.
At a Glance
| Brand | Siemens |
|---|---|
| Model | 6ES7317-2AJ10-0AB0 |
| Product Type | Programmable logic controller CPU with dual PROFIBUS-capable interfaces |
| Core Function | Executes S7-300 control programs and manages distributed PROFIBUS DP devices |
| Application or Compatible Series | SIMATIC S7-300 stations requiring 512 KB work memory and two DP-capable interfaces |
Exact Identification
Match 6ES7317-2AJ10-0AB0 character by character and confirm the complete SIMATIC S7-300 CPU 317-2 DP designation.
Interface Arrangement
Confirm the installed supply, ports, field connections and required accessories before wiring the replacement.
Configuration Check
Preserve the approved engineering project, network parameters and application data used by the installed system.
Product Overview
The CPU 317-2 DP provides 512 KB of work memory, an MPI/DP interface and a second PROFIBUS DP master/slave interface for distributed S7-300 automation.
The integrated MPI/DP port and second DP port support programming, controller communication and distributed I/O. The processor provides 512 KB of work memory for the configured S7-300 application. A SIMATIC Micro Memory Card carries the load memory and project data.
Key Functions
Dual Fieldbus Integration
The integrated MPI/DP port and second DP port support programming, controller communication and distributed I/O.
Controller Memory
The processor provides 512 KB of work memory for the configured S7-300 application.
Removable Load Memory
A SIMATIC Micro Memory Card carries the load memory and project data.
Official Specifications
| Work Memory | 512 KB |
|---|---|
| Primary Communication Interface | MPI/PROFIBUS DP |
| Primary Interface Rate | Up to 12 Mbit/s |
| Secondary Communication Interface | PROFIBUS DP master/slave |
| Removable Load Memory | SIMATIC Micro Memory Card required |
| Rated Supply Voltage | 24 V DC |
| S7 Communication | Supported |
| PROFIBUS DP Master Function | Supported |
| PROFIBUS DP Slave Function | Supported |
| Net Weight | 0.517 kg |
| Packaging Dimensions | 13.2 x 15.0 x 9.1 cm |
| Successor Article | 6ES7317-2AK14-0AB0 |
Frequently Asked Questions
Which networks can I connect to 6ES7317-2AJ10-0AB0?
Use the integrated MPI/PROFIBUS DP interface and the second PROFIBUS DP master/slave interface.
How much work memory is available in 6ES7317-2AJ10-0AB0?
The CPU provides 512 KB of work memory.
Does 6ES7317-2AJ10-0AB0 require a memory card?
Yes; install the compatible SIMATIC Micro Memory Card used by the validated project.
What should I save before replacing 6ES7317-2AJ10-0AB0?
Preserve the STEP 7 project, memory-card contents, MPI address, DP addresses and communication configuration.
Can 6ES7317-2AJ10-0AB0 operate as a DP slave?
Yes; the second interface supports the configured PROFIBUS DP slave role.
What must match when exchanging 6ES7317-2AJ10-0AB0?
Match the complete article number, hardware revision, firmware, memory card and network configuration.
What should be tested after installing 6ES7317-2AJ10-0AB0?
Verify CPU startup, both communication interfaces, distributed I/O, alarms and process operation.
Compatibility & Ordering Notes
Compatibility Checklist
- Use the exact S7-300 hardware entry configured in STEP 7.
- Retain the verified memory card and project backup.
- Validate both integrated communication interfaces after replacement.
