Siemens SIMATIC S7-300 CPU 316-2 DP 6ES7316-2AG00-0AB0
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
Siemens · SIMATIC S7-300

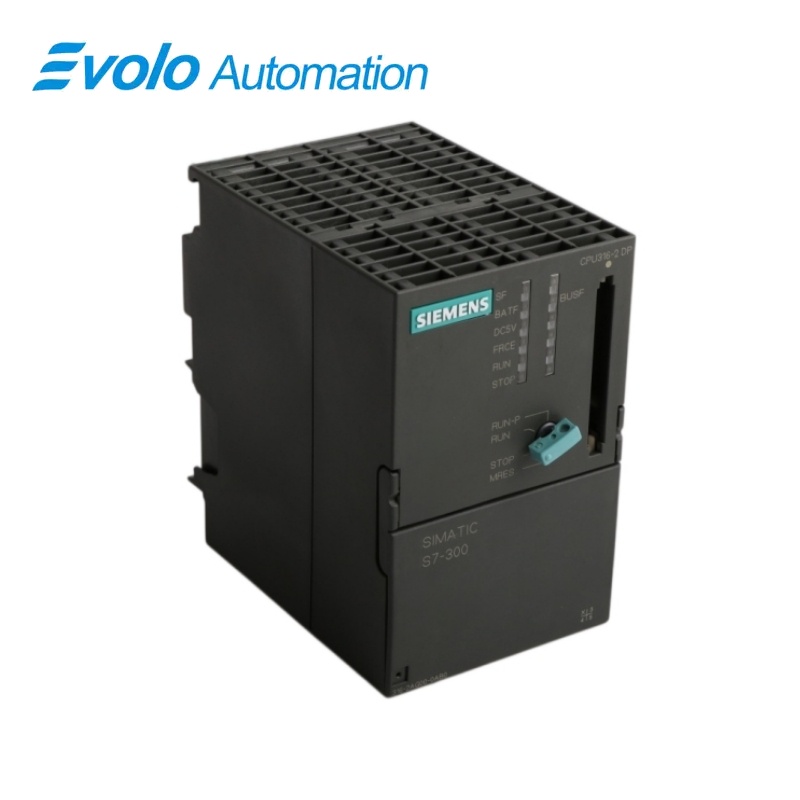

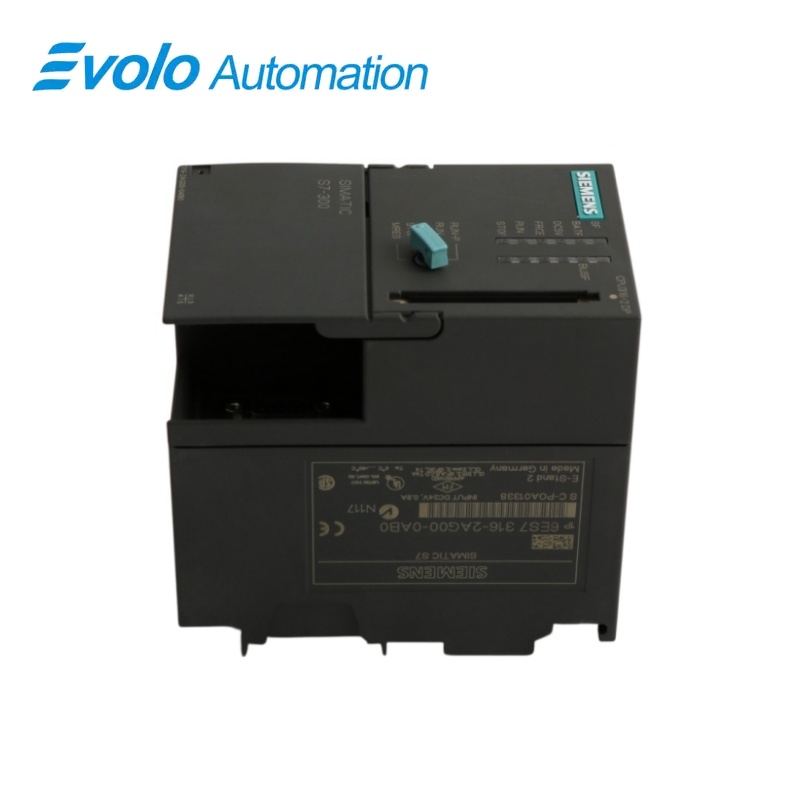

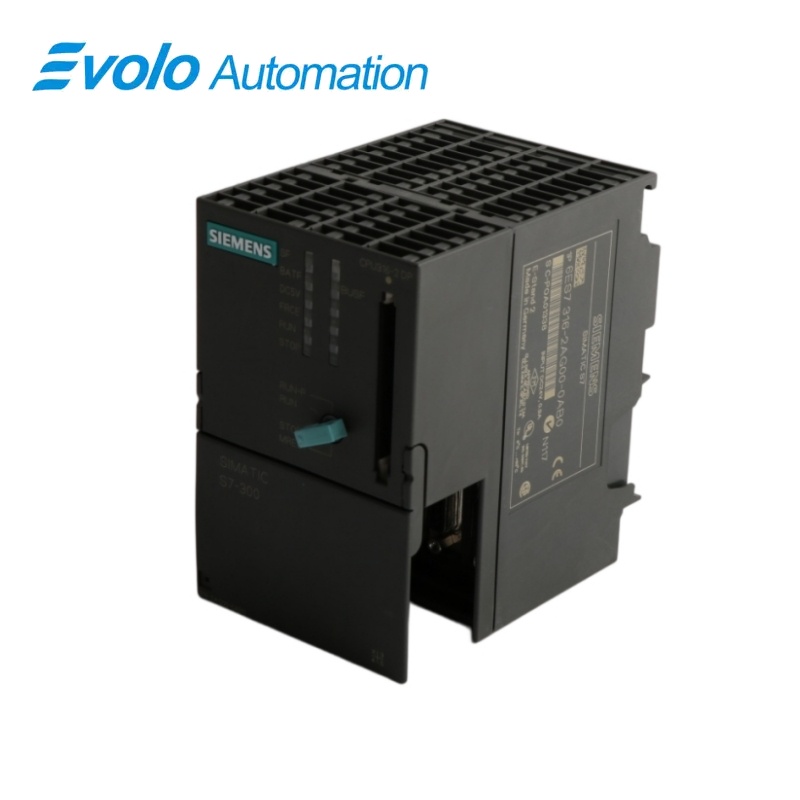

6ES7316-2AG00-0AB0 SIMATIC S7-300 CPU 316-2 DP
The CPU 316-2 DP is an S7-300 controller with an integrated PROFIBUS DP interface for local control and distributed automation.
At a Glance
| Brand | Siemens |
|---|---|
| Model | 6ES7316-2AG00-0AB0 |
| Product Type | Programmable logic controller CPU with PROFIBUS DP interface |
| Core Function | Executes the S7-300 control program and coordinates local and distributed I/O |
| Application or Compatible Series | Legacy S7-300 systems engineered for the CPU 316-2 DP hardware generation |
Exact Identification
Match 6ES7316-2AG00-0AB0 character by character and confirm the complete SIMATIC S7-300 CPU 316-2 DP designation.
Interface Arrangement
Confirm the installed supply, ports, field connections and required accessories before wiring the replacement.
Configuration Check
Preserve the approved engineering project, network parameters and application data used by the installed system.
Product Overview
The CPU 316-2 DP is an S7-300 controller with an integrated PROFIBUS DP interface for local control and distributed automation.
The CPU processes the configured STEP 7 application. Distributed I/O connects through the configured DP master system. The exact hardware version, memory and project must be preserved.
Key Functions
PLC Program Execution
The CPU processes the configured STEP 7 application.
Integrated PROFIBUS DP
Distributed I/O connects through the configured DP master system.
Legacy S7-300 Integration
The exact hardware version, memory and project must be preserved.
Official Specifications
| Controller Family | SIMATIC S7-300 |
|---|---|
| CPU Type | CPU 316-2 DP |
| Programming Environment | SIMATIC STEP 7 |
| Fieldbus | PROFIBUS DP |
| Local I/O | S7-300 signal modules |
| Distributed I/O | Configured PROFIBUS DP devices |
| Installation | S7-300 rail |
| Power Class | 24 V DC system |
| Project Storage | Configured S7 memory subsystem |
| Replacement Requirement | Exact hardware and firmware match |
Frequently Asked Questions
Which fieldbus is integrated in controller CPU 6ES7316-2AG00-0AB0?
Use the configured PROFIBUS DP network for distributed I/O.
Which project should be restored to controller CPU 6ES7316-2AG00-0AB0?
Use the validated STEP 7 project and matching memory contents.
Which installed configuration should be recorded before replacing controller CPU 6ES7316-2AG00-0AB0?
Record the configured addresses, wiring assignments, parameters, firmware and neighboring hardware before removal.
What identification must match when selecting controller CPU 6ES7316-2AG00-0AB0?
Match the complete article number, hardware revision and every option used by the installed system.
How should technicians handle controller CPU 6ES7316-2AG00-0AB0?
Isolate the affected equipment and use grounded electrostatic-discharge precautions throughout the exchange.
Which checks are required after installing controller CPU 6ES7316-2AG00-0AB0?
Verify power, diagnostics, communication, field signals and the complete approved machine or plant function.
When should a visually similar unit replace controller CPU 6ES7316-2AG00-0AB0?
Use a visually similar unit only after engineering confirms identical electrical, mechanical and software compatibility.
Compatibility & Ordering Notes
Compatibility Checklist
- Use the exact CPU 316-2 DP hardware configuration.
- Preserve the original memory and STEP 7 project.
- Validate all local and distributed I/O.
