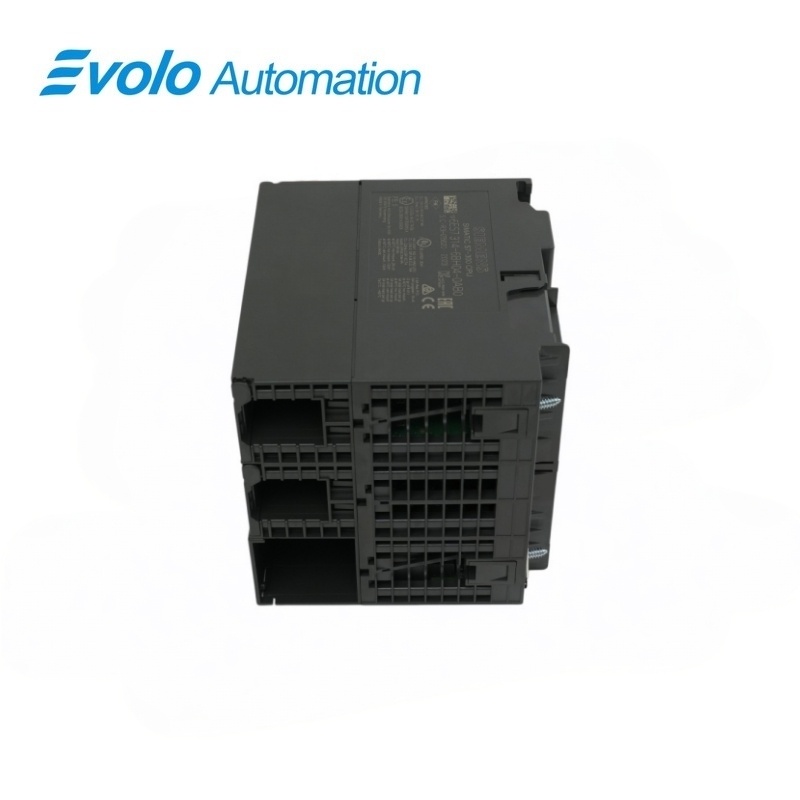

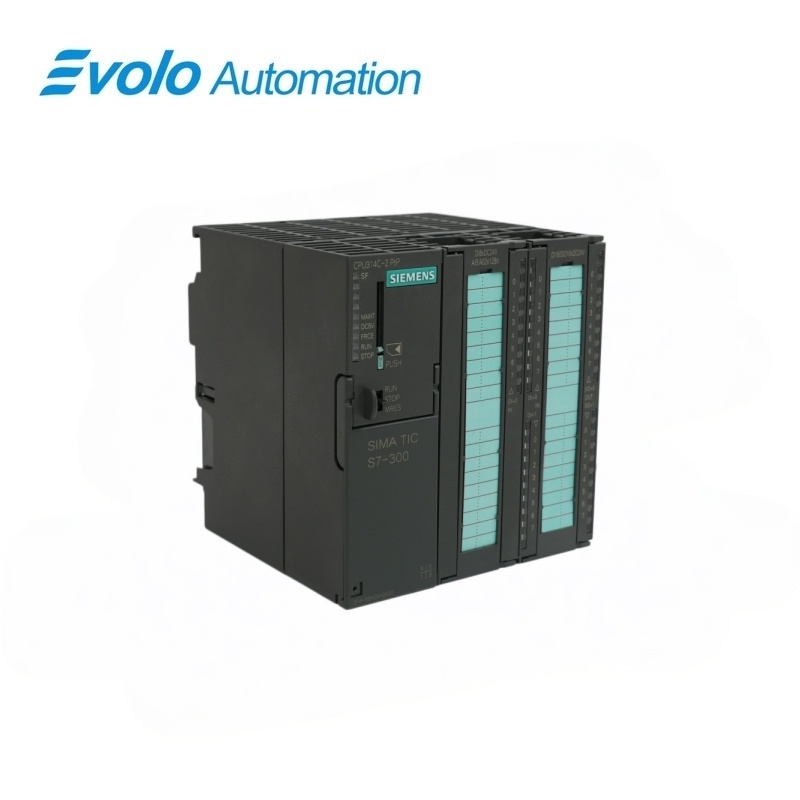

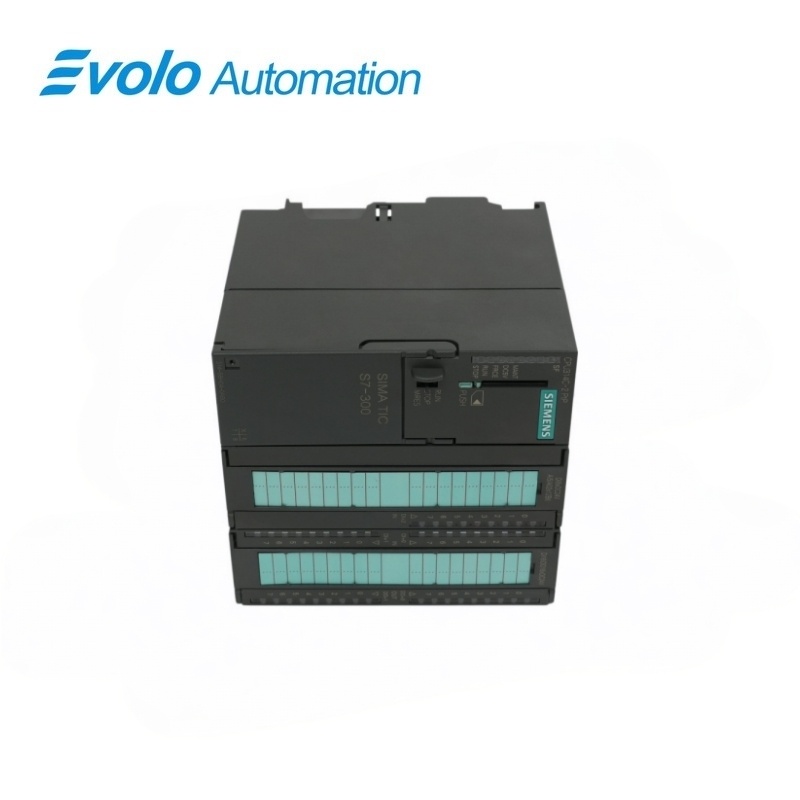

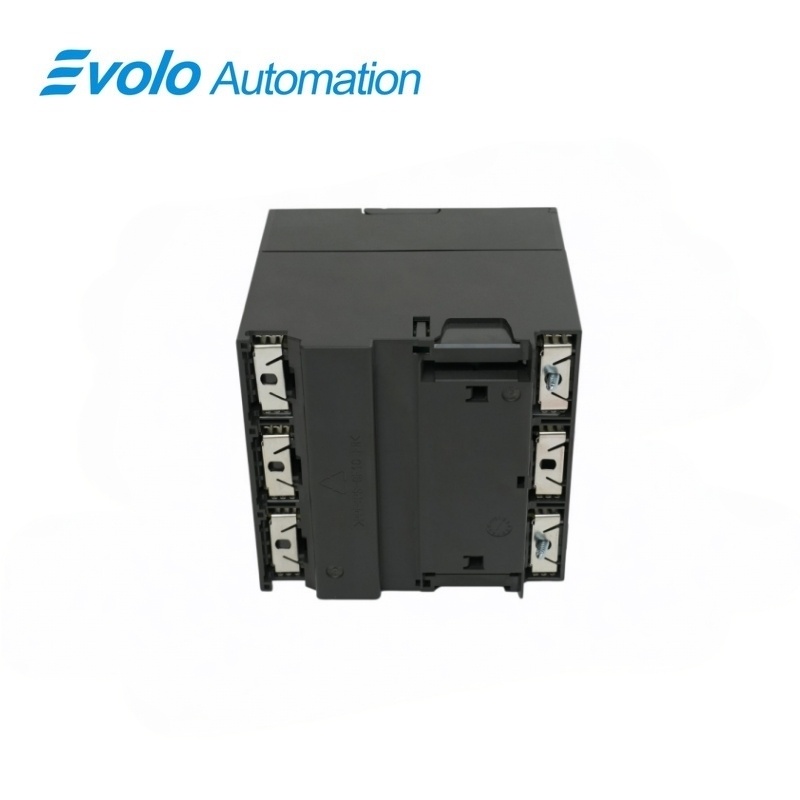

Siemens SIMATIC S7-300 6ES7314-6BH04-0AB0 CPU 314C-2 PtP
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
6ES7314-6BH04-0AB0 CPU 314C-2 PtP
Official Siemens identification and specifications for 6ES7314-6BH04-0AB0, prepared for accurate replacement matching and quotation.
At a Glance
| Article Number | 6ES7314-6BH04-0AB0 |
|---|---|
| Manufacturer | Siemens |
| Platform | SIMATIC S7-300 |
| Product Type | CPU 314C-2 PtP |
| Country of Origin | Germany |
Exact Identification
Match the complete Siemens article number 6ES7314-6BH04-0AB0 and the photographed hardware revision.
Work memory
Work memory: 192 KB
Configuration Check
Integrated I/O: 24 DI / 16 DO / 4 AI / 2 AO; confirm rack, connectors and revision before replacement.
Product Overview
6ES7314-6BH04-0AB0 is officially identified by Siemens as SIMATIC S7-300, CPU 314C-2 PTP compact CPU with MPI, 24 DI/16 DO, 4 AI, 2 AO, 1 Pt100, 4 high-speed counters (60 kHz), integrated interface RS485, integrated power supply 24 V DC, work memory 192 KB, front connector (2x 40-pole) and Micro Memory Card required.
The complete article number 6ES7314-6BH04-0AB0 should be matched against the installed SIMATIC S7-300 hardware, nameplate and project documentation. Similar CPU or PS307 revisions can differ in memory, interfaces, I/O or lifecycle status.
Key Functions
Model-Specific Configuration
6ES7314-6BH04-0AB0: Work memory: 192 KB.
System Interface
6ES7314-6BH04-0AB0: Integrated I/O: 24 DI / 16 DO / 4 AI / 2 AO.
Replacement Control
6ES7314-6BH04-0AB0: 4 high-speed counters (60 kHz).
Official Specifications
| Manufacturer | Siemens |
|---|---|
| Series | SIMATIC S7-300 |
| Article Number | 6ES7314-6BH04-0AB0 |
| Product Type | CPU 314C-2 PtP |
| Work memory | 192 KB |
| Integrated I/O | 24 DI / 16 DO / 4 AI / 2 AO |
| Official Configuration | 4 high-speed counters (60 kHz) |
| Interfaces | MPI, RS485 |
| Official Configuration | SIMATIC Micro Memory Card required |
| Width | 120 mm |
| Net Weight | 0.730 Kg |
| Packaging Dimension | 13.10 x 15.40 x 13.10 CM |
| Country of Origin | Germany |
Official source: Siemens Industry Mall product data for 6ES7314-6BH04-0AB0. Commercial stock, warranty and shipping statements are seller terms.
Frequently Asked Questions
What is 6ES7314-6BH04-0AB0?
6ES7314-6BH04-0AB0 is a Siemens CPU 314C-2 PtP for the SIMATIC S7-300 family. Siemens officially describes 6ES7314-6BH04-0AB0 as SIMATIC S7-300, CPU 314C-2 PTP compact CPU with MPI, 24 DI/16 DO, 4 AI, 2 AO, 1 Pt100, 4 high-speed counters (60 kHz), integrated interface RS485, integrated power supply 24 V DC, work memory 192 KB, front connector (2x 40-pole) and Micro Memory Card required.
Which system is 6ES7314-6BH04-0AB0 designed for?
6ES7314-6BH04-0AB0 is identified for the Siemens SIMATIC S7-300 family. Compatibility for 6ES7314-6BH04-0AB0 requires the complete article number, hardware revision and installed configuration.
What functions does 6ES7314-6BH04-0AB0 provide?
6ES7314-6BH04-0AB0 provides the official configuration recorded for 6ES7314-6BH04-0AB0: Work memory: 192 KB; Integrated I/O: 24 DI / 16 DO / 4 AI / 2 AO; 4 high-speed counters (60 kHz).
How should 6ES7314-6BH04-0AB0 be installed?
6ES7314-6BH04-0AB0 must be installed by qualified personnel with cabinet power isolated; verify the S7-300 rack, connector arrangement, firmware/hardware revision and required memory card before energizing 6ES7314-6BH04-0AB0.
Is 6ES7314-6BH04-0AB0 in stock?
6ES7314-6BH04-0AB0 is listed In Stock. Confirm the live quantity, photographed nameplate and required revision for 6ES7314-6BH04-0AB0 before payment.
What warranty is supplied with 6ES7314-6BH04-0AB0?
6ES7314-6BH04-0AB0 is supplied with the seller's stated 12-month warranty. Warranty coverage for 6ES7314-6BH04-0AB0 follows the written quotation and is not a Siemens factory-warranty statement.
How is 6ES7314-6BH04-0AB0 shipped?
6ES7314-6BH04-0AB0 is packed in an antistatic, moisture-resistant protective carton. Courier, tracking and delivery time for 6ES7314-6BH04-0AB0 are confirmed for the destination before dispatch.
Compatibility & Ordering Notes
Compatibility Checklist for 6ES7314-6BH04-0AB0
- Match the complete article number 6ES7314-6BH04-0AB0 without shortening the suffix.
- Confirm the installed SIMATIC S7-300 CPU or PS307 family and hardware revision.
- Verify Work memory: 192 KB.
- Confirm included front connectors, memory card and accessories in the written quotation.
