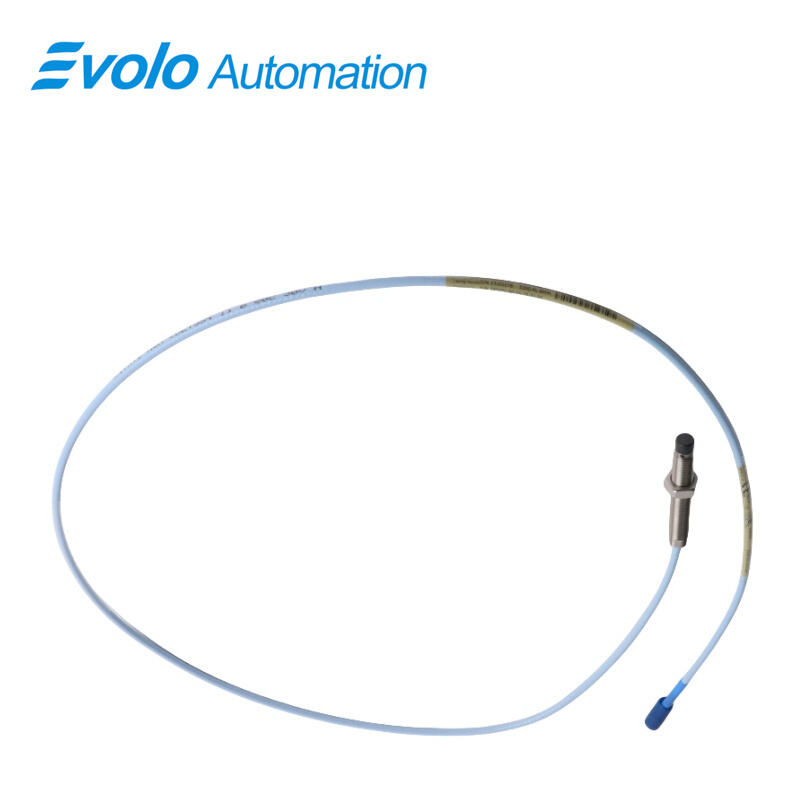

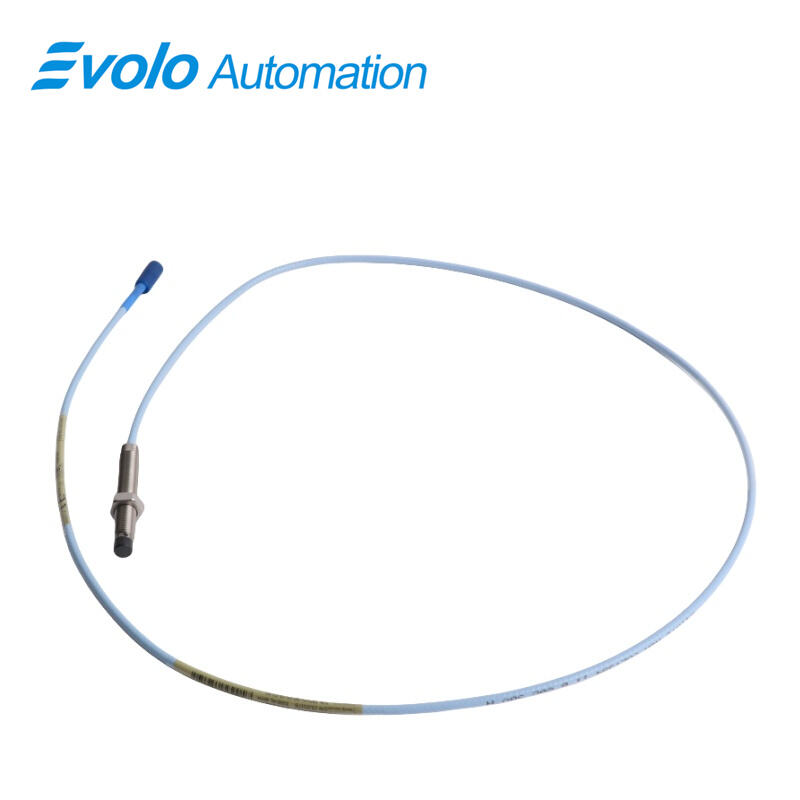

330101-00-24-10-02-00 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-24-10-02-00
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-00-24-10-02-00 3300 XL 8 mm Proximity Probe is a high-precision eddy current transducer specifically engineered for advanced industrial automation and condition monitoring applications. It generates an output voltage directly proportional to the distance between the probe tip and the target conductive surface, enabling accurate measurement of both static position and dynamic vibration in fluid-film bearing machinery. Designed with a 2 mm (80 mils) linear range and operating reliably from -52°C to +177°C (-62°F to +350°F), it also supports Keyphasor speed and phase reference signals for automated monitoring. The probe features a patented TipLoc molding method for robust probe tip adhesion, and a CableLoc design with 330 N (75 lbf) pull strength to secure the cable and maintain signal integrity. The miniature coaxial ClickLoc connector and optional FluidLoc cable ensure resistance to oil leakage, making it ideal for high-performance, automated machinery diagnostic systems. Backward compatible with other 3300 series 5 mm and 8 mm probes, it enables flexible integration and component interchangeability.

Applications

Application 1: Vibration Monitoring in Turbomachinery
Measures shaft vibration and misalignment in compressors, turbines, and pumps to provide automated early warning for potential mechanical failures.

Application 2: Shaft Position Sensing
Delivers precise position feedback for Keyphasor reference and speed measurement, enabling automated rotational control and diagnostics.

Application 3: Predictive Maintenance Automation
Integrates into PLC or DCS systems to continuously monitor equipment health and trigger automated maintenance alerts, reducing unplanned downtime.

Application 4: High-Temperature Industrial Environments
Operates efficiently in extreme conditions up to +177°C (+350°F), making it suitable for boilers, steam turbines, and other heat-intensive automated processes.

Application 5: Compact and Flexible Installations
The 8 mm probe size and backward compatibility with 3300 5 mm probes allow installation in tight spaces without sacrificing measurement precision, supporting flexible automated system design.

Specifications

Competitive Advantage

Advantage 1: Enhanced Tip Durability
Patented TipLoc molding ensures a robust bond between the probe tip and body, increasing mechanical durability in high-vibration industrial environments.

Advantage 2: Secure Cable Attachment
CableLoc design provides 330 N (75 lbf) pull strength, preventing accidental disconnections and maintaining continuous data flow for automated monitoring systems.

Advantage 3: Broad Environmental Tolerance
Operates from -52°C to +177°C (-62°F to +350°F) with optional FluidLoc cable to prevent oil leakage, ensuring reliable performance in harsh process environments.

Advantage 4: API 670 Compliance
Fully meets API 670 standards for mechanical configuration, linearity, and temperature stability, guaranteeing high-accuracy vibration and position measurements in automated protection systems.

Advantage 5: Interchangeability and Backward Compatibility
Compatible with 3300 series 5 mm and 8 mm probes, extension cables, and Proximitor sensors, allowing seamless component replacement or upgrades without recalibration, reducing system downtime.
