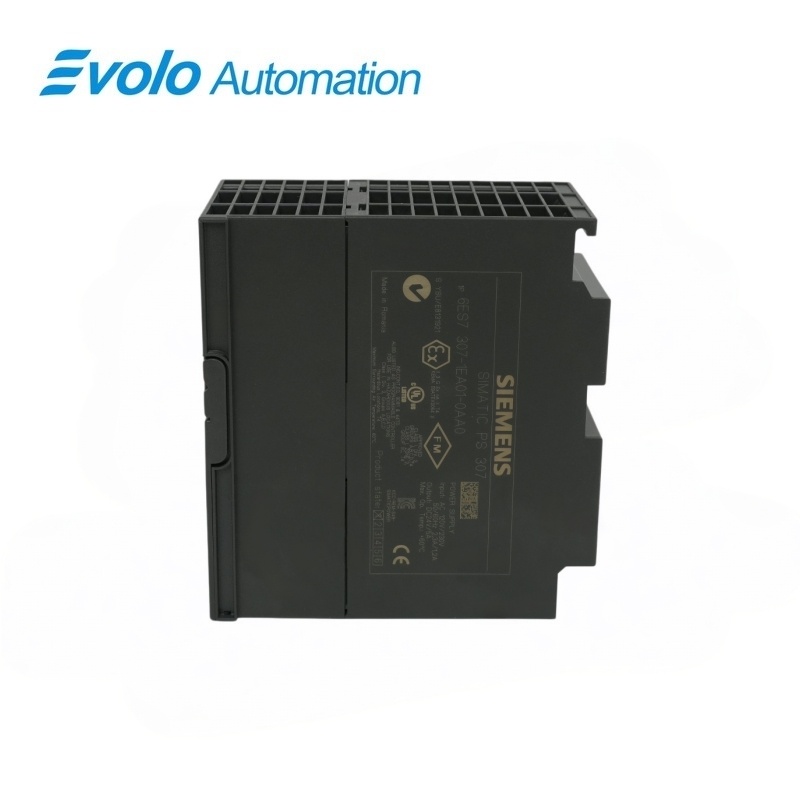

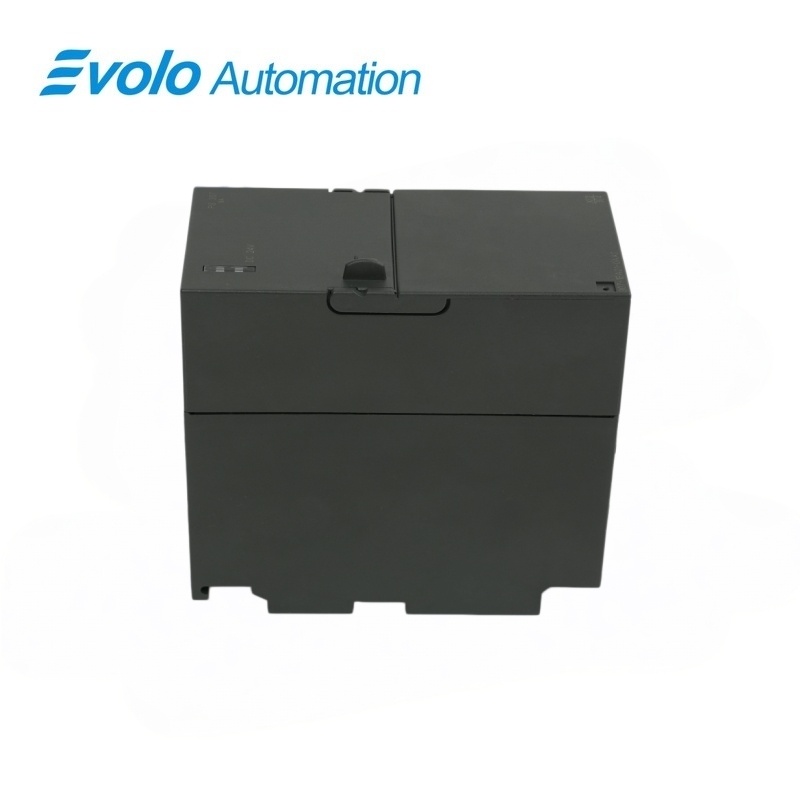

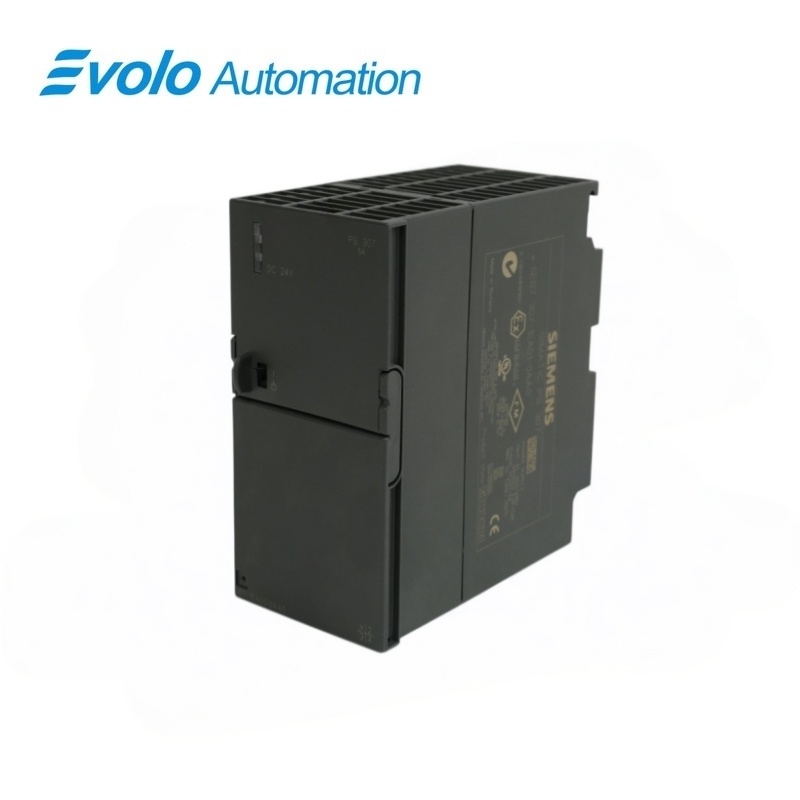

Siemens SIMATIC S7-300 6ES7307-1EA01-0AA0 PS307 24V DC 5A Power Supply
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: Romania
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
6ES7307-1EA01-0AA0 PS307 24V DC 5A Power Supply
Official Siemens identification and specifications for 6ES7307-1EA01-0AA0, prepared for accurate replacement matching and quotation.
At a Glance
| Article Number | 6ES7307-1EA01-0AA0 |
|---|---|
| Manufacturer | Siemens |
| Platform | SIMATIC S7-300 |
| Product Type | PS307 24 V DC 5 A Regulated Power Supply |
| Country of Origin | Romania |
Exact Identification
Match the complete Siemens article number 6ES7307-1EA01-0AA0 and the photographed hardware revision.
Input
Input: 120/230 V AC
Configuration Check
Output: 24 V/5 A DC; confirm rack, connectors and revision before replacement.
Product Overview
Siemens identifies 6ES7307-1EA01-0AA0 as the standard SIMATIC S7-300 PS307 regulated power supply with a 1-phase 120/230 V AC input. Siemens documentation specifies automatic range selection over 85–132 V AC and 170–264 V AC.
The supply delivers a regulated 24 V DC output rated at 5 A and provides at least 20 ms mains buffering. The standard 1EA01 article should be checked separately from the Outdoor 1EA80 version because their official input specifications and selection method differ.
Key Functions
Automatic Dual-Range Input
6ES7307-1EA01-0AA0 automatically accommodates the official 120/230 V AC ranges without the Outdoor model's manual selector.
Standard 5 A PS307 Output
The regulated output is rated at 24 V DC and 5 A for compatible S7-300 and associated 24 V loads.
Mains Interruption Buffering
Siemens specifies a minimum buffering time of 20 ms under the stated input conditions.
Official Specifications
| Manufacturer | Siemens |
|---|---|
| Series | SIMATIC S7-300 |
| Article Number | 6ES7307-1EA01-0AA0 |
| Product Type | PS307 24 V DC 5 A Regulated Power Supply |
| Input | 120/230 V AC |
| Output | 24 V/5 A DC |
| Dimensions | 60 × 125 × 120 mm |
| Technical Weight | 0.6 kg |
| Net Weight | 0,500 Kg |
| Packaging Dimension | 17,00 x 13,00 x 7,00 CM |
| Country of Origin | Romania |
| Product Lifecycle | PM400:Announcement of product phase-out; Product phase-out since: 01.10.2023 |
Official source: Siemens Industry Mall product data for 6ES7307-1EA01-0AA0. Commercial stock, warranty and shipping statements are seller terms.
Frequently Asked Questions
What is the function of 6ES7307-1EA01-0AA0?
It is a Siemens SIMATIC S7-300 PS307 regulated power supply that converts a 1-phase AC input to 24 V DC.
Which input ranges does 6ES7307-1EA01-0AA0 support?
Siemens specifies 85–132 V AC and 170–264 V AC.
Does 6ES7307-1EA01-0AA0 require manual voltage selection?
No. Siemens documentation specifies automatic range selection for the standard 1EA01 version.
What output is rated for 6ES7307-1EA01-0AA0?
The official output rating is 24 V DC at 5 A.
How long does 6ES7307-1EA01-0AA0 buffer a mains interruption?
Siemens specifies at least 20 ms under the documented input conditions.
How does 6ES7307-1EA01-0AA0 differ from 6ES7307-1EA80-0AA0?
1EA01 is the standard automatic-range version, while Siemens identifies 1EA80 as the Outdoor version with manual voltage selection and different input limits.
What should be verified before fitting 6ES7307-1EA01-0AA0?
Confirm the full article number, AC feeder, total 24 V load, conductor and protection sizing, mounting space and terminal arrangement.
