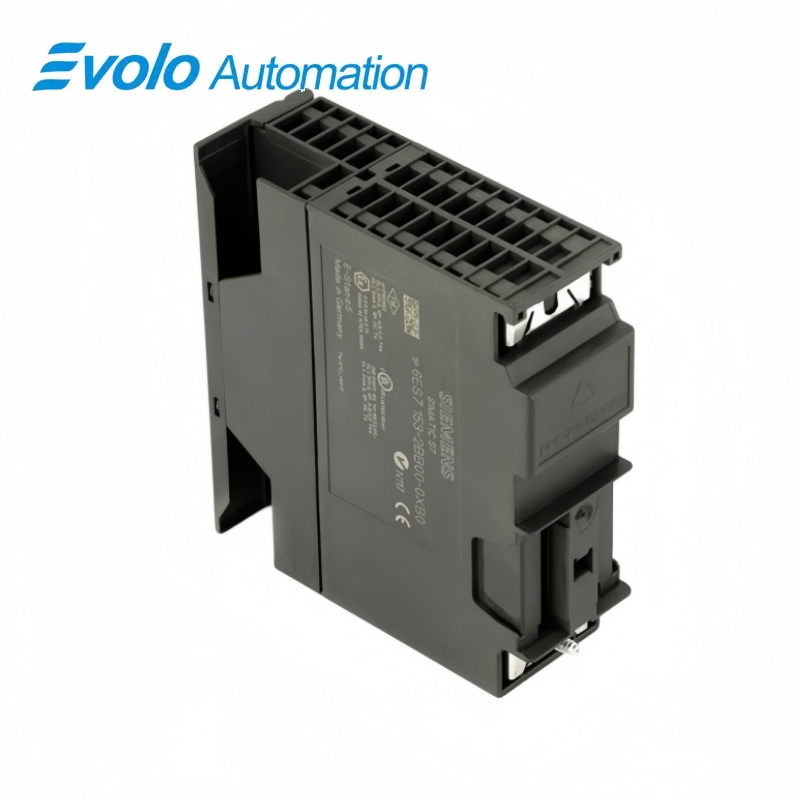

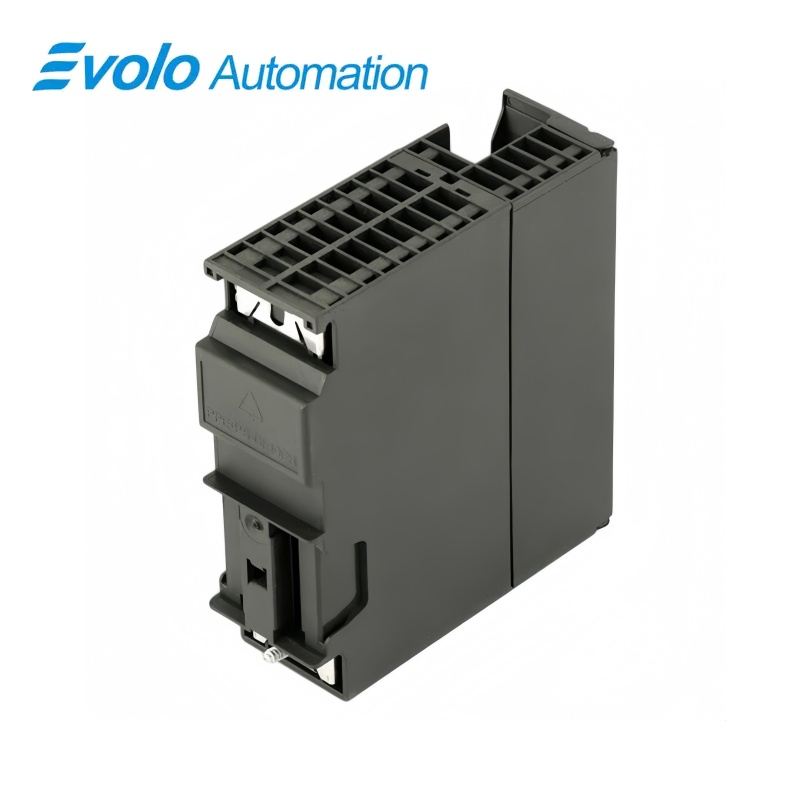

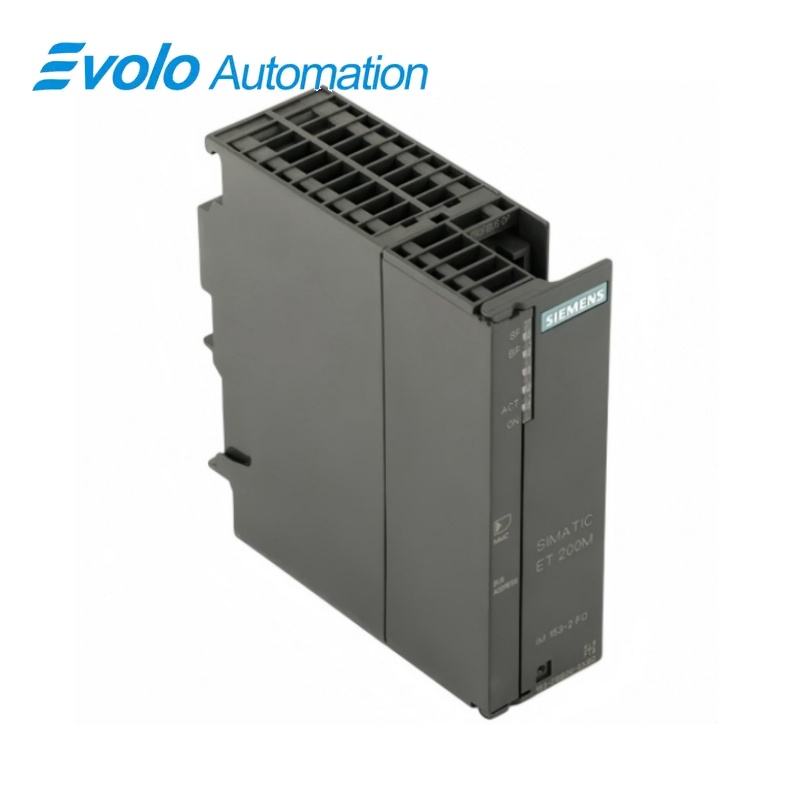

Siemens SIMATIC ET 200M IM 153-2 FO High Feature Interface Module 6ES7153-2BB00-0XB0
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
Siemens · SIMATIC ET 200M
6ES7153-2BB00-0XB0 SIMATIC ET 200M IM 153-2 FO High Feature Interface Module
The IM 153-2 FO High Feature is the optical PROFIBUS DP interface for an ET 200M station, supporting up to eight S7-300 I/O modules, integrated fiber-optic connectivity and system, software or flying redundancy where configured.
At a Glance
| Brand | Siemens |
|---|---|
| Model | 6ES7153-2BB00-0XB0 |
| Product Type | Fiber-optic PROFIBUS DP interface module |
| Core Function | Connects an ET 200M station to optical PROFIBUS DP with high-availability functions |
| Application or Compatible Series | ET 200M distributed I/O stations with up to eight S7-300 modules and approved redundancy configurations |
Exact Identification
Match 6ES7153-2BB00-0XB0 character by character and confirm the complete SIMATIC ET 200M IM 153-2 FO High Feature Interface Module designation.
Interface Arrangement
Confirm the installed supply, ports, field connections and required accessories before wiring the replacement.
Configuration Check
Preserve the approved engineering project, network parameters and application data used by the installed system.
Product Overview
The IM 153-2 FO High Feature is the optical PROFIBUS DP interface for an ET 200M station, supporting up to eight S7-300 I/O modules, integrated fiber-optic connectivity and system, software or flying redundancy where configured.
The integrated fiber-optic interface connects the ET 200M station to an optical PROFIBUS DP segment. The High Feature version supports system, software and flying redundancy under the documented conditions. Acts as the DP slave interface for up to eight supported S7-300 modules.
Key Functions
Optical PROFIBUS Connection
The integrated fiber-optic interface connects the ET 200M station to an optical PROFIBUS DP segment.
High-Availability Options
The High Feature version supports system, software and flying redundancy under the documented conditions.
Modular ET 200M Head Station
Acts as the DP slave interface for up to eight supported S7-300 modules.
Official Specifications
| Interface Module | IM 153-2 FO High Feature |
|---|---|
| Distributed I/O System | ET 200M |
| Network Role | PROFIBUS DP slave |
| Physical Interface | Integrated fiber optics |
| Maximum Transmission Rate | 12 Mbit/s |
| Maximum I/O Modules | 8 S7-300 modules |
| Supply Voltage | 24 V DC |
| System Redundancy | Supported |
| Software Redundancy | Supported |
| Flying Redundancy | Supported with the specified configuration |
| Redundant Pair Mounting | BM IM/IM active bus module |
| GSD Requirement for Flying Redundancy | IM 153-2 GSD revision 5 |
| F-I/O Operation | Supported with approved S7-300 fail-safe modules |
| Module Exchange | Replace only when the affected interface module is de-energized |
Frequently Asked Questions
What network medium is used by 6ES7153-2BB00-0XB0?
Use the approved optical PROFIBUS DP cable and connectors for the integrated fiber interface.
How many S7-300 modules can be installed behind 6ES7153-2BB00-0XB0?
The station can contain up to eight supported S7-300 I/O modules.
Can 6ES7153-2BB00-0XB0 be installed as a redundant interface pair?
Yes; use two interface modules on the specified active BM IM/IM bus module.
Which redundancy modes are available with 6ES7153-2BB00-0XB0?
System, software and flying redundancy are supported when all documented system conditions are met.
What address must be set on a replacement 6ES7153-2BB00-0XB0?
Set the same PROFIBUS DP address used by the removed interface module.
Can 6ES7153-2BB00-0XB0 operate with fail-safe S7-300 I/O?
Yes; use only the compatible F-I/O versions approved for this interface generation.
What should be checked after replacing 6ES7153-2BB00-0XB0?
Verify optical polarity, DP address, station configuration, active-interface status, diagnostics and every installed I/O module.
Compatibility & Ordering Notes
Compatibility Checklist
- Use only the approved optical PROFIBUS components and observe transmitter-to-receiver polarity.
- For redundant installations, match the BM IM/IM bus module and configured redundancy type.
- Restore the original DP address and ET 200M hardware configuration before startup.
