Siemens SIMATIC ET 200S IM151-8F PN/DP CPU 6ES7151-8FB01-0AB0
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
Siemens • SIMATIC ET 200S

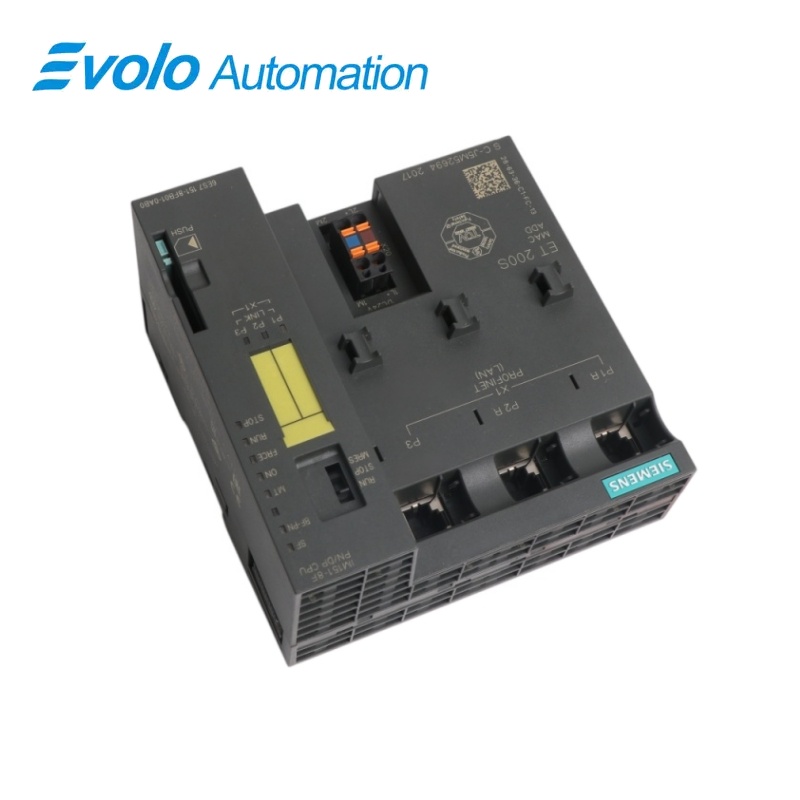

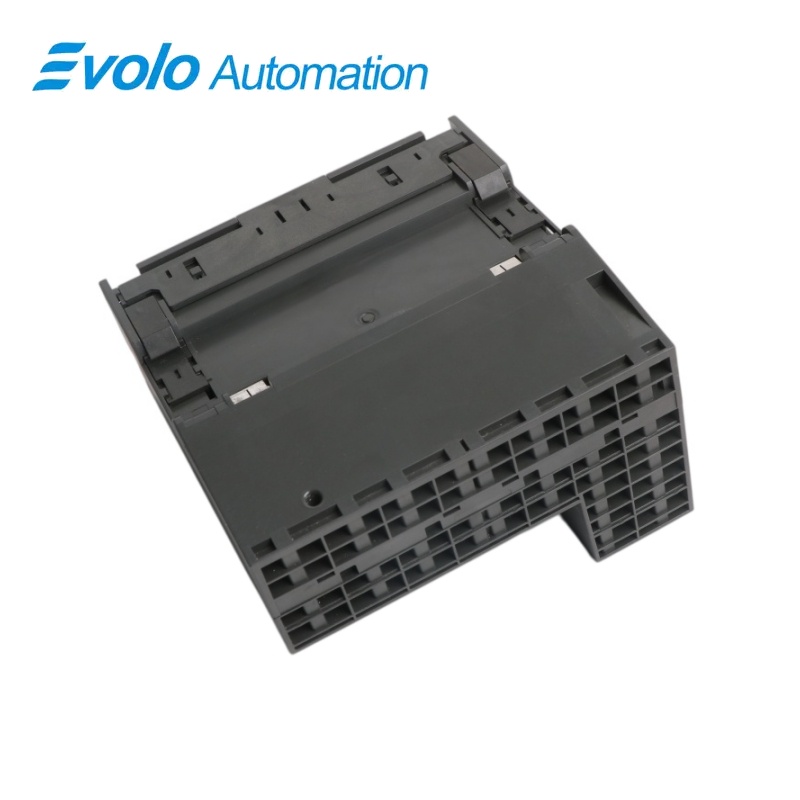

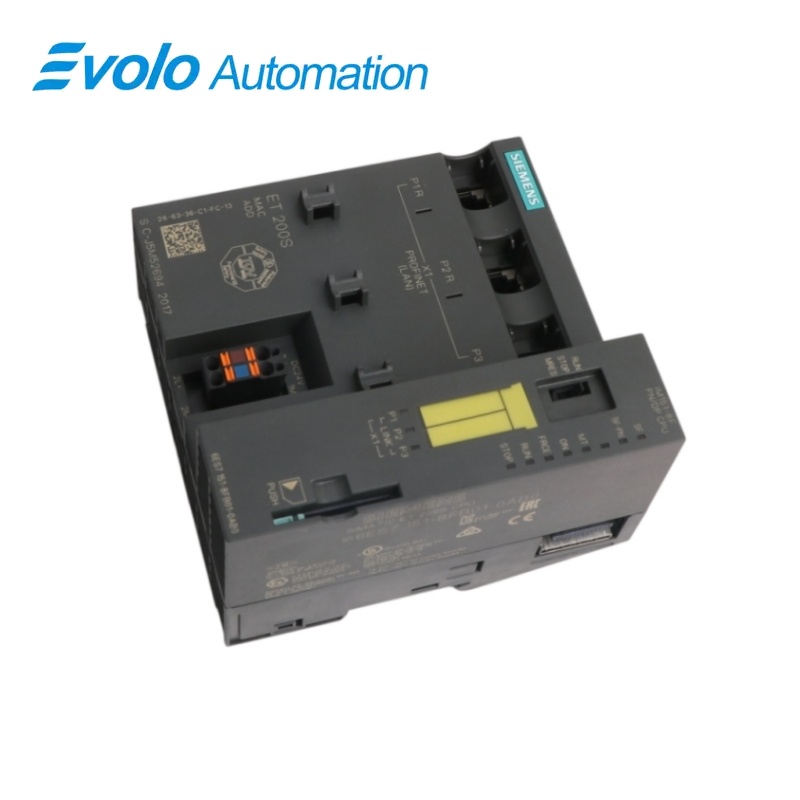

6ES7151-8FB01-0AB0 SIMATIC ET 200S IM151-8F PN/DP CPU
The SIMATIC ET 200S IM151-8F PN/DP CPU combines standard and fail-safe control with 256 KB work memory and an integrated three-port PROFINET interface for compact distributed automation.
At a Glance
| Brand | Siemens |
|---|---|
| Model | 6ES7151-8FB01-0AB0 |
| Product Type | Fail-safe interface module CPU with PROFINET |
| Core Function | Executes standard and safety logic while controlling distributed ET 200S I/O |
| Application or Compatible Series | ET 200S fail-safe stations using PROFINET IO Controller or I-device communication |
Exact Identification
Match 6ES7151-8FB01-0AB0 character by character and confirm the complete SIMATIC ET 200S IM151-8F PN/DP CPU designation.
Interface Arrangement
Confirm the installed supply, ports, field connections and required accessories before wiring the replacement.
Configuration Check
Preserve the approved engineering project, network parameters and application data used by the installed system.
Product Overview
The SIMATIC ET 200S IM151-8F PN/DP CPU combines standard and fail-safe control with 256 KB work memory and an integrated three-port PROFINET interface for compact distributed automation.
The module executes standard and safety programs directly within the ET 200S station. The integrated RJ45 switch supports PROFINET IO Controller and I-device functions for flexible machine networking. A SIMATIC Micro Memory Card stores the configuration and program for service and replacement workflows.
Key Functions
Distributed F-CPU
The module executes standard and safety programs directly within the ET 200S station.
Three-Port PROFINET
The integrated RJ45 switch supports PROFINET IO Controller and I-device functions for flexible machine networking.
Removable Project Memory
A SIMATIC Micro Memory Card stores the configuration and program for service and replacement workflows.
Official Specifications
| Hardware Version | 01 |
|---|---|
| Firmware Version | V3.2 |
| Work Memory | 256 KB; not expandable |
| Load Memory | SIMATIC Micro Memory Card, up to 8 MB |
| Memory Data Retention | At least 10 years |
| PROFINET Ports | 3 RJ45 |
| PROFINET Operating Modes | IO Controller and I-device |
| Rated Supply Voltage | 24 V DC |
| Permissible Supply Range | 20.4 to 28.8 V DC |
| Power Failure Buffer | 5 ms |
| Maximum Input Current | 352 mA; 426 mA with DP master module |
| Backplane Supply Output | 5 V DC, 700 mA maximum |
| Typical Power Loss | 5.5 W |
| Bit Operation Time | 0.06 µs |
| Word Operation Time | 0.12 µs |
| Engineering with STEP 7 | V5.5 with Distributed Safety V5.4 SP4 or later |
| Engineering with TIA Portal | V11 or later |
| Battery | Not required |
Frequently Asked Questions
Which memory card is needed for 6ES7151-8FB01-0AB0?
Use a compatible SIMATIC Micro Memory Card sized for the approved standard and safety project.
Can 6ES7151-8FB01-0AB0 operate as a PROFINET I-device?
Yes; configure its transfer areas and device identity consistently in both controller projects.
Which engineering environment supports 6ES7151-8FB01-0AB0?
Use a released STEP 7 and Distributed Safety combination or a compatible TIA Portal version for the installed firmware.
What must be backed up before replacing 6ES7151-8FB01-0AB0?
Archive the standard and safety programs, hardware configuration, device name, IP settings, card contents and safety signature.
How should the three Ethernet ports on 6ES7151-8FB01-0AB0 be checked?
Confirm each cable, link state, topology assignment, device name and controller relationship before restoring operation.
What power checks are required for 6ES7151-8FB01-0AB0?
Verify the 24 V supply range, external protection, polarity, grounding and available backplane current for the station.
What should be validated after commissioning 6ES7151-8FB01-0AB0?
Test standard logic, safety functions, I/O diagnostics, controller connections, I-device transfers, startup behavior and the full machine cycle.
Compatibility & Ordering Notes
Compatibility Checklist
- Match the hardware, firmware and released engineering-software combination.
- Restore the approved memory card, standard program and safety signature.
- Reapply the PROFINET identity, port topology and any I-device transfer mapping.
