Overview
Siemens · AddFEM / TELEPERM XP

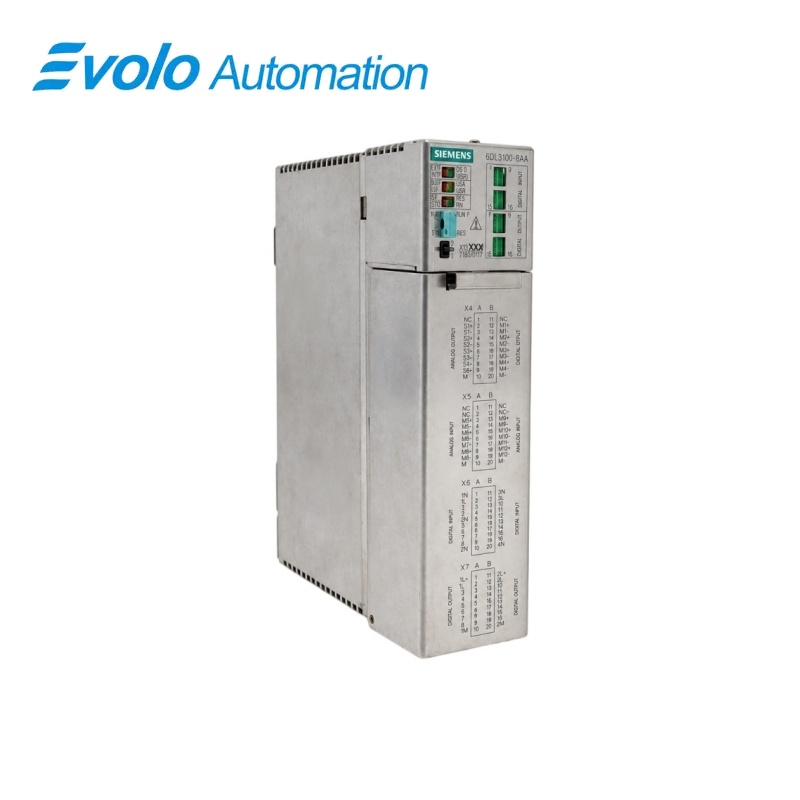

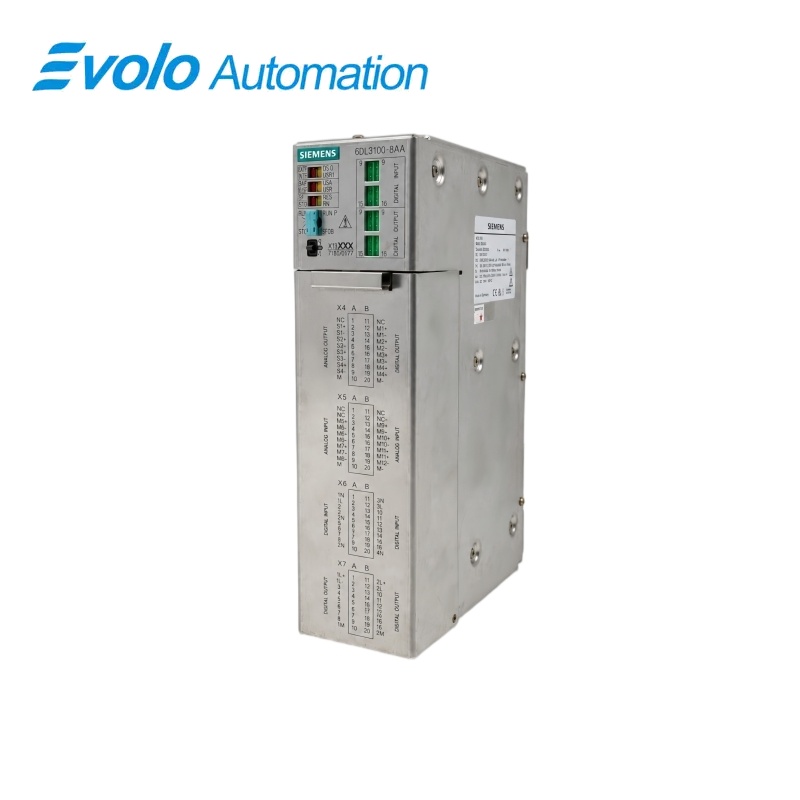

6DL3100-8AA AddFEM Front-End Module
The AddFEM Type -8AA is a PROFIBUS DP front-end module for basic I/O processing in legacy power-generation automation systems, with selectable single or redundant host and module configurations and fiber-optic redundancy changeover support.
At a Glance
| Brand | Siemens |
|---|---|
| Model | 6DL3100-8AA |
| Product Type | PROFIBUS DP front-end I/O module |
| Core Function | Connects field I/O to supported host systems and provides basic I/O processing with redundant arrangements |
| Application or Compatible Series | SIMADYN D, TXP AS 620T and S7-400/FM458 installations using the AddFEM Type -8AA GSD |
Exact Identification
Match 6DL3100-8AA character by character and confirm the complete AddFEM Front-End Module designation.
Interface Arrangement
Confirm the installed supply, ports, field connections and required accessories before wiring the replacement.
Configuration Check
Preserve the approved engineering project, network parameters and application data used by the installed system.
Product Overview
The AddFEM Type -8AA is a PROFIBUS DP front-end module for basic I/O processing in legacy power-generation automation systems, with selectable single or redundant host and module configurations and fiber-optic redundancy changeover support.
Four operating modes combine single or redundant hosts, AddFEM modules and one or two PROFIBUS segments. The module provides analog, digital and counting interfaces with electrically isolated functional areas. The Type -8AA GSD supports SIMADYN D and approved S7-400/FM458 or TXP configurations.
Key Functions
Flexible Redundancy Modes
Four operating modes combine single or redundant hosts, AddFEM modules and one or two PROFIBUS segments.
Integrated Mixed I/O
The module provides analog, digital and counting interfaces with electrically isolated functional areas.
Legacy Host Integration
The Type -8AA GSD supports SIMADYN D and approved S7-400/FM458 or TXP configurations.
Official Specifications
| GSD Model | Add FEM, Type -8AA |
|---|---|
| GSD File | Si0180A3.GS? |
| PROFIBUS Function | Basic I/O data exchange |
| Module Supply | 24 V DC |
| Permitted Supply Range | 19.2 to 30 V DC |
| Internal Module Fuse | F 2.5 A, non-replaceable |
| Digital Inputs | 12, arranged in groups of four |
| Counting Pulse Inputs | 3 |
| Digital Outputs | 16, split across two reference potentials |
| Internal Analog-Output Load Supply | 24 V DC |
| External Digital-Output Load Supply | Required at X7 |

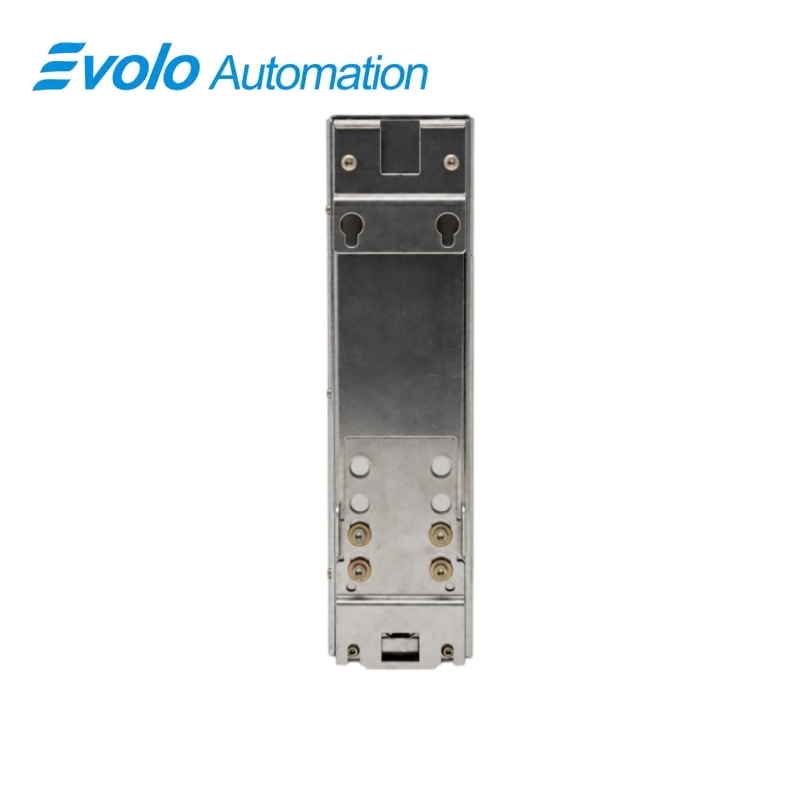

| Mounting Options | Rail or wall mounting on steel brackets |
| Mounting Envelope | 75 x 290 x 190 mm |
| Supported Redundancy Modes | Four host/module/segment combinations |
| Fiber-Optic Redundancy Changeover | Supported in the specified host integration |
Frequently Asked Questions
Which supply range is required by 6DL3100-8AA?
Provide 19.2 to 30 V DC at the front connector and verify the protective grounding connection.
Which engineering profile identifies 6DL3100-8AA?
Use the Type -8AA GSD profile with the host configuration approved for the installed automation system.
Can 6DL3100-8AA participate in a redundant arrangement?
Yes; the supported operating modes include redundant hosts, redundant modules and one or two PROFIBUS segments.
How are the digital inputs grouped on 6DL3100-8AA?
The twelve inputs are arranged as three groups of four with a common reference in each group.
Does 6DL3100-8AA supply its digital output loads internally?
No; the digital-output load voltage must be provided externally at the X7 connectors.
How can 6DL3100-8AA be mounted?
Install it on the specified rail or on grounded steel wall-mounting brackets.
What should be recorded before replacing 6DL3100-8AA?
Save the GSD assignment, host interface, redundancy mode, PROFIBUS parameters, I/O mapping and field wiring.
Compatibility & Ordering Notes
Compatibility Checklist
- Use only the Type -8AA GSD and integration method approved for the installed host system.
- Match the existing one- or two-segment and single- or redundant module arrangement exactly.
- Verify the external digital-output load supply separately from the module supply.
