Siemens SIMATIC IPC377E 15-Inch Touch Panel PC 6AV7230-0DA20-0BA0
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
Siemens · SIMATIC IPC377E
6AV7230-0DA20-0BA0 SIMATIC IPC377E 15-Inch Touch Panel PC
This SIMATIC IPC377E basic panel PC integrates a 15-inch touch display, Intel Celeron N3160 processor, 4 GB RAM, 1 TB hard disk and extensive Ethernet, USB and serial connectivity in a built-in unit.
At a Glance
| Brand | Siemens |
|---|---|
| Model | 6AV7230-0DA20-0BA0 |
| Product Type | Basic industrial panel PC |
| Core Function | Combines a 15-inch touch display and embedded PC hardware for machine-level visualization and computing |
| Application or Compatible Series | Built-in industrial HMI and PC applications requiring a larger touch screen and multiple peripheral interfaces |
Exact Identification
Match 6AV7230-0DA20-0BA0 character by character and confirm the complete SIMATIC IPC377E 15-Inch Touch Panel PC designation.
Interface Arrangement
Confirm the installed supply, ports, field connections and required accessories before wiring the replacement.
Configuration Check
Preserve the approved engineering project, network parameters and application data used by the installed system.
Product Overview
This SIMATIC IPC377E basic panel PC integrates a 15-inch touch display, Intel Celeron N3160 processor, 4 GB RAM, 1 TB hard disk and extensive Ethernet, USB and serial connectivity in a built-in unit.

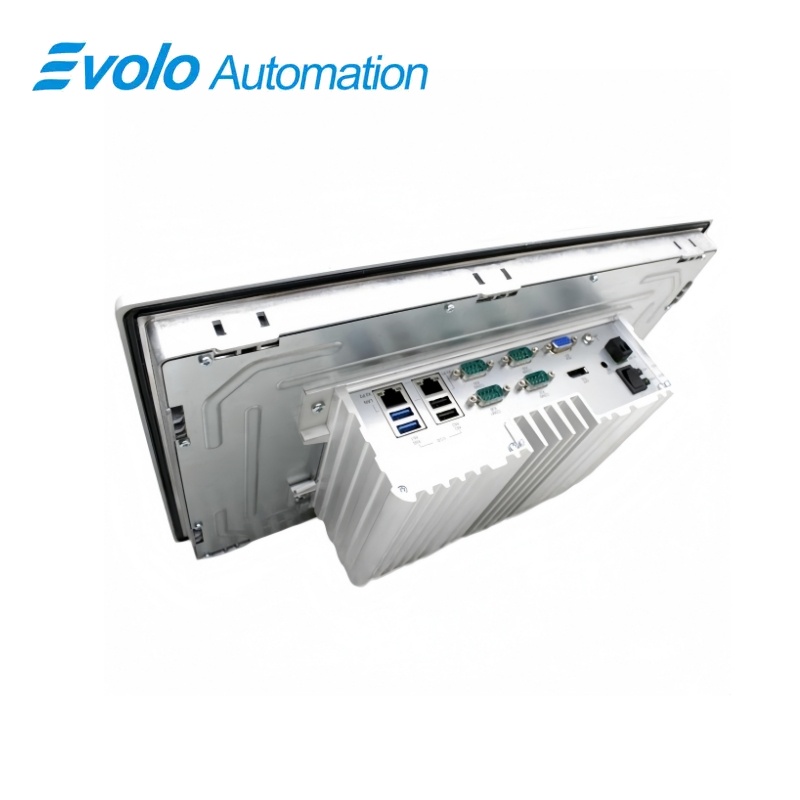

The 15-inch display supports direct machine-level visualization and operator input. A quad-core Celeron processor, 4 GB RAM and 1 TB HDD run the selected industrial application. DisplayPort, VGA, Ethernet, USB, serial, mPCIe and mSATA interfaces are integrated.
Key Functions
Large Integrated Touchscreen

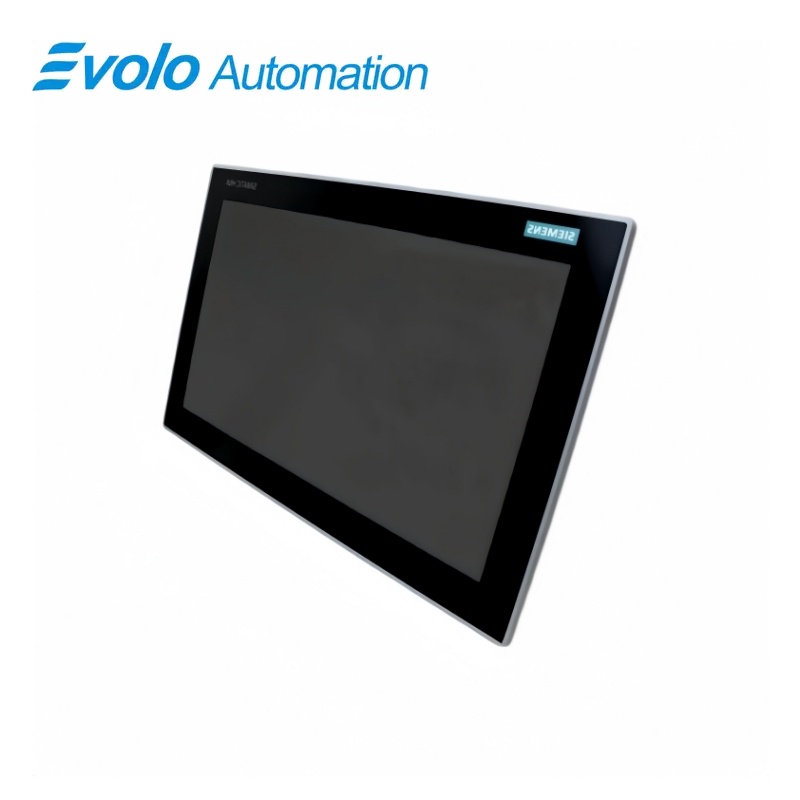

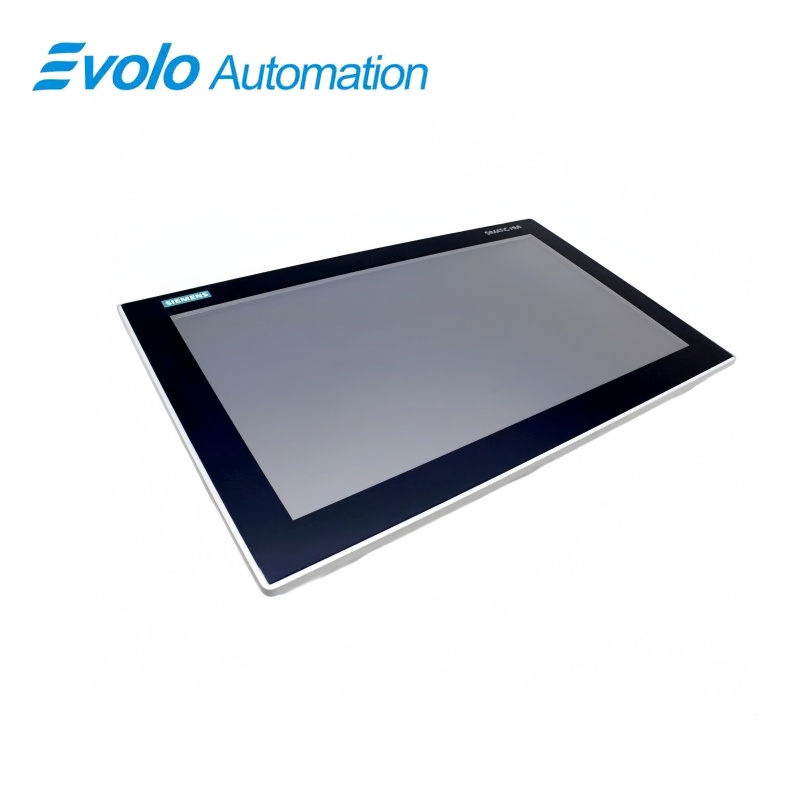

The 15-inch display supports direct machine-level visualization and operator input.
Embedded PC Platform
A quad-core Celeron processor, 4 GB RAM and 1 TB HDD run the selected industrial application.
Broad Peripheral Support
DisplayPort, VGA, Ethernet, USB, serial, mPCIe and mSATA interfaces are integrated.
Official Specifications
| Touch Display | 15 inch |
|---|---|
| Processor | Intel Celeron N3160 |
| Processor Cores / Threads | 4 / 4 |
| Installed RAM | 4 GB |
| Mass Storage | 1 TB HDD |
| DisplayPort | 1 |
| VGA Port | 1 |
| Ethernet Ports | 2 x RJ45 |
| Ethernet Speed | 10/100/1000 Mbit/s |
| USB 3.0 Ports | 2 |
| USB 2.0 Ports | 2 |
| Serial Ports | 4 COM |
| mPCIe Slots | 1 |
| mSATA Slots | 1 |
| Operating System | Not included |
| Power Supply | 24 V DC |
| Installation | Built-in unit |
| Net Weight | 6.68 kg |
Frequently Asked Questions
Is 6AV7230-0DA20-0BA0 an HMI panel that must be added to a TIA Portal project?
It is a panel PC, so configure the required PC operating system and runtime application instead.
What is the display size of 6AV7230-0DA20-0BA0?
The integrated front panel uses a 15-inch touch display.
Which processor platform is used by 6AV7230-0DA20-0BA0?
The hardware uses an Intel Celeron N3160 with four cores and four threads.
Does 6AV7230-0DA20-0BA0 include Windows?
No operating system is included with this article configuration.
How many wired network interfaces does 6AV7230-0DA20-0BA0 provide?
Two RJ45 interfaces support 10, 100 and 1000 Mbit/s Ethernet.
Which mechanical detail must be checked before swapping 6AV7230-0DA20-0BA0?
Confirm the 15-inch panel cutout, built-in mounting hardware, rear clearance and cable routing.
Which data should be imaged before removing 6AV7230-0DA20-0BA0?
Back up the full disk, licenses, runtime configuration, recipes, network settings and connected-device parameters.
Compatibility & Ordering Notes
Compatibility Checklist
- Use a validated operating system, driver set and runtime application.
- Match the 15-inch mounting cutout and connector clearance.
- Preserve the full storage image and all licenses before replacement.
