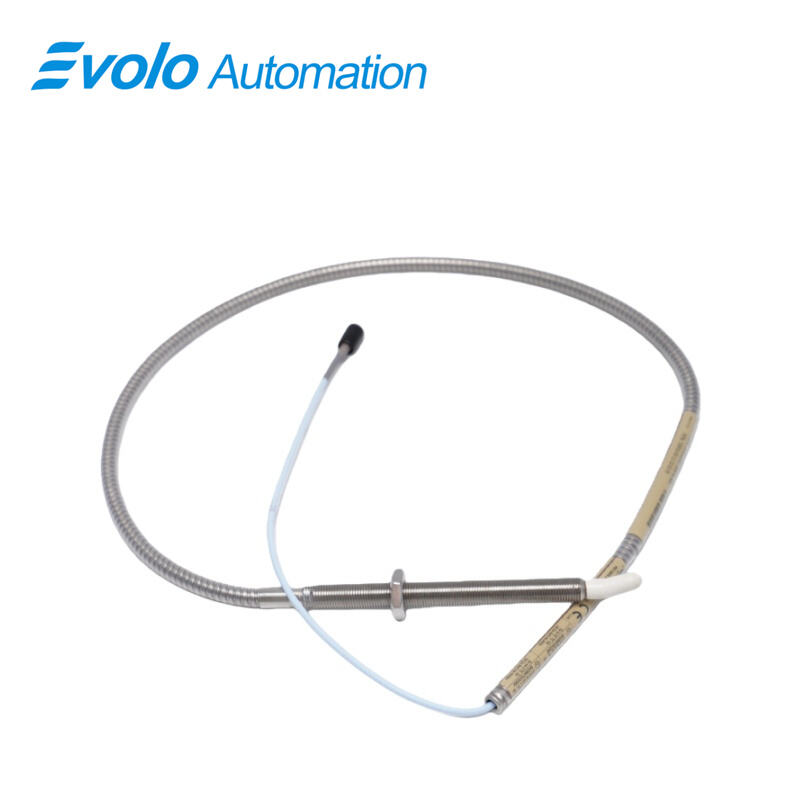

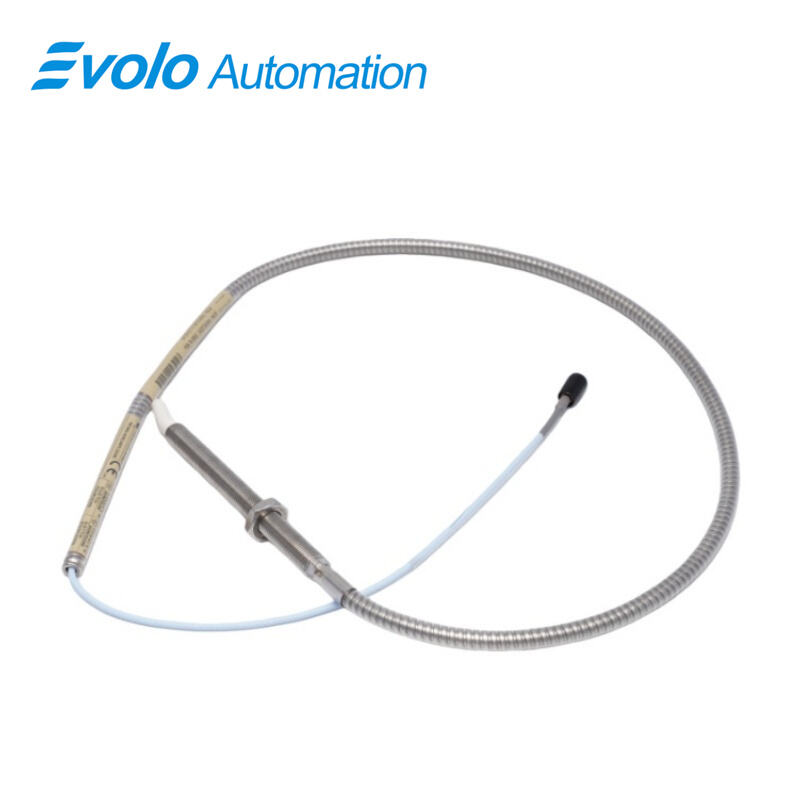

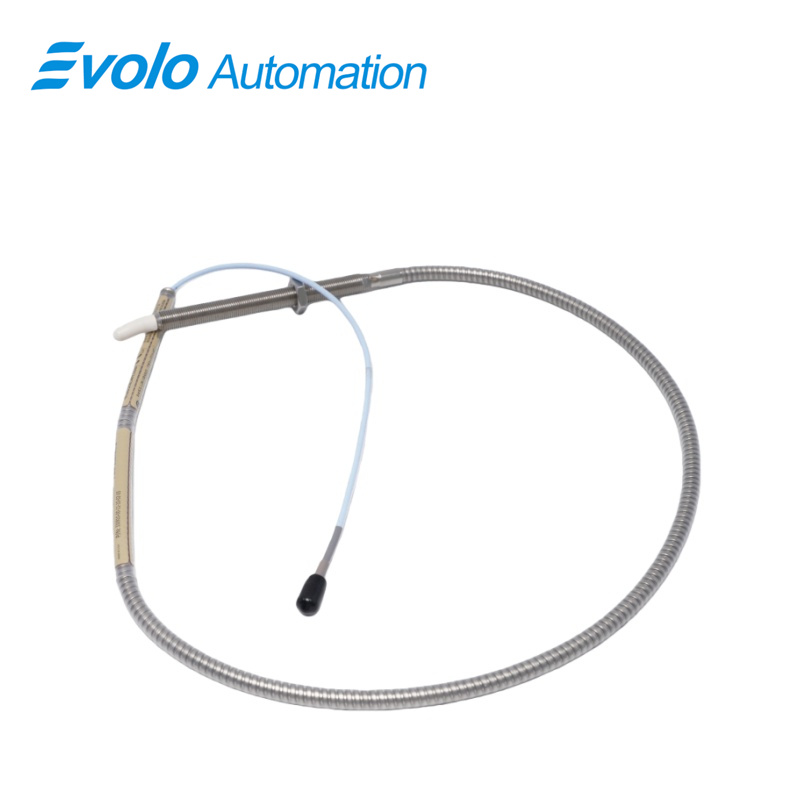

330910-00-10-50-02-00 3300 NSv Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330910-00-10-50-02-00
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330910-00-10-50-02-00 3300 NSv Proximity Probe is a compact, high-performance eddy current sensor specifically developed for industrial automation systems with tight installation constraints. This 3300 NSv Proximity Probe is widely applied in centrifugal compressors, refrigeration compressors, and process gas compressors where space limitations prevent the use of standard 5 mm or 8 mm proximity probes. With a linear range of 1.5 mm (60 mils) and an average scale factor of 7.87 V/mm (200 mV/mil), the probe delivers precise non-contact vibration and position measurements for fluid film bearing machinery.

Designed for harsh automation environments, the 330910-00-10-50-02-00 proximity probe features a 100 mm stainless steel probe case, M10 x 1 thread, and a 5.0 meter ClickLoc coaxial cable, ensuring flexible mounting and reliable signal transmission. The probe operates across an extended temperature range of -52°C to +177°C, making it suitable for high-temperature compressor skids and enclosed machinery. Its PPS probe tip and AISI 304 stainless steel housing provide enhanced chemical resistance, supporting long-term deployment in aggressive process environments. With low output resistance of 50 ohms and excellent supply voltage stability, the 3300 NSv Proximity Probe integrates seamlessly into modern automation monitoring and machinery protection systems.

Applications

Application 1: Radial Vibration Monitoring in Centrifugal Compressors

In automated centrifugal compressor systems, the 3300 NSv Proximity Probe measures radial shaft vibration on shafts smaller than 51 mm. The 7.87 V/mm sensitivity ensures high-resolution vibration data, enabling early fault detection and reducing unplanned shutdowns.

Application 2: Axial Thrust Position Measurement

The 330910-00-10-50-02-00 proximity probe is used for axial position monitoring where flat targets are smaller than 15 mm. Its recommended 1.0 mm gap setting supports stable thrust position feedback for automated protection logic in compressor control systems.

Application 3: Compact Machinery with Limited Side-View Clearance

For machines with counter bore or rear-view restrictions, the 3300 NSv Proximity Probe provides reliable displacement measurement where standard probes cannot be installed. The 100 mm case length and enhanced side-view performance allow accurate measurements without mechanical redesign.

Application 4: Tachometer and Zero Speed Detection

Integrated into automation monitoring platforms, the 3300 NSv Proximity Probe supplies tachometer and zero speed signals with consistent output stability. This enables accurate speed reference for PLC-based interlocks and startup sequencing.

Application 5: Phase Reference and Keyphasor Signal Generation

In advanced vibration analysis systems, the 330910-00-10-50-02-00 3300 NSv Proximity Probe delivers precise phase reference signals. The low supply sensitivity of less than 2 mV/V ensures phase accuracy even during power fluctuations.

Specifications

Competitive Advantage

Competitive Advantage 1: Optimized for Tight Installation Spaces

The 3300 NSv Proximity Probe is specifically designed for restricted mounting locations. Its compact sensing geometry allows reliable measurements in applications where standard 3300 XL probes cannot be used, reducing mechanical modification costs.

Competitive Advantage 2: High Sensitivity with Stable Output

With an average scale factor of 7.87 V/mm and 50 ohm output resistance, the 330910-00-10-50-02-00 proximity probe delivers clean, high-resolution signals, improving automation system accuracy and diagnostic confidence.

Competitive Advantage 3: Wide Temperature and Chemical Resistance

Operating from -52°C to +177°C, the probe withstands extreme thermal conditions. The PPS tip and stainless steel housing enhance resistance to oils and process gases, extending service life in compressor automation environments.

Competitive Advantage 4: Superior Side-View and Small Target Performance

Compared with older 3000-series and 3300 RAM probes, the 3300 NSv Proximity Probe offers improved side-view characteristics. This allows accurate gapping and measurement on small shafts and targets without sacrificing signal quality.

Competitive Advantage 5: Upgrade Compatibility and Reduced Lifecycle Cost

The 330910-00-10-50-02-00 3300 NSv Proximity Probe supports system upgrades from legacy 3300 RAM installations with minimal changes. This compatibility reduces retrofit costs while improving measurement performance in modern industrial automation systems.
