Siemens SIMATIC IPC377E 12-Inch Touch Panel PC 6AV7230-0CA20-0BA0
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
Siemens · SIMATIC IPC377E

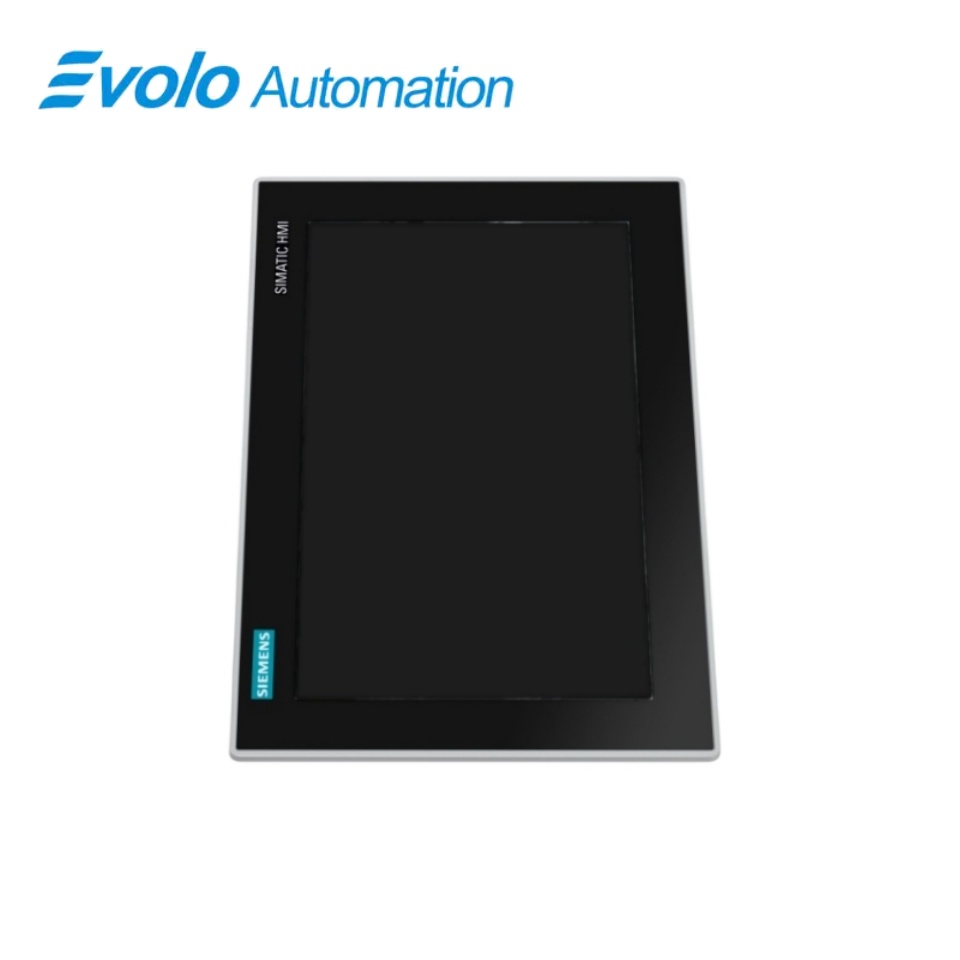

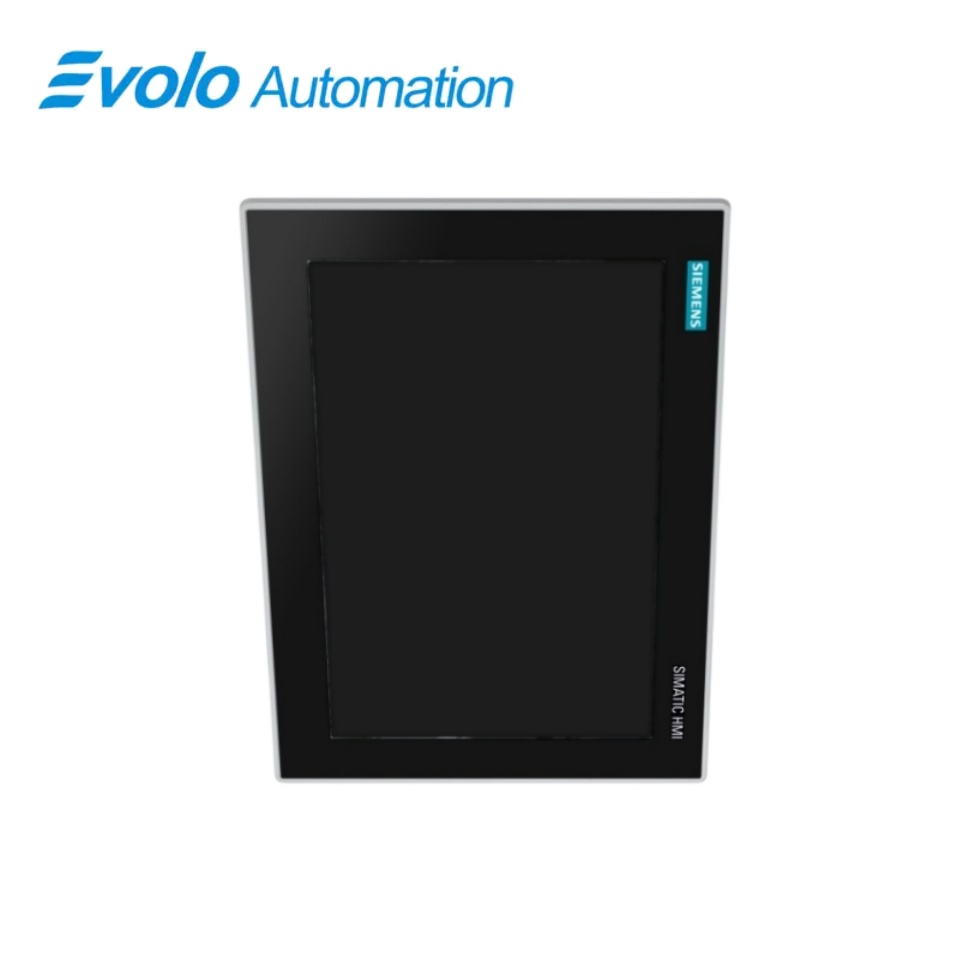

6AV7230-0CA20-0BA0 SIMATIC IPC377E 12-Inch Touch Panel PC
This SIMATIC IPC377E basic panel PC combines a 12-inch touch display, Intel Celeron N3160 processor, 4 GB RAM, 1 TB hard disk and a broad set of industrial communication interfaces in a built-in unit.
At a Glance
| Brand | Siemens |
|---|---|
| Model | 6AV7230-0CA20-0BA0 |
| Product Type | Basic industrial panel PC |
| Core Function | Combines a 12-inch touch display and embedded PC hardware for machine-level visualization and computing |
| Application or Compatible Series | Built-in industrial HMI and PC applications requiring 24 V DC power and multiple Ethernet, USB and serial ports |
Exact Identification
Match 6AV7230-0CA20-0BA0 character by character and confirm the complete SIMATIC IPC377E 12-Inch Touch Panel PC designation.
Interface Arrangement
Confirm the installed supply, ports, field connections and required accessories before wiring the replacement.
Configuration Check
Preserve the approved engineering project, network parameters and application data used by the installed system.
Product Overview
This SIMATIC IPC377E basic panel PC combines a 12-inch touch display, Intel Celeron N3160 processor, 4 GB RAM, 1 TB hard disk and a broad set of industrial communication interfaces in a built-in unit.
The touch display and PC platform are combined in one built-in industrial unit. Two Gigabit Ethernet ports, USB 3.0, USB 2.0 and four serial ports support plant peripherals. mPCIe and mSATA slots provide documented internal expansion options.
Key Functions
Integrated Panel PC
The touch display and PC platform are combined in one built-in industrial unit.
Multiple Device Interfaces
Two Gigabit Ethernet ports, USB 3.0, USB 2.0 and four serial ports support plant peripherals.
Expandable Storage
mPCIe and mSATA slots provide documented internal expansion options.
Official Specifications
| Touch Display | 12 inch |
|---|---|
| Processor | Intel Celeron N3160 |
| Processor Cores / Threads | 4 / 4 |
| Installed RAM | 4 GB |
| Mass Storage | 1 TB HDD |
| DisplayPort | 1 |
| VGA Port | 1 |
| Ethernet Ports | 2 x RJ45 |
| Ethernet Speed | 10/100/1000 Mbit/s |
| USB 3.0 Ports | 2 |
| USB 2.0 Ports | 2 |
| Serial Ports | 4 COM |
| mPCIe Slots | 1 |
| mSATA Slots | 1 |
| Operating System | Not included |
| Power Supply | 24 V DC |
| Installation | Built-in unit |
| Net Weight | 5.36 kg |
Frequently Asked Questions
Does 6AV7230-0CA20-0BA0 require configuration in the TIA Portal HMI device catalog?
It is an industrial PC, so install and configure the required runtime or application software as a PC system.
Which display size is built into 6AV7230-0CA20-0BA0?
The unit uses a 12-inch touch display in the integrated front panel.
Is an operating system supplied with 6AV7230-0CA20-0BA0?
No operating system is included, so prepare a supported installation image and required drivers.
Which network connections are available on 6AV7230-0CA20-0BA0?
Two RJ45 interfaces support 10, 100 and 1000 Mbit/s Ethernet.
Can legacy serial equipment connect to 6AV7230-0CA20-0BA0?
Yes; four COM interfaces are available, subject to the approved pinout and application settings.
What should be checked before mounting 6AV7230-0CA20-0BA0?
Confirm the panel cutout, built-in mounting clearances, 24 V DC supply and front sealing surface.
What must be backed up before replacing 6AV7230-0CA20-0BA0?
Preserve the disk image, licenses, application data, network settings, serial-port settings and security configuration.
Compatibility & Ordering Notes
Compatibility Checklist
- Treat the unit as an industrial PC rather than a configurable operator panel.
- Verify the operating-system image, drivers and runtime licenses before replacement.
- Match the panel cutout, peripheral ports and 24 V DC wiring.
