Overview
Siemens · SIMATIC MP 270B

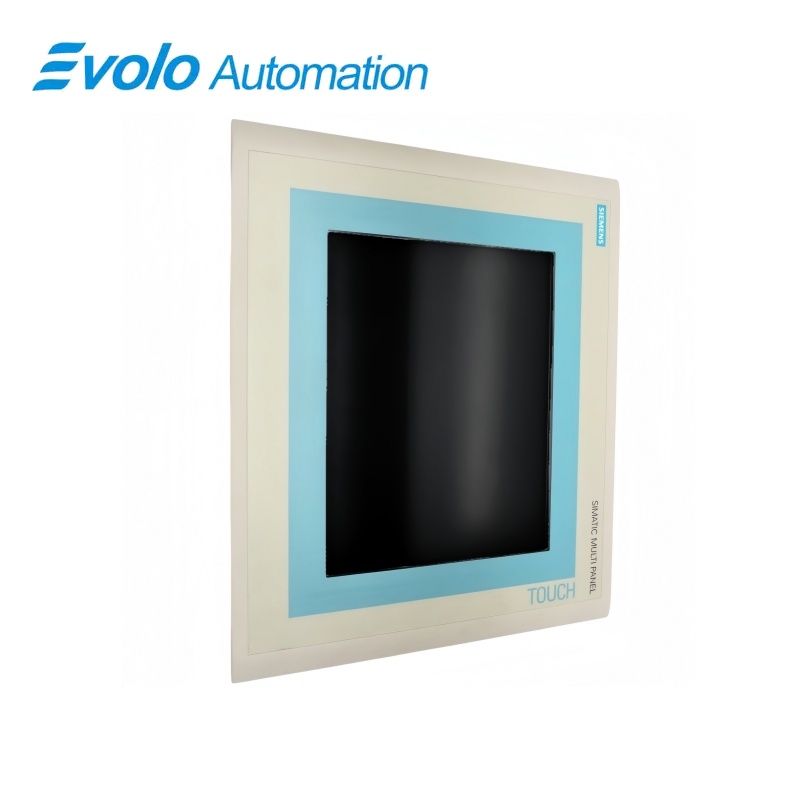

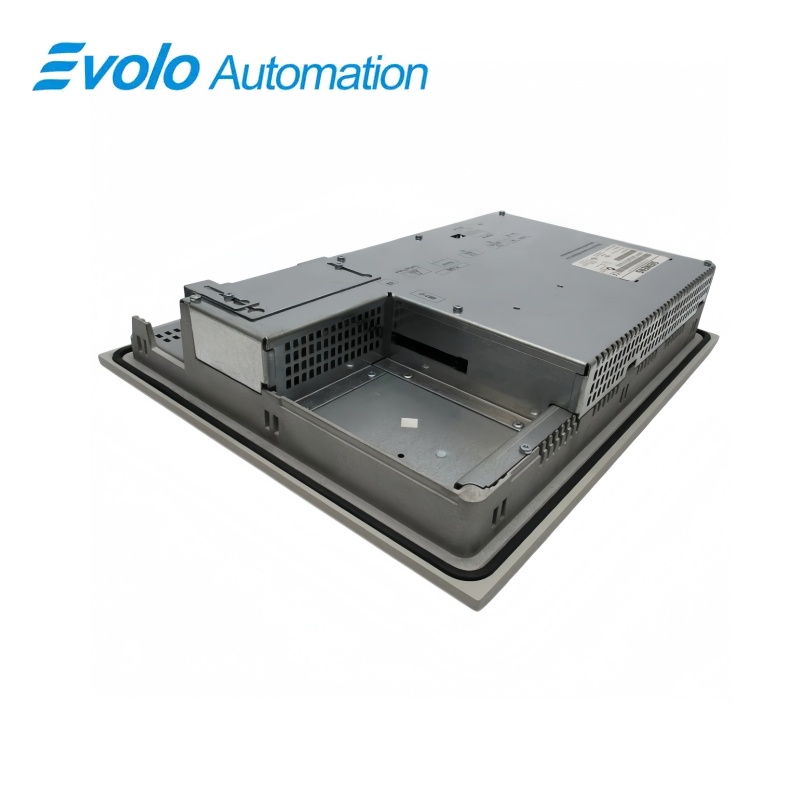

6AV6545-0AG10-0AX0 SIMATIC MP 270B Touch Multi Panel
The SIMATIC MP 270B Touch is a 10.4-inch TFT multi panel with 4 MB configuration memory, Windows CE, resistive touch operation and serial, Ethernet and USB interfaces for legacy machine visualization.
At a Glance
| Brand | Siemens |
|---|---|
| Model | 6AV6545-0AG10-0AX0 |
| Product Type | Industrial touch operator panel |
| Core Function | Provides 10.4-inch touch visualization and operator control for SIMATIC automation systems |
| Application or Compatible Series | Legacy SIMATIC HMI projects configured with ProTool V6.0 or a compatible engineering environment |
Exact Identification
Match 6AV6545-0AG10-0AX0 character by character and confirm the complete SIMATIC MP 270B Touch Multi Panel designation.
Interface Arrangement
Confirm the installed supply, ports, field connections and required accessories before wiring the replacement.
Configuration Check
Preserve the approved engineering project, network parameters and application data used by the installed system.
Product Overview
The SIMATIC MP 270B Touch is a 10.4-inch TFT multi panel with 4 MB configuration memory, Windows CE, resistive touch operation and serial, Ethernet and USB interfaces for legacy machine visualization.

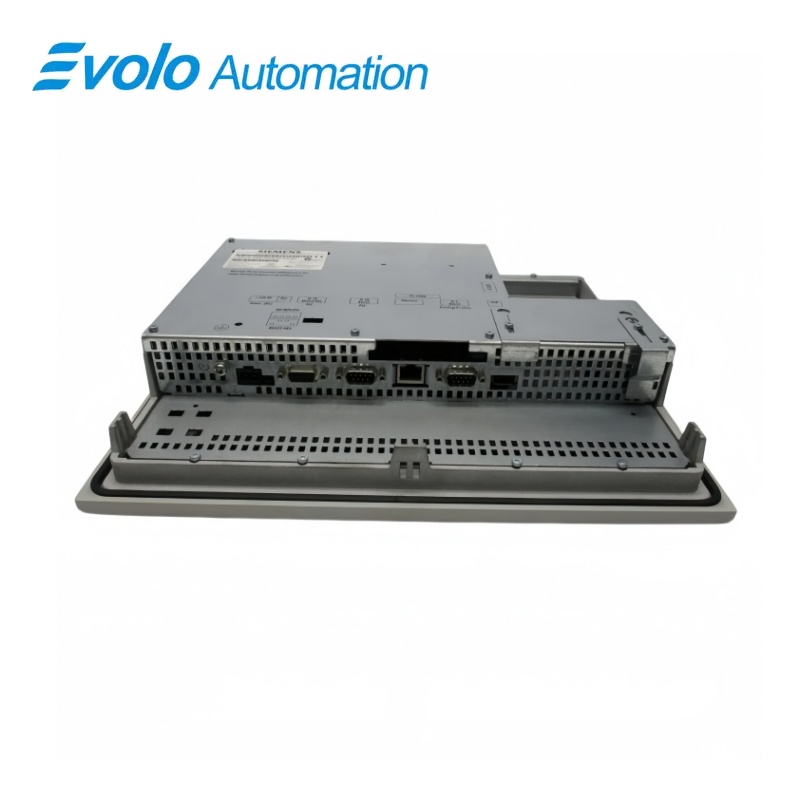

A 10.4-inch TFT display provides direct touch control without physical function keys. The panel is configurable with ProTool from version V6.0. Serial, Ethernet, USB, PC-card and CompactFlash interfaces support automation and peripheral connections.
Key Functions
Touch HMI Operation
A 10.4-inch TFT display provides direct touch control without physical function keys.
Legacy Project Support
The panel is configurable with ProTool from version V6.0.
Multiple Interfaces
Serial, Ethernet, USB, PC-card and CompactFlash interfaces support automation and peripheral connections.
Official Specifications
| Display Technology | TFT, 256 colors |
|---|---|
| Screen Diagonal | 10.4 inch |
| Resolution | 640 x 480 pixels |
| Operator Input | Touch screen |
| Function Keys | None |
| Configuration Memory | 4 MB |
| Processor | 32-bit RISC |
| Operating System | Windows CE |
| RS232 Interfaces | 2 |
| RS422 Interface | 1 |
| RS485 Interface | 1 |
| Ethernet Interface | 1 x RJ45 |
| Maximum Serial Rate | 12 Mbit/s |
| USB Interface | 1 |
| PC Card Slot | 1 |
| CompactFlash Slot | 1 |
| Front Protection | IP65 |
| Rear Protection | IP20 |
| Operating Temperature | 0 to +50 °C in vertical installation |
Frequently Asked Questions
Which engineering software is associated with 6AV6545-0AG10-0AX0?
Use the validated ProTool project and confirm compatibility with the installed project version.
What display is fitted to 6AV6545-0AG10-0AX0?
The panel has a 10.4-inch TFT touch display with 640 x 480 pixel resolution and 256 colors.
Can 6AV6545-0AG10-0AX0 communicate over Ethernet?
Yes; one RJ45 Ethernet interface is provided alongside the serial interfaces.
Which removable media can 6AV6545-0AG10-0AX0 accept?
The hardware includes one PC-card slot and one CompactFlash slot.
What ingress protection applies to 6AV6545-0AG10-0AX0?
The installed front is rated IP65 while the rear housing is rated IP20.
What should be checked before replacing 6AV6545-0AG10-0AX0?
Verify the cutout, connector layout, 24 V DC wiring, communication drivers and project runtime.
What must be backed up before removing 6AV6545-0AG10-0AX0?
Save the HMI project, recipes, archives, communication parameters, licenses and removable-media contents.
Compatibility & Ordering Notes
Compatibility Checklist
- Restore the exact ProTool project and communication driver configuration.
- Match the existing panel cutout and connector arrangement.
- Preserve CompactFlash or PC-card data and all HMI application files.
