Overview

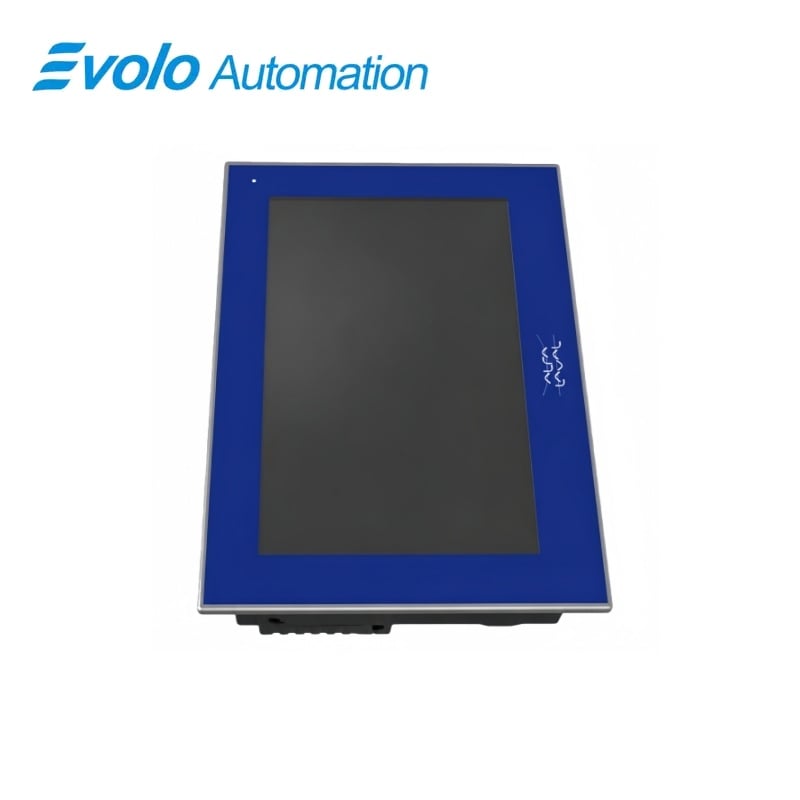

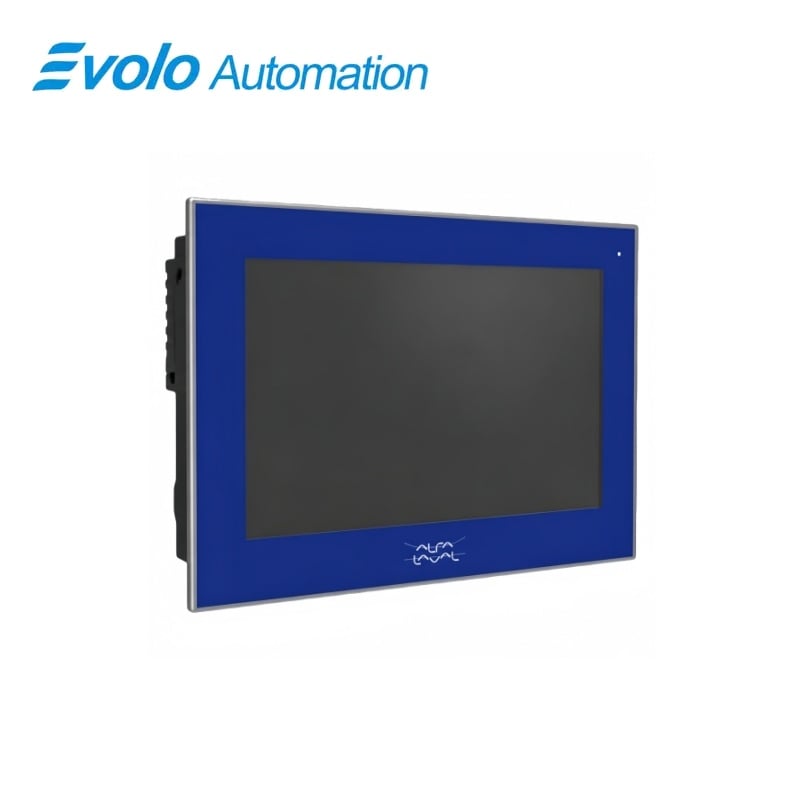

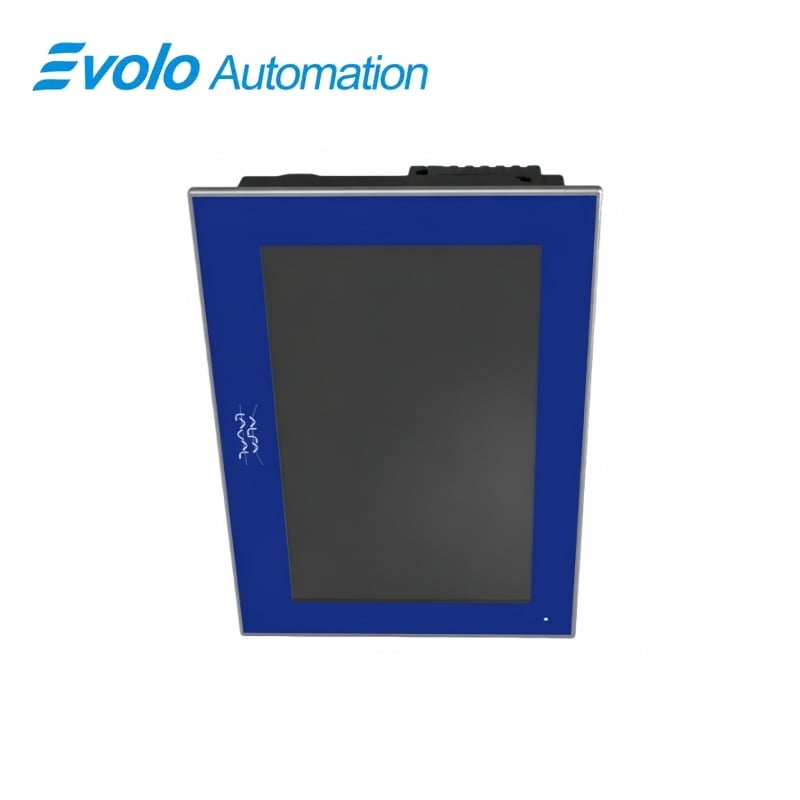

6AV2144-6QC10-0AL1 TP1500 Comfort V2
Siemens SIMATIC Panel Alfa Laval TP1500 Comfort V2 for industrial operator control and process visualization.
At a Glance
| Manufacturer | Siemens |
|---|---|
| Article Number | 6AV2144-6QC10-0AL1 |
| Product Type | SIMATIC Panel Alfa Laval TP1500 Comfort V2 |
| Core Function | 15.4-inch touch HMI for operator control and visualization |
| Application / Compatible Series | Alfa Laval OEM systems using the SIMATIC Comfort Panel V2 platform |
Match the complete article number and installed hardware version.
Confirm the installed interfaces, connectors and wiring.
Back up and verify the matching engineering project before replacement.
Product Overview
6AV2144-6QC10-0AL1 is officially identified by Siemens as Siemens SIMATIC PANEL Alfa Laval TP1500 Comfort V2, an OEM Comfort Panel identified in official Siemens certification.
The full article number should be matched against the installed device, hardware revision and official Siemens project documentation before replacement or ordering.
Key Functions
OEM Operator Interface
Provides a Siemens TP1500 Comfort V2 platform configured for the Alfa Laval application.
Industrial Panel Design
Belongs to the SIMATIC HMI Comfort Panel family for machine and process visualization.
Certified Product Identity
The exact article number is listed in Siemens conformity and type-approval documentation.
Official Specifications
| Display Technology | TFT |
|---|---|
| Screen Diagonal | 15.4 in |
| Active Display Area | 331.2 x 207 mm |
| Display Resolution | 1280 x 800 pixels |
| Display Colors | 16,777,216 |
| Touch Technology | Analog resistive |
| Backlight MTBF at 25 °C | 80,000 h |
| Backlight Dimming | 0 to 100% |
| Configuration Memory | 24 MB |
| Operating System | Windows Embedded Compact 2013 |
| Communication Interfaces | PROFINET and MPI/PROFIBUS DP |
| Mounting Position | Vertical |
| Panel Orientation | Portrait or landscape |
| Maximum Inclination | 35° without external ventilation |
| Rated Supply Voltage | 24 V DC |
| Degree of Protection | Front IP65/IP66; rear IP20 |
| Operating Temperature | 0 to 55 °C maximum |
Frequently Asked Questions
Which WinCC version is used to configure 6AV2144-6QC10-0AL1?
The Comfort V2 device is configured with WinCC Comfort V14 SP1 and the applicable HMI hardware support package.
Which plant networks can 6AV2144-6QC10-0AL1 connect to?
The panel supports PROFINET as well as MPI/PROFIBUS DP communication for integration with the automation system.
Can 6AV2144-6QC10-0AL1 be mounted in portrait orientation?
Yes. Both portrait and landscape mounting are supported, with the permitted inclination kept within 35 degrees when no external ventilation is used.
What power supply is required for 6AV2144-6QC10-0AL1?
Use a regulated 24 V DC supply and complete the protective-conductor connection before commissioning.
How should technicians check the touch screen on 6AV2144-6QC10-0AL1 after installation?
Load the correct HMI project, perform the touch calibration and test every configured control area before production use.
What must be matched when replacing 6AV2144-6QC10-0AL1 in an Alfa Laval system?
Match the OEM project, panel hardware version, communication interfaces and the full saved HMI configuration.
What enclosure protection applies to 6AV2144-6QC10-0AL1?
The installed front is rated IP65/IP66 under the certified conditions, while the rear electronics require enclosure protection.
Compatibility & Ordering Notes
Compatibility checklist for 6AV2144-6QC10-0AL1
- Match the complete article number without shortening the suffix.
- Confirm the installed SIMATIC HMI system and hardware revision.
- Verify interface, power, connector and mounting requirements.
- Confirm the engineering project, firmware and memory requirements.
