Siemens SIMATIC HMI 6AV2124-0XC02-0AX0 TP2200 Comfort Panel
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
SIMATIC HMI 6AV2124-0XC02-0AX0 TP2200 Comfort Panel

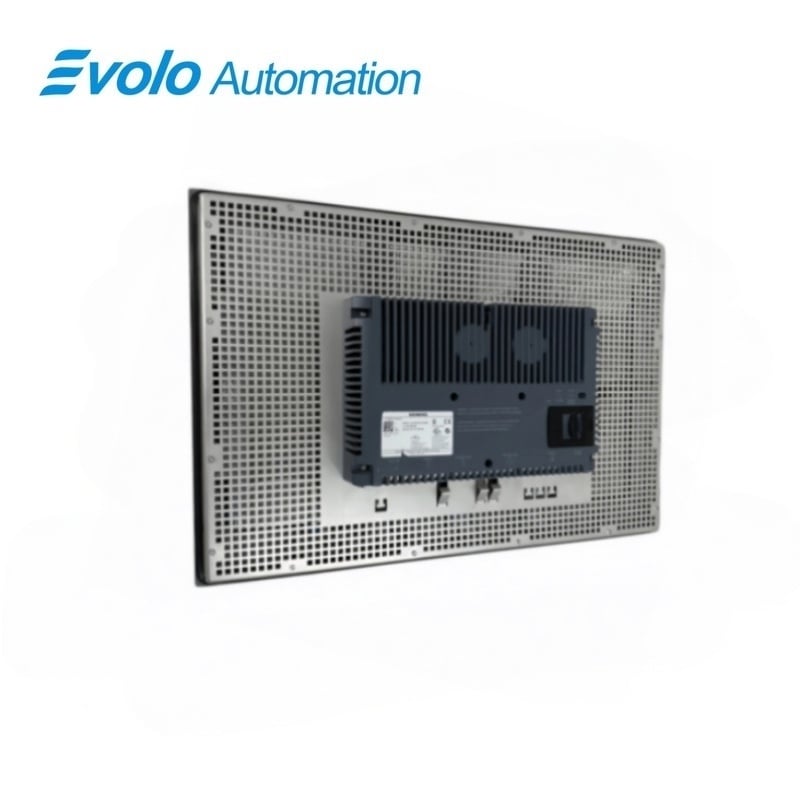

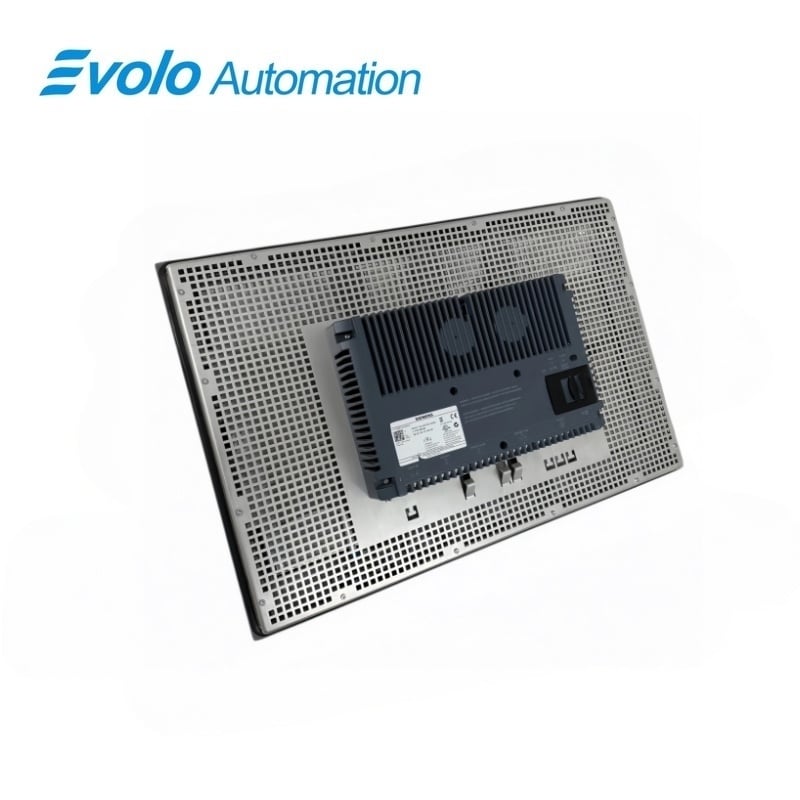

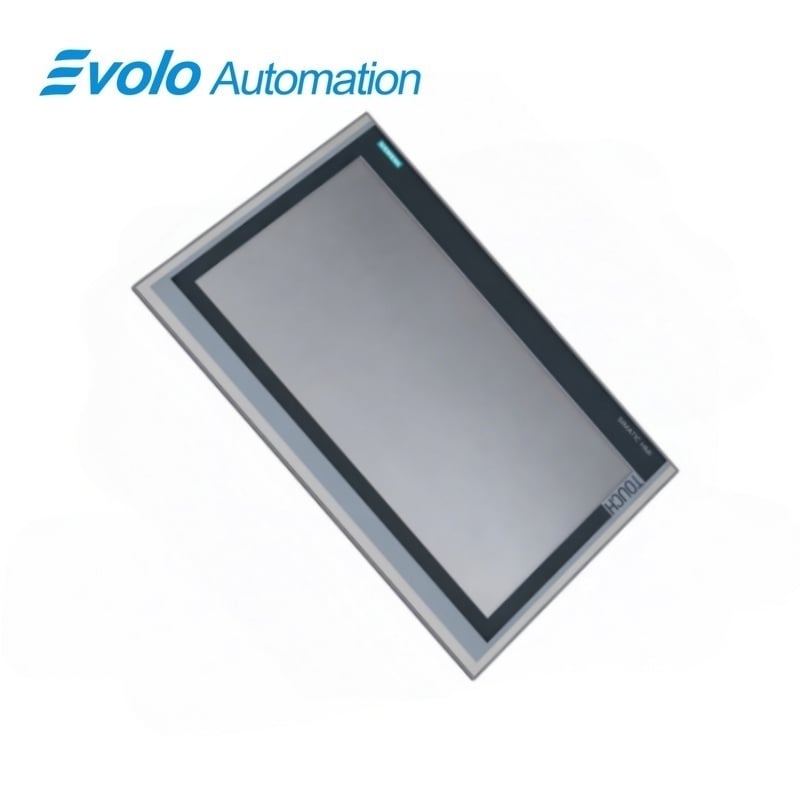

TP2200 Comfort touch panel with a 21.5-inch widescreen TFT display, 1920 × 1080 resolution, 16 million colors, PROFINET and MPI/PROFIBUS DP interfaces, and 24 MB configuration memory.
At a Glance
| Article Number | 6AV2124-0XC02-0AX0 |
|---|---|
| Manufacturer | Siemens |
| Series | SIMATIC HMI Comfort Panels |
| Product Type | TP2200 Comfort Touch Panel |
| Display | 21.5-inch widescreen touch display |
Match the complete article number and installed hardware.
Confirm PROFINET and MPI/PROFIBUS DP.
Verify project data and official system documentation.
Product Overview
6AV2124-0XC02-0AX0 is officially identified by Siemens as the TP2200 Comfort in the SIMATIC HMI Comfort Panels family. TP2200 Comfort touch panel with a 21.5-inch widescreen display, 1920 × 1080 resolution, 16 million colors and 24 MB configuration memory.
For replacement and quotation, compare the complete article number, hardware version, interface requirements and installed configuration.
Key Functions
Model-Specific Configuration
6AV2124-0XC02-0AX0: 21.5-inch widescreen touch display.
System Interface
6AV2124-0XC02-0AX0: Full HD 1920 × 1080 resolution.
Performance & Memory
6AV2124-0XC02-0AX0: 16 million display colors.
Replacement Control
6AV2124-0XC02-0AX0: PROFINET and MPI/PROFIBUS DP communications.
Official Specifications
| Display Technology | TFT widescreen |
|---|---|
| Display Active Area | 475.2 mm × 267.3 mm |
| Display Colors | 16,777,216 |
| Image Resolution | 1,920 × 1,080 pixels |
| Backlight MTBF | 30,000 h at 25 °C |
| Backlight Dimming | 0% to 100% |
| Touch Technology | Analog-resistive touchscreen |
| Maximum Mounting Inclination | 35° without external ventilation |
| Rated Supply Voltage | 24 V DC |
| Permissible Voltage Range | 19.2 V DC to 28.8 V DC |
| Rated Current Consumption | 2.2 A |
| Typical Active Power Input | 53 W |
| User Data Memory | 24 MB |
| Industrial Ethernet | 2 interfaces: integrated 2-port switch plus independent port |
| Serial Interface | 1 combined RS 422/RS 485 interface |
| SD Card Slots | 2 |
| Protection Rating | IP65 front; IP20 rear |
| Operating Temperature | 0 °C to 45 °C in vertical landscape installation |
| Housing and Cutout Dimensions | Front: 560 × 380 mm; cutout: 542 × 362 mm; depth: 75 mm |
| Weight | 7.1 kg without packaging |
Frequently Asked Questions
Which WinCC version can be used to configure 6AV2124-0XC02-0AX0?
The panel is configurable with WinCC Comfort, Advanced or Professional in TIA Portal from V11 SP2.
Which Siemens controllers can communicate with 6AV2124-0XC02-0AX0?
Official process coupling includes S7-1200, S7-1500, S7-200, S7-300/400, LOGO!, WinAC, SINUMERIK and SIMOTION systems.
Which mounting orientations are permitted for 6AV2124-0XC02-0AX0?
Landscape and portrait mounting are supported. The permitted operating temperature depends on orientation and tilt, with a maximum documented inclination of 35°.
What power supply should be provided for 6AV2124-0XC02-0AX0?
Provide 24 V DC within 19.2 V to 28.8 V; typical active power input is 53 W.
How can project and archive data be transferred or backed up from 6AV2124-0XC02-0AX0?
Transfer and storage are supported through Ethernet, USB and approved external storage media, including compatible SD memory cards.
What display and touch characteristics should be checked for 6AV2124-0XC02-0AX0?
The panel uses a 21.5-inch 1920 × 1080 widescreen TFT display with 16,777,216 colors and an analog-resistive touch screen.
What should engineers validate after replacing 6AV2124-0XC02-0AX0?
Restore the correct WinCC project, confirm network and MPI/PROFIBUS settings, test touch operation, alarms, recipes, archives and communication with every configured controller.
Compatibility & Ordering Notes
Compatibility Checklist for 6AV2124-0XC02-0AX0
Match the full suffix without shortening the order number.
Confirm the installed SIMATIC HMI Comfort Panels hardware and project version.
Verify PROFINET and MPI/PROFIBUS DP.
Confirm required memory media, connectors and accessories in the written quotation.
