Siemens SIPLUS S7-1500 CM 1542-5 PROFIBUS Module 6AG1542-5DX00-7XE0
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
Siemens • SIPLUS S7-1500

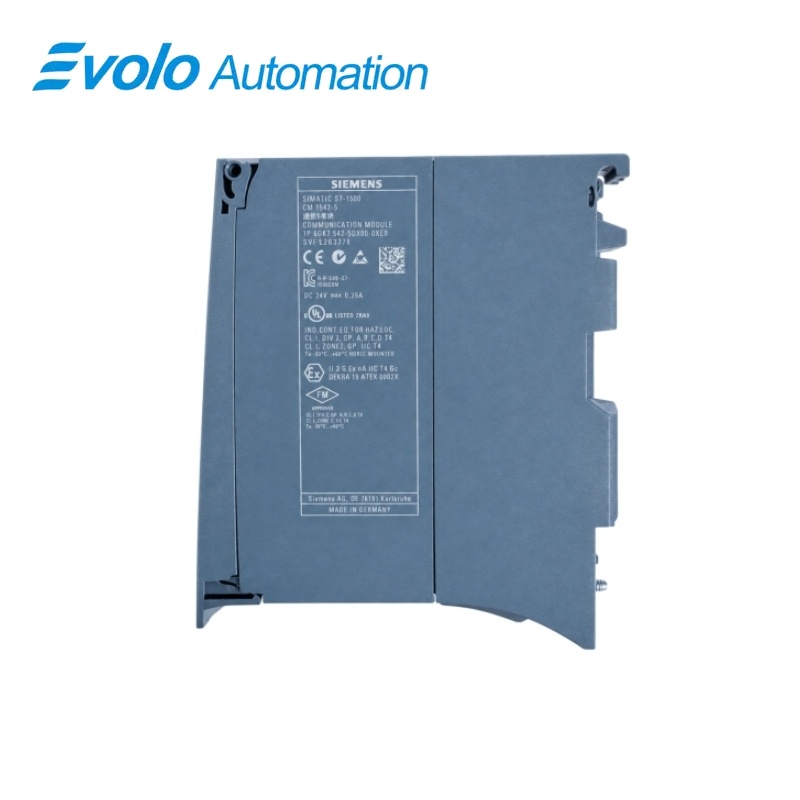

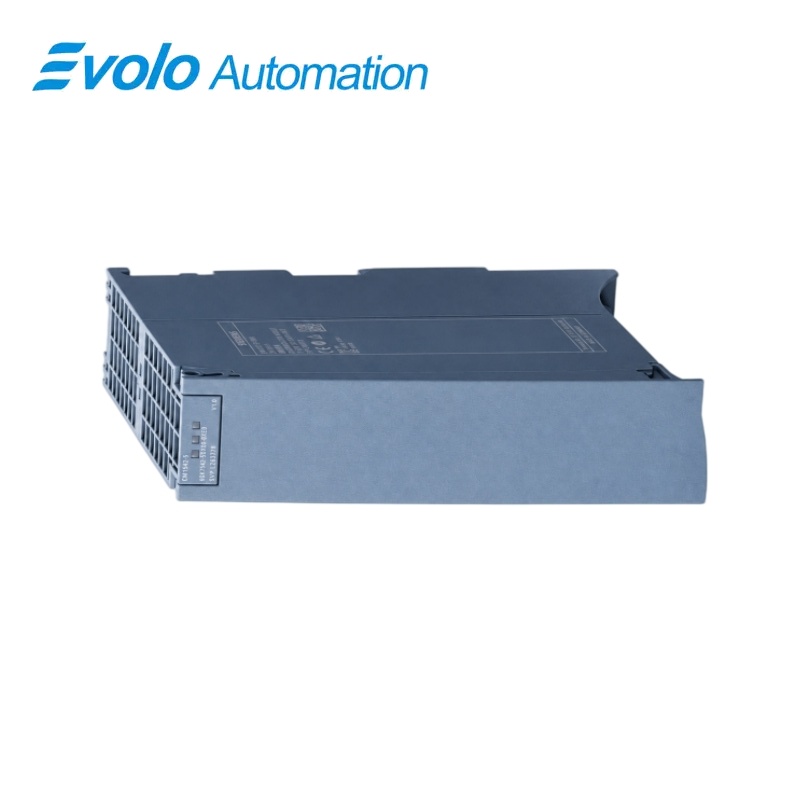

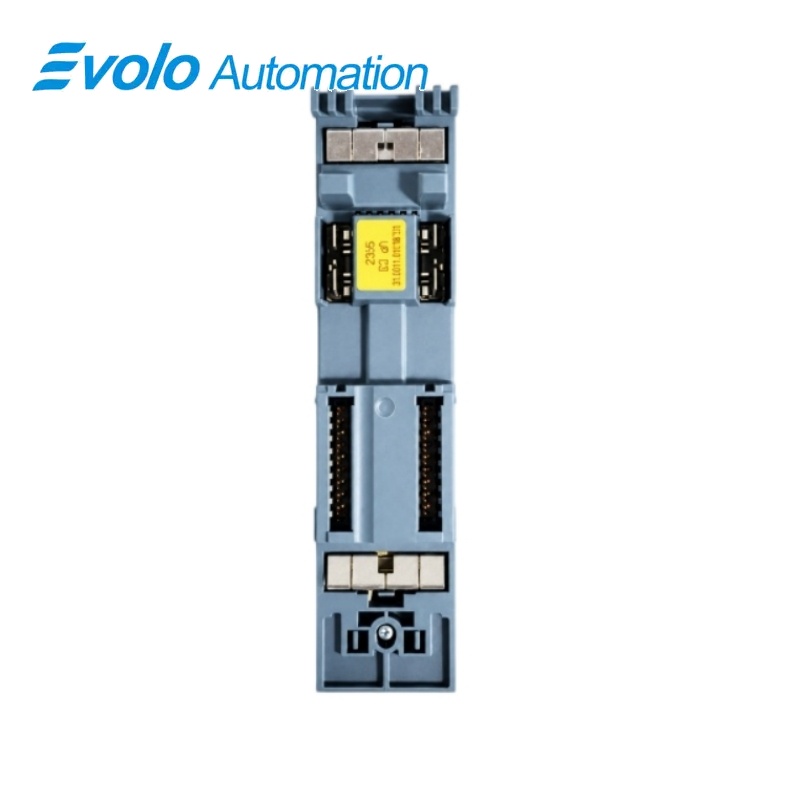

6AG1542-5DX00-7XE0 SIPLUS S7-1500 CM 1542-5 PROFIBUS Module
The Siemens SIPLUS CM 1542-5 is the conformal-coated extended-temperature version of the S7-1500 PROFIBUS communication module for DP master, DP device, S7 and PG/OP communication.
At a Glance
| Brand | Siemens |
|---|---|
| Model | 6AG1542-5DX00-7XE0 |
| Product Type | Conformal-coated PROFIBUS communication module |
| Core Function | Adds PROFIBUS DP master or device communication to an S7-1500 controller |
| Application or Compatible Series | S7-1500 systems requiring PROFIBUS and extended environmental capability |
Exact Identification
Match 6AG1542-5DX00-7XE0 character by character and confirm the complete SIPLUS S7-1500 CM 1542-5 PROFIBUS Module designation.
Interface Arrangement
Confirm the installed supply, ports, field connections and required accessories before wiring the replacement.
Configuration Check
Preserve the approved engineering project, network parameters and application data used by the installed system.
Product Overview
The Siemens SIPLUS CM 1542-5 is the conformal-coated extended-temperature version of the S7-1500 PROFIBUS communication module for DP master, DP device, S7 and PG/OP communication.
The module adds one electrical PROFIBUS interface with DPV1 master and device operation. Communication tasks are handled by the module to reduce the host CPU communication load. Conformal coating and the documented extended temperature range support demanding industrial sites.
Key Functions
PROFIBUS DP Expansion
The module adds one electrical PROFIBUS interface with DPV1 master and device operation.
Independent Communication Processing
Communication tasks are handled by the module to reduce the host CPU communication load.
SIPLUS Environmental Protection
Conformal coating and the documented extended temperature range support demanding industrial sites.
Official Specifications
| Base Product | 6GK7542-5DX00-0XE0 |
|---|---|
| Environmental Treatment | Conformal coating |
| Operating Temperature | -40 to +70 °C |
| Minimum Startup Temperature | -25 °C |
| PROFIBUS Connections | 1 |
| PROFIBUS Connector | 9-pin D-sub socket, RS485 |
| Supported Data Rates | 9.6 kbps to 12 Mbps including 45.45 kbps |
| Backplane Supply | 15 V DC |
| Backplane Current | 200 mA |
| Power Loss | 3 W |
| Insulation Test Voltage | 707 V DC |
| Module Format | Compact S7-1500 module, single width |
| Degree of Protection | IP20 |
| Approximate Weight | 400 g |
| Dimensions | 35 x 142 x 129 mm |
| Maximum DP Slaves as Master | 125 |
| Master Input Address Space | 8,192 bytes |
| Master Output Address Space | 8,192 bytes |
| Maximum Data per DP Slave | 244 input bytes and 244 output bytes |
| Maximum S7 Connections | 40 |
Frequently Asked Questions
Can 6AG1542-5DX00-7XE0 operate as a PROFIBUS DP master?
Yes; DPV1 master operation supports up to 125 configured DP slaves.
Can 6AG1542-5DX00-7XE0 also work as a DP device?
Yes; DPV0 and DPV1 device operation are supported.
Which PROFIBUS connector is fitted to 6AG1542-5DX00-7XE0?
One 9-pin D-sub RS485 socket provides the bus connection.
What data rates can 6AG1542-5DX00-7XE0 use?
The interface supports standard PROFIBUS rates from 9.6 kbps through 12 Mbps.
Why is 6AG1542-5DX00-7XE0 used instead of the standard module?
The SIPLUS version adds conformal coating and extended environmental operation.
Which engineering baseline supports 6AG1542-5DX00-7XE0?
Use a compatible S7-1500 hardware catalog and STEP 7 Professional in TIA Portal.
What should be saved before replacing 6AG1542-5DX00-7XE0?
Preserve the TIA Portal project, DP addresses, master or device role, bus parameters and diagnostic configuration.
Compatibility & Ordering Notes
Compatibility Checklist
- Use an S7-1500 CPU and hardware catalog that support the CM 1542-5 module revision.
- Keep the PROFIBUS address, baud rate and DP station configuration identical to the approved project.
- Observe the SIPLUS temperature, coating and mounting requirements when installing the replacement.
