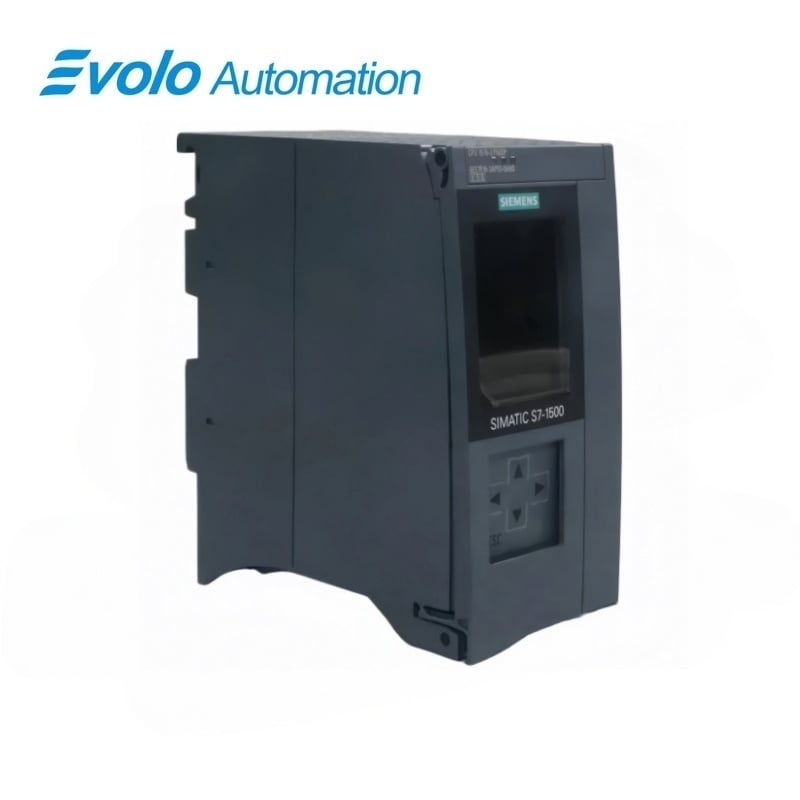

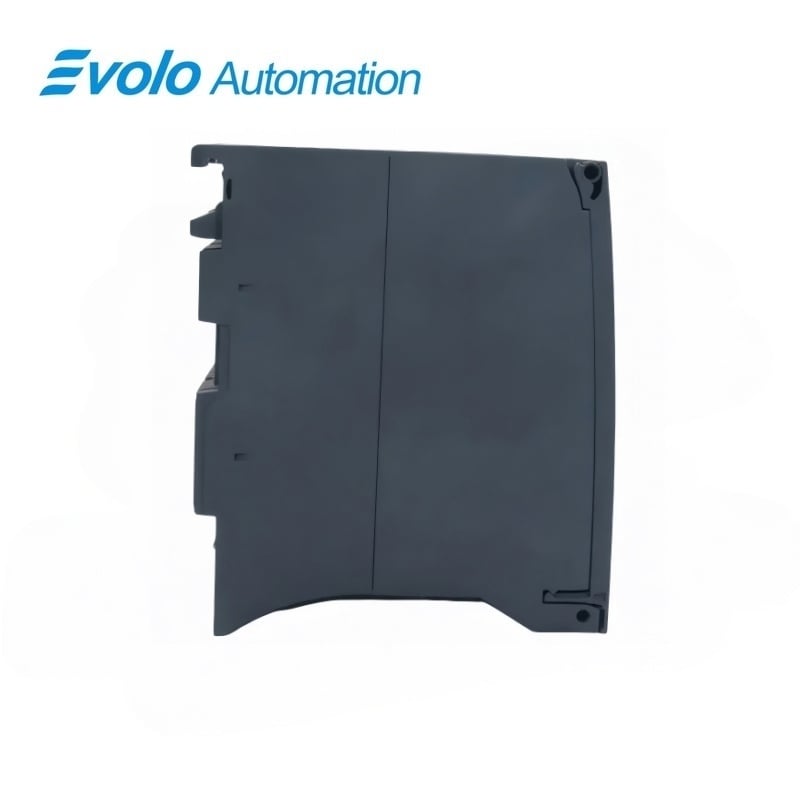

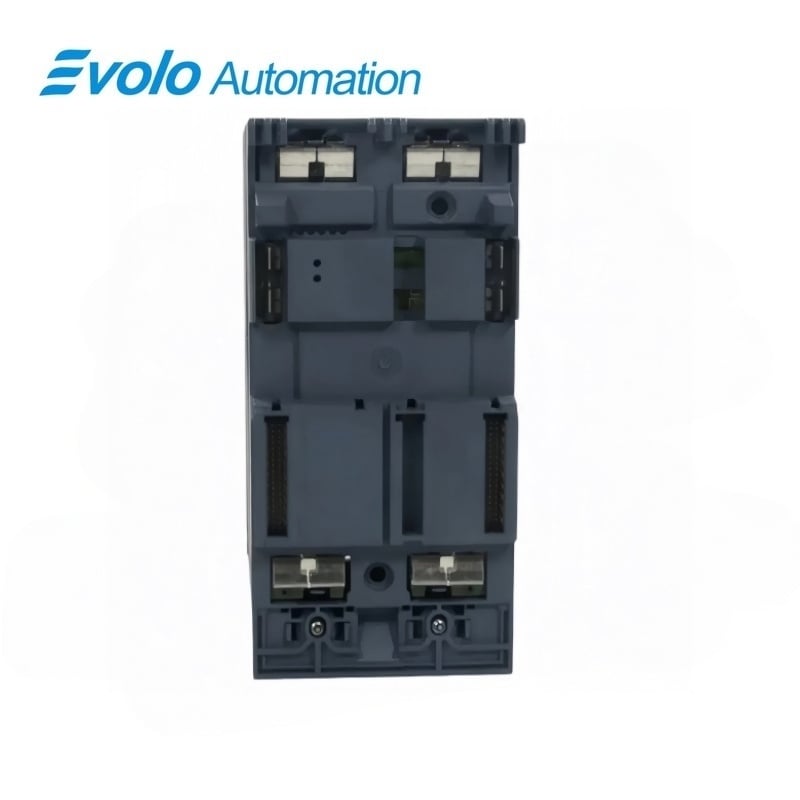

Siemens SIPLUS S7-1500 6AG1516-3FN02-2AB0 CPU 1516F-3 PN/DP
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
SIPLUS S7-1500 6AG1516-3FN02-2AB0 CPU 1516F-3 PN/DP
Conformal-coated CPU 1516F-3 PN/DP for -40 °C to +60 °C operation, with 1.5 MB program memory, 5 MB data memory, PROFINET and PROFIBUS interfaces.
At a Glance
| Article Number | 6AG1516-3FN02-2AB0 |
|---|---|
| Manufacturer | Siemens |
| Series | SIPLUS S7-1500 |
| Product Type | CPU 1516F-3 PN/DP |
| Program Memory | 1.5 MB |
Match the complete article number and installed hardware.
Confirm PROFINET and PROFIBUS DP.
Verify project data and official system documentation.
Product Overview
6AG1516-3FN02-2AB0 is officially identified by Siemens as the SIPLUS CPU 1516F-3 PN/DP in the SIPLUS S7-1500 family. Conformal-coated SIPLUS CPU 1516F-3 PN/DP for extended temperature operation from -40 °C to +60 °C.
For replacement and quotation, compare the complete article number, hardware version, interface requirements and installed configuration.
Key Functions
Model-Specific Configuration
6AG1516-3FN02-2AB0: Fail-safe S7-1500 controller.
System Interface
6AG1516-3FN02-2AB0: Conformal coating for demanding environments.
Performance & Memory
6AG1516-3FN02-2AB0: Extended operating temperature from -40 °C to +60 °C.
Replacement Control
6AG1516-3FN02-2AB0: PROFINET and PROFIBUS DP communications.
Official Specifications
| Base Hardware | 6ES7516-3FN02-0AB0 |
|---|---|
| Environmental Design | Conformal coating |
| Operating Temperature | -40 °C to +60 °C |
| Data Work Memory | 5 MB |
| Load Memory, Maximum | 32 GB via SIMATIC Memory Card |
| Memory Card | 1 slot; SIMATIC Memory Card required |
| Rated Supply Voltage | 24 V DC |
| Permissible Voltage Range | 19.2 V DC to 28.8 V DC |
| Current Consumption | 0.85 A rated; 1.1 A maximum |
| Typical Power Loss | 7 W |
| CPU Processing Times | Bit: 10 ns; word: 12 ns; fixed-point: 16 ns; floating-point: 64 ns |
| Retentive Data Area, Maximum | 512 KB |
| I/O Address Capacity | 32 KB inputs; 32 KB outputs |
| Integrated IO Controllers | 2 |
| Integrated DP Masters | 1 |
| Modules per Rack, Maximum | 32 (CPU + 31 modules) |
| Isochronous Operation | Distributed and central; minimum OB6x cycle 375 µs distributed and 1 ms central |
| CPU Blocks, Maximum | 8,000 |
Frequently Asked Questions
What ambient-temperature range should be considered when installing 6AG1516-3FN02-2AB0?
The conformal-coated CPU is specified for operation from -40 °C to +60 °C. Keep the complete control cabinet and connected components within their own permitted environmental limits.
Which base CPU and project data should be checked before replacing 6AG1516-3FN02-2AB0?
Match the underlying 6ES7516-3FN02-0AB0 hardware, TIA Portal hardware configuration, firmware, safety program, memory card and network parameters.
How are the industrial networks arranged on 6AG1516-3FN02-2AB0?
The first interface provides PROFINET IRT through an integrated two-port switch, the second provides PROFINET RT, and the third provides PROFIBUS.
What memory must be planned for an application using 6AG1516-3FN02-2AB0?
The integrated working memory provides 1.5 MB for the program and 5 MB for data, and a SIMATIC Memory Card is required.
What supply-voltage range is required by 6AG1516-3FN02-2AB0?
Use a 24 V DC supply within the permitted range of 19.2 V to 28.8 V and follow the official wiring and grounding requirements.
Can 6AG1516-3FN02-2AB0 be used for isochronous control tasks?
Yes. Isochronous operation is supported for distributed and central configurations, subject to the documented OB cycle and network requirements.
Which tests should engineers complete after commissioning 6AG1516-3FN02-2AB0?
Verify the safety program, configured I/O, PROFINET and PROFIBUS stations, diagnostics, operating mode, memory card and behavior under the specified environmental conditions.
Compatibility & Ordering Notes
Compatibility Checklist for 6AG1516-3FN02-2AB0
Match the full suffix without shortening the order number.
Confirm the installed SIPLUS S7-1500 hardware and project version.
Verify PROFINET and PROFIBUS DP.
Confirm required memory media, connectors and accessories in the written quotation.
