330101-00-12-20-12-CN 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-12-20-12-CN
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

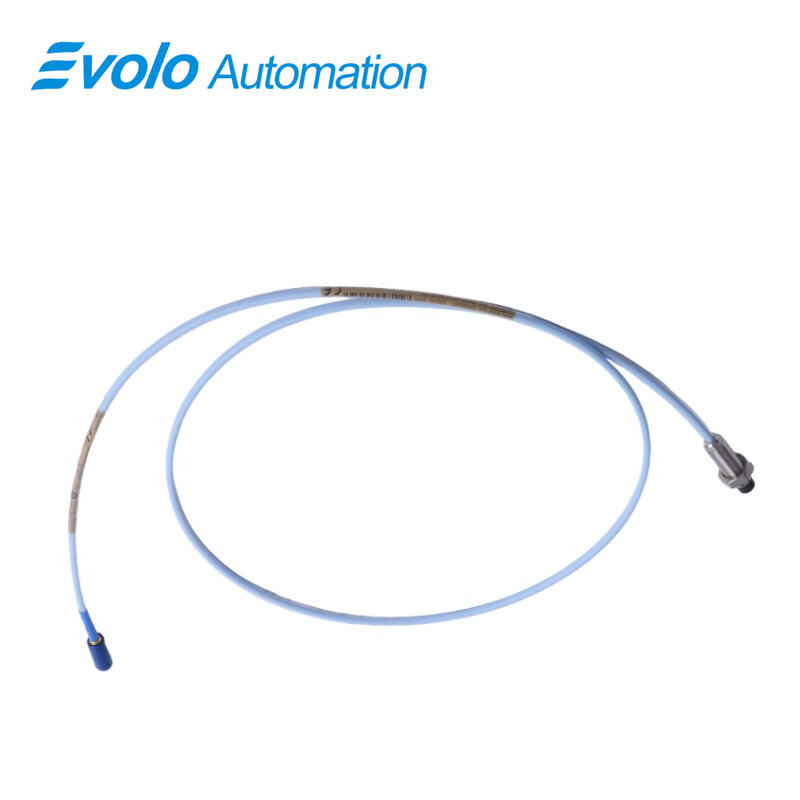

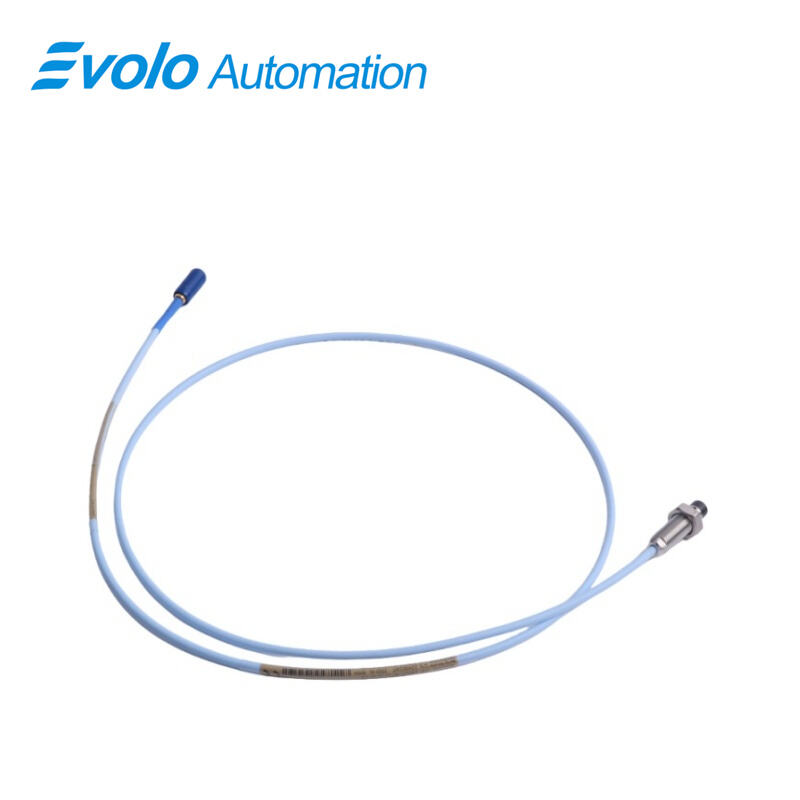

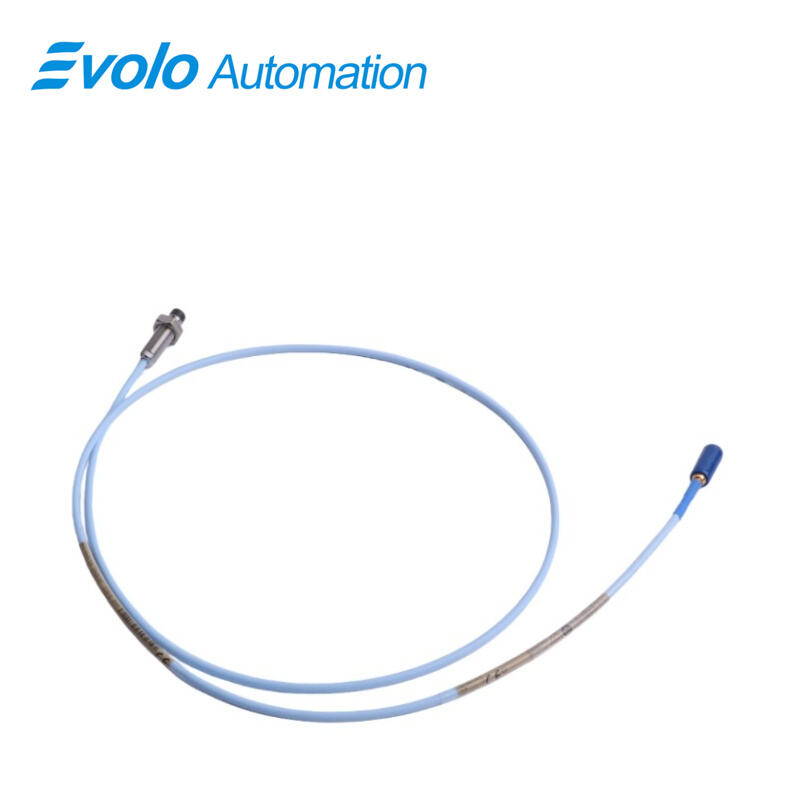

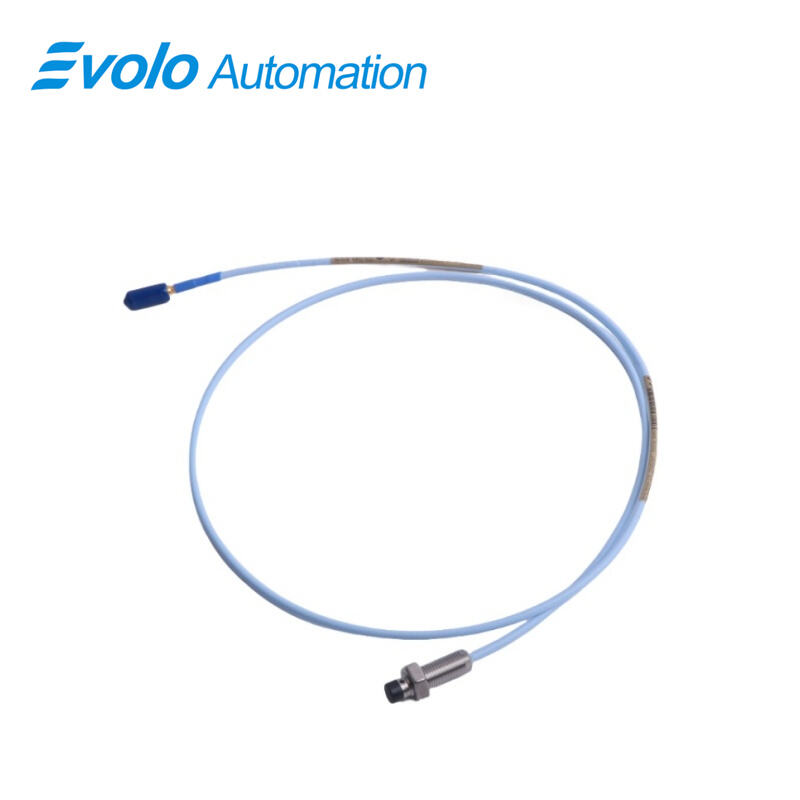

The 330101-00-12-20-12-CN 3300 XL 8 mm Proximity Probe is a high-precision eddy current transducer engineered for advanced industrial automation, predictive maintenance, and machinery condition monitoring. This 8 mm probe provides an output voltage directly proportional to the distance between the probe tip and the conductive surface, enabling accurate static position and dynamic vibration measurements in real-time. With a 1.2-inch overall case length and 2.0-meter FluidLoc cable featuring a Miniature coaxial ClickLoc connector, the probe integrates seamlessly into turbines, pumps, compressors, and other fluid-film bearing machinery, delivering robust and reliable automation feedback.

The probe operates reliably across -52°C to +177°C (-62°F to +350°F), with less than 2 mV supply sensitivity per volt, 50 Ω output resistance, and 69.9 pF/m cable capacitance, ensuring stable signal transmission in demanding environments. Its 3/8-24 UNF threaded mount and maximum thread engagement of 0.563 inches provide secure installation, while patented TipLoc and CableLoc designs enhance mechanical durability with 330 N (75 lbf) pull strength. Optional FluidLoc cabling prevents oil and fluid leakage, preserving signal integrity. Fully CSA, ATEX, and IECEx certified and API 670 compliant, the probe is backward compatible with 3300 series probes and Proximitor sensors, enabling modular and standardized condition monitoring setups.

Applications

Application 1: Turbine Shaft Vibration Monitoring

Delivers high-resolution vibration measurements with a 2 mm linear range, enabling predictive maintenance to prevent unplanned turbine downtime.

Application 2: Pump Shaft Position Measurement

Provides precise displacement data for automated control systems, improving pump efficiency and reliability.

Application 3: Keyphasor Phase Signal Generation

Generates accurate phase signals for rotational speed monitoring, supporting synchronization in high-speed automation systems.

Application 4: Fluid-Film Bearing Condition Monitoring

Integrates with control systems to track bearing position and vibration, allowing early detection of mechanical wear.

Application 5: Lubricated Equipment Automation

Optional FluidLoc cabling ensures leak-proof operation, maintaining reliable measurements in oil-lubricated machinery.

Specifications

Competitive Advantage

Competitive Advantage 1: Hazardous Area Certifications

Certified to CSA, ATEX, and IECEx standards, enabling safe operation in explosive and hazardous industrial zones.

Competitive Advantage 2: Fluid-Resistant Cable Design

Optional FluidLoc cable prevents fluid ingress, ensuring stable output and long-term reliability in lubrication-heavy environments.

Competitive Advantage 3: Extreme Temperature Tolerance

Operates across -52°C to +177°C, suitable for both low-temperature and high-heat industrial processes.

Competitive Advantage 4: Superior Mechanical Strength

Patented TipLoc and CableLoc designs provide 330 N pull strength, ensuring cable and probe remain securely attached under high-vibration conditions.

Competitive Advantage 5: API 670 Compliance and Interchangeability

Fully API 670 compliant and compatible with other 3300 series components, simplifying maintenance, upgrades, and standardized monitoring system deployment.
