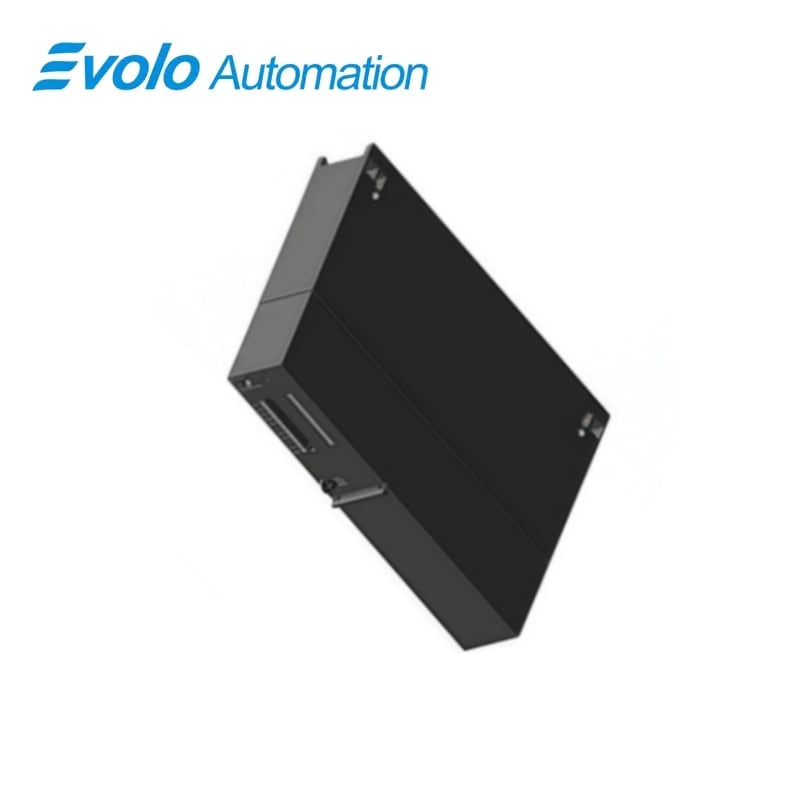

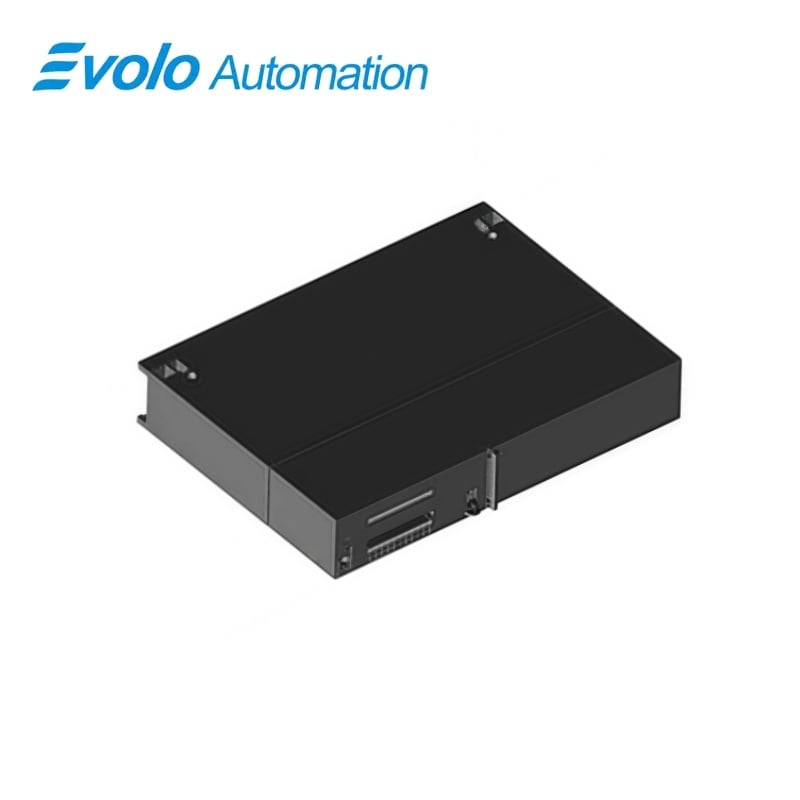

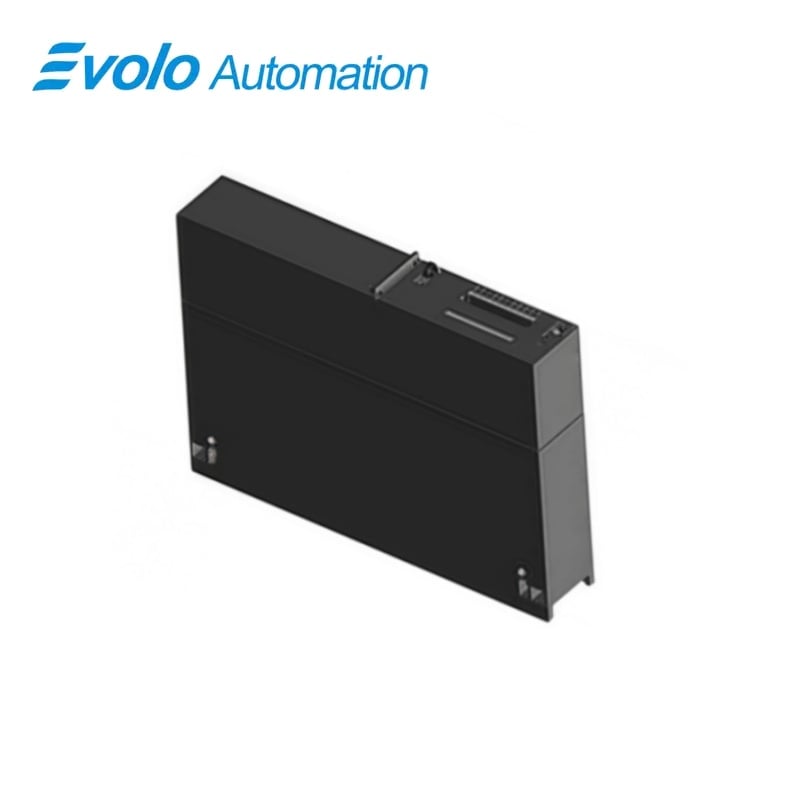

Siemens SIPLUS S7-400 6AG1416-3XS07-7AB0 CPU 416-3
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
6AG1416-3XS07-7AB0 SIPLUS S7-400 CPU 416-3
Official Siemens identification and technical data, prepared for accurate replacement matching and quotation.
At a Glance
| Article Number | 6AG1416-3XS07-7AB0 |
| Manufacturer | Siemens |
| Platform | SIMATIC S7-400 |
| Product Type | SIPLUS CPU 416-3 |
| Official Source | Siemens Industry Mall / SiePortal |
Match the complete 6AG1416-3XS07-7AB0 article number and installed hardware.
Verify connectors, ports and communication configuration.
Confirm firmware, project data and required accessories.
Product Overview
6AG1416-3XS07-7AB0 is officially identified by Siemens as SIPLUS S7-400 CPU 416-3 based on 6ES7416-3XS07-0AB0 with conformal coating for extended temperature operation.
The full article number should be matched against the installed device, hardware revision and official Siemens project documentation before replacement or ordering.
Key Functions
Extended-Temperature Operation
The SIPLUS design and conformal coating support operation from −25 to +70 °C.
Large Work Memory
Provides 16 MB total work memory split equally between code and data.
Flexible S7-400 Communication
Combines MPI/DP, PROFIBUS DP and a plug-in IFM interface position.
Official Specifications
| Manufacturer | Siemens |
| Article Number | 6AG1416-3XS07-7AB0 |
| Product Type | SIPLUS CPU 416-3 |
| Base Article | 6ES7416-3XS07-0AB0 |
| Coating | Conformal coating |
| Operating Temperature | −25 to +70 °C |
| Work Memory | 16 MB total; 8 MB code and 8 MB data |
| First Interface | MPI/DP, 12 Mbit/s |
| Second Interface | PROFIBUS DP |
| Third Interface | Plug-in IFM module |
Frequently Asked Questions
Which standard SIMATIC CPU should engineers match when replacing 6AG1416-3XS07-7AB0?
Match the SIPLUS CPU 416-3 hardware with the installed S7-400 rack, firmware, project and interface configuration before replacement.
What ambient temperature range is specified for 6AG1416-3XS07-7AB0?
The conformal-coated unit is specified for operation from -25 °C to +70 °C under the documented SIPLUS installation conditions.
Which communication interfaces must be checked on 6AG1416-3XS07-7AB0?
Check the MPI/DP interface rated up to 12 Mbit/s, the separate PROFIBUS DP interface and any installed plug-in interface module.
How much working memory is available in 6AG1416-3XS07-7AB0?
The CPU provides 16 MB of working memory, divided into 8 MB for code and 8 MB for data.
What installation precaution applies to unused interfaces on 6AG1416-3XS07-7AB0?
Keep the supplied connector covers fitted to unused interfaces so the specified resistance to dust and environmental exposure is maintained.
Can 6AG1416-3XS07-7AB0 be installed in dusty or chemically demanding areas?
Yes, within the specified SIPLUS conditions: Class 3S4 for sand and dust and Class 3C4 for chemical exposure, including salt spray at relative humidity below 75%.
What should technicians test after commissioning 6AG1416-3XS07-7AB0?
Verify CPU startup, rack configuration, MPI/DP and PROFIBUS communication, the plug-in interface assignment and all connected I/O diagnostics.
Compatibility & Ordering Notes
Compatibility checklist for 6AG1416-3XS07-7AB0
- Match the complete article number without shortening the suffix.
- Confirm the installed SIMATIC S7-400 system and hardware revision.
- Verify interface, power, connector and mounting requirements.
- Confirm the engineering project, firmware and memory requirements.
