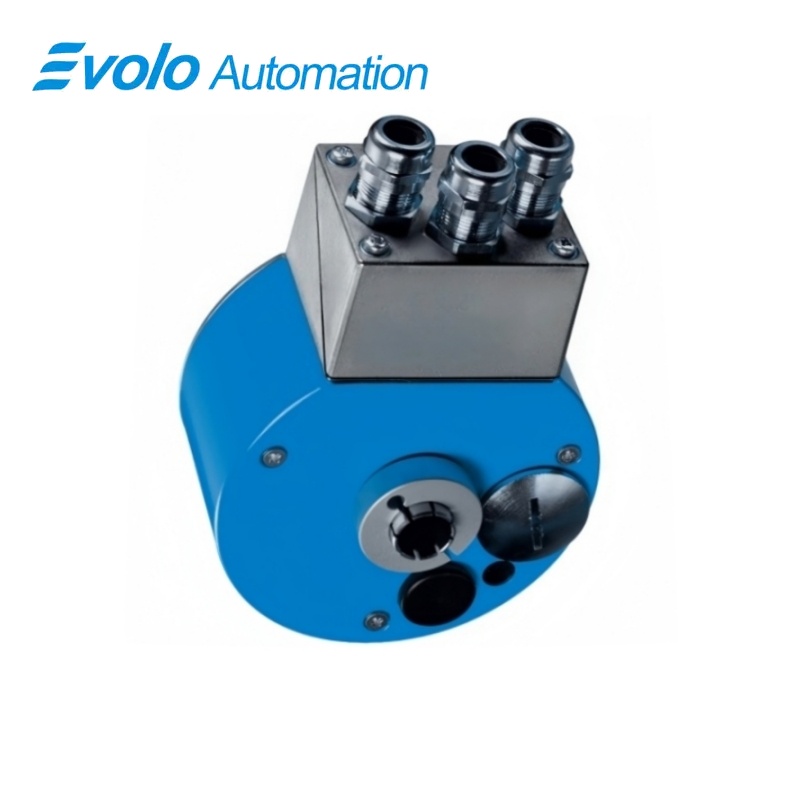

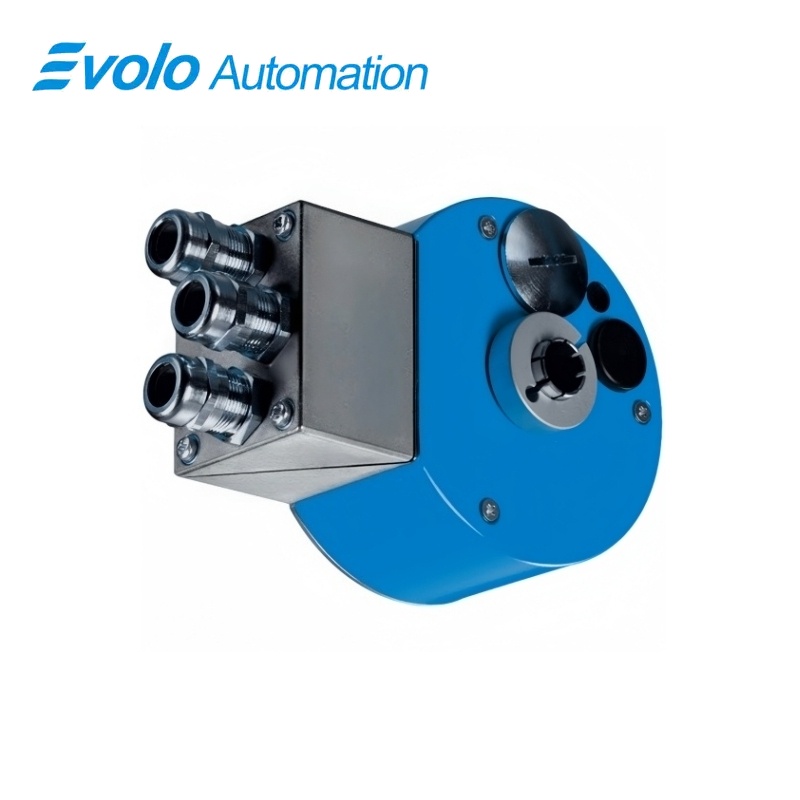

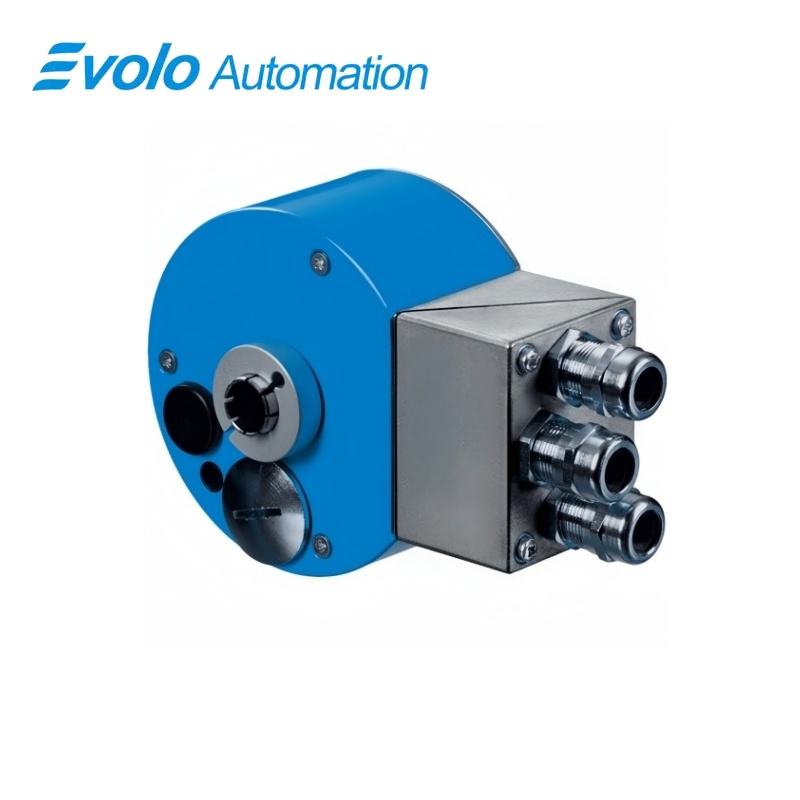

SICK ATM90 Absolute Encoder with 12 mm Through Hollow Shaft ATM90-PTG13X13
Manufacturer: SICK
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
SICK · ATM90
ATM90-PTG13X13 ATM90 Absolute Encoder with 12 mm Through Hollow Shaft
The SICK ATM90 is a heavy-duty absolute encoder with a 12 mm through hollow shaft, stainless-steel shaft construction and a wide industrial temperature range.
At a Glance
| Brand | SICK |
|---|---|
| Model | ATM90-PTG13X13 |
| Product Type | multiturn absolute encoder |
| Core Function | Provides absolute position feedback through a mechanically robust 12 mm through hollow shaft |
| Application or Compatible Series | Industrial motion and position-feedback systems using the ATM90 encoder interface |
Exact Identification
Match ATM90-PTG13X13 character by character and confirm the complete ATM90 Absolute Encoder with 12 mm Through Hollow Shaft designation.
Interface Arrangement
Confirm the installed supply, ports, field connections and required accessories before wiring the replacement.
Configuration Check
Preserve the approved engineering project, network parameters and application data used by the installed system.
Product Overview
The SICK ATM90 is a heavy-duty absolute encoder with a 12 mm through hollow shaft, stainless-steel shaft construction and a wide industrial temperature range.
The encoder maintains absolute shaft-position information for machine and motion-control applications. A 12 mm through hollow shaft supports direct mechanical coupling to the driven shaft. The enclosure combines a stainless-steel shaft, aluminum flange and IP65 protection when the mating connector is installed.
Key Functions
Absolute Position Feedback
The encoder maintains absolute shaft-position information for machine and motion-control applications.
Through Hollow Shaft
A 12 mm through hollow shaft supports direct mechanical coupling to the driven shaft.
Industrial Mechanical Design
The enclosure combines a stainless-steel shaft, aluminum flange and IP65 protection when the mating connector is installed.
Official Specifications
| Supply Voltage | 10 to 32 V DC |
|---|---|
| Power Consumption | ≤ 2 W without load |
| Shaft Design | Through hollow shaft |
| Shaft Diameter | 12 mm |
| Shaft Material | Stainless steel |
| Flange Material | Aluminum |
| Starting Torque | 0.5 Ncm at +20 °C |
| Operating Torque | 0.4 Ncm at +20 °C |
| Maximum Operating Speed | 3,000 min⁻¹ |
| Rotor Inertia | 153 gcm² |
| Bearing Service Life | 3.6 × 10⁹ revolutions |
| Maximum Angular Acceleration | 600,000 rad/s² |
| Degree of Protection | IP65 with mating connector |
| Operating Temperature | -20 to +80 °C |
| Storage Temperature | -40 to +100 °C unpackaged |
| Permissible Relative Humidity | 98% |
| Shock Resistance | 6 g for 20 ms |
| Vibration Resistance | 20 g from 10 to 2,000 Hz |
| Approximate Weight | 0.8 kg |
Frequently Asked Questions
What shaft size is required for ATM90-PTG13X13?
Use the documented 12 mm through hollow-shaft arrangement.
Which supply range powers ATM90-PTG13X13?
Provide 10 to 32 V DC and account for the connected output load.
What maximum speed applies to ATM90-PTG13X13?
Keep continuous operation at or below 3,000 revolutions per minute and consider self-heating.
How is IP65 protection maintained on ATM90-PTG13X13?
Install the specified mating connector and complete all mechanical sealing correctly.
Can it operate at high ambient temperature on ATM90-PTG13X13?
Yes, the specified operating range extends to +80 °C when speed-related self-heating is included in the thermal design.
What mechanical checks are needed before mounting ATM90-PTG13X13?
Verify shaft diameter, runout, axial alignment, torque restraint and connector clearance.
What wiring check prevents commissioning errors on ATM90-PTG13X13?
Match the interface pinout, supply polarity and control-system input format before energizing.
Compatibility & Ordering Notes
Compatibility Checklist
- Match the shaft, torque restraint and connector orientation to the mechanical installation.
- Use the correct mating connector to maintain the specified enclosure protection.
- Verify the receiver interface and pin assignment before applying power.
