Overview
Place of Origin: |
Sweden |
Brand Name: |
ABB |
Model Number: |
SDCS-POW-1 3ADT220090R0003 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Parameter |
Value |
|
Model |
SDCS-POW-1 3ADT220090R0003 |
|
Product Type |
Power Supply Board |
|
Input Voltage |
3 x 400–500 V AC, 50/60 Hz |
|
Output Voltage |
300 V DC |
|
Output Current |
20 A |
|
Power Rating |
6 kW |
|
Weight |
14 kg |
|
Cooling Type |
Fan cooling system |
|
LED Indicators |
Status indicators included |
|
Protection Rating |
IP20 |
|
Operating Temperature |
-25°C to +70°C |
|
Relative Humidity |
5%–95% RH (non-condensing) |
Description

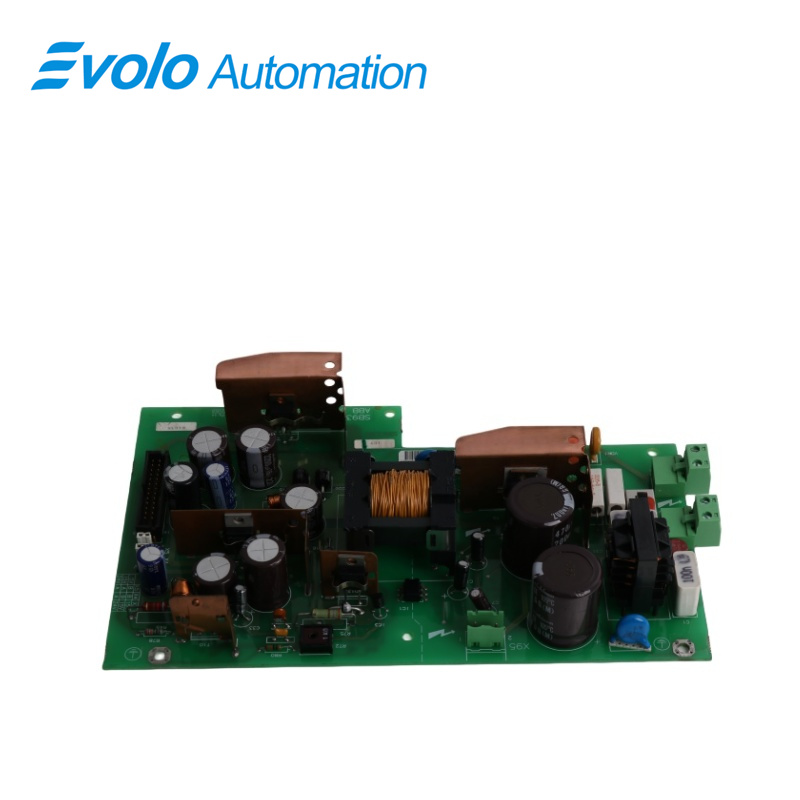

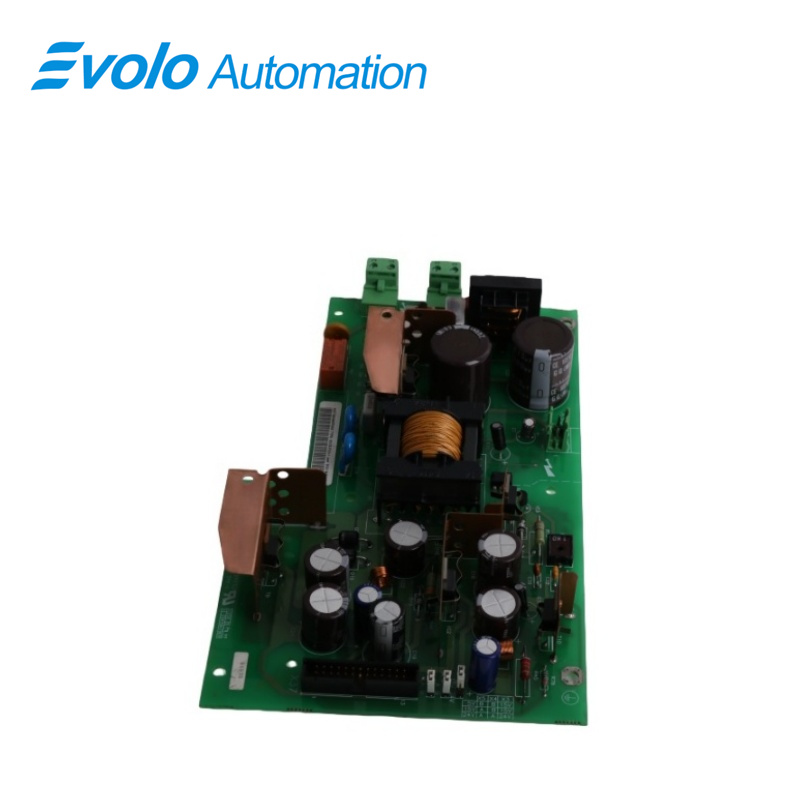

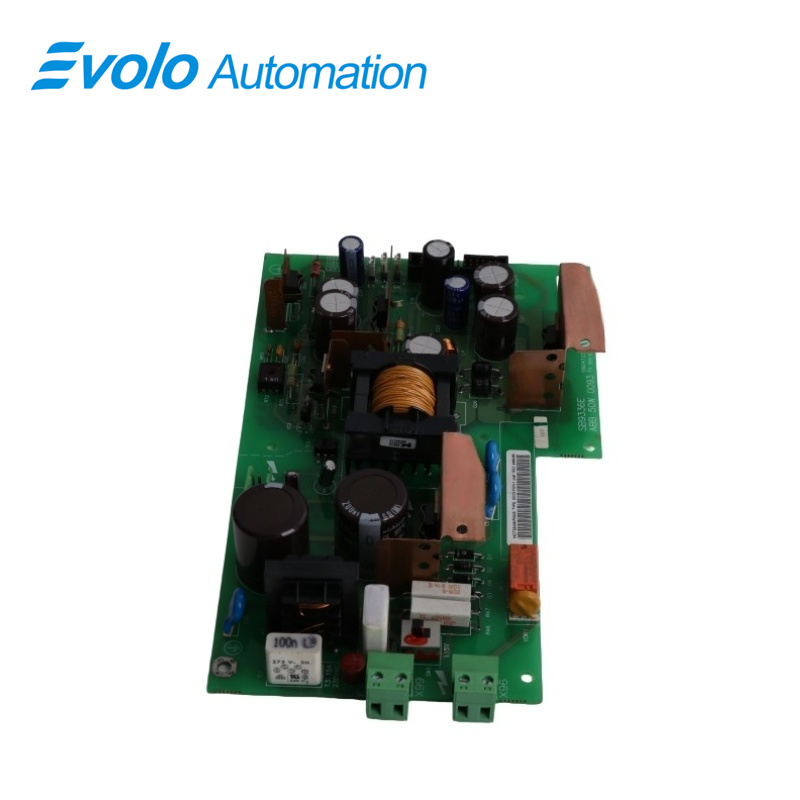

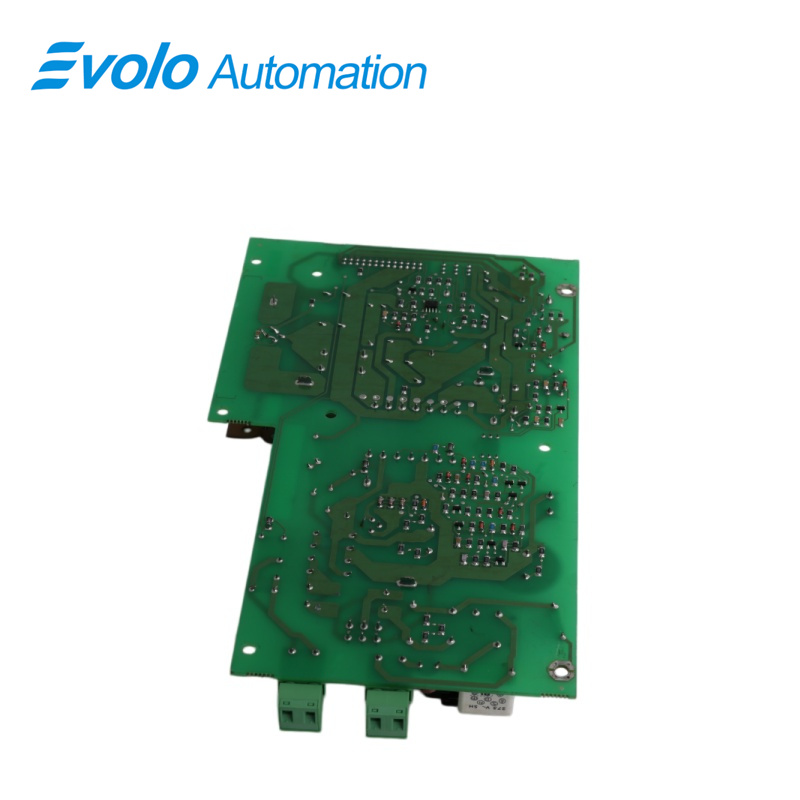

The ABB SDCS-POW-1 3ADT220090R0003 is a power supply board that delivers reliable and efficient performance for various industrial applications. This product has been engineered to provide stable DC voltage and current output, ensuring the smooth and safe operation of connected equipment.
Applications
Large steel mills: Power supply for the excitation and control circuits of high-power rolling mill drive systems.
Mine hoisting plants: Provide stable power for large winches in extremely cold or high-temperature mine environments.
Non-ferrous metal smelting plants: Support the operation of control logic and heat dissipation systems in high-current rectifier cabinets.
Port automation plants: DC power distribution cabinets integrated into large quay cranes.
Rail transit equipment plants: DC bus power conversion for traction testing systems.
Features
High Reliability: Employs industrial-grade components, ensuring high reliability and stability, enabling long-term stable operation in harsh industrial environments.
High Efficiency: High power conversion efficiency reduces energy loss.
Modular Design: Modular design facilitates installation and maintenance.
Multiple Protections: Features overcurrent, overvoltage, and short-circuit protection functions to ensure equipment safety.
Strong Compatibility: Excellent compatibility with other components in ABB automation systems.
Functions
Power Supply: Provides a stable power supply to various components in ABB's automation systems.
Isolation and Protection: Isolates different circuits to prevent interference.
Signal Conversion: Converts different voltage and current signals.
FAQ
Q1: Does SDCS-POW-1 3ADT220090R0003 require three-phase power?
A1: Yes, it requires a three-phase supply (3 × 400–500 VAC) for 6kW output.
Q2: Is the 300VDC output of SDCS-POW-1 3ADT220090R0003 affected by input frequency?
A2: No, it supports 50/60 Hz auto-adaptation with stable 300VDC output.
Q3: Can SDCS-POW-1 3ADT220090R0003 be mounted on a standard DIN rail?
A3: Not recommended due to weight; reinforced mounting is required.
Q4: Will SDCS-POW-1 3ADT220090R0003 shut down if the fan stops?
A4: Yes, overheat protection will trigger shutdown to protect components.
Q5: Can SDCS-POW-1 3ADT220090R0003 operate in high humidity environments?
A5: Yes, up to 95% humidity is supported, but condensation must be avoided.
