Overview
Place of Origin: |
Sweden |
Brand Name: |
ABB |
Model Number: |
SDCS-IOB-3-COAT 3ADT220090R0020 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Parameter |
Value |
|
Model |
SDCS-IOB-3-COAT 3ADT220090R0020 |
|
Product Type |
I/O Connection Board |
|
Dimensions |
23.3 x 9 x 3 cm |
|
Weight |
0.2 kg |
|
Supply Voltage |
230 V |
|
Coating |
Coated |
|
Current Rating |
1 A |
|
Communication Interface |
Modbus TCP/IP |
|
I/O Channels |
16 Input / 16 Output |
|
Operating Temperature |
-20°C to +70°C |
|
Storage Temperature |
-40°C to +85°C |
|
Protection Rating |
IP20 |
Description

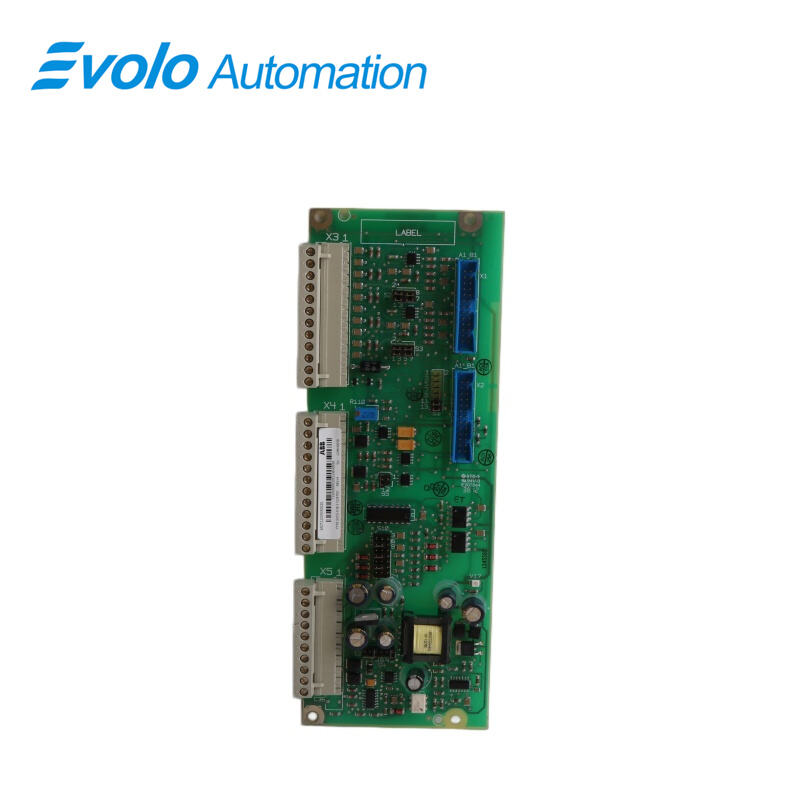

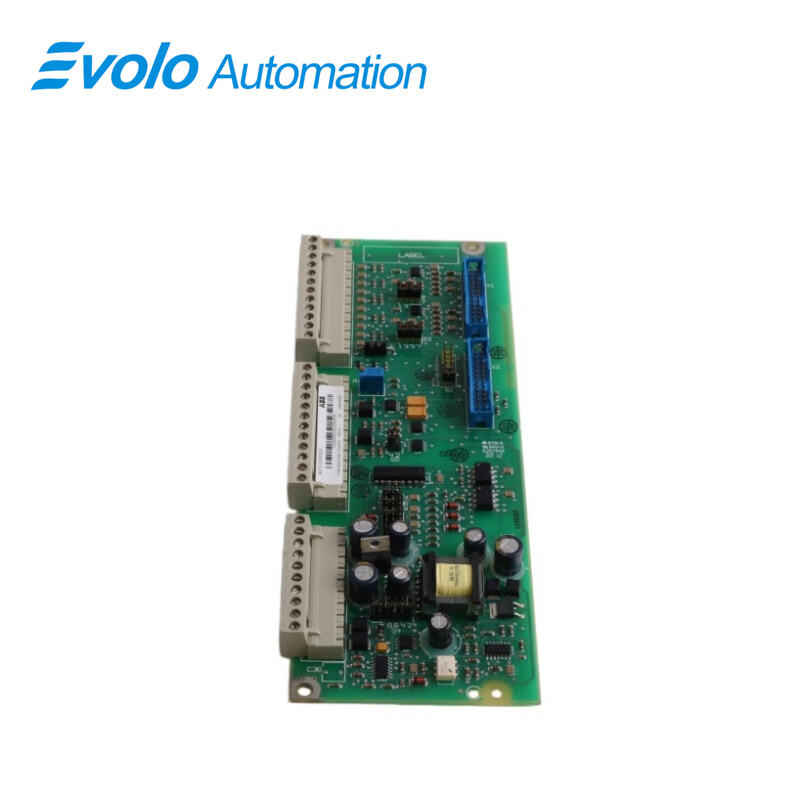

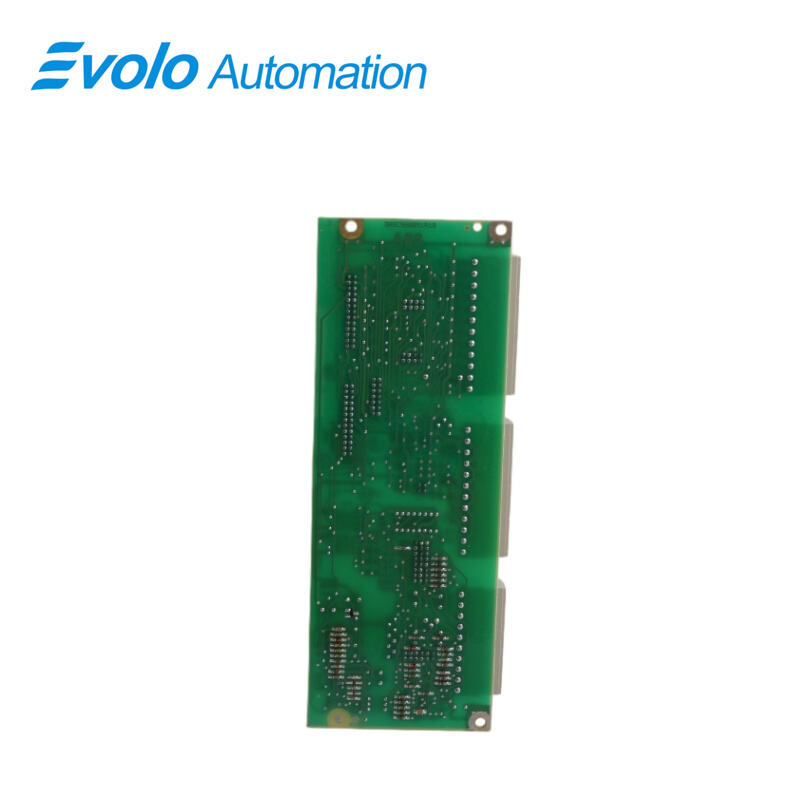

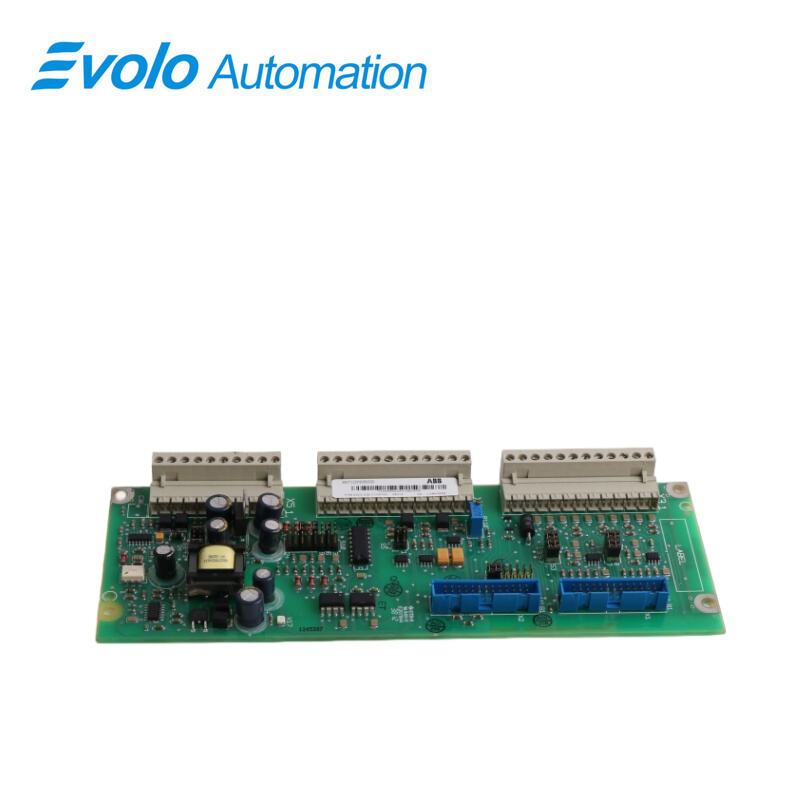

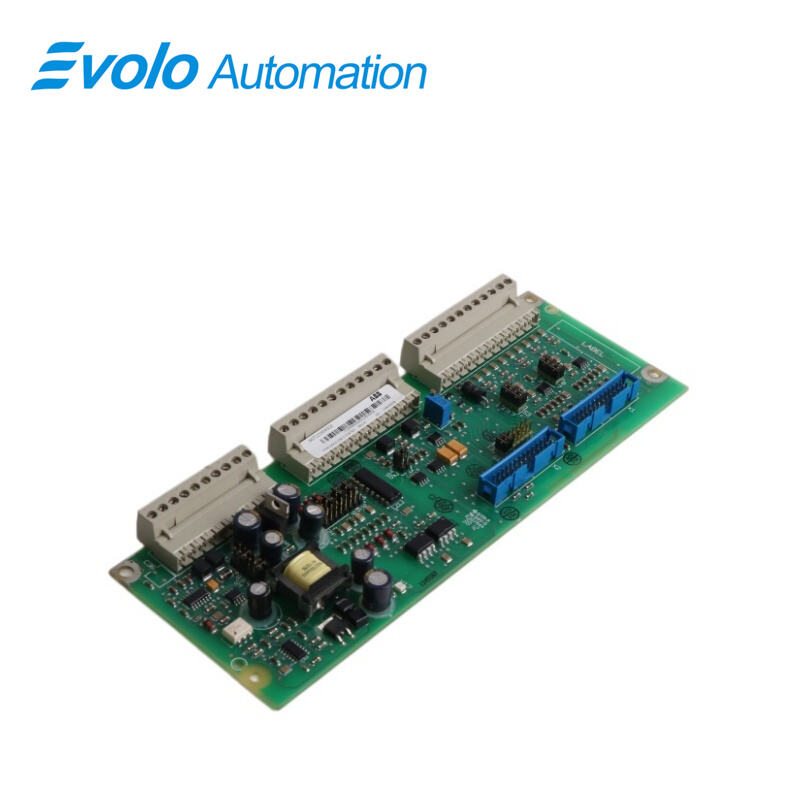

The ABB SDCS-IOB-3-COAT 3ADT220090R0020 is a high-performance I/O connection board designed for integration into ABB automation systems. This device acts as a crucial interface between field devices and the central processing unit (CPU), facilitating real-time interaction. By providing connection points for both digital and analog input/output (I/O) signals, the board ensures smooth and reliable communication within the automation system.
Applications
Aluminum processing plant: Used for synchronous signal connection of extruders and cutting machines.
Cement production plant: Responsible for logic signal exchange between the elevator and feeding system.
Plastics product plant: Integrated into the control link between the injection molding machine drive system and the external safety barrier.
Water treatment plant: Used for remote start/stop and fault feedback of variable frequency pump sets.
Fertilizer production plant: Suitable for data interface between the conveyor belt weighing system and the control room.
Competitive Advantage
Efficient Connectivity: Facilitates smooth communication between field devices and CPU.
Versatile Input/Output: Supports both digital and analog I/O for diverse applications.
Space-Saving Design: Compact and durable, designed for industrial use.
Reliable Performance: Built to provide consistent and stable real-time interaction.
FAQ
Q1: What are the benefits of a coated board in SDCS-IOB-3-COAT 3ADT220090R0020?
A1: Protects against moisture, salt spray, and conductive dust, improving reliability in harsh environments.
Q2: Is 1A current enough for SDCS-IOB-3-COAT 3ADT220090R0020?
A2: Yes for control signals and small relays; use a repeater for high-power contactors.
Q3: How to set Modbus TCP/IP address on SDCS-IOB-3-COAT 3ADT220090R0020?
A3: Via DIP switches or configuration software tools.
Q4: Can SDCS-IOB-3-COAT 3ADT220090R0020 operate at -40°C?
A4: No, operating temperature must stay above -20°C (storage allows -40°C).
Q5: Does 230V refer to supply or signal in SDCS-IOB-3-COAT 3ADT220090R0020?
A5: It refers to I/O logic level capability; the board still requires DC supply.
