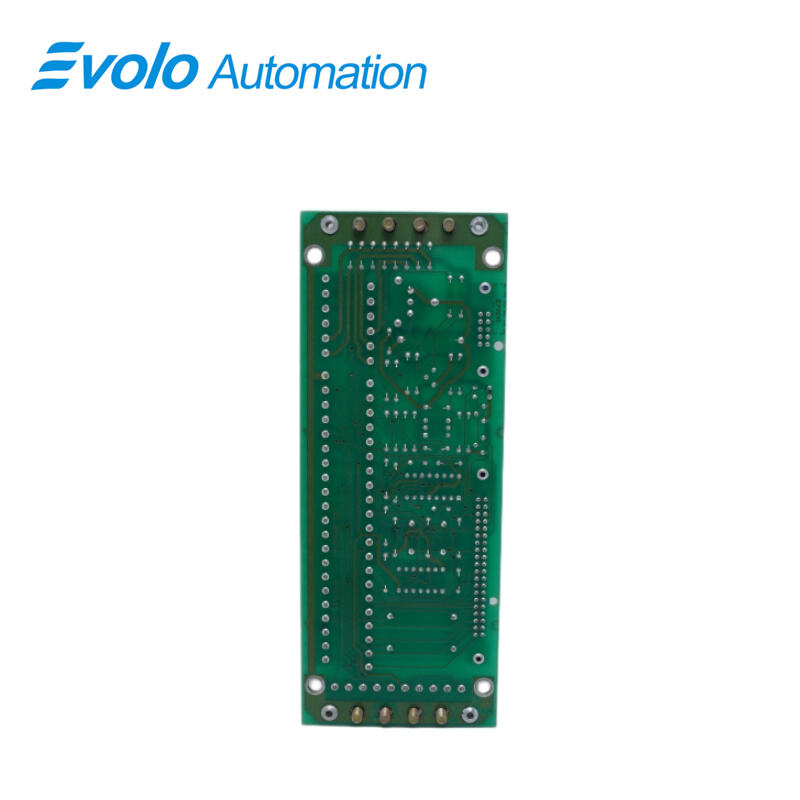

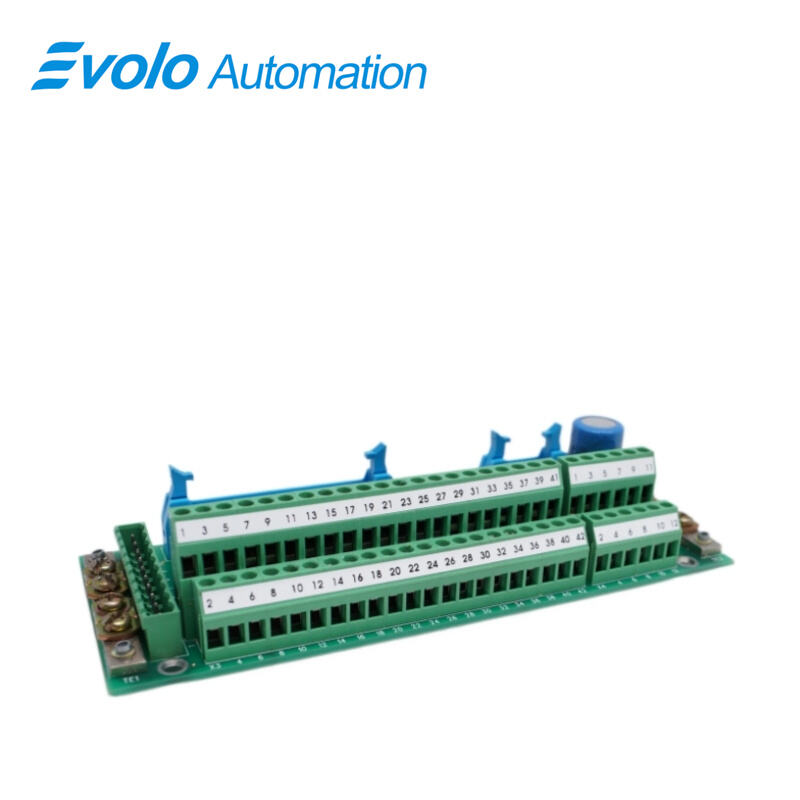

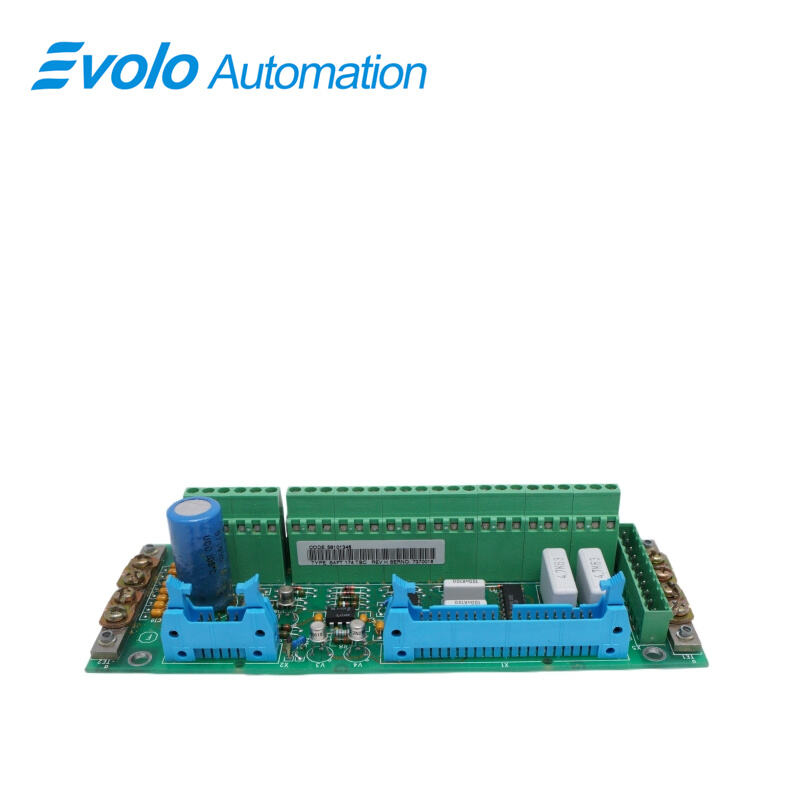

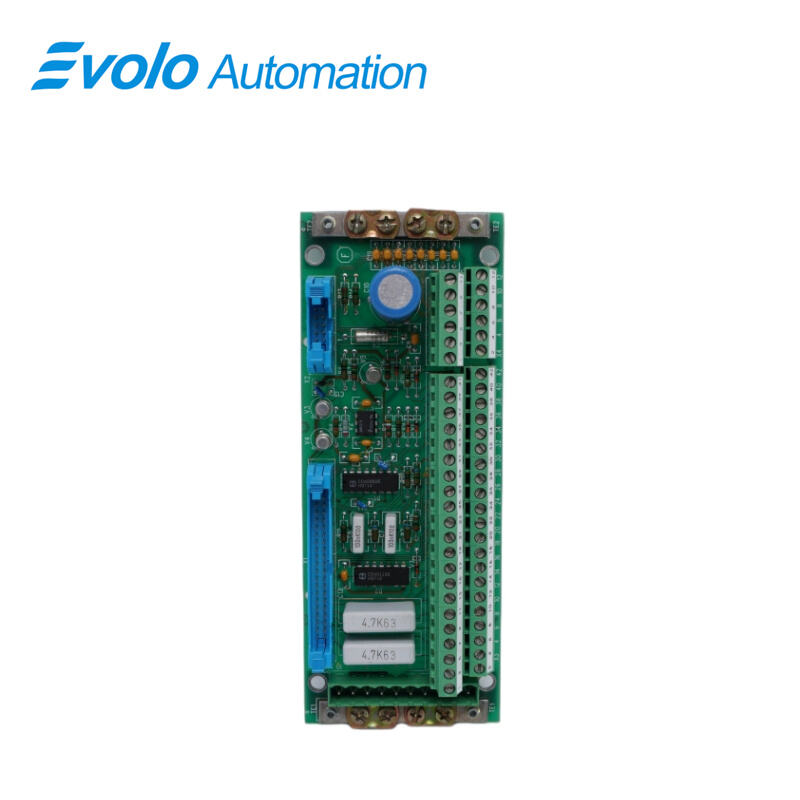

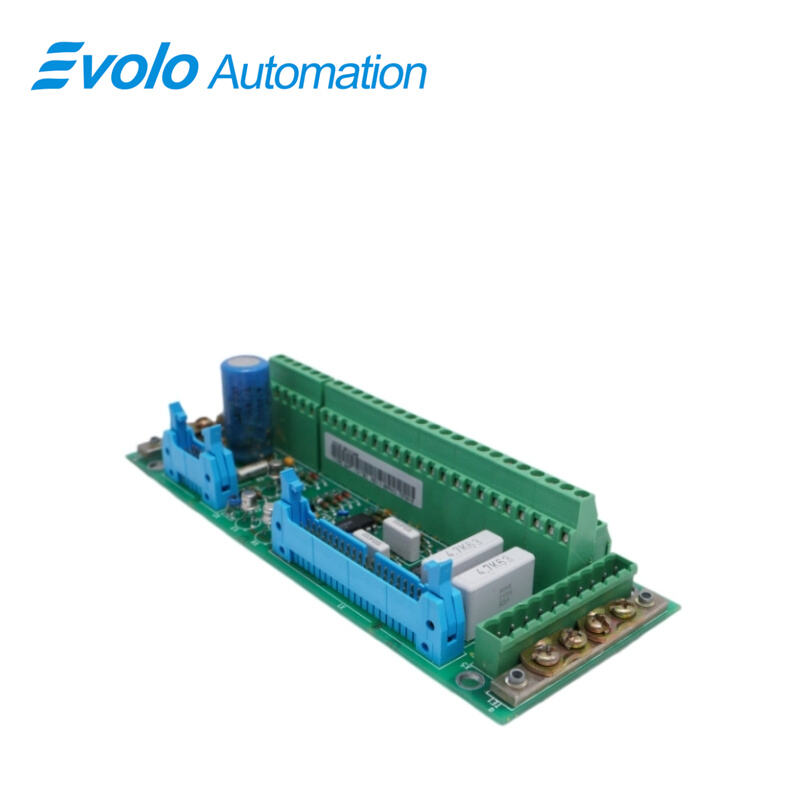

SAFT174TBC SAFT 174 TBC Terminal Block Board

Overview

Place of Origin:	Sweden
Brand Name:	ABB
Model Number:	SAFT174TBC SAFT 174 TBC
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Specifications

Description

The ABB SAFT174TBC SAFT 174 TBC is a high-performatnce terminal block board, which is engineered for seamless integration into complex industrial automation setups, ensuring efficient data and power transfer across various components. Its robust metal housing provides excellent durability and protection against harsh environmental condition.

Applications

Heavy steel mills (for collecting and transmitting sensor signals in high-temperature, high-dust environments)

Large paper mills (integrating speed and position feedback wiring for various sections of the paper machine)

Automotive automated production lines (responsible for external I/O distribution within robot control cabinets)

Power equipment manufacturing plants (integrated into the wiring area of frequency converters or power monitoring cabinets)

Chemical liquid level control stations (for centralized wiring management of multiple solenoid valves and level gauges)

Troubleshooting and Maintenance Recommendations

Troubleshooting:

Poor Signal Contact: Regularly check the torque of the terminals to prevent screws from loosening due to industrial vibration; use a multimeter to measure the impedance across the terminals.

Short Circuit Risk: Check for metal shavings or conductive dust accumulation between terminal blocks to prevent short circuits between adjacent channels.

Maintenance Recommendations:

Label Management: Ensure each terminal on the TBC board is clearly labeled for quick location of faulty lines in case of system alarms.

Regular Cleaning: It is recommended to perform compressed air dust removal every six months to keep the board surface dry and prevent electrochemical corrosion in humid environments.

FAQ

Q: What is the maximum current carrying capacity of SAFT174TBC SAFT 174 TBC?
A: The terminal block supports up to 200 A, suitable for high-power industrial transmission.

Q: Is wiring on SAFT174TBC SAFT 174 TBC convenient?
A: Yes. It uses Quick-lock connectors for fast, tool-free, secure installation.

Q: Can SAFT174TBC SAFT 174 TBC operate in extreme temperatures?
A: Yes. It works from -20°C to +70°C across varied industrial environments.

Q: Does SAFT174TBC SAFT 174 TBC occupy much cabinet space?
A: No. It is compact (18 × 7 × 4.5 cm) and integrates up to 100 terminals.

Q: What is the protection rating of SAFT174TBC SAFT 174 TBC?
A: It is IP20 rated, protecting against finger contact and solid objects over 12.5 mm.
